Husky G2801B-US Manual de usuario

THANK YOU

We appreciate the trust and confidence you have placed in Husky through the purchase of this cabinet. We strive to continually

create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement

needs. Thank you for choosing Husky!

USE AND CARE GUIDE

28 IN.1-DRAWER 2-DOOR BASE CABINET

Questions, problems, missing parts?

Before returning to the store, call

Husky Customer Service

8 a.m. - 5 p.m., EST, Monday - Friday

1-888-HD-HUSKY

WWW.HUSKYTOOLS.COM

Model # G2801B-US

Due to continuing improvements,

the actual product may differ slightly

from the product described herein.

Item # 1002 965 436/

1002 953 222

Table of Contents

Safety Information

Pre-Assembly

Safety Information

To reduce the risk of serious injury, read and follow the safety

instructions below before assembling and using this product.

□This product is intended for indoor use only.

WARNING: Any assembly or maintenance of the product

must be carried out by adults only.

□This product is not designed for commercial nor industrial

usage.

WARNING: Keep the product on level surfaces. The product

could become unstable and it may tip over if stored or

moved on an uneven surface, which may cause personal

injury, death or product damage.

WARNING: Wear safety glasses when removing or

repositioning the slides. The tool could slip, causing personal

injury. Close and lock the drawers before moving the cabinet.

CAUTION: Use at least two people to move, assemble or

install this product. Failure to do so can result in personal

injury or product damage.

WARNING: DO NOT stand on the product or lean on the

drawers or wood top.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Warranty

Specifications

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CAUTION: Check all nuts and bolts periodically for tightness.

When required, tighten them again.

CAUTION: DO NOT alter this product in any manner. For

example, do not weld external bar locks or attach electrical

and lock equipment. This may cause product damage or

personal injury.

CAUTION: DO NOT leave children unattended near this

product. Cabinet may tip over if improperly opened.

Warranty

This full warranty gives you specific rights, and you may also have other rights, which vary state to state.

Contact the customer service team at 1-888-HD-HUSKY or visit www.huskytools.com.

1 year Limited Warranty for Solid Wood top. This warranty excludes incidental/inconsequential damages and failures due to misuse,

abuse or normal wear and tear.

Drawer Removal

Maintenance

Care and Cleaning

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

...................................

Drawer Replacement

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Door Replacement

...............................

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Assembly Service Parts

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pre-Assembly

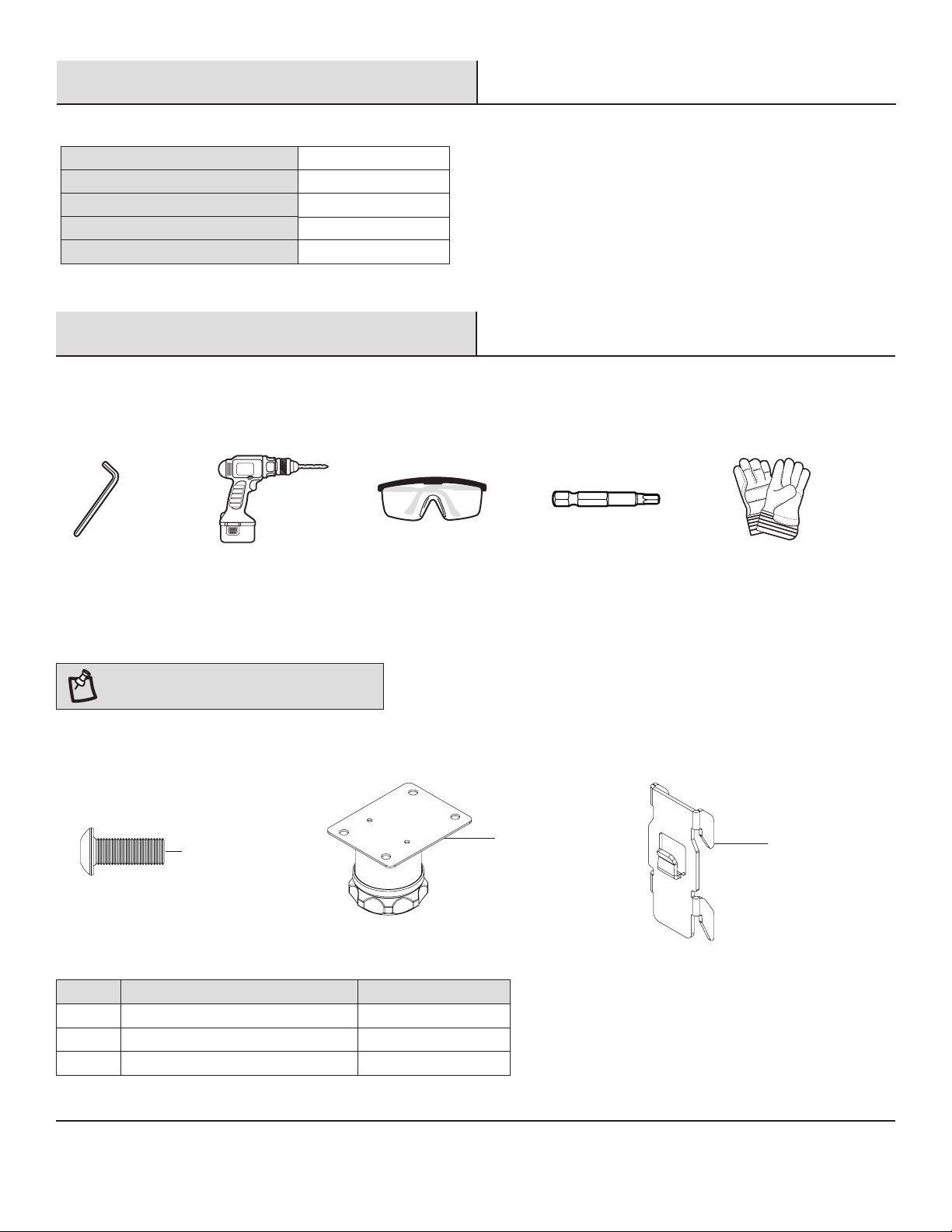

HARDWARE INCLUDED

NOTE: Hardware not shown to actual size.

Part Description Quantity

AA M6 x 16 hex socket head screw 16

BB Adjustable foot 4

Specifications

Maximum load for drawer 50 lbs. / 22.7 kg

Maximum load for wood top 100 lbs. / 45.4 kg

Maximum load for shelf

WWW.HUSKYTOOLS.COM

Please contact 1-888-HD-HUSKY for further assistance.

Hex Wrench

(Hex Key)

Safety Goggles

(not included)

Hex Screwdriver Bit

Drill

(not included)

Gloves

(not included)

TOOLS REQUIRED

CC Shelf bracket 4

Maximum load for bottom panel

Maximum total load 350 lbs. / 158.9 kg

100 lbs. / 45.4 kg

Pre-Assembly

PACKAGE CONTENTS

Part Description Quantity

A Base cabinet 1

BShelf 1

Assembly

INSTALL THE ADJUSTABLE FEET

Install the adjustable feet (BB) to the cabinet bottom. Make sure side A of the adjustable feet (BB) are facing either

towards the back or the front of the cabinet.

Tighten securely with sixteen M6 x 16 hex socket head screws (AA).

□

NOTE:

to keep the product from being scratched during assembly.

Assemble on a flat surface. A piece of cardboard is recommended

CAUTION:Please wear gloves during the whole assembling process.

View from under

the cabinet

Front

Back

WWW.HUSKYTOOLS.COM

Please contact 1-888-HD-HUSKY for further assistance.

Assembly (continued)

Maintenance

Lubricate the slides semi-annually with a spray lubricant or light duty oil.

Care and Cleaning

□

Clean the cabinet surfaces and drawers periodically with a soft rag and water.

□

Grease and oil can be removed with most standard cleaning fluids. For safety, use a nonflammable cleaning fluid.

Check all the screws and nuts periodically for tightness. Tighten them when necessary.

□

Insert four shelf brackets (CC) into the slots on the side panels at the desired height. Make sure the four brackets (CC) are at

the same height. Place the shelf (B) over the shelf brackets (CC), and push it down onto the shelf brackets. Make sure the

shelf (B) is properly and safely locked by the upright hooks of the shelf brackets.

Slots on the inner front

side of side panel

Shelf locked by shelf bracket

after installation

Slots on the inner back side

of side panel

INSTALL THE SHELF

Pull the drawer out until it is extended to the maximum. There are two black release levers: one on each side of the drawer.

Pull one up while you push the other one down simultaneously. At the same time, pull the drawer out of the drawer slides.

Pull up

(on one side of the drawer)

Push down

(on the other side of the drawer)

Drawer Removal

□

Extend the drawer slides from the cabinet. Insert the brackets on each side of the drawer into the slots in the cabinet slides,

being careful that they are properly positioned. Once properly inserted, completely close the drawer to set the slides in their

proper positions.

Drawer Replacement

Door Replacement

DOOR REMOVAL

Pull the upper locking tab of the door outward until the door pin is unlocked by it.

□

Take out the door pin from the door.

□

Lift up the door and take out the door from the cabinet.

□

Pull the bottom locking tab of the door outward and take out the door pin and rubber ring.

□

1 2

WWW.HUSKYTOOLS.COM

Please contact 1-888-HD-HUSKY for further assistance.

Door Replacement (continued)

CAUTION: When you push the locking tab back to its place, make sure the

end of the door pin's horizontal part is inserted into the hole of the locking

tab to ensure the door pin is securely in place.

Lay down the door on its face with a soft mat underneath. Pull the bottom locking tab at the bottom corner of the door

outwards. Insert a door pin through the hole at the door’s bottom corner and put a rubber ring into the pin’s vertical end.

□

Push back the bottom locking tab to its place. Insert the horizontal end of the pin into the hole at the locking tab at the

same time.

□

Take up the door and insert the door pin into the hole at the bottom corner of the cabinet.

□

Pull the upper locking tab at the top corner of the door outwards. Insert a door pin through the hole at door’s top corner

into the hole at the top corner of the cabinet.

□

Push back the upper locking tab to its place. Insert the horizontal end of the pin into the hole at the locking tab at the

same time.

□

View from door top

12 3

View from door bottom

locking tab

DOOR INSTALLATION

Service Parts

Part Description Quantity Part Description Quantity

CLock 2

FKey 2

DSlide -L 1

Drawer liner

Slide -R

AA M6 x 16 hex socket head screw 16

BSolid wood top

Replacement keys may be ordered. Call 1-844-370-2288.

Replacement Part #

304212

300115

300116

Replacement Part #

571215

320327

304213

Please contact 1-888-HD-HUSKY for further assistance.

WWW.HUSKYTOOLS.COM

551713

BB Adjustable foot 4

313066

Shelf 1

226383 H

Shelf bracket 4

226078

Questions, problems, missing parts? Before returning to the store,

call Husky Customer Service

8 a.m.-5 p.m., EST, Monday-Friday

1-888-HD-HUSKY

WWW.HUSKYTOOLS.COM

Retain this manual for future use.
