Owner’s Manual

English

Models

90438

90439

TABLE OF CONTENTS

Introduction ............................................................. 3

Safety and Warnings................................................ 3

Grounding............................................................... 5

Fused Plug............................................................... 6

Unpacking............................................................... 7

Base Assembly......................................................... 7

Motor Assembly....................................................... 8

Grill Assembly ......................................................... 9

Operation.............................................................. 11

Off / Speed Selection 11

Oscillation 11

Adjustment 11

Maintenance.......................................................... 12

Technical Support................................................... 13

Warranty............................................................... 13

Products ................................................................ 15

INTRODUCTION

To reduce the risk of fire or electrical shock, DO NOT use

this fan with any solid-state speed control device.

When using electrical appliances, basic precautions

should always be taken to reduce the risk of fire, electric

shock and personal injury:

Read all instructions before using this fan.

1. Improper installation may result in the risk of fire,

electric shock or personal injury.

2. To prevent the risk of fire and electric shock, DO

NOT use the unit near windows. Rain and moisture

may create an electrical hazard.

3. The power plug must be removed from the power

socket when not in use, before cleaning, servicing,

maintenance and before moving to another location.

4. DO NOT put fan in a damp place or where humidity

is high, such as a bathroom.

5. The fan should be placed on a flat, stable surface to

avoid overturning.

6. Use fan only for intended use, as described in this

instruction manual.

7. To protect against electrical shock, DO NOT immerse

any part of the unit in water or spray with liquids.

Thank you for choosing the Hunter Oscillating Stand

Fan. This manual gives you complete instructions for

assembling and using your fan. Here are some the

features you will enjoy with your fan:

3An attractive design that enhances any decor

3A powerful motor for maximum air flow

3Three speeds to adjust your comfort level

3All metal construction

3Parts of this fan, including the blades and the grill,

have been treated with Hunter’s Dust Armor Protection,

making them less likely to attract dust and dirt.

SAFETY AND WARNINGS

8. Close supervision is necessary when any appliance

is used near children.

9. NEVER insert fingers, pencils or any other objects

through the grill when the fan is running.

10. DO NOT operate any appliance with a damaged

cord or plug, after the appliance malfunctions or has

been dropped or damaged in any manner.

11. To disconnect, grip plug and pull from wall outlet.

NEVER yank on cord.

12. ALWAYS use on a dry surface.

13. This product is intended for household use only and

not for commercial or industrial use.

14. DO NOT operate fan in the presence of explosive

and/or flammable fumes.

15. DO NOT place fan or any parts near an open flame,

cooking or any other heating appliances.

16. DO NOT use near curtains, plants, window

treatments, etc.

17. This appliance has a grounded three-prong plug

and is suitable for grounded receptacle use only.

An adapter is available for connecting three-blade

grounding-type plugs to two-slot receptacles. The

adapter must be properly grounded. DO NOT

attempt to defeat the purpose of this safely feature.

18. The rubber feet on this product may interact with

wood and cause damage to furniture. Do not place

on fine wood furniture.

Figure 1

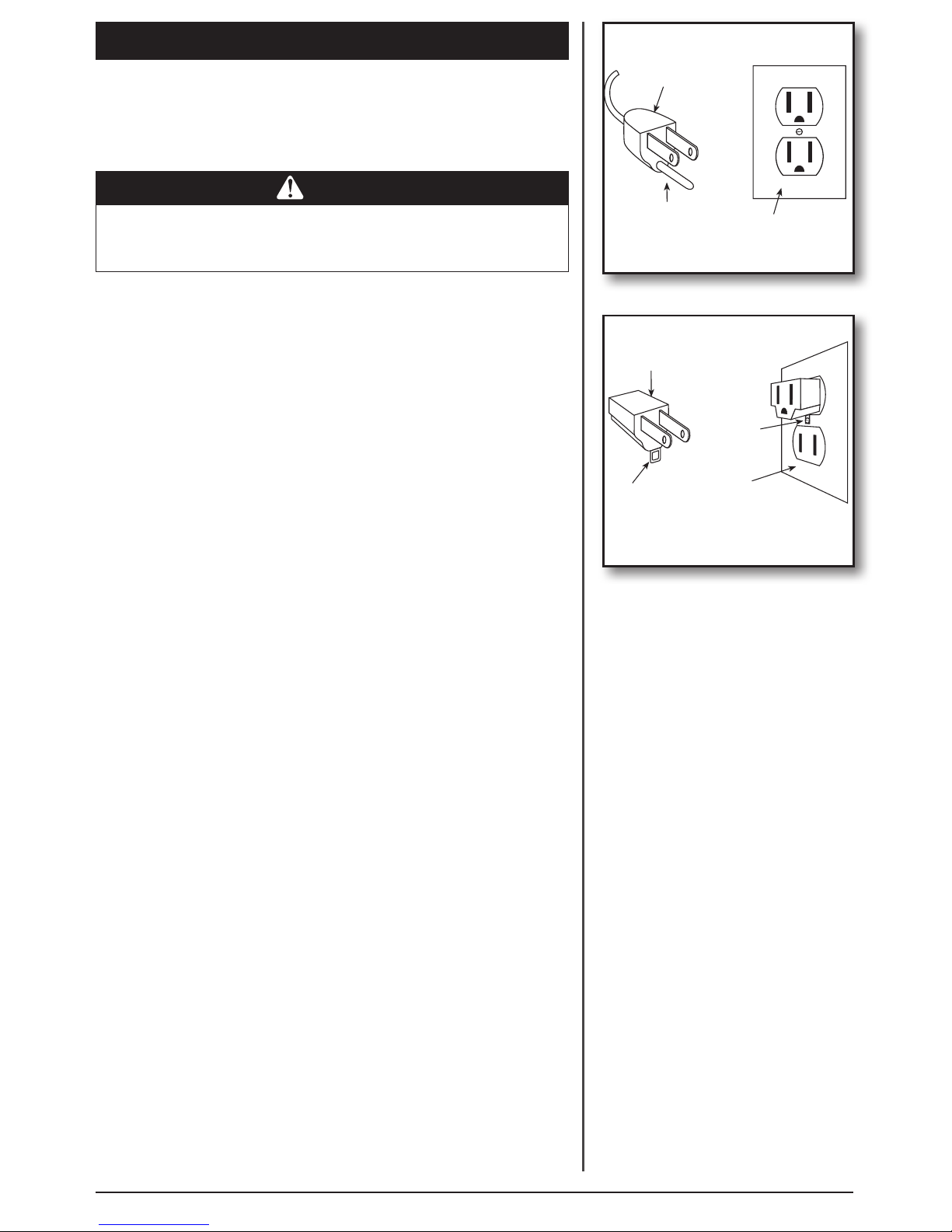

This appliance is for household use only and may be

plugged into any 120-volt AC electrical outlet (ordinary

household current). DO NOT use any other type of outlet.

This unit is suitable for grounded receptacle use only.

The power cord has a grounded plug as shown in

Figure 1, and must be used with an electrical outlet that

can accommodate the grounding pin. If your electrical

outlet can not accommodate the grounding pin, then you

must purchase and install one of the two types of adapters

shown in Figure 2.

NOTE: The adapters ARE NOT supplied with this fan.

Read, follow, and save the instructions that are included

with the adapter you choose. Do not use an adapter if

your electrical outlet can accommodate the grounding pin.

LINE CORD SAFETY TIPS

1. NEVER pull or yank on the cord or the appliance.

2. To insert plug, grasp it rmly and guide it into the outlet.

3. To disconnect the appliance, grasp the plug and

remove it from the outlet.

4. Before each use, inspect the line cord for cuts and/

or abrasion marks. If any are found, the appliance

should be serviced and the line cord replaced. Please

return it to our Service Department or to an authorized

service representative.

5. NEVER wrap the cord tightly around the

appliance, as this could place undue stress on the

cord where it enters the appliance and could cause

it to fray and break.

6. DO NOT operate appliance if the line cord shows any

damage, if the appliance works intermittently or stops

working entirely.

Grounded

Plug

Grounding Pin

Grounded Outlet

Box Cover

WARNING

Figure 2

Grounded Outlet

Box Cover

Metal

Screw

Adapter

Grounding

Means

GROUNDING

Figure 3

This plug is a safety feature. It contains a safety device

(fuse) that should not be removed. Discard product if the

attachment plug is damaged. To reduce the risk of fire,

electric shock and personal injury, DO NOT remove,

replace, repair or tamper with the originally supplied

plug. If the Fan does not function properly, it may be due

to the safety device incorporated in this plug.

If the fuse fails, it is generally due to a short circuit or

circuit overload. Replace the fuse as per the instructions

below. If the replacement fuse fails, immediately

unplug the unit and contact our technical support

department for assistance.

Fuse Replacement:

1. To replace the fuse, first turn the unit it off and unplug

it from the wall. Locate the door on top of the plug.

Figure 3.

2. Slide the door on top of the plug towards the blades.

Figure 4.

3. Carefully remove the fuse from the clips holding it on

the top and bottom. Figure 5.

Warning! Electrical Hazard! Only replace with a

fuse type and rating matching what was removed from

the product.

4. Gently push the fuse back into the pins that will hold

it in place.

Note: If the fuse is not seated properly, the unit will not

function.

5. Slide the Door back over the fuse box in the plug.

6. Plug the fan back in and resume use.

FUSED PLUG

Figure 4

Figure 5

BASE ASSEMBLY

Figure 7

Figure 6

Figure 8

1. Remove and height adjustment knob from telescoping

pole by turning it counter clockwise. Also remove the

cord clamp. Slide the base trim ring onto the pole.

Reinstall the height adjustment knob and cord clamp.

Figure 6.

2. Remove the L-shaped screw from the telescoping

pole by turning it counter clockwise. Figure 7.

3. Insert the telescoping pole into the top of the base.

Install the L-shaped screw into the threaded hole in

the bottom of the pole to secure the pole to the base.

Figure 7.

4. Tip the base back upright.

5. Grasp the telescoping pole firmly and twist the

adjustment knob counter clockwise to loosen. Figure 9.

6. Raise the inner pole to maximum height and tighten

the adjustment knob by twisting clockwise until

secure. Figure 9.

Figure 9

UNPACKING

As you unpack the fan, save the carton and packing

materials in case you want to move or ship the unit in the

future. Carefully remove all items from the box.

NOTE: It is best to have someone hold the box while

you lift the fan and the protective packaging out of the

carton. Make sure all shipping materials are removed

from fan before operating.

Base

L-shaped

Screw

Telescoping

Pole

Telescoping

Pole

Base Trim

Ring

Height

Adjustment

Knob

Adjustment

Knob

Inner Pole

Screw

ATTACHING ASSEMBLY TO POLE

Figure 10

Clip Button

1. Press the clip buttons in completely while sliding the

pole from the motor housing assembly into the inner

pole until the clip buttons appear through the hole in

the inner pole. Figure 10.

Figure 12

Figure 11

Figure 13

Figure 14 Figure 15

GRILL ASSEMBLY

Grill Lines

Grill

Mounting

Screw

Top Tabs

14a

Motor

Notch

Fan Blade

Note: The trim ring may be attached to the front and rear

grills for shipping purposes. If so, remove the trim ring by

loosening the trim ring screw.

1. Remove the four grill mounting screws from the

motor housing. Figure 11.

2. Make sure that the grill is positioned so that three

of the grill lines are completely between the top

tabs. Then place the Back Grill against the Motor

Housing, Figure 12., and line up the four tabs on

the back of the grill to the four screw holes on the

front of the motor.

3. To attach the Back Grill to the Motor Housing

partially install the four grill mounting screws.

Tighten all four screws. Figure 13.

Note: One of the grill mounting screws will have a star

washer on it, for grounding purposes. The other 3 screws

will not have a washer.

4. Loosen the screw on the back of the Blade assembly.

Figure 14a. Slide the Blade assembly onto the

motor shaft. Figure 14.

5. Tighten the Screw on the Blade assembly to secure it

to the Motor. Make sure that the end of the screw is

positioned within the notch on the shaft. Figure 15.

Caution: Ensure when tightening the screw on the back

of the fan blade, you tighten it on the flat part of the

motor shaft.

123

Figure 17

Figure 16

Figure 18

GRILL ASSEMBLY (CONT.)

Front Grill

Hunter Logo

Grill

Ring

Screw

Back Grill

Figure 19

Cord Clip

Cord

Notch

6. Remove the grill ring from the front grill by loosening

the screw holding it.

7. Place the front grill against the back grill so that the

Hunter logo faces right side up and push together until

the tabs on the grills hold them together. Figure 16.

8. Expand the grill ring by loosening the screw that

secures it. Figure 17.

9. Slide the grill ring over both front and back grills

turning the ring so that the screw that secures it, is

on the bottom. Figure 17.

10. Tighten the screw to secure the grill ring over both

the front and back grill. Figure 18.

11. Straighten the cord from the motor housing along

the telescoping pole and snap the cord clip over the

cord onto the pole so that the cord rests in the notch

on the clip. Figure 19.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Admirador de Hunter

Hunter

Hunter Gilrock Manual de usuario

Hunter

Hunter Milstream Manual de usuario

Hunter

Hunter Captiva 21318 Manual de instrucciones

Hunter

Hunter Type 2 Series Manual de servicio

Hunter

Hunter 59515 Five Minute Fan Manual de instrucciones

Hunter

Hunter Organic 82020 Manual

Hunter

Hunter 23869 Manual de instrucciones

Hunter

Hunter MODEL TYPE A 41535-01 Manual de instrucciones

Hunter

Hunter 42845-01 Manual de instrucciones

Hunter

Hunter Savoy Manual de usuario

Hunter

Hunter Margo 52287 Manual de usuario

Hunter

Hunter 21617 Manual

Hunter

Hunter MB502-01 Manual de usuario

Hunter

Hunter 20438 Manual

Hunter

Hunter Ashbury 87001 Manual de usuario

Hunter

Hunter 51388 Manual de usuario

Hunter

Hunter 28670 Manual de usuario

Hunter

Hunter 20714 Manual

Hunter

Hunter 52492 Manual de usuario

Hunter

Hunter Metropolitan 94012 Manual de usuario

Hunter

Hunter Dante MB531 Manual de usuario

Hunter

Hunter Sontera Manual de instrucciones

Hunter

Hunter Jetty Manual de usuario

Hunter

Hunter 90600 Manual de usuario

Manuales populares de Admirador de otras marcas

ELTA FANS

ELTA FANS H03VV-F Manual de usuario

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manual de usuario

Panasonic

Panasonic FV-15NLFS1 Manual de usuario

Kompernass

Kompernass KH 1150 Manual de usuario

VES

VES FALA100/12V/TR Manual de usuario

Vertiv

Vertiv Liebert DCD Manual de usuario

Westinghouse

Westinghouse GFP Series Manual de usuario

Venmar

Venmar KUBIX HRV PLUS Series Manual de usuario

Maico

Maico ECR 31 Manual de usuario

Sonnenkonig

Sonnenkonig Dinky Manual de usuario

S&P

S&P ECOWATT HXBR Manual de usuario

Wider

Wider IMP03369BH Manual de usuario

Panasonic

Panasonic F-60DHN Manual de usuario

Hinkley

Hinkley HIGHLAND Manual de usuario

Broan

Broan 766BN Manual de usuario

Premium

Premium PFS16022 Instrucciones de montaje

Litex Industries

Litex Industries E-CGL52CB5C1 Manual de usuario

Lindab

Lindab LTDF Manual de usuario
