Owner’s Guide and Installation Manual

41818-01 • 03/12/09 • Hunter Fan Company

Table Of Contents

1 • Getting Ready......................4

2 • Installing the Ceiling Plate ..........5

3 • Assembling and Hanging the Fan ...6

4 • Wiring the Fan.....................8

5 • Installing the Canopy and Canopy Trim

Ring ..............................9

6 • Assembling the Blades..............10

7 • Completing Your Installation With or

Without a Light Fixture............11

8 • Operating and Cleaning Your Ceiling

Fan ...............................14

9 • Troubleshooting....................15

Your new Hunter® ceiling fan is an addition to your home or oce that

will provide comfort and performance for many years. is installation

and operation manual gives you complete instructions for installing

and operating your fan.

We are proud of our work. We appreciate the opportunity to supply

you with the best ceiling fan available anywhere in the world.

Before installing your fan, for your records and warranty assistance,

record information from the carton and Hunter nameplate label

(located on the top of the fan motor housing).

Cautions and Warnings

•READ THIS ENTIRE MANUAL CAREFULLY BEFORE BEGINNING

INSTALLATION. SAVE THESE INSTRUCTIONS.

• Use only Hunter replacement parts.

• To reduce the risk of personal injury, attach the fan directly to the

support structure of the building according to these instructions,

and use only the hardware supplied.

• To avoid possible electrical shock, before installing your fan,

disconnect the power by turning o the circuit breakers to the

outlet box and associated wall switch location. If you cannot lock

the circuit breakers in the o position, securely fasten a prominent

warning device, such as a tag, to the service panel.

• All wiring must be in accordance with national and local electrical

codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a

qualied electrician.

• To reduce the risk of personal injury, do not bend the blade

attachment system when installing, balancing, or cleaning the fan.

Never insert foreign objects between rotating fan blades.

• To reduce the risk of re, electrical shock, or motor damage, do not

use a solid-state speed control with this fan. Use only Hunter speed

controls.

Welcome

Table Of Contents

41818-01 • 03/12/09 • Hunter Fan Company

Installer’s Choice and Optional Accessories

Understanding Mounting and Installer’s Choice®

Hunter’s patented 3-position mounting system provides you maximum

installation exibility and ease. You can install your Hunter fan in one

of three ways, depending on ceiling height and your preference: Low

Prole, Standard, or Angled mounting. e steps in this manual include

instructions for all three Installer’s Choice mounting methods.

Considering Optional Accessories

Consider using Hunter’s optional accessories, including a wall-mounted

or remote speed control. To install and use the accessories, follow

the instructions included with each product. For quiet and optimum

performance of your Hunter fan, use only Hunter speed controls.

For ceilings higher than 8 feet, you can purchase

Hunter extension downrods. All Hunter fans use

sturdy 3/4” diameter pipe to assure stability and

wobble-free performance.

Standard Mounting hangs from the

ceiling by a downrod (included).

Angled Mounting recommended for a

vaulted or angled ceiling

Support Brace

Standard

Mounting

Style

Ceiling

Outlet Box

Support Brace

Ceiling

Outlet Box

Angled

Mounting

Style

Low Proﬁle Mounting ts close to the

ceiling, recommended for ceilings less

than 8 feet high

Support Brace

Low Prole

Mounting

Style

Ceiling

Outlet Box

CAUTION: To

reduce the risk of

personal injury, attach

the fan directly to the

support structure of

the building according

to these instructions,

and use only the

hardware supplied.

41818-01 • 03/12/09 • Hunter Fan Company

To install a ceiling fan, be sure you can do the following:

• Locate the ceiling joist or other suitable support in ceiling.

• Drill holes for and install wood screws.

• Identify and connect electrical wires.

• Lift 40 pounds.

If you need help installing the fan, your Hunter fan dealer can direct

you to a licensed installer or electrician.

Gathering the Tools

You will need the following tools for installing the fan:

• Electric drill with 9/64” bit

• Standard screwdriver (magnetic tip recommended)

• Phillips-head screwdriver (magnetic tip recommended)

• Wrench or pliers

• Ladder (height dependent upon installation site)

Checking Your Fan Parts

Carefully unpack your fan to avoid damage to the fan parts. Refer to

the included Parts Guide. Check for any shipping damage to the motor

or fan blades. If any parts are missing or damaged, contact your Hunter

dealer or call Hunter Technical Support Department at 888-830-1326.

Preparing the Fan Site

Before you begin installing the fan, follow all the instructions in

the pullout sheet called “Preparing the Fan Site.” Proper ceiling fan

location and attachment to the building structure are essential for

safety, reliable operation, maximum eciency, and energy savings.

Installing Multiple Fans?

If you are installing more than

one fan, keep the fan blades and

blade irons (if applicable) in sets,

as they were shipped.

1 • Getting Ready

41818-01 • 03/12/09 • Hunter Fan Company

CAUTION: To avoid possible electrical shock, before installing your fan,

disconnect the power by turning o the circuit breakers to the outlet box

and associated wall switch location. If you cannot lock the circuit breakers

in the o position, securely fasten a prominent warning device, such as a

tag, to the service panel.

2-1. Drill two pilot holes into the wood support structure.

e pilot holes should be 9/64” in diameter and through the

outermost holes in the outlet box.

2-2. Your fan comes with four neoprene noise isolators (“Isolators”).

Position the isolators between the ceiling plate and ceiling by

inserting the raised areas on each isolator into the holes in the

ceiling plate.

2-3. read the lead wires from the outlet box down through the hole

in the middle of the ceiling plate.

2-4. Align the slotted holes in the ceiling plate with the pilot holes you

drilled in the wood support structure. For proper alignment use

slotted holes directly across from each other.

Note: e isolators should be ush against the ceiling.

2-5. Place a at washer on each of the two 3” wood screws and pass

the screws through the slotted holes in the ceiling plate into the

pilot holes you drilled.

Tighten the screws into the 9/64” pilot holes; do not use lubricants

on the screws. Do not over tighten.

Flat Washer

3” Wood

Screw

Step 2-2

Steps 2-3 – 2-5

For Angled Ceilings: Be sure to

orient the ceiling plate so that the

arrows printed on the ceiling plate are

pointing toward the ceiling peak.

Ceiling

Plate

Isolator

2 • Installing the Ceiling Plate

41818-01 • 03/12/09 • Hunter Fan Company

WARNING: Fan may fall if not assembled as directed in these

installation instructions.

You can assemble your fan for standard or angled mounting as shown

in steps 3-1 – 3-4. For low proﬁle mounting (ceilings less than 8 feet

high), go to steps 3-5 – 3-11 on the next page.

For Standard or Angled Mounting:

3-1. Unbundle the wires from the fan.

3-2. To assemble fan to hang down from a at or angled ceiling, insert

the downrod through the canopy and canopy trim ring. Feed the

wires from the fan through the downrod.

3-3. Loosen the square head setscrew on the adapter to install the pipe

and ball assembly. Note: When the pipe and ball assembly is fully

installed, 2-3 threads on the pipe will still be visible; this is normal.

Securely retighten the setscrew with a wrench or pliers.

CAUTION: e adapter has a special coating on the threads. Do

not remove this coating; the coating prevents the downrod from

unscrewing. Once assembled, do not remove the downrod.

3-4. Raise the fan and place the hook on the downrod through the

loop on the ceiling plate. e arrows on the downrod and on the

ceiling plate should both be pointing toward the tab hole on the

canopy. Go to 4 • Wiring the Fan.

Steps 3-1 – 3-2

Downrod

Canopy

Trim Ring

Setscrew

Step 3-4

Downrod

with Hook

Loop

3 • Assembling and Hanging the Fan

41818-01 • 03/12/09 • Hunter Fan Company

Steps 3-9 – 3-10

Low Prole

Screw

Low Prole Washer

WARNING: Fan may fall if not assembled as directed in these

installation instructions.

You can assemble your fan for standard or angled mounting as shown

in steps 3-1 – 3-4 on the previous page. For low proﬁle mounting

(ceilings less than 8 feet high), see steps 3-5 – 3-11 on this page.

For Low Proﬁle Mounting:

Note: For low prole mounting, the downrod is replaced with the low

prole washer.

3-5. Unbundle the wires from the fan.

3-6. Remove the screw from the hanger ball on the downrod, and

then remove the hook from the hanger ball.

CAUTION: e adapter has a special coating on the threads. Do

not remove this coating; the coating prevents the downrod from

unscrewing. Once assembled, do not remove the downrod.

3-7. Remove the setscrew from the adapter.

3-8. Install the hook and two neoprene washers onto the adapter

using the setscrew. the top of the hook must hang over the

adapter. Note: e screw should be tight, but still allow the hook

to rotate slightly.

3-9. Place the low prole washer (lip up) into the canopy. Be sure the

green ground wire is pointing up toward the ceiling.

3-10. Align the holes in the washer with the holes in the adapter.

Assemble securely with three low prole screws.

3-11. Raise the fan and place the hook on the adapter through the

loop on the ceiling plate.

Step 3-6

Step 3-8

Step 3-11

Loop

3 • Assembling and Hanging the Fan (Low Profile Only)

41818-01 • 03/12/09 • Hunter Fan Company

All wiring must be in accordance with national and local electrical

codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a

qualiﬁed electrician.

Wall switches are not included. Select an acceptable general-use switch

in accordance with national and local electrical codes.

4-1. Make sure the power to the outlet box and associated wall switch

location is still OFF.

To connect the wires, hold the bare metal leads together and place

a wire connector over them, then twist clockwise until tight.

CAUTION: Be sure no bare wire or wire strands are visible after

making connections.

Dual Switch Wiring:

• e bare or green ground wire (grounding) from the ceiling to

the green ground wire (grounding) from the ceiling plate and

the green ground wire (grounding) from the fan

• e white wire (grounded) from the ceiling to the white wire

(grounded) from the fan

• e black wire (ungrounded) from the ceiling to the black wire

(ungrounded) from the fan

• e black/white wire (ungrounded) from the ceiling to the

black/white wire (ungrounded) from the fan

Single Switch Wiring:

If you want to, you can control both fan and light with one switch.

To do so connect the wires as follows:

• e bare or green ground wire (grounding) from the ceiling to

the green ground wire (grounding) from the ceiling plate and

the green ground wire (grounding) from the fan

• e white wire (grounded) from the ceiling to the white wire

(grounded) from the fan

• e black wire (ungrounded) from the ceiling to the black and

the black/white wire (ungrounded) from the fan

4-2. Push all wires and wire connectors back through the ceiling plate

hole into the outlet box.

Single Switch Wiring

Dual Switch Wiring

Wire

Connector

4 • Wiring the Fan

41818-01 • 03/12/09 • Hunter Fan Company

Note: Be sure the arrows on the downrod and on the ceiling plate are

both pointing toward the tab hole on the canopy.

5-1. Hook the tab hole in the canopy over the tab on the ceiling plate.

5-2. Raise the canopy. Make sure the holes in the canopy and in the

ceiling plate are aligned.

5-3. Partially install the three canopy screws into the canopy one at a

time. Once all three screws are in, tighten them.

5-4. Using both hands, push the canopy trim ring up to the top of the

canopy. e canopy trim ring will snap and lock into place.

Should you need to remove the canopy

trim ring, follow these steps:

1. Locate the tab indicators, small

bumps on top of tabs.

2. Press rmly on opposite sides of the

ring toward the canopy. e tabs will

ex out releasing the trim ring from

the canopy.

Steps 5-2 – 5-3

Step 5-1

Step 5-4

Tab Hole

Tab

Canopy

Screw

Canopy

Trim Ring

5 • Installing the Canopy and Canopy Trim Ring

41818-01 • 03/12/09 • Hunter Fan Company

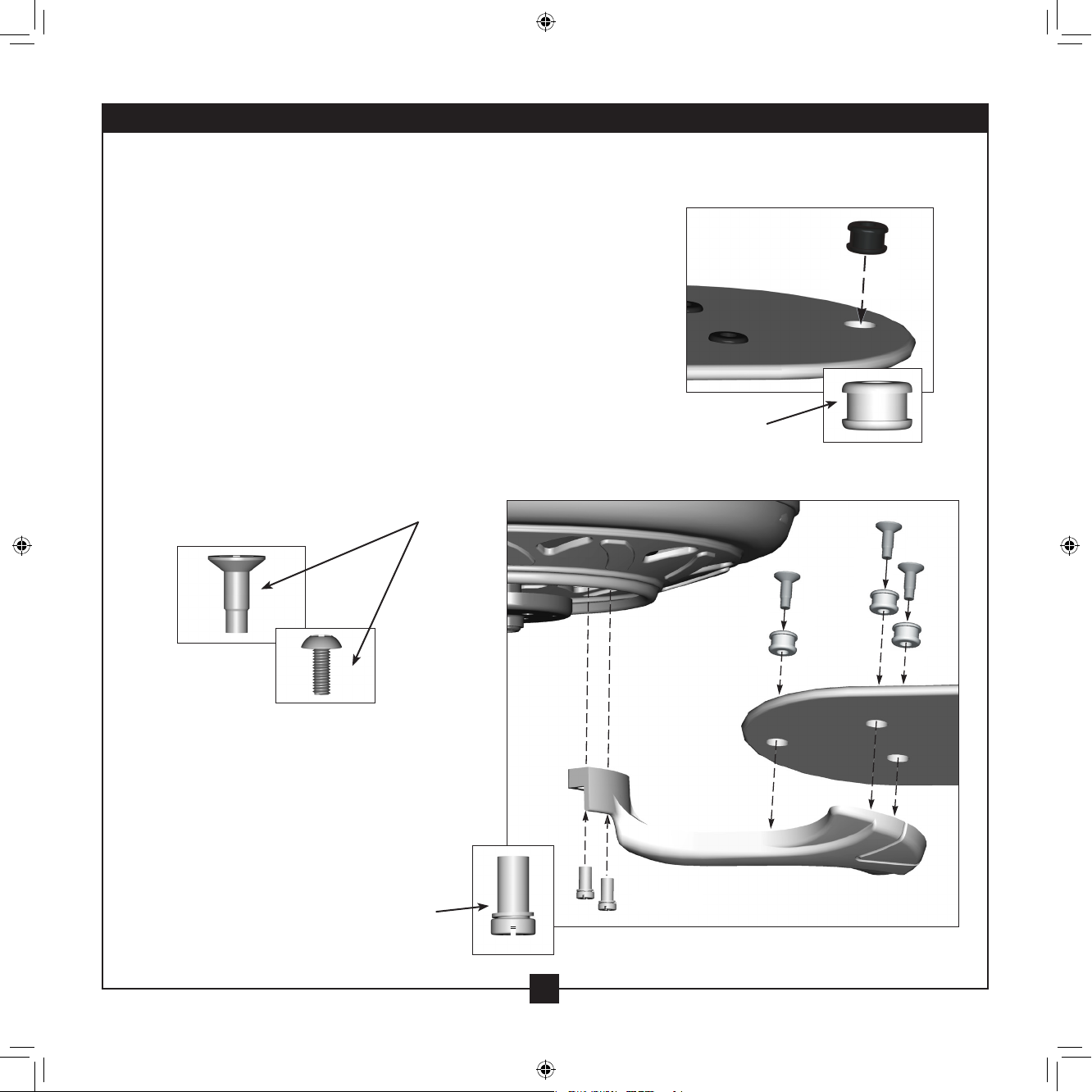

Hunter fans use several styles of fan blade irons (brackets that hold the

blade to the fan).

6-1. Your fan may include blade grommets. If your fan has grommets,

insert them by hand into the holes on the blades.

6-2. Attach each blade to a blade iron using three blade assembly

screws. If you used grommets, the blades may appear slightly loose

after screws are tightened. is is normal.

6-3. Remove the blade mounting screws and rubber shipping bumpers

from the motor. Note: Some blade mounting screws are installed

in the motor to secure shipping blocks.

6-4. For each blade, insert one blade mounting screw through the

blade iron, and attach lightly to the fan. Insert the second blade

mounting screw, then securely tighten both mounting screws.

Step 6-1 (Detail)

Blade Assembly

Screws

Use with grommet

Use without grommet

Grommet

Blade

Mounting

Screw

Steps 6-1 – 6-2

Step 6-4

6 • Assembling the Blades

Tabla de contenidos

Otros manuales de Admirador de Hunter

Manuales populares de Admirador de otras marcas

ELTA FANS

ELTA FANS H03VV-F Manual de usuario

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manual de usuario

Panasonic

Panasonic FV-15NLFS1 Manual de usuario

Kompernass

Kompernass KH 1150 Manual de usuario

VES

VES FALA100/12V/TR Manual de usuario

Vertiv

Vertiv Liebert DCD Manual de usuario

Westinghouse

Westinghouse GFP Series Manual de usuario

Venmar

Venmar KUBIX HRV PLUS Series Manual de usuario

Maico

Maico ECR 31 Manual de usuario

Sonnenkonig

Sonnenkonig Dinky Manual de usuario

S&P

S&P ECOWATT HXBR Manual de usuario

Wider

Wider IMP03369BH Manual de usuario

Panasonic

Panasonic F-60DHN Manual de usuario

Hinkley

Hinkley HIGHLAND Manual de usuario

Broan

Broan 766BN Manual de usuario

Premium

Premium PFS16022 Instrucciones de montaje

Litex Industries

Litex Industries E-CGL52CB5C1 Manual de usuario

Lindab

Lindab LTDF Manual de usuario
