Hunter Products ZP5111 Manual de usuario

6Volt Mini Quad

User Manual

Item No.:7900/5883/6873/5876/6255

Model No:ZP5111

Please read manual carefully before use.

Always wear a helmet and protective clothing when riding

The manual and packaging should be well

kept since it contains important information.

Suitable for ages 18 mths +

Adult Assembly Required.

Charging the battery can only be done by adults at all times.

Before first time use, charge the battery at least 10 hours.

Made in China

THIS VEHICLE MUST BE ASSEMBLED BY AN ADULT.

WARNING : PLEASE READ THIS MANUAL

THOROUGHLY BEFORE OPERATION.

PRODUCT SPECIFICATION

Age grade 18 mths +

Max user weight 25kgs

Max speed 2.5 km/h

Charger input AC 240V 50Hz

Charging time 8-10 hours

Battery 6V 4.5Ah x 1

Product Dimensions (approx) 67x 38 x 45 cm

Charger life (approx) 300 charges

Charger output DC 6V 500Ma

1. Product Specifications

2. Warnings

3. Parts list

4. Assembly

5. Assembly (cont)

6. Assembly (cont)

7. Assembly (cont) & Battery charging

8. Battery charging (cont)

9. Battery charging (cont)

10. Closure of seat

11. Operating features / Safety precautions

12. Troubleshooting / Battery disposal /F use

13. Vehicle maintenance

14. Safety warnings

PLEASE NOTE: IN CASE OF PRODUCT FAULT DO NOT RETURN THIS PRODUCT TO STORE.

PLEASE CONTACT HUNTER PRODUCTS CUSTOMER SERVICE TOLL FREE NUMBER：1800 224 094

If a battery leak develops, avoid contact with the leaking acid and

place the damaged battery in a plastic bag. See information in

“Disposal of Battery” for proper disposal.

If acid comes in contact with skin or eyes, flush with cool water for

at least 15 minutes and call a physician.

If acid is internally ingested ,give water ,milk of magnesia or egg

white immediately. Never give emetics or induce vomiting. Call a

physician.

Ahelmet.

PLEASE NOTE: IN CASE OF PRODUCT FAULT DO NOT RETURN THIS PRODUCT TO STORE.

PLEASE CONTACT HUNTER PRODUCTS CUSTOMER SERVICE TOLL FREE NUMBER：1800 224 094

PLEASE NOTE: IN CASE OF PRODUCT FAULT DO NOT RETURN THIS PRODUCT TO STORE.

PLEASE CONTACT HUNTER PRODUCTS CUSTOMER SERVICE TOLL FREE NUMBER：1800 224 094

PLEASE NOTE: IN CASE OF PRODUCT FAULT DO NOT RETURN THIS PRODUCT TO STORE.

PLEASE CONTACT HUNTER PRODUCTS CUSTOMER SERVICE TOLL FREE NUMBER：1800 224 094

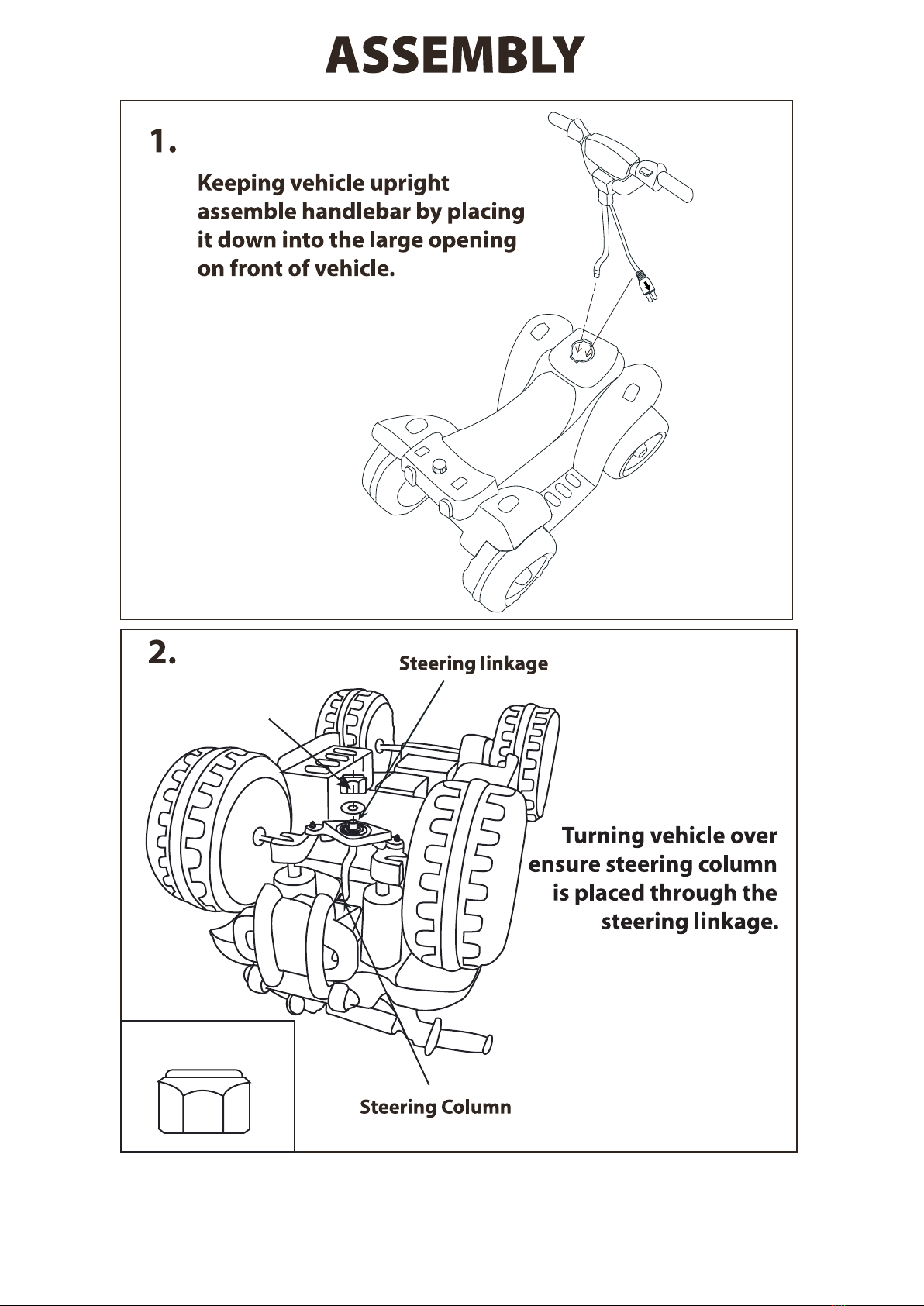

Handlebar should click

firmly into place.

Lock Nut

Rounded Side Up

Place the lock nut

(rounded side up)and

washer on to the end

of the steering column.

Tighten the lock nut

firmly .

PLEASE NOTE: IN CASE OF PRODUCT FAULT DO NOT RETURN THIS PRODUCT TO STORE.

PLEASE CONTACT HUNTER PRODUCTS CUSTOMER SERVICE TOLL FREE NUMBER：1800 224 094

PLEASE NOTE: IN CASE OF PRODUCT FAULT DO NOT RETURN THIS PRODUCT TO STORE.

PLEASE CONTACT HUNTER PRODUCTS CUSTOMER SERVICE TOLL FREE NUMBER：1800 224 094

PLEASE NOTE: IN CASE OF PRODUCT FAULT DO NOT RETURN THIS PRODUCT TO STORE.

PLEASE CONTACT HUNTER PRODUCTS CUSTOMER SERVICE TOLL FREE NUMBER：1800 224 094

Never charge the battery longer than 15 hours.

To close the

seat turn knob in

clockwise direction

IMPORTANT! Before first use ensure that

battery is charged for at least 10 hours

PLEASE NOTE: IN CASE OF PRODUCT FAULT DO NOT RETURN THIS PRODUCT TO STORE.

PLEASE CONTACT HUNTER PRODUCTS CUSTOMER SERVICE TOLL FREE NUMBER：1800 224 094

Plug charger end connector into

battery connection. Charger should

be plugged only into a standard 240V

household outlet.

Once battery has charged for 10 hrs turn off

power from 240V outlet and remove charger.

Disconnect battery lead and charger lead

PLEASE NOTE: IN CASE OF PRODUCT FAULT DO NOT RETURN THIS PRODUCT TO STORE.

PLEASE CONTACT HUNTER PRODUCTS CUSTOMER SERVICE TOLL FREE NUMBER：1800 224 094
