Huffy Cruiser Manual de usuario

Owner’s Manual

for Cruiser Bicycles

Please read and fully understand this

manual before operation.

Save this manual for future reference.

This manual contains important safety,

assembly, operation and maintenance

information.

Cruiser with Accessories Owner’s Manual v072012

Meijer.com

Owner’s Manual Index

Your Bike

• Owner’s Bicycle Identiﬁcation Record ................................................... 3

• Fitting the Rider to the Bicycle............................................................... 3

• Rules of the Road.................................................................................. 4

• Warning and Safety Information ............................................................ 5

• The Owner’s Responsibility................................................................... 5

Assembly

• Parts Assembly View ............................................................................. 6

• Parts Assembly List ............................................................................... 7

• Introduction............................................................................................ 8

• Tools Needed......................................................................................... 8

• Front Fender Installation........................................................................ 9

• Assemble the Front Wheel to the Fork (without basket)....................... 11

• Basket Assembly .................................................................................. 12

• Rear Fender Assembly ......................................................................... 13

• Handlebar and Stem Installation .......................................................... 14

• Testing Stem and Handlebar Tightness................................................ 15

• Seat Installation .................................................................................... 16

• Testing Seat Clamp and Post Clamp Tightness ................................... 17

• Pedal Installation .................................................................................. 18

• Front Reﬂector Bracket Installation ...................................................... 19

• Luggage Rack Adjustment.................................................................... 19

• Handlebar Bags.................................................................................... 20

• Brake System ....................................................................................... 21

• Chain Adjustment ................................................................................. 21

Maintenance and Service

• Tires ..................................................................................................... 22

• Repair and Service ............................................................................... 23

• Lubrication ............................................................................................ 23

• Lubrication Table................................................................................... 24

• Inspection of the Bearings .................................................................... 24

• Operation and maintenance ................................................................. 24

Huffy Warranty

• Huffy Corporation Limited Warranty ..................................................... 26

Meijer.com

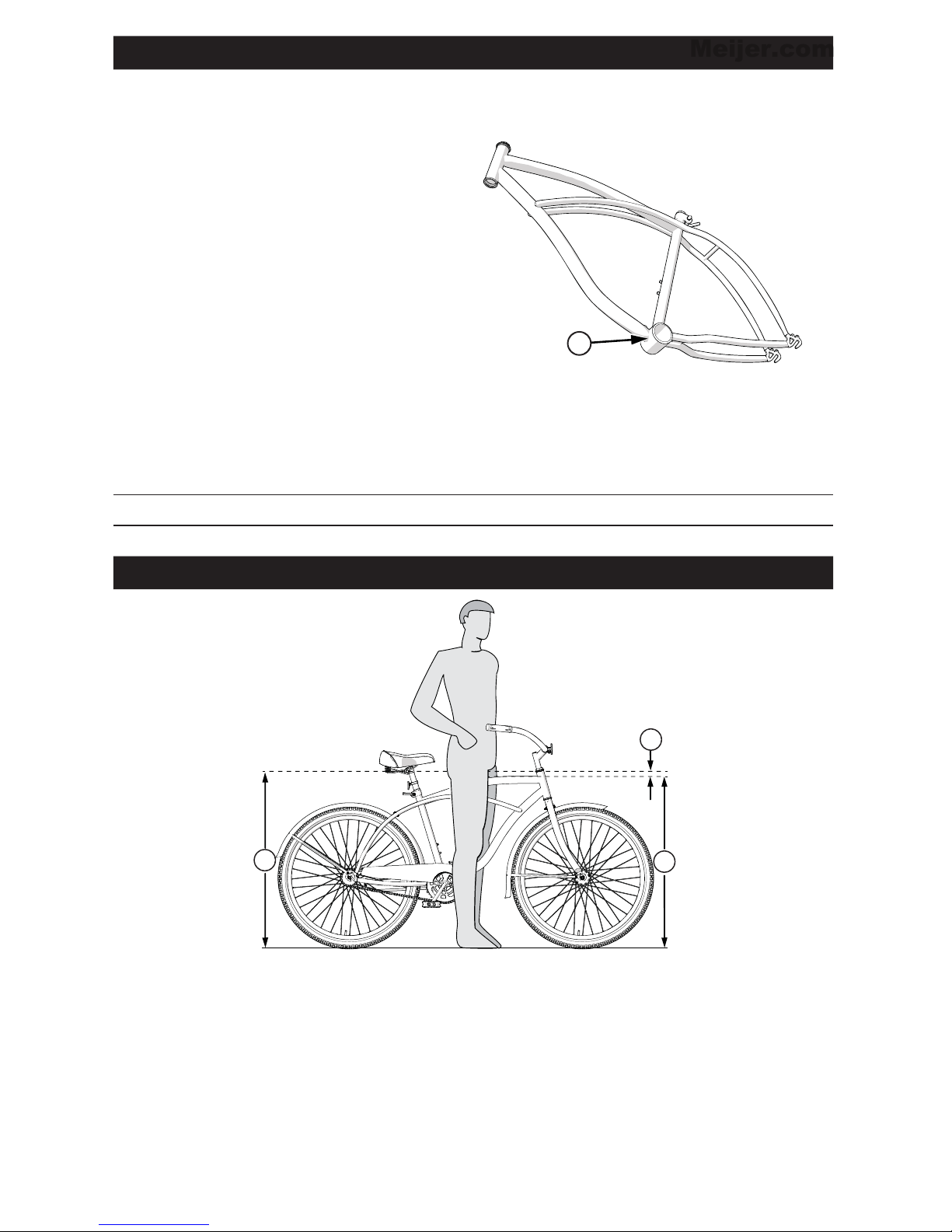

Owner’s Bicycle Identiﬁcation Record

NOTE: This information is only available on the bicycle itself. It is not available

from Huffy.

Each Huffy bicycle has a Serial

Number stamped into the frame.

The Serial Number (1) can be found

on the bottom of the crank housing

as shown.

Write this number below to keep it for future reference.

If the bicycle is stolen, give this number and a description of the bicycle to the

police. This will help them ﬁnd the bicycle.

Model / Serial Number:

Purchase Date:

Model Name:

Fitting the Rider to the Bicycle

To determine the correct size of bicycle for the rider:

• Straddle the assembled bicycle with feet shoulder width apart and ﬂat on

the ground.

• There must be at least 1 inch (2.5 cm) of clearance (1) between the high-

est part of the top tube (2) and the crotch of the rider with tires properly

inﬂated.

• The minimum leg-length for the rider is the highest part of the top tube plus

one inch (3).

Meijer.com

Rules of the Road

WARNING: Failure of the rider to obey the following “Rules of the Road”

can result in injury to the rider or to others.

• Obey all trafﬁc regulations, signs, and signals.

• Always wear a bicycle helmet that meets CPSC safety standards, as well

as local safety standards.

• Ride on the correct side of the road, in a single ﬁle, and in a straight line.

• If possible, avoid riding at night, dusk, dawn and any other time of poor

visibility.

• If you must ride at night or at time of poor visibility:

• Purchase, install, and use a headlight and taillight.

• Headlights are required by all states for nighttime riding and taillights

are required in some states.

• Battery-powered lights or ﬂashing safety lights are also recommended.

• Make sure the reﬂectors of your bicycle are correctly positioned. Do not

remove the reﬂector or replace the reﬂectors with lighted devices that

look similar to reﬂectors.

• Make yourself more visible to motorists.

• Wear light-colored or reﬂective clothing, such as a reﬂective vest and

reﬂective bands for your arms and legs.

• Use reﬂective tape on your helmet.

• Do not let anything cover the reﬂectors.

• Use extra caution in wet weather:

• Ride slowly on damp surfaces because the tires will slide more easily.

• Avoid these hazards to prevent loss of control or damage to your

wheels:

• Be aware of drain grates, soft road edges, gravel or sand, pot holes or

ruts, wet leaves, or uneven paving.

• Cross railroad tracks at a right angle to prevent the loss of control.

• Avoid unsafe actions while riding.

• Do not carry any passengers.

• Do not carry any items or attach anything to your bicycle that could

hinder your vision, hearing, or control.

• Do not ride with both hands off the handlebar.

Meijer.com

Warning and Safety Information

Meanings of Warnings:

aThis symbol is important. See the word “CAUTION” or “WARNING”

which follows it.

The word “CAUTION” is before mechanical instructions. If you do not obey

these instructions, mechanical damage or failure of a part of the bicycle can

occur.

The word “WARNING” is before personal safety instructions. If you do not

obey these instructions, injury to the rider or to others can occur.

• Do not add a motor to the product.

• Do not tow or push the product.

• Do not modify the product.

• Replace worn or broken parts immediately.

• If anything does not operate properly, discontinue use.

The Owner’s Responsibility

WARNING: This bicycle is made to be ridden by one rider at a time for

general transportation and recreational use. It is not made to withstand the

abuse of stunting and jumping.

If the bicycle was purchased unassembled, it is the owner’s responsibility to fol-

low all assembly and adjustment instructions exactly as written in this manual,

and any “Special Instructions” supplied and to make sure all fasteners and

components are securely tightened.

NOTE: Periodically check that all fasteners and components are securely

tightened.

If the bicycle was purchased assembled, it is the owner’s responsibility, before

riding the bicycle for the ﬁrst time, to make sure the bicycle has been assem-

bled and adjusted exactly as written in this manual, and any “Special Instruc-

tions” supplied and to make sure all fasteners and components are securely

tightened.

NOTE:

If product is assembled, please proceed to pages 15 and 17: Testing

Stem, Handlebar and Seat Clamp tightness.

Meijer.com

Parts Assembly View

21 25

19 28

4449

4546

353637383940

23 22

Meijer.com

Parts Assembly List

No. Description No. Description No. Description

1 Frame 20 Right Pedal 39 Basket Support

2 Front Wheel Assembly 21 Fork 40 Support Bracket

3 Front Fender 22 Tire (x2) 41 Cup Holder

4 Wheel Retainer (x2) 23 Tube (x2) 42 Luggage Panel

5 Axle Nut (x4) 24 Grips (x2) 43 Screws (x4)

6 Washer (x4) 25 Crank 44 Handlebar Bag

7 Fender Brace Bolt (x4) 26 Crank Bearings 45 Reﬂector

8 Front Fender Mount Bolt 27 Sprocket 46 Reﬂector Bolt

9 Washer (x3) 28 Kickstand 47 Adjustable Rack

10 Nut (x2) 29 Rear Wheel Assembly 48 Adjust Knob

11 Rear Fender Mount Bolt 30 Chain 49 Insulated Bag

12 Handlebar 31 Chain guard

13 Handlebar Stem 32 Head Set Bearing

14 Seat 33 Seat Post

15 Quick Release Lever & Nut 34 Seat Post Hardware

16 Rear Fender 35 Basket

17 Front Reﬂector 36 Screw (x4)

18 Rear Reﬂector 37 Washer (x4)

19 Left Pedal 38 Nut (x4)

Meijer.com

Introduction

This Owner’s Manual is made for several different bicycles:

• Some illustrations may vary slightly from the actual product.

• Follow instructions completely.

• If the bicycle has any parts that are not described in this manual, look for

separate “Special Instructions” that are supplied with the bicycle.

• Models may have different accessory items such as bags, baskets, reﬂec-

tors, cup holders, racks, etc.

• All features, components and accessories are not included on all models.

• Use the Index page to locate speciﬁc sections of this manual.

• Please read through this entire manual before beginning assembly or

maintenance.

WARNING: Keep small parts away from children during assembly.

NOTE: All of the directions (right, left, front, rear, etc.) in this manual are as

seen by the rider while seated on the bicycle.

Do not dispose of the carton and packaging until you complete the assembly of

the bicycle. This can prevent accidentally discarding parts of the bicycle.

Tools Needed

Small Adjustable Wrench

(Jaws must open at least 9/16 inch.)

Large Adjustable Wrench

(Jaws must open at least 1 1/4

inch.)

Flat-blade Screwdriver Phillips Screwdriver

Slip-Joint Pliers Metric Allen Wrenches

Meijer.com

Front Fender Installation

Use Screw Driver and Wrench:

1. Front fender attaching hardware

has been pre-assembled onto the

fork. Remove the Bolt (8) and

Washer (9) and Nut (10) from the

fork crown.

2. Remove lower mounting Bolts (7)

and Washers (6) from the dropout

before starting (ﬁg 01).

g 01

910

Model with Front Reﬂector (45):

(not included on all models)

3. Place the Fender (3) in the fork

with the longer fork mounting tab

(A) on the rear side of the fork (ﬁg

02).

4. Place Reﬂector (45) between fork

and Front Fender Tab (D).

5. Insert the Bolt (46) through the

Washer (9), Fender Tabs (A,D)

and fork mounting hole.

6. Install Washer (9) and Nut (10)

onto Bolt (46) and tighten se-

curely.

7. Make sure Reﬂector (45) is point-

ing forward.

g 02a

continued on next page

Meijer.com

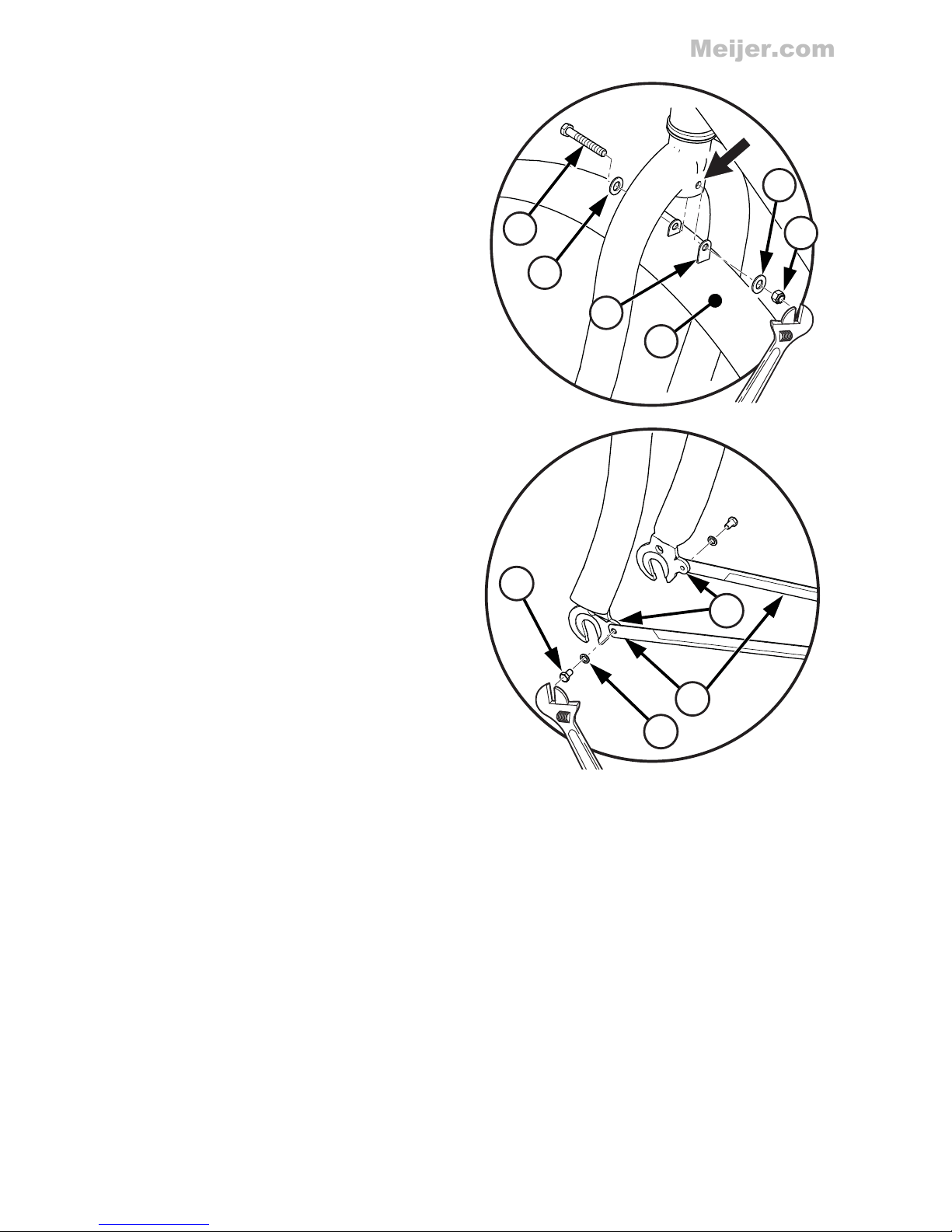

Front Fender Installation Continued:

Model without Front Reﬂector:

8. Place the Fender (3) in the fork

with the longer fork mounting tab

(A) on the rear side of the fork (ﬁg

02).

9. Insert the Bolt (8) through the

Washer (9) and Fender Tabs (A,D)

and fork mounting hole.

10. Install Washer (9) and Nut (10)

onto Bolt (8) and tighten securely.

g 01

g 02

Attaching Lower Fender Braces:

11. Line up the lower Fender Braces

(B) with the Fork Mounting Tabs

12. Insert each lower mounting Bolt

(7) and Washer (6) into the Fork

Mounting Tabs (C) and tighten

securely.

g 03

Meijer.com

Otros manuales para cruiser

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Bicicleta de Huffy

Huffy

Huffy Slider Manual de usuario

Huffy

Huffy Coaster Brake Bicycles Manual de usuario

Huffy

Huffy 1C4880-A01 Manual de usuario

Huffy

Huffy KD58C-LCD Manual de usuario

Huffy

Huffy freewheel Manual de usuario

Huffy

Huffy Green Machine Manual de usuario

Huffy

Huffy M0782 Manual de usuario

Huffy

Huffy Green Machine Manual de usuario

Huffy

Huffy cruiser Manual de usuario

Huffy

Huffy Kids Ride-On Manual de usuario

Huffy

Huffy BMX bicycles Manual de usuario

Huffy

Huffy Mountain Bikes Manual de usuario

Huffy

Huffy CLASSIC TRIKE Manual de usuario

Huffy

Huffy BMX Manual de usuario

Huffy

Huffy Mountain Bikes Manual de usuario

Huffy

Huffy Folding Trike Manual de usuario

Huffy

Huffy Green Machine Manual de usuario

Huffy

Huffy 700c Manual de usuario

Huffy

Huffy Minnie Lights & Sound Manual de usuario

Huffy

Huffy coaster Manual de usuario

Huffy

Huffy Green Machine Manual de usuario

Huffy

Huffy Cruiser Bicycles Manual de usuario

Huffy

Huffy coaster Manual de usuario

Huffy

Huffy Multi-Speed Comfort Bicycles Manual de usuario

Manuales populares de Bicicleta de otras marcas

RAMBO

RAMBO R1000X2M-FF-BFD Manual de usuario

Vermeiren

Vermeiren SAFARI Manual de usuario

Velec

Velec A2/36V Manual de usuario

Coswheel

Coswheel A-ONE Manual de usuario

Betzold

Betzold 97869 Manual de usuario

Cervélo

Cervélo S3 2019 Manual de usuario

Tenways

Tenways AGO X Manual de usuario

Festo

Festo EGSC-BS-KF Manual de lista de piezas

Gio Electric

Gio Electric H1 Volt Manual de usuario

GOGOBEST

GOGOBEST GM30 Manual de usuario

DAHON

DAHON CIAO - 2009 Manual de usuario

Aprimatic

Aprimatic ONDA 500 Guía de inicio rápido

MV Agusta

MV Agusta Lucky Explorer GRAVEL Manual de instrucciones

Greyp

Greyp G6 Series Manual de usuario

Babboe

Babboe Carve-E Manual de usuario

Huka

Huka orthros Manual de usuario

Xtracycle

Xtracycle Stoker 2021 Manual de usuario

APRILIA

APRILIA DORSODURO 750 ABS 2015 Manual de usuario
