UPS5000-S-(50 kVA-300 kVA)

Quick Guide (Isolation Protection)

UPS Model Cabling Mode Capacity Weight Dimensions (H x W x D)

UPS5000-S-200K-FM Routed in and

out from the

top

50 kVA, 100

kVA, 150 kVA,

200 kVA, 250

kVA, 300 kVA

380 kg 2000 mm x 600 mm x

850 mm

UPS5000-S-300K-SMT 460 kg

1Overview

UPS5000-S-200K-FM UPS5000-S-300K-SMT

(1)

Cover

(2) Mains input switch

(3) Bypass input switch

(4) Maintenance bypass switch

(5) Output switch

(6) Control module

(7) Bypass module

(8) Power modules

(9) Monitor display

unit

(10) Folder

1. Before installation, read the user manual carefully to get familiar with product information

and safety precautions.

2. Use insulated tools during installation and operation.

3. Only Huawei engineers or engineers certified by Huawei are allowed to install, commission,

and maintain the UPS. Otherwise, personal injury or equipment damage may occur, and the

resulting UPS faults are beyond the warranty scope of Huawei.

4. This document describes how to install a single UPS. For details about how to install parallel

systems, contact Huawei technical support.

2Installing the UPS

Secured Installation

1. Determine the position for installing the

cabinet. Mark mounting holes based on

the drawings. (unit: mm)

2. Use a hammer drill to drill four holes for

installing expansion bolts and then install four

expansion bolts in the holes. Remove the bolt,

spring washer, and flat washer.

3. Slide the cabinet on its castors to the installation

position.

4. (Optional) If the castors of the UPS need to be

lifted from the ground, perform Step 1 to Step 2

in Non-Secured Installation.

5. Remove the rear panel of the cabinet, and then

open the front door.

6. Remove the four rubber plugs from the bottom

of the cabinet (two on the front and two at the

back).

7. Insert four M12x115 expansion bolts into

the expansion bolt holes in the floor, and

tighten the expansion bolts.

2. Check whether the bottom of the cabinet is

horizontal by using a level. If the cabinet is

not leveled, adjust the leveling feet.

1. Lower the four leveling feet at the bottom of

the cabinet by using a wrench until all the four

castors at the bottom hang in the air and the

leveling feet bear the whole cabinet weight.

3Connecting Cables

Non-Secured Installation

UPS Cable Connection Reference

3.1

•Prepare cables away from the cabinets to prevent scraps from falling inside. Cable scraps

may ignite and cause personal injury or device damage.

•After cables have been installed, clean the cabinets in a timely manner. Keep the cabinets

and surrounding environment clean and tidy.

•You need to prepare terminals onsite. The stripped length of the copper wire should be the

same as that of the part of the terminal that covers the conductor.

The cabling route is for reference only. Connect cables based on site requirements.

signal

cable

1. Ensure the maintenance bypass switch is OFF.

Open the front door, remove the front cover,

and remove covers from the top of the

cabinet based on the site requirements.

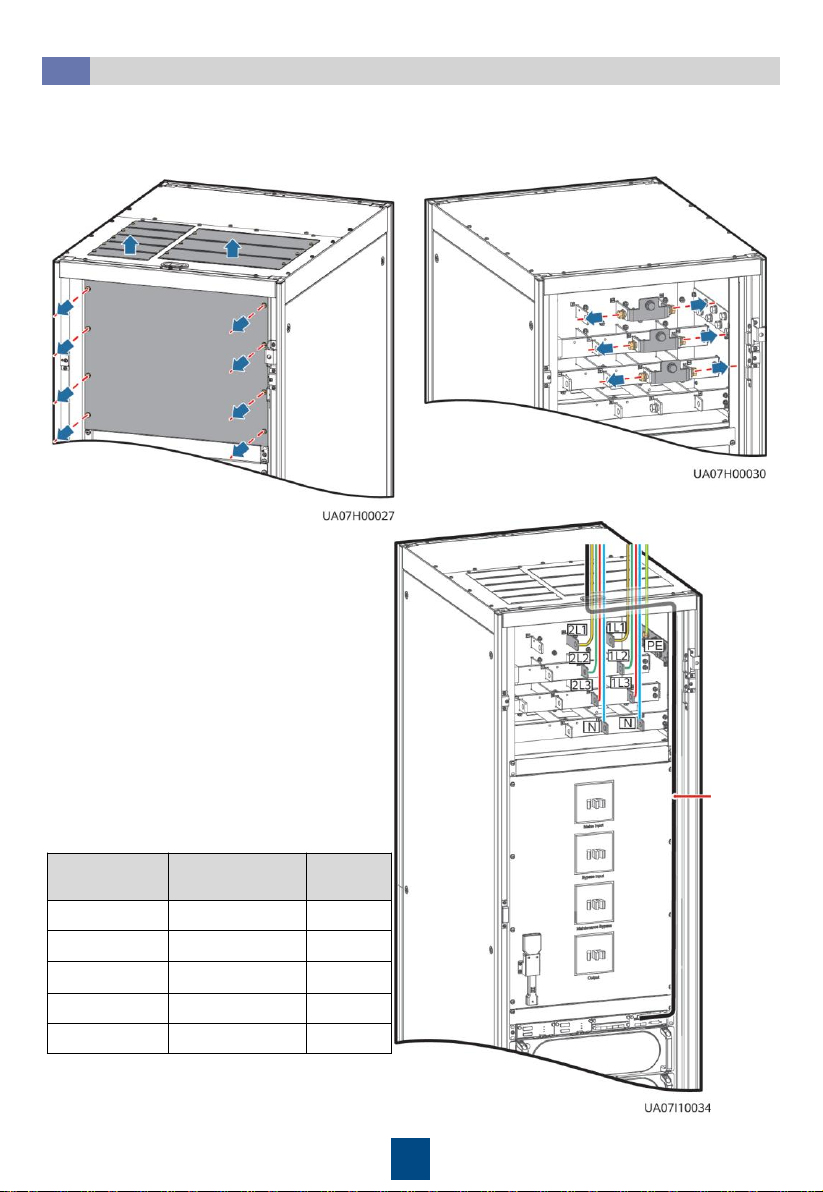

Connecting Cables to the UPS5000-S-200K-FM

3.2

2. (Skip this step if the mains input and bypass

input share a power source.) Remove the

copper bars between the mains input and

bypass input.

3. Connect the ground cable, input cables

(There is no need to connect the bypass

input power cable if the mains input and

bypass input share a power source.), and

signal cable.

Port

Description Bolt

Specifications Torque

Mains input M10 x 40 26N•m

Bypass input M10 x 40 26N•m

Battery

input M12 x 60 46N•m

Output M10 x 40 26N•m

PE M10 x 30 26N•m

4. Connect battery cables and output cables.

1. Ensure the maintenance bypass switch is OFF.

Open the front door, remove the front cover,

and remove covers from the top of the

cabinet based on the site requirements.

2. (Skip this step if the mains input and bypass

input share a power source.) Remove the

copper bars between the mains input and

bypass input.

Connecting Cables to the UPS5000-S-300K-SMT

3.3

3. Connect the ground cable, power cables, and signal cable. There is no need to connect the

bypass input power cable if the mains input and bypass input share a power source.

Port

Description Bolt

Specifications Torque

Mains input M12 x 45 46N•m

Bypass input M12 x 45 46N•m

Battery

input M12 x 45 46N•m

Output M12 x 45 46N•m

PE M12 x 30 46N•m

signal cable

(1) Rear of modules (2) Cabinet top (3) Wiring terminal blocks (4) Switches

UPS5000-S-200K-FM UPS5000-S-300K-SMT

4Verifying the Installation

1. Check that there is no foreign matter in the cabinet.

Paper protective

film

Sealing putty

Dustproof cover

2. After verifying the installation, reinstall all the

covers.

3. (Remove the paper protective film from the

sealing putty.) After routing cables and

verifying cable connections, seal the gap

between cables and the cabinet using sealing

putty.

4. Do not remove the dustproof cover

before power-on to prevent dust inside

the UPS.

Sealing putty must

be used as a whole

and the gap can be

sealed only from

the top.

5Powering On and Starting the UPS

1. Before powering on the UPS, ensure that the UPS has passed all check items in the

UPS5000

Commissioning and Acceptance Report

and Chapter 4.

2. Measure the voltage and frequency of the UPS upstream input switch. The line voltage range

is 138–485 V AC, and the frequency range is 40–70 Hz.

Initial Startup

5.2

Download and install the Service Expert app.

After login, tap Power-on password

activation on the screen. A message is

displayed, indicating whether to start the UPS.

Tap OK.

Insert the WiFi module into the USB port on

the MDU. Enable the mobile phone WLAN,

search for the UPS_WIFI signal, and connect to

the WiFi signal. The password is Changeme.

Set the Site and Device Type as required, and

connect the device. Set IP to 192.168.0.10, Port

to 443, Username to admin, Password to

Changeme, and click Login.

Enter Bar code and Verification code

obtained from the LCD on the Offline

Activation screen. Tap Generate PWD to

generate a startup password.

Set Site and Device Type as required,

and tap Offline Activation.

Enter the generated password in the

password textbox on the LCD to start the

UPS.

Use the app to

start the UPS

online?

Yes

No, start

the UPS

offline

On the app home screen, tap StartUp to access the Set Startup screen.

•If the UPS is powered on for the first time, you need to obtain the startup password from the

Service Expert app. Skip this step if the UPS is not powered on for the first time.

•The Service Expert app can be downloaded from Google Play Store and can run on Android.

1. Obtain the startup password.

Powering On the UPS

5.1

Close the upstream bypass and mains input switches.

(Full configuration model) Close the UPS bypass input switch, output switch, and mains input

switch.

After the UPS is powered on, initialization begins. The MDU displays the Huawei logo and an

initialization progress bar.

To ensure system security,

change the LCD and WebUI

passwords after the first login.

1. On the main menu, choose Common Functions and

tap Inv. ON.

2. In the displayed login window, enter the user name and

password, and tap .

3. In the displayed dialog box, tap Yes to start the inverter.

Starting inverter

5.3

2. Set the language, time, date, network parameters, and system parameters on the Settings

Wizard screen.

4. If the system has connected to the remote EPO switch, you need to choose Monitoring > UPS

System > Running Parameter > System Settings on the WebUI and set EPO detection to

Enable.

5. View the system running status diagram on the MDU to check that the UPS is working in

bypass mode.

3. After you perform the settings, the Bypass mode

and No battery alarms are reported by the MDU

and do not need to be cleared. If there is any

other alarm, you need to rectify the fault.

Powering On Loads

5.4

1. After the inverter starts, the UPS works in normal mode. The Bypass mode alarm disappears

from the MDU.

2. After confirming that the battery strings are properly connected, turn on the battery string

input circuit breaker. If there are multiple battery strings, turn on the circuit breaker for each

battery string and then turn on the general circuit breaker between battery strings and the

UPS. The No battery alarm disappears from the MDU.

3. Turn on the UPS downstream output switch to supply power to the loads.

6Shutting Down the UPS

After you shut down the inverter, the UPS transfers to bypass mode if the bypass is normal;

the UPS supplies no power if the bypass is abnormal. Before shutting down the UPS, ensure

that all loads have been shut down.

Powering Off a Single UPS

6.2

Shutting Down the Inverter to Transfer the UPS to Bypass Mode

6.1

(Optional) Setting Parameters for the BCB Box

5.5

1. On the main menu of the LCD, choose Common Functions and tap Inv. OFF.

2. In the displayed login window, enter the user name and password, and tap .

3. In the displayed dialog box, tap Yes to shut down the inverter.

1. If a BCB box is configured, set MUE05A connection to Enable in System Info > Settings >

Dry Contacts Set, and then set BCB connection [OL] and Battery breaker [STA] to Enable.

Open the downstream output switch and battery string switch.

(Full configuration model) Open the UPS mains input switch, bypass input

switch, and output switch.

Open the upstream mains input and bypass input switches.

System User LCD Preset Password WebUI Preset Password

admin (system

administrator) 000001 Changeme

operator (common user) 000001 Changeme
