Huawei PDC-0038V4ACIOA-V2 Manual de usuario

HUAWEI TECHNOLOGIES CO., LTD.

PDC-0038V4ACIOA-V2

V100R001C11

Quick Installation Guide

Issue: Draft B

Part Number: 31506178

Date: 2013-06-08

Safety Precautions

To ensure safety of humans and the equipment, pay attention to the safety symbols on the equipment and all the

safety instructions in this document. The "NOTE", "CAUTION", and "WARNING" marks in other documents do

not represent all the safety instructions. They are only supplements to the safety instructions. When operating

Huawei equipment, in addition to following the general precautions in this document, follow the specific safety

instructions given by Huawei. Huawei will not be liable for any consequences that are caused by the violation of

safety regulations and design, production, and usage standards.

Local Safety Regulations

When operating Huawei equipment, you must follow the local laws and regulations.

Personnel Requirements

1. Only trained and qualified personnel are allowed to install, operate, and maintain Huawei equipment, and they

must understand basic safety precautions.

2. You can modify default parameters only after being granted approval from Huawei technical support.

Symbols

■

Alerts you to a potentially hazardous situation that could, if not avoided, result in equipment damage, data loss,

performance deterioration, or unanticipated results.

Provides additional information to emphasize or supplement important points in the main text.

■

Precautions

Human Safety

1. To prevent electric shocks, get the tool insulated and wear insulation gloves when connecting cables.

2. In case of fire, use a dry power fire extinguisher to put out the fire. Using a fluid fire extinguisher may cause

electric shocks.

Device Safety Requirements

Do not move the heavy object by holding its mounting brackets, front panel, or terminal cover. When you move

heavy objects, see the transportation safety requirements.

■

< 18 kg (< 40 lb) 18–32 kg (40–70 lb) 32–55 kg (70–120 lb) > 55 kg (> 120 lb)

Appearance

PDC is short for power distribution cabinet.

PDU is short for power distribution unit.

UPS is short for uninterruptible power system.

PDU Model PDC-0038V4ACIOA-V2

Applicable UPS UPS2000-G-3KRTL/6KRTL-V2

Weight 15 kg

Dimensions

(H x W x D) 130 mm x 430 mm x 585 mm

1 2 3 4 5 6 7 8

1. UPS 1 mains input

circuit breaker

2. UPS 2 mains input circuit

breaker

3. UPS 1 bypass input circuit

breaker

4. UPS 2 bypass input circuit

breaker

5. UPS 1 output circuit

breaker

6. UPS 2 output circuit

breaker

7. Maintenance bypass circuit

breaker

8. Maintenance bypass circuit

breaker cover

PDC-0038V4ACIOA-V2

Front panel (under the cover)

Rear panel

4 5 6 7

89101112

13141516

1. Maintenance bypass

ports

2. Dual in-line package (DIP)

switch

3. Control area network (CAN)

communications ports

4. Output ports

5. Bypass input ports 6. Mains input ports 7. Output socket group 1 (250 V

AC, 15 A, disabled in the case

of 110 V output)

8. Output socket group 1

fuses (250 V AC, 15 A)

9. Output socket group 2

fuses (250 V AC, 10 A)

10. Output socket group 2

(250 V AC, 10 A, disabled in

the case of 110 V output)

11. UPS 1 mains input port 12. UPS 2 mains input port

13. UPS 1 bypass input

port

14. UPS 2 bypass input port 15. UPS 1 output port 16. UPS 2 output port

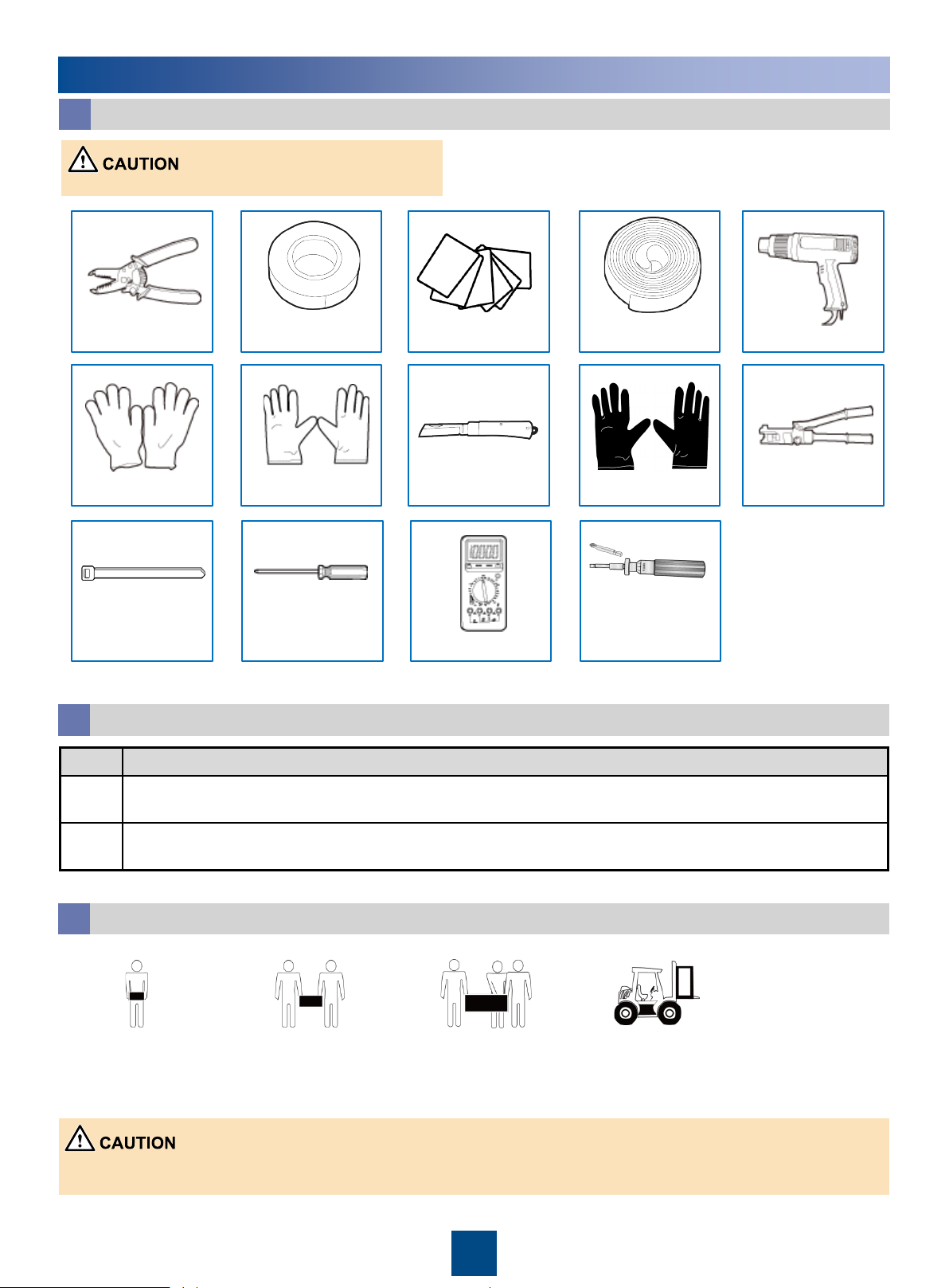

Preparations

Tools

Unpacking and Checking

Do not move the PDU by holding its mounting brackets, front panel, or terminal cover. When you move heavy objects, see

the transportation safety requirements.

No. Item

1 Visually inspect the PDU appearance for shipping damage. If any shipping damage is founded, report it to the carrier

immediately.

2 Check the PDU bar code and ensure that it complies with the order. Check against the delivery list that the types of

fittings are complete and correct. If there is any discrepancy, contact the local Huawei office immediately.

Wire stripper Polyvinyl chloride (PVC)

insulation tape Heat gun

Cable tie

Electrostatic discharge

(ESD) gloves

Protective gloves Insulation gloves

Cotton cloth

Hydraulic pliers

Heat shrink tubing

(Φ6)

Electrician's knife

Power screwdriver

Multimeter

Phillips screwdriver

(PH2 x 150 mm or

PH3 x 250 mm)

< 18 kg (< 40 lb) 18–32 kg (40–70 lb) 32–55 kg (70–120 lb) > 55 kg (> 120 lb)

Transportation Safety Requirements

Get installation tools insulated to prevent electric shocks.

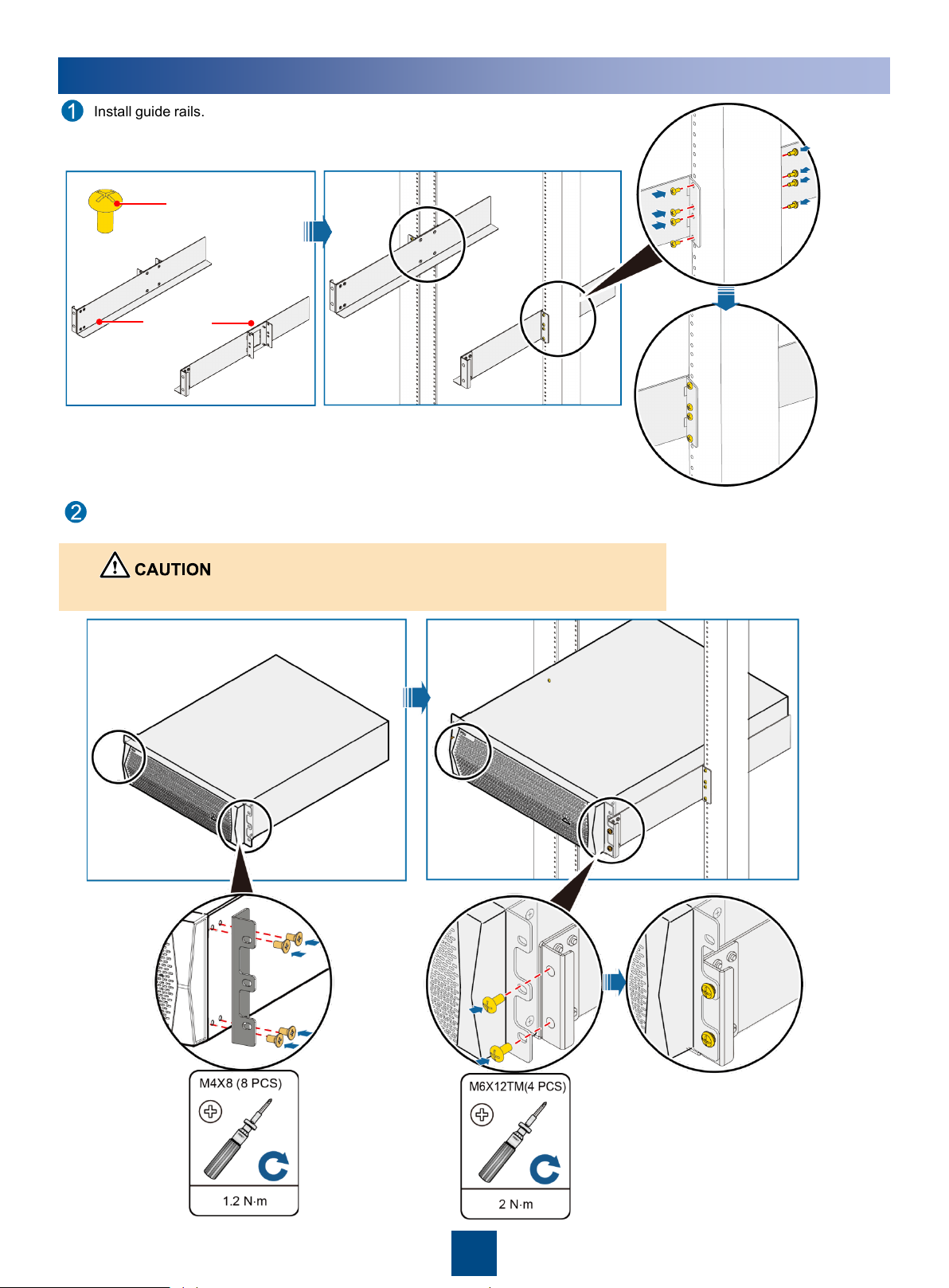

1. Mechanical Installation

a Install guide rails.

Install mounting brackets, and place the PDU on the guide rails. Secure the UPS to the rack using M6x12TM screws

through the holes in the mounting brackets.

Bolt(#12-24,16 PCS)

Guide rails

Do not move the PDU by holding its mounting brackets, front panel, or terminal cover.

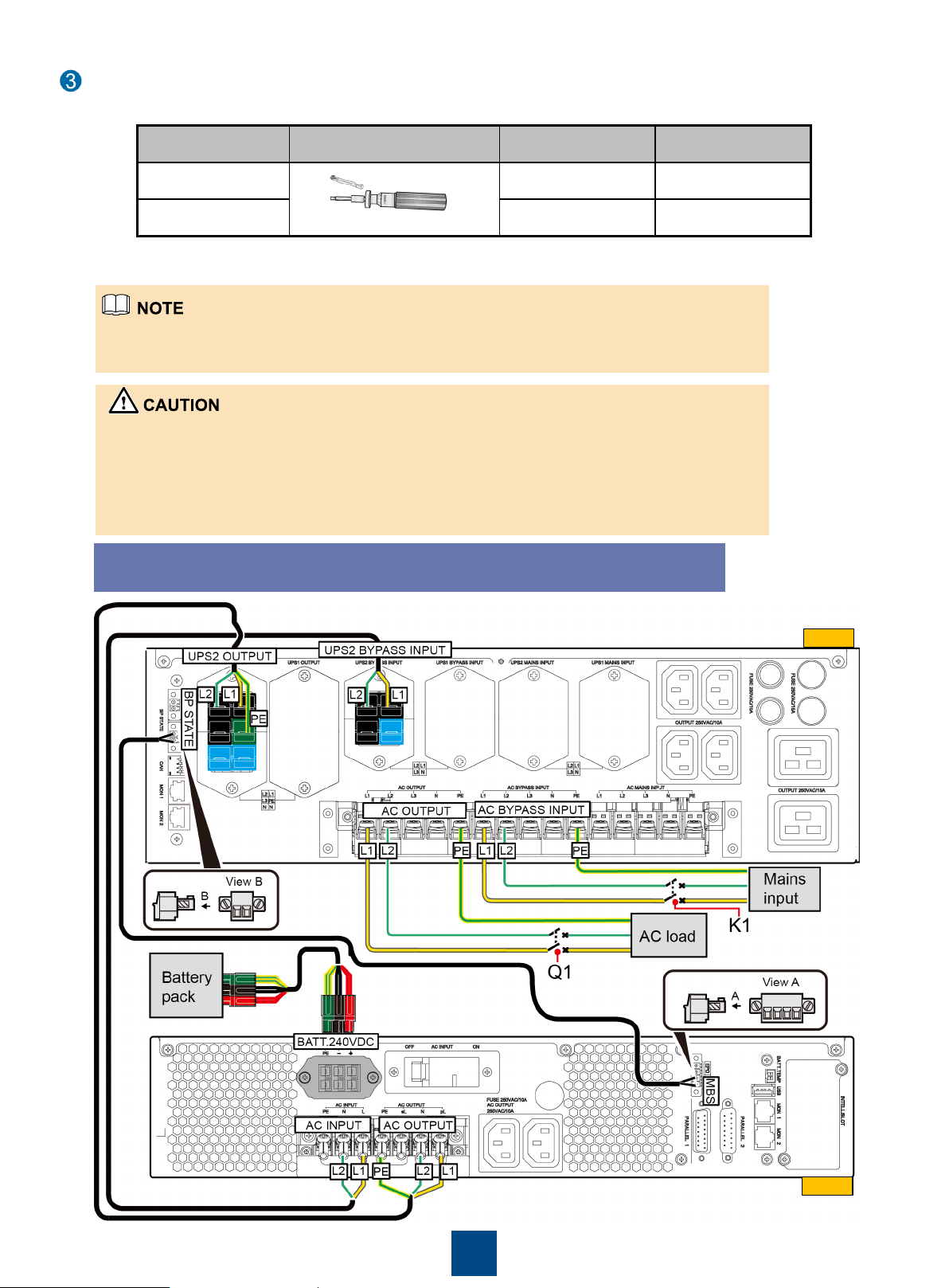

2. Cable Installation

Remove the front panel of the PDU and open the circuit breakers.

OFF

Loosen screws to remove the busbar cover.

Device Tool Screw Torque

PDU M5X0.8p 1.5 N·m

3 kVA /6 kVA UPS M4X0.7p 1.3 N·m

Connecting cables to the PDU for UPS2000-G-3 kVA/6 kVA system (dual-live-wire input dual-live-wire output).

Power screwdriver

1. Configure colors for the cables prepared onsite in accordance with the local regulations.

2. Connect cables in this sequence: AC output power cables, AC input power cables, and battery cables.

Connect cables.

1. Before connecting cables, set off the mains circuit breaker, output circuit breaker, bypass circuit

breaker, maintenance bypass switch, and battery circuit breaker.

2. The 2-pole circuit breakers of K1 and Q1 used for cable connection are provided by the user.

3. For the cable connection of single-phase, see the dual–live wire connection method.

4. If customers purchase input and output power cables by themselves, use the cables that comply

with standards proposed by Underwriters Laboratories (UL) or International Electrotechnical

Commission (IEC).

PDU

Connecting cables to UPS2000-G-3 kVA or UPS2000-G-6 kVA without transformer

(Dual-live-wire input Dual-live-wire output)

UPS

PDU

Transformer

Connecting cables to UPS2000-G-3 kVA or UPS2000-G-6 kVA

with transformer (Dual-live-wire input Dual-live-wire output)

UPS

1. Do not set the UPS to ECO mode when the system output connects to an isolated transformer.

2. When you install a transformer on the output side, you are advised to connect the load to the pL terminal and disable Power

segment.

3. In the case of 110 V parallel output, short-circuit L1 and L2 and short-circuit N1 and N2. Ensure that the L1 and L2 cables are

of an equal length, and N1 and N2 cables are of an equal length.

Do not use the high voltage output

port in the case of 110 V output; otherwise,

devices may be damaged.

Do not use the high voltage output

port in the case of 110 V output; otherwise,

devices may be damaged.

3. Power-On Procedure

For details, see the UPS2000-G-(3 kVA-6 kVA)-V2 V100R001C11 Quick Installation Guide.

Before you start the inverter, check Power segment is Disable and set Output transformer to Enable.

1. indicates press .

2. indicates press then .

3. indicates press then .

4. indicates press then .

5. The data in the menus is for reference only. The LCD figures in this document correspond to

V100R001C00SPC113. If the LCD is updated, contact Huawei for the latest LCD figures.

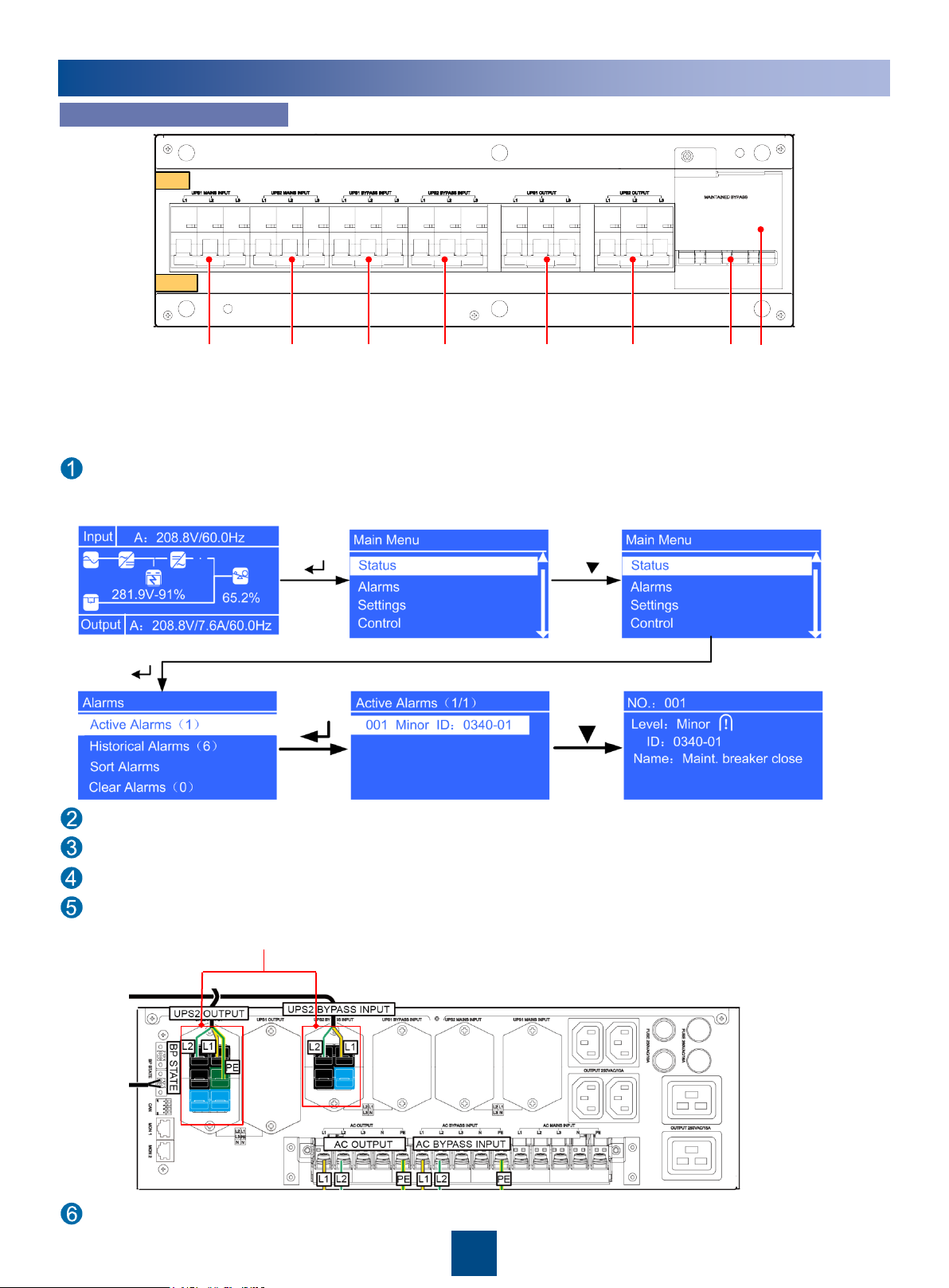

Appendix

The procedure is as follows:

Maintenance bypass usage

1 2 3 4 5 6 7 8

OFF

Open the maintenance bypass circuit breaker cover on the PDU front panel.

The UPS generates the "Maint. Breaker close" alarm (the Alarm indicator is on and the buzzer buzzes) and transfers to

bypass mode.

Close the maintenance bypass circuit breaker on the PDU front panel.

Open the UPS 2 bypass input circuit breaker and UPS 2 output circuit breaker on the PDU front panel.

Open the battery switch (if the battery pack does not have a switch, disconnect the battery pack hot-swap terminal).

Disconnect the hot-swap terminals between the PDU and the UPS.

Use a multimeter to check that the UPS input and output voltages are 0. You can maintain the UPS.

1. UPS1 mains input circuit

breaker

2. UPS2 mains input circuit

breaker

3. UPS1 bypass input circuit breaker 4. UPS2 bypass input circuit

breaker

5. UPS1 output circuit

breaker

6. UPS2 output circuit breaker 7. Maintenance bypass circuit

breaker

8. Maintenance bypass circuit

breaker cover

Hot-swap terminals
