Huawei NetEngine 8000 M14 Manual de usuario

(IEC 19-inch & ETSI 21-inch Cabinet)

5 U Quick Installation Guide

This document applies to the installation of the NetEngine 8000 M14,

PTN 6900-2-M14, and NE40E-X2-M14.

Issue：01

Device Overview

DC chassis

AC chassis

Insulation tape Corrugated pipe

ESD wrist strap

Signal cable label Cable management framePanel screw (M6x12)

Label cable tie

Floating nut (M6)

Cable tie (300 x 3.6 mm)

Power cable label

Quick Installation Guide

Serial cable Fiber binding tape

Packing list

DC and AC Chassis are installed in the same way, and DC Chassis is

used as an example here.

Figures in the document are for reference only and may be dierent

from actual devices.

The type and quantity of items in an installation accessory package

vary according to the device model. Check the delivered items

against the actual packing list.

NOTE

Item

Chassis height[U]

Rated input

voltage[V]

Input voltage

range [V]

Maximum input

current [A]

DC Chassis

5 U

222 mm x 442 mm x

220 mm (8.74 in. x

17.4 in. x 8.66 in.)

10.1 kg (22.27 lb)

-48 V/-60 V

AC Chassis

5 U

222 mm x 442 mm x 220

mm (8.74 in. x 17.4 in. x

8.66 in.)

14.6 kg (32.19 lb)

PTN devices: 110 V/220 V

Other devices: 200 V to 240 V

/100 Vto 127 V dual live wires,

support 240V HVDC

Dimensions without

packaging(H x W x

D)[mm(in.)]

Weight without

packaging (base

conﬁguration)[kg(lb)]

-40 V to -72 V

NetEngine 8000 M14/

PTN 6900-2-M14/

NE40E-X2-M14: 60 A

NetEngine 8000 M14/

PTN 6900-2-M14/NE40E

-X2-M14: 10 A

90 V to 290 V

Safety Guidelines

Observe all safety regulations and precautions

Only trained and qualiﬁed personnel are allowed to install, operate

or maintain the equipment. Familiarize yourself with all safety pre-

cautions before performing any operation on the equipment.

Operator qualiﬁcations

To ensure personal and equipment safety, observe all the safety

precautions on the equipmentand in this document.

and and items do not cover all the safety precautions and

are only supplementary to the safety precautions.

Follow all the safety precautions and instructions provided by Huawei.

The safety precautions outlined in this document are only requirements

of Huawei and do not cover general safety regulations. Huawei is not

liable for any consequence that results from violation of regulation

spertaining to safe operations or safety codes pertaining to design,

production, and equipment use.

DANGER WARNING

CAUTION NOTICE

Do not install or remove the equipment or power cables while power is on.

To ensure equipment and personal safety, ground the equipment before

powering it on.

DANGER

Use multiple persons to move or lift a chassis and take measures to pro-

tect personal safety.

Laser beams will cause eye damage. Do not look into bores of optical

modules or opticalﬁbers without eye protection.

WARNING

During equipment transport and installation, prevent the equipment

from colliding withobjects like doors, walls, or shelves.

Move an unpacked chassis upright. Do not drag it with it lying down.

Do not touch unpainted surfaces of the equipment with wet or contami-

nated gloves.

Do not open the ESD bags of cards and modules until they are delivered

to the equipmentroom. When taking a card out of the ESD bag, do not

use the connector to support the card's weight because this operation

will distort the connector and make the pins on the backplane connector

bend.

NOTICE

Before installing, operating, or maintaining the

equipment, wear an ESD wrist strap and insert the other

end into the ESD jack on the chassis or cabinet. Remove

conductive objects like jewelry and watches to prevent

damages to the equipment and cards caused by

electrostatic discharge.

ESD Protection

Site Requirements

To ensure personal and equipment safety, observe all the safety

precautions on the equipmentand in this document.

and and items do not cover all the safety precautions and

are only supplementary to the safety precautions. The device needs to be installed in a clean, dry, well ventilated, and

temperature-controllable standard equipment room. In addition, the

equipment room must be free from leaking or dripping water, heavy

dew, and condensing.

Dustproof measures must be taken in the installation site. This is

because dust will cause electrostatic discharges on the device and

aect connections of metal connectors and joints, shortening the

service life of the device and even resulting in device failures.

The installation site must be free from acidic, alkaline, and other

types of corrosive gases.

The device that is operating may cause radio interference. If this is the

case, relevant measures may be needed to reduce the interference.

Generally, devices such as wireless antennas should not be installed in

the equipment room. If such devices must be installed indoors, ensure

that the electromagnetic environment meets relevant requirements or

take necessary electromagnetic shielding measures.

The device to be installed must be used indoors. To ensure normal

operation and long service life of the device, the following requirements

must be met:

The temperature and humidity in the installation site must meet device

requirements described in the following table.

Long-term operating

temperature [°C]

Relative operating

humidity [RH]

DC: -40°C ～65°C

AC: –20°C to +55°C

≤ 4000 m (For the altitude in the range of 1800 m

to 4000 m, the operating temperature of the device

decreases by 1°C every time the altitude increases

by 220 m.)

Item Requirements

Storage temperature

[°C] –40°C to +70°C

Relative storage

humidity [RH]

Long-term operating

altitude [m]

Storage altitude [m] < 5000 m

NetEngine 8000 M14/PTN 6900-2-M14/NE40E-X2-

M14:

Long-term: 5% to 85% RH, non-condensing

Short-term: 5% to 95% RH, non-condensing

NetEngine 8000 M14/PTN 6900-2-M14/NE40E-X2-

M14: 5% to 95% RH, non-condensing

Cabinet Requirements

Installing a Device

The device must be installed in an IEC 19-inch cabinet or an ETSI 21-inch

cabinet.

Huawei A63B cabinet is recommended. If customers choose to purchase

cabinets by themselves, the cabinets must meet the following require-

ments:

NOTE

1. 19-inch or 21-inch cabinet with a depth of greater than or equal to 300

mm.

2. The cabling space in front of the cabinet complies with the cabling

space requirements of boards. It is recommended that the distance

between the cabinet door and any device board be greater than or equal

to 120 mm. If the cabling space is insucient, cables will block the

cabinet door from closing. Therefore, a cabinet with broader cabling space

is recommended, such as a cabinet with a convex door.

3. The device draws air from the left side and exhausts from the right

side. Therefore, if the device is installed in a 19-inch cabinet, there must

be a clearance of at least 75 mm at the left and right sides of the cabinet

to ensure good ventilation.

4. The porosity of each cabinet door must be greater than 50%, meeting

heat dissipation requirements of devices.

5. The cabinet has installation accessories, such as guide rails, ﬂoating

nuts, and screws.

6. The cabinet has a ground terminal to connect to the device.

7. The cabinet has a cable outlet on the top or at the bottom for

overhead or underﬂoor cabling.

The cabinet may be installed on an ESD ﬂoor or a concrete ﬂoor. For de-

tails about how to install a cabinet, see the Cabinet Installation Guide

delivered with a cabinet.

When installing a device in a cabinet, ensure that the total heat

consumption of all devices in the cabinet does not exceed the heat

dissipation capability of the cabinet.

To prevent air return from aecting heat dissipation, leave at least 2 U

space between devices in the cabinet. In addition, if the cabinet has

middle columns, devices can be installed in stacking mode.

Do not block the heat dissipation holes on panels.

A device that needs to share the same cabinet with other devices cannot

be installed near the air exhaust vents of those devices.

Consider the impact of a device's air exhaust vent on adjacent devices to

prevent high temperature.

When fastening ﬂoating nuts, ensure that there is at least 75 mm space

on the left and right sides of the device for ventilation after device

installation.

CAUTION

Installing a Device

5.1 Installing a Device in an IEC 19-Inch Cabinet

1Install ﬂoating nuts onto the cabinet.

2Install the cable management frame onto the device.

3Connect the PGND cable to the front or side face of the device.

The side face is preferred.

Installation hole

Floating nut

Installing a Device

5.2 Installing a Device in an ETSI 21-Inch Cabinet

with Front Columns

2Install the cable management frame

and power cable tray onto the device.

1Install ﬂoating nuts onto the cabinet.

4Install the device into the cabinet.

Installation hole

Floating nut

Installing a Device

5Install the device into the cabinet.

4Connect the PGND cable to the front or side face of the device.

The side face is preferred.

3Install conversion mounting ears on both sides of the device.

Installing a Device

5.3 Installing a Device in an ETSI 21-Inch Cabinet

with Middle Columns

1Install ﬂoating nuts onto the cabinet.

2Install the cable management frame

and power cable tray onto the device.

Installation hole

Floating nut

3Remove the mounting ear on

the left side of the chassis,

move it to the middle of the

panel, and install an ETSI

conversion mounting ear.

Then, take out a 19-inch

mounting ear and an ETSI

conversion mounting ear

from the auxiliary material

package and install them on

the right side of the chassis

(that is, the side with a cable

management frame).

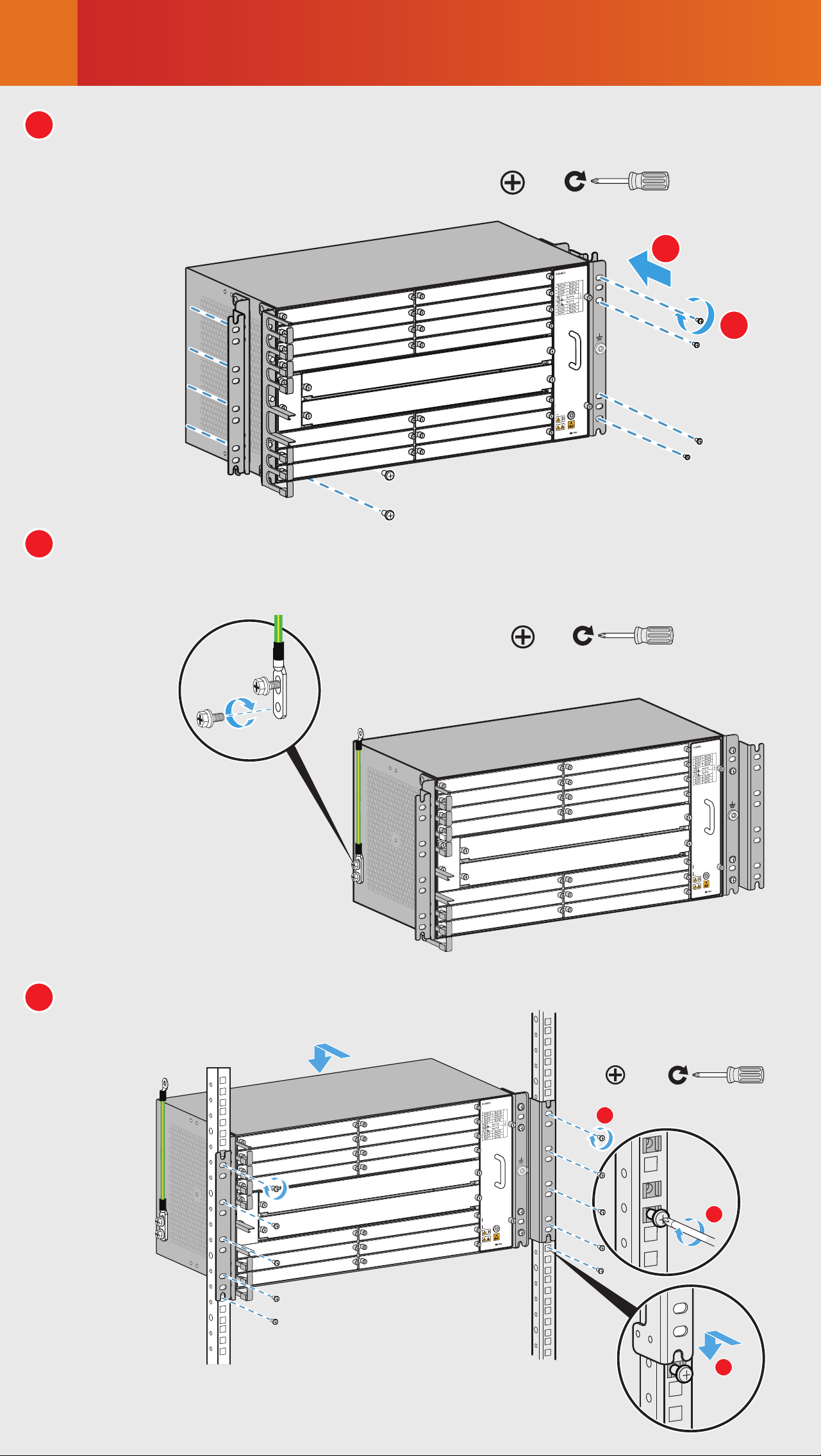

Installing a Device

4IInstall the 19-inch mounting ears and conversion mounting ears

on the left and right sides of the device.

5Connect the PGND cable to the

front or side face of the device.

The side face is preferred.

6Install the device into the cabinet.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Almacenamiento de Huawei

Huawei

Huawei LUNA2000-200KWH-2H1 Smart String ESS Manual de usuario

Huawei

Huawei E880 Manual de usuario

Huawei

Huawei 3 U Manual de usuario

Huawei

Huawei FusionModule500 Manual de usuario

Huawei

Huawei FusionModule2000 V500R002C03 Manual de funcionamiento

Huawei

Huawei FusionModule800 Manual de usuario

Huawei

Huawei E1820 Instrucciones de montaje

Huawei

Huawei FusionModule2000 V500R003C10 Manual de usuario

Huawei

Huawei FusionModule5000 Manual de funcionamiento

Huawei

Huawei FusionModule1000A40 ICT Solution Manual de usuario

Huawei

Huawei Quidway S5000 Series Instrucciones de uso

Huawei

Huawei LUNA2000-200KWH-2H1 Smart String ESS Manual de usuario

Huawei

Huawei OceanStor Dorado V3 Series Manual de usuario

Huawei

Huawei E618 Manual de usuario

Huawei

Huawei OceanStor CloudStor CSE Manual de usuario

Huawei

Huawei OceanStor S2600 Manual de instalación

Huawei

Huawei LUNA2000-200/161/129KWH-2H1 Manual de usuario

Huawei

Huawei FusionModule800 Manual de usuario

Huawei

Huawei EC821 Manual de usuario

Huawei

Huawei OceanStor 2600 V3 Video Surveillance Edition Manual de usuario

Huawei

Huawei OceanStor 2600 V3 Video Surveillance Edition Especificaciones técnicas

Huawei

Huawei OceanStor 2000 V3 Series Hoja de especificaciones

Huawei

Huawei E180 Manual de usuario

Huawei

Huawei IDS1000-A Manual de funcionamiento

Manuales populares de Almacenamiento de otras marcas

QNAP

QNAP TS 32PXU Series Manual de usuario

LaCie

LaCie RUGGED RAID Manual de usuario

Freecom

Freecom CLS DOCK Manual de usuario

PNY

PNY Attache P-FD64MBATT3 Manual de usuario

HP StorageWorks MSL2024 Manual de usuario

OLT

OLT 6x6 Maximizer Manual de usuario

Transcend

Transcend JetFlash 160 Manual de usuario

LaCie

LaCie RUGGED MINI Manual de usuario

Thunderbolt

Thunderbolt 600 Manual de usuario

Panasonic

Panasonic LB-DH8 series Manual

Intel

Intel RAID High Availability Manual de usuario

LaCie

LaCie 12big Thunderbolt 3 Manual de usuario

Spectra Logic

Spectra Logic T-Series Spectra T50e Manual de usuario

Panasonic

Panasonic LKM-F931-1 Manual de usuario

Tabernus

Tabernus Enterprise Erase E2400 Manual de usuario

Rocstor

Rocstor COMMANDER 3F series Manual de usuario

HP P9000 Manual de usuario

Western Digital

Western Digital Ultrastar Data60 Manual de usuario
