Huawei Tecal RH2285 Manual de usuario
HUAWEI TECHNOLOGIES CO., LTD.
www.huawei.com
Huawei Enterprise A Better Way
Huawei Tecal RH series sever Configuration
Quote Operation Manual
HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 2
Huawei Enterprise A Better Way
Portfolio of RH server
Configuration Principle
1
RH server Configuration Guide
Content
HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 3
Huawei Enterprise A Better Way
2-socket
server
4-socket
server
Multi-socket
server
RH2488 V2
RH5885 V2
(4U 4-socket)
RH Server series
RH2285 V2
(8 HDDS) RH2285 V2
(12 HDDS) RH2288 V2
(8 HDDS) RH2288 V2
(12 HDDS)
RH2485 V2
RH5885 V2
(8U 8-socket)
HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 4
Huawei Enterprise A Better Way
Content
Configuration Principle
Portfolio of RH server
2
RH server Configuration Guide
HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 5
Huawei Enterprise A Better Way

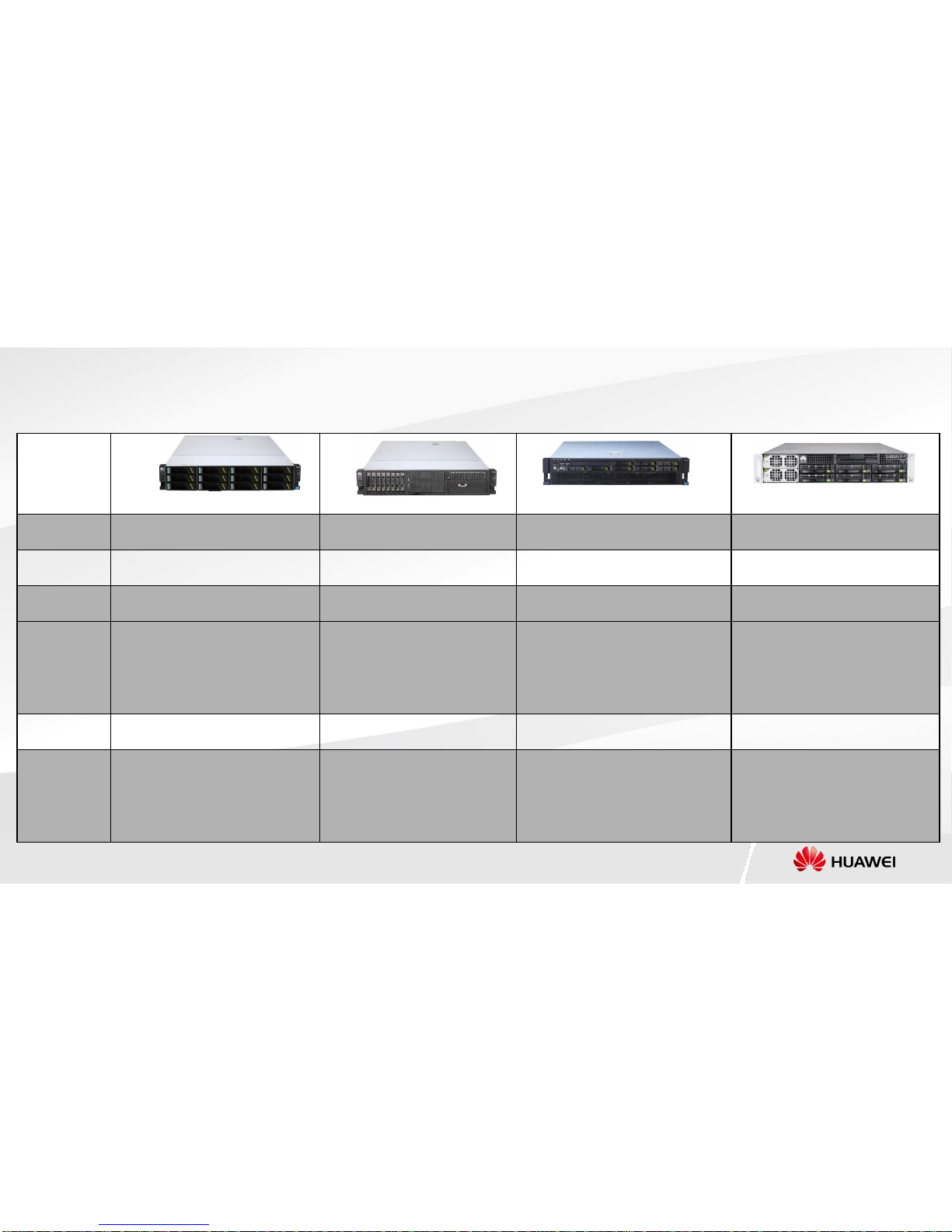

Product
RH2285V2
RH2288V2
RH2485V2
RH2488V2
CPU 1 / 2 CPU Intel Xeon E5-2400
series 4/6/8-core 1 / 2 CPU Intel Xeon E5-2600
series 4/6/8-core 2 /4 CPU Intel Xeon E5-2600 series
4/6/8-core 1/2 /4 CPU Intel Xeon E7-4800
series 6/8/10-core
DIMM Slots Dual-CPU:12 DDR3 RDIMM slots Dual-CPU:24 DDR3 RDIMM slots Dual-CPU:24 DDR3 RDIMM slots
Four CPU:48 DDR3 RDIMM slots Single -CPU:8 DDR3 RDIMM slots
Four CPU: 32 DDR3 RDIMM slots
Hard Disks 12*3.5+2*2.5 inch /8*2.5 inch
SAS/SATAdisks 8*2.5 inch SAS/SATAdisks 8*2.5 inch SAS/SATA disks 6*2.5 inch SAS/SATA disks
Expansion 1*PCIe x16 card(FHFL) ,
1*PCIex8 card(FH3/4L) ,
2*PCIe x8 card(LP)
1*PCIe 3.0 x16 card
1*PCIe 3.0 x8 card
3*PCIe 3.0 x8 card(FH3/4)
1*PCIe 3.0 x16 card (FHFL)
1*PCIe 3.0 x8 card(FH3/4L)
5*PCIe 3.0 x8 card(LP)
①2*PCIe 2.0 x16 card(LP)
②2*PCIe 2.0 x4 card(LP) , 1*PCIe
2.0 x8 card(LP), 1*PCIe 2.0 x16
card(LP)
③3*PCIe 2.0 x8 card(LP) ,
2*PCIe x4 card(LP)
Network 2*GE 4*GE 4*GE ,2*10GE 2*GE
RAID0/1/10/5,512MB,BBU
Power
Supply
AC:1+1 redundancy ;
460 W/800W PSUs;
750 W golden PSUs
DC:1+1 redundancy;
–48V/–60V input
800 W PSUs
AC:1+1 redundancy ;
460 W/800W PSUs;
DC:1+1 redundancy;
–48V,800W PSUs
AC:1+1 redundancy ;
800W/1200W PSUs;
AC:1+1 redundancy ;
800W/1200W PSUs;
RH 2/4-Socket Server Specifications
HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 6
Huawei Enterprise A Better Way
Product
4-socket Server (4U)
8-socket Server (8U)
CPU
4 Intel Xeon E7-4800 6-core or 8-core CPUs
4 Intel Xeon E7-8800 8-core or 10-core CPUs
DIMM slots
64 RDIMMs or LRDIMMs
128 RDIMMs or LRDIMMs
Hard disks
8* 2.5-inch SATAor SAS HDDs or SDDs + two rear SATA
HDDs (optional)
Sixteen 2.5-inch SATAor SAS HDDs or SSDs
RAID controller
RAID 0, 1, 5, 10, with 1 GB cache and BBU(optional)
RAID 0, 1, 5, 10 , with 1 GB cache and BBU(optional)
PCIe slots
9 or 11 slots, hot-swappable
16 slots, hot-swappable
Onboard network
adapters
4 x GE or 2 x 10GE
8 x GE or 4 x 10GE
PSUs
110 V/220 V AC, platinum standard, redundancy, hot-
swappable
110 V/220 V AC, platinum standard, redundancy, hot-
swappable
Fans
6 hot-swappable counter-rotating fans, N+1 redundancy
6 hot-swappable counter-rotating fans, N+1 redundancy
Management
software
iMana BMC, USM
iMana BMC, USM
RH Multi-Socket Server Specifications
HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 7
Huawei Enterprise A Better Way
Content
Portfolio of RH Server
Configuration Principle
RH Server Configuration Guide
3
HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 8
Huawei Enterprise A Better Way
Configuration Guide
Select the type of Chassis
and Power Supply Single Rack Server Base
Configuration
Riser card and PCIe card
Insert Card
and
Accessory
HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 9
Huawei Enterprise A Better Way
Select the type of
Chassis and Power
Supply Single Rack Server
Base Configuration Riser card
and PCIe card Insert Card
and Accessory
NOTE
Select the type of chassis module.
8*2.5 inch SAS/SATA disks ; 12*3.5+2*2.5 inch
Choose the type of power supply:
AC:1+1 redundancy ,460 W/800W PSUs;750 W golden PSUs
DC:1+1 redundancy,800 W PSUs
If you choose the RH2285/RH2288/RH2485,you need select the type of Power Supply;
If you choose the RH5485,you need select the type of CPU only.
Before the configuration , we need to choose the product we need.
1. Right click project node >Add solution>Input the information of solution
2. Right click solution node>Add product（RH2285 V2）
Example：
Take RH2285 chassis(8 HDDS) as an example
HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 10
Huawei Enterprise A Better Way
Single rack server configuration included CPU/Memory/Hard Disks/RAID
Card/Internal DVD Driver;
Here is the list of the quantity of Memory
NOTE
Product
Type of CPU
RH2285V2
2 CPU Intel Xeon E5-2400 series 4/6/8-core
RH2288V2
2 CPU Intel Xeon E5-2600 series 4/6/8-core
RH2485V2
4 CPU Intel Xeon E5-2600 series 4/6/8-core
RH2488V2
4 CPU Intel Xeon E7-4800 series 6/8/10-core
RH5485
4 CPU Intel Xeon E7-4800 series 6/8/10-core
Product
Quantity of Memory
RH2285V2
12 DIMMs(Dual-CPU )
RH2288V2
24 DIMMs(Dual-CPU)
RH2485V2
24 DIMMs(Dual-CPU);48 DIMMs(Four CPU)
RH2488V2
8 DIMMs(Single-CPU);32 DIMMs(Four CPU)
RH5485
64 DIMMs
Select the type of
Chassis and Power
Supply Single Rack Server
Base Configuration Riser card
and PCIe card Insert Card
and Accessory
