Huawei Display 23.8 Manual de usuario
User Guide
Contents
About this guide
Appearance
Installing the display
Connects the display to the tower
Conguring the display
FAQs
Safety information
Legal Notice
i
About this guide
This document only applies to associated devices. Read this document carefully before using
the device.
The components listed in this document may not be included in the device. In this case, you
will need to purchase them separately. The functions described in this document can only be
used when they are used together with other components. The gures and UIs in this
document may be dierent from the actual ones. All gures are for reference only.
Symbols and denitions
Highlights important information and tips, and provides additional information.
Indicates potential problems that may arise, such as damage to the device or
data loss.
1
Appearance
1
2
35
7 86
4
1 Panel
2 Support
3 Base
4 Function buttons
Adjusts the display settings. For details, see the Conguring the display section.
5 Power button/Power indicator
Turns the display on and o.
•The indicator is steady white when the device is powered on.
•The indicator turns o when the device is powered o.
•The indicator ashes white in sleep mode.
6 Power port
Connects the power adapter for turning on the display.
7 HDMI port
Connects to an HDMI input device, such as a tower.
8 VGA port
Connects to a VGA input device, such as a tower.
2

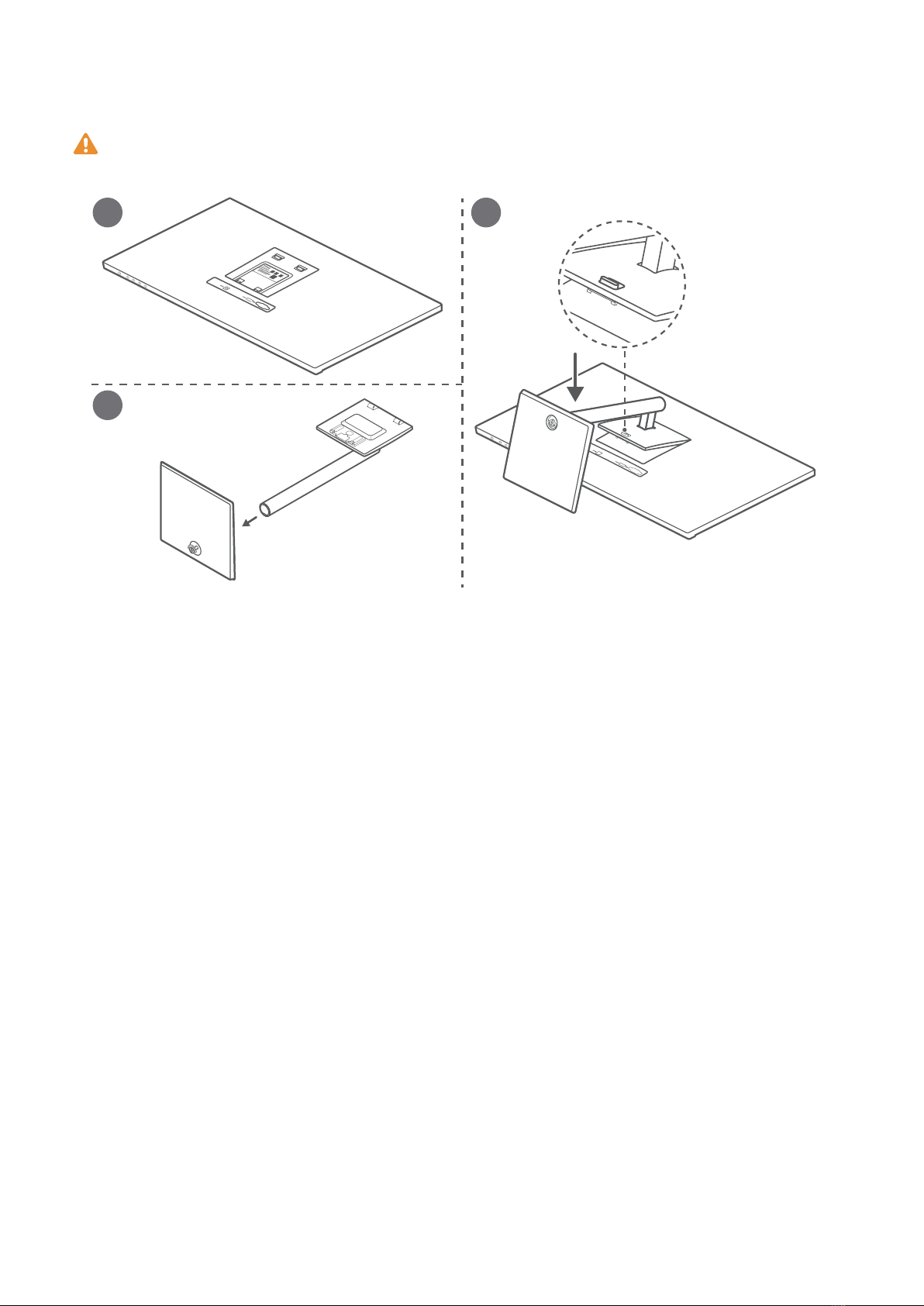

Installing the display
To avoid damaging the screen, do not press on the screen when taking the display panel
out of the packaging.
1 3
2
1Place the display panel on a clean and at surface, with the front side facing down. (You
can view device information including the S/N code on the nameplate on the rear side of
the display panel.)
2Use screws to connect the base to the support.
3Tilt and insert the upper end of the base support into the slot at the rear of the display,
and then press the base support downwards until you hear a clicking sound, which
indicates that the base support has been installed correctly.
To remove the base, nd the button above the port at the rear of the display, push the
button upwards, lift the bottom of the base support, and remove the base.
3

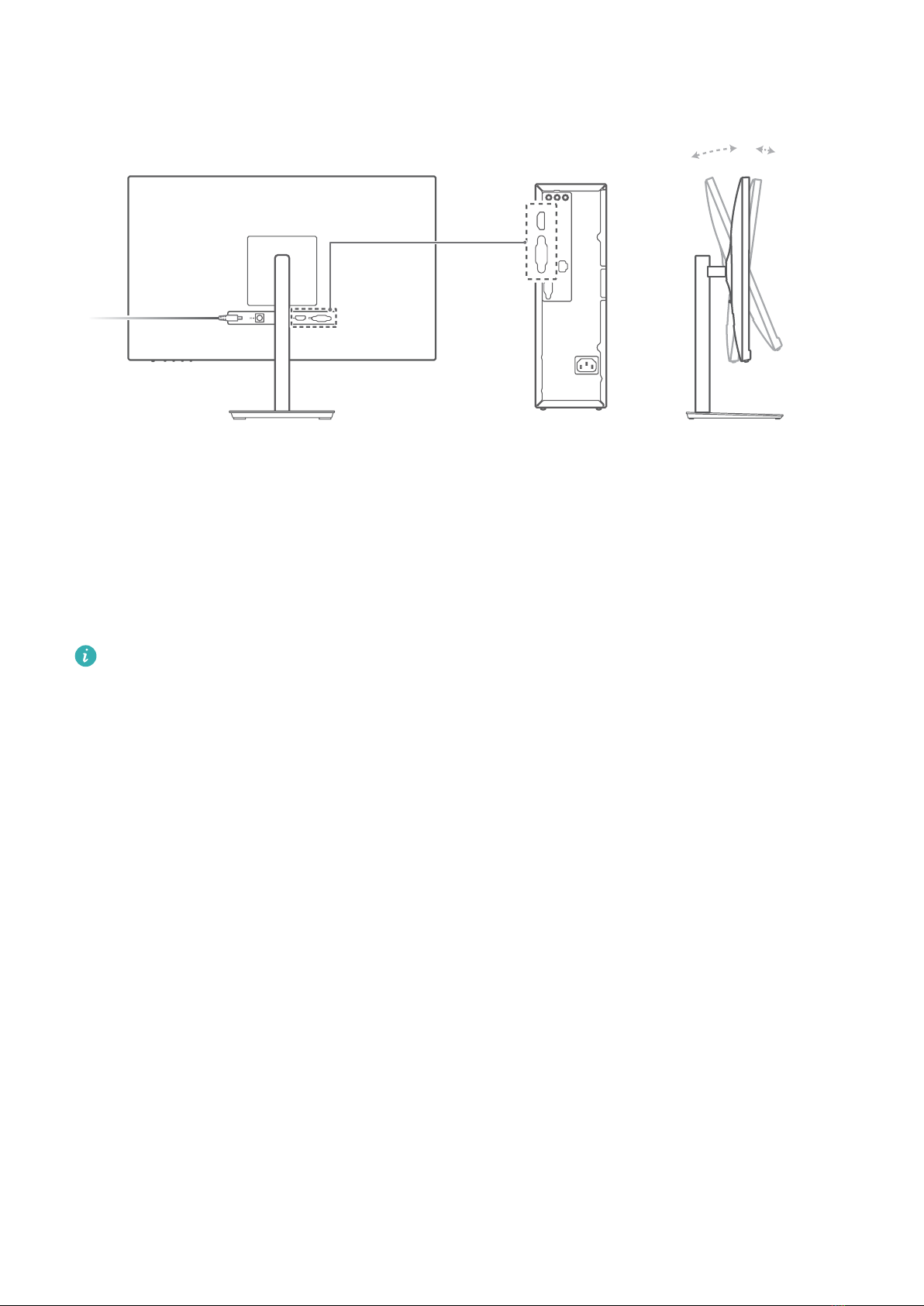

Connects the display to the tower
0°
22°(±2°)
5°(±2°)
HDMI/VGA
1Gently lift the assembled display and place it on a at surface.
2Use an HDMI or VGA cable to connect the display to the computer.
3Connect the power cable to the display and connect the power supply.
4Power on the tower and display. If images are displayed on the display, it indicates that
the installation is successful. If no image is displayed on the display, see the FAQs chapter.
5Adjust the pitch angle of the display as required.
To ensure the optimal performance of the display, you are advised to turn o the display
when it is not used for a long time.
4
Conguring the display
1234
After the display and the tower are assembled and powered on, the system automatically
congures and optimises the settings of the display. If you need to congure the display
settings, you can also open the settings menu of the display to adjust the settings.
1Press any button from 1 to 4 to access the display settings menu.
2On the settings menu screen, press buttons 1 to 4 to set the parameters.
1Exit/Back
2Downward/Leftward adjustment
3Upward/Rightward adjustment
4Conrm
The default language of the display is English. You can change the language in More
settings > Language, as well as congure other settings.
If you do not perform any operation within a period of time, the Settings menu is
automatically closed.
Functions in the Settings menu
Adjusts specications such as screen brightness and contrast.
Selects a video input signal.
5
Switches between dierent colour temperature modes including low blue light
mode or cool mode.
When reading for a long time, we recommend that you set the screen
colour temperature to low blue light mode to prevent eye fatigue and make
it easier on your eyes. Once Blue light mode is enabled, the screen will take
on a mild yellow tint.
Adjusts the display settings such as the display mode.
Selects the display scenario.
More settings, such as language, menu transparency, and reset settings.
Conguring the display
6
FAQs
Unable to power on the display
•Check whether the display is powered on.
•Check whether the power adapter is correctly connected to the display and the power
supply.
There are no images on the display
•Check whether all of the cables are correctly connected.
•Check whether the display and the tower are powered on.
•Check whether the VGA or HDMI signal cable is damaged.
•If the preceding issues do not occur, restart the display and the tower, then check whether
the images can be properly displayed on the screen.
The screen is too dark or too bright
•Open the settings menu on the display and adjust the screen brightness and contrast.
•If the keyboard comes with the and keys, you can use them to adjust the screen
brightness.
The screen colour is abnormal
•Check whether the VGA or HDMI signal cable is damaged. For example, the pins may be
bent.
•Open the settings menu on the display and adjust the colour temperature.
7
