HPI Racing VENTURE Manual de usuario

Instruction Manual

Thank you

Thank you for selecting this HPI RACING product! This kit is designed to be fun to drive and uses top quality parts for durability and perfor-

mance. The instruction manual you are reading was designed to be easy to follow yet thorough in its explanations. HPI Racing wants you to

enjoy driving your new R/C kit. If you come across any problems or need some help getting through a step, give us a call and we will do our very

best to help you.

This is a high performance R/C kit, and it requires regular maintenance for best performance. If you don’t do regular maintenance the perfor-

mance will suffer. HPI has all the necessary parts and accessories available to keep your car performing at its best.

The caution or attention symbols will warn you about steps that can be very dangerous.

Please read and understand the instructions carefully before proceeding.

●

Attention Failure to follow these instructions can

cause injury to yourself or others.

You might also cause property damage

or damage your kit.

Cautions Failure to follow these instructions

can damage your kit, and cause

serious bodily injury or death.

Cautions

Before Running

While Operating

Before Operating

After Running

Battery safety

●Please read manual (with parent, guardian or a responsible adult if necessary).

●

Please do not run on a public street, this could cause serious accidents, personal injuries and/or property damage.

●Please do not run near pedestrians or small children.

●Please do not run in small or conned areas.

●Make sure that all screws and nuts are properly tightened.

●Always use fresh batteries for your transmitter and receiver to avoid losing control of the model.

●Please conrm the neutral throttle trigger position.

●Turn OFF receiver rst, then turn OFF transmitter. This will prevent the car from losing control.

●After running a HPI RACING product, it is necessary to perform routine maintenance.

Failure to do this can result in increased wear and damage to the engine and chassis.

●

Please be careful when handling the battery. It will be hot after running. If the wire is frayed, a short circuit can cause a re.

111833

AC MULTIPLUG CHARGER

Z904

2.0mm

1. 5

Z901

1.5mm

Allen Wrench

101939 (US/EU)

AA Alkaline Batteries (4pcs.)

101929

PLAZMA 7.2V 2000mAh NI-MH BATTERY PACK

Components

Radio Control Car

Transmitter

Parts Bag

Included Items

Z950

Cross Wrench

101929

PLAZMA 7.2V 2000mAh NI-MH BATTERY PACK

2-1Charging Batterys

2Start Up Guide

Cautions

Charge time 6 hours. Overcharging can

cause damage or explosion.。

Cautions Do not use Nickel Cadmium battery charger for Nickel Metal Hydride batteries. If you do not use the special

charger for Nickel Metal Hydride batteries, the batteries will be damaged.

Choose the correct plug for your adapter.

Remove

Plug into a wall outlet

US/JP EU UK AU

2 Transmitter Preparation

Setup Before Starting

2-2

Transmitter Battery Installation

Battery Cover

Adjustment tool

Note Direction.

Open battery cover at the bottom of transmitter. Install batteries. Follow the direction of batteries

designated in the inside of the battery box.

105381

HPI TF-40 2.4GHz TRANSMITTER (2ch)

101939 (US/EU)

AA Alkaline Batteries

Mode Switch

P.3 5

Reverse Switch

Switch factory setting.

Attention

Switch factory setting.

Adjustment tool

When in France, switch France mode

Switching modes clears binding and fail safe.。

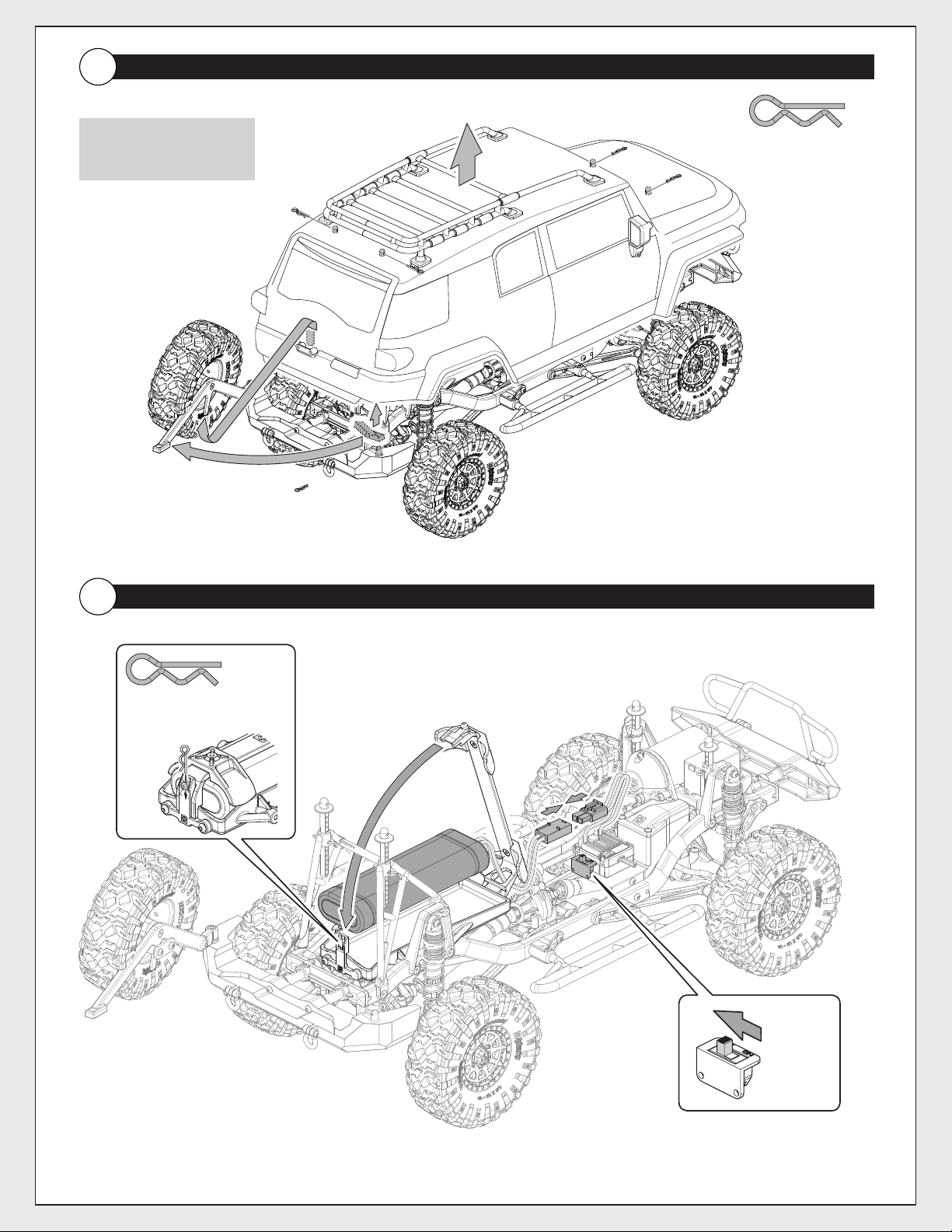

3 Preparing The Chassis

4 Battery Installation

Removing the Body 75106

Body Clip (6mm/black)

75106

Body Clip (6mm/black)

OFF

5 ESC Setup

NiMH

LiPo

There are two battery modes to choose from (NiMH or LiPo). Factory setting is set to NiMH mode.

Lipo Battery Mode

LiPo Akku Modus

Mode batterie LiPo LiPoバッテリー設定

Drag Brake Function

If the power is cutting off and on (pulsing) while driving, the LiPo battery cutoff has been activated in the speed control. Stop driving the car im-

mediately and recharge or replace the battery.

2S LiPo Output reduces to 50% at 6.5V. ESC cuts off at 6.0V when battery cannot supply enough voltage.

Output reduces to 50% at 9.75V. ESC cuts off at 9.0V when battery cannot supply enough voltage.

3S LiPo

Output reduces to 50% at 4.5V. ESC cuts off at 4.0V when battery cannot supply enough voltage.

5-9 cells

NiMH

Low voltage cut-off protection

If the voltage of the battery pack is lower than the threshold for 2 seconds, the ESC will enter the protection mode.

When the car stops, the red LED blanks on the ESC to indicate that the low voltage cut-off protection has been activated.

Drag Brake

Battery type

LiPo NiMH

80% Drag Brake 100% Drag Brake Drag Brake Off

Drag Brake

Drag Brems

Frein de traînée

ドラッグブレーキ

Battery type

Akkutyp

Type de batterie

バッテリータイプ LiPo NiMH

80% Drag Brake 100% Drag Brake Drag Brake Off

Drag Brake

Drag Brems

Frein de traînée

ドラッグブレーキ

Battery type

Akkutyp

Type de batterie

バッテリータイプ LiPo NiMH

80% Drag Brake 100% Drag Brake Drag Brake Off

Drag Brake

Drag Brems

Frein de traînée

ドラッグブレーキ

Battery type

Akkutyp

Type de batterie

バッテリータイプ LiPo NiMH

80% Drag Brake 100% Drag Brake Drag Brake Off

80%DB100%DB

DB OFF

This function will maintain a smooth controlled speed while descending. When the throttle position is at neutral, brakes will be applied automatically. Additional

braking can be applied manually as needed for extreme descents. Once throttle position is returned to neutral, HDC will continue to function.

Recommended Settings

The ESC is programmed with the use of jumpers to select setting.

(Tweezers are recommended to plug in the jumpers)

Jumper

100%

Steep and rough

terrain.

80%

Moderately steep terrain

OFF

Higher speeds. Open trail driving

This car has a built-in fail safe system. If the radio glitches, because of interference or the car goes out of range, it will go into neutral to protect your car.

The fail safe system has been setup at the factory, but you should become familiar with the function of the fail safe and check the operation before running.

Situation when the fail safe will operate.

When transmitter radio signal is cut off.

The fail safe can not completely protect your car.

Attention

When fail safe is operating, LED light will turn off.

116504

HPI RF-40WP

Receiver (2.4GHz)

OPEN

OFF

Checking Fail Safe Operation

Put the car on a stand.

Allen Wrench

Z904

2.0mm

If the red LED is ashing, the car should be in neutral. The ESC should not be applying

throttle, brake or reverse. If car is not in neutral, please perform the fail-safe setup procedure.

Cautions

LED light will flash and vehicle will not move.This means that the fail safe is working properly.

123

P.35

Reference Section

Abschnitt

OFFON ON

When fail safe is operating, the red LED will continuously flash.

OFF

Allen Wrench

Z904

2.0mm
