HP Enterprise R1500 G4 UPS Instrucciones de montaje

Product End-of-Life Disassembly Instructions

Product Category: Other Products

Marketing Name / Model

[List multiple models if applicable.]

HP R1500 G4 INTL UPS

Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions

for the disassembly of HP products to remove components and materials requiring selective treatment, as defined by EU

directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).

1.0 Items Requiring Selective Treatment

1.1 Items listed below are classified as requiring selective treatment.

1.2 Enter the quantity of items contained within the product which require selective treatment in the right column, as

applicable.

Item Description Notes

Quantity

of items

included

in product

Printed Circuit Boards (PCB) or Printed Circuit

Assemblies (PCA)

With a surface greater than 10 sq cm

PCBA

Batteries

All types including standard alkaline and lithium coin

or button style batteries Lead-acid battery

Mercury-containing components

For example, mercury in lamps, display backlights,

scanner lamps, switches, batteries

Liquid Crystal Displays (LCD) with a surface greater

than 100 sq cm

Includes background illuminated displays with gas

discharge lamps

Cathode Ray Tubes (CRT)

Capacitors / condensers (Containing PCB/PCT)

Electrolytic Capacitors / Condensers measuring

greater than 2.5 cm in diameter or height

Electrolytic Capacitors

External electrical cables and cords

Gas Discharge Lamps

Plastics containing Brominated Flame Retardants

weighing > 25 grams (not including PCBs or PCAs

already listed as a separate item above)

Components and parts containing toner and ink,

including liquids, semi-liquids (gel/paste) and toner

Include the cartridges, print heads, tubes, vent

chambers, and service stations.

Components and waste containing asbestos

Components, parts and materials containing

refractory ceramic fibers

EL-MF877-00 Page 1

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Components, parts and materials containing

radioactive substances

2.0 Tools Required

List the type and size of the tools that would typically be used to disassemble the product to a point where components

and materials requiring selective treatment can be removed.

Tool Description

Tool Size (if

applicable)

Star Head Screw Driver

Cross Head Screw Driver

M3,M4

Plastic Nipper

Normal

Nut Driver

Electric Iron

Normal

3.0 Product Disassembly Process

3.1 List the basic steps that should typically be followed to remove components and materials requiring selective treatment:

1. Remove the middle bezel and left panel

2. Disconnect the battery connector, and press on/off button to discharge the rest electricity.

3. Loosen the screws fixing the battery door, remove the battery door, and pull out the battery.

4. Loosen the screws fixing the right panel ASSY, and remove the right panel ASSY.

5. Disconnect the LCD cable and PCBA.

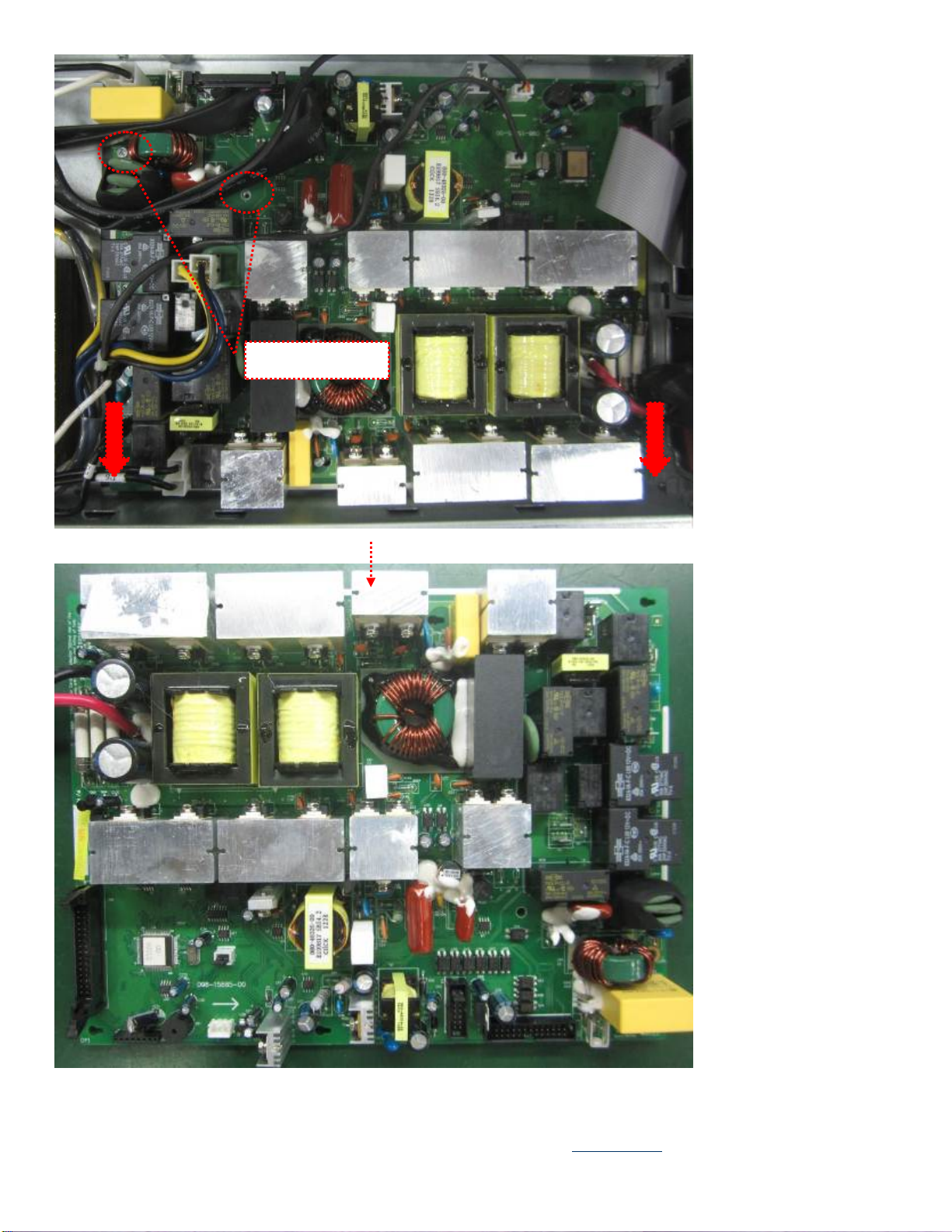

6. Loosen the screws fixing the top cover, and remove the top cover.

7. Disconnect the cables connecting to Slot box, AVR, rear FAN, COM PCBA, and rear panel ASSY, and disassemble

the cable clips sticking on the mainframe, and loosen the screws fixing the main PCBA, then remove the main PCBA .

8. Cut off the cable tie, disconnect the cable connecting to COM PCBA, loosen the nuts fixing the AVR, and then remove

the AVR.

9. Lossen the screws fixing rear panel ASSY, and the remove the rear panel ASSY.

10. Remove the RPO conector, loosen the screws fixing Slot box, COM PCBA, and rear FAN, loosen the nut fixing ground

cable and then remove the Slot box, COM PCBA, and rear FAN, outlet.

3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items

contained in the product that require selective treatment (with descriptions and arrows identifying locations).

EL-MF877-00 Page 2

Template Revision B

PSG instructions for this template are available at EL-MF877-01

1. Remove the middle bezel and left panel.

2. Disconnect the battery Connector and press on/off button to discharge the rest of electricity

EL-MF877-00 Page 3

Template Revision B

PSG instructions for this template are available at EL-MF877-01

3. Loosen the screws fixing the battery door, remove the battery door, and pull out the battery.

Press on/off button to discharge rest electricity

M3 Cross

driver

EL-MF877-00 Page 4

Template Revision B

PSG instructions for this template are available at EL-MF877-01

4. Loosen the screws fixing the right panel ASSY, and remove the right panel ASSY.

M3 star

driver

EL-MF877-00 Page 5

Template Revision B

PSG instructions for this template are available at EL-MF877-01

5. Disconnect the LCD cable and PCBA.

M3 cross

driver

EL-MF877-00 Page 6

Template Revision B

PSG instructions for this template are available at EL-MF877-01

6. Loosen the screws fixing the top cover, and remove the top cover.

7. Disconnect the cables connecting to Slot box, AVR, rear FAN, COM PCBA, and rear panel ASSY, and disassemble

the cable clips sticking on the mainframe, and loosen the screws fixing the main PCBA, then remove the main PCBA .

M3 Star

driver

EL-MF877-00 Page 7

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Disconnect all terminal

M4 Cross Screw driver

EL-MF877-00 Page 8

Template Revision B

PSG instructions for this template are available at EL-MF877-01

M3 Cross driver

EL-MF877-00 Page 9

Template Revision B

PSG instructions for this template are available at EL-MF877-01

8. Cut off the cable tie, disconnect the cable connecting to COM PCBA, loosen the nuts fixing the AVR, and then

remove the AVR.

9. Loosen the screws fixing rear panel ASSY, and then remove the rear panel ASSY.

Nut driver

Cut off the cable tie

EL-MF877-00 Page 10

Template Revision B

PSG instructions for this template are available at EL-MF877-01
