HP Slate 2 Instrucciones de uso

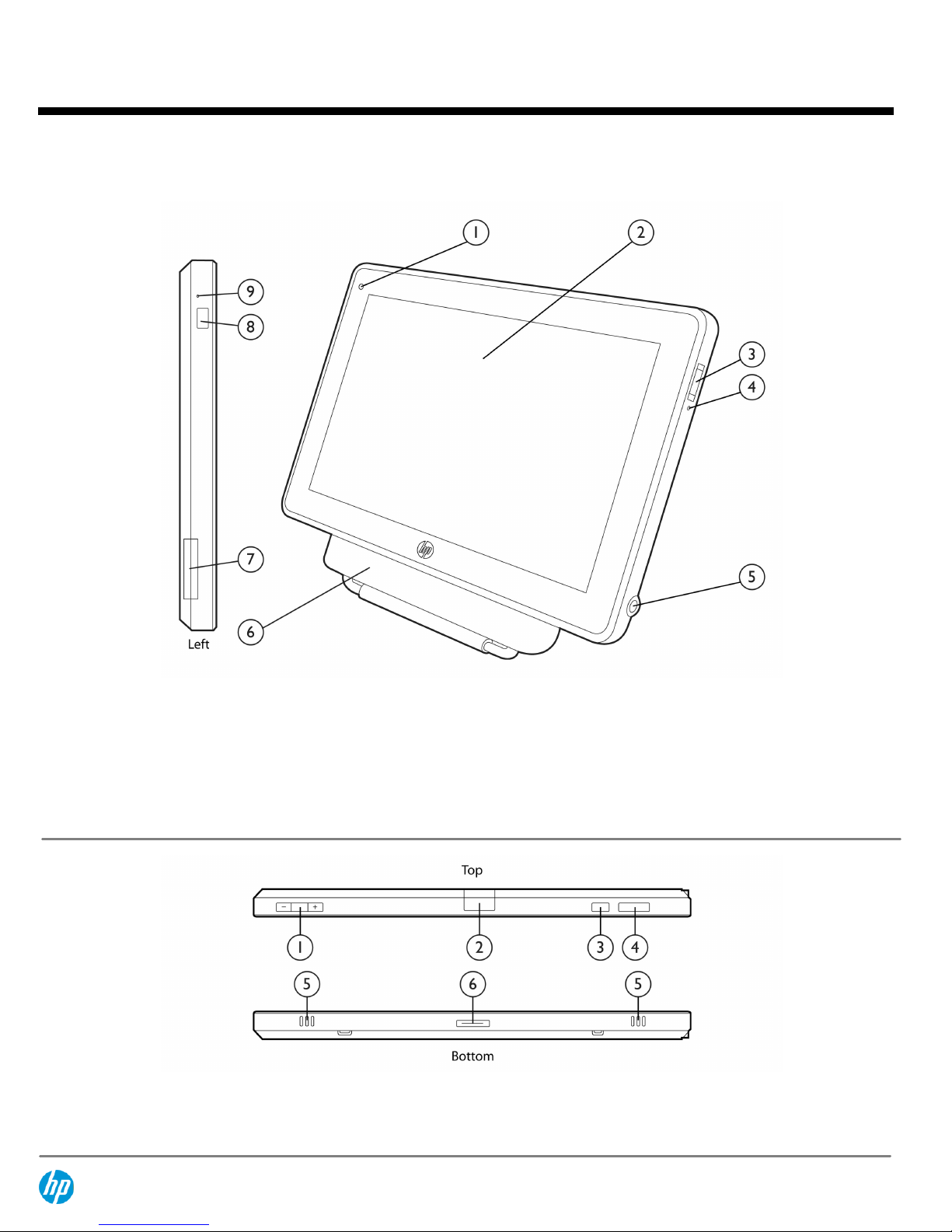

1.
VGA webcam
6.
Optional HP Slate Dock
2.
Capacitive multi-touch screen with pen digitizer
7.
Secure Digital slot (SD)/SDHC/SDXC)
and SIM card slot (select models only)
3.
Power button (also controls display auto rotate)
8.
Onscreen keyboard button
4.
Power LED indicator
9.
Integrated microphone
5.
Combo stereo headphone/mic jack
1.
Volume control
4.
Windows® Desktop button
2.
USB 2.0 port
5.
Stereo speakers
QuickSpecs
HP Slate 2 Tablet
Overview
DA - 14196 North America — Version 8 — June 25, 2012
Page 1
3.
Ctrl-Alt-Del button
6.
Power connector/HP Slate Dock connector
1.
3MP camera (outward facing)
4
HDMI port
2.
Optional HP Slate Dock
5.
Power connector
3.
Combo stereo headphone/mic jack
6.
(2) USB 2.0 ports
At A Glance
Genuine Windows® 7 Professional 32, Genuine Windows® 7 Home Premium 32,
Windows® Embedded Standard
Slate tablet design starting at 1.5 lb (0.69 kg)
8.9-inch diagonal LED-backlit WSVGA wide-viewing angle display (1024 x 600)
Capacitive multi-touch screen with pen digitizer
Flexible wireless connectivity options:
Integrated 802.11 a/b/g/n + Bluetooth® 4.0 +HS
HP un2430 EV-DO/HSDPA Mobile Broadband Module (Gobi™ 3000)
Intel® System Controller Hub (SCH) SM35 chipset and Intel® Atom™ Processor Z670
Secure Digital (SD) slot
Two integrated webcams (VGA inward facing; 3MP outward facing)
HP Slate Dock and HP Slate Digital Pen are optional accessories that may be included on select configurations; HP Slate
Bluetooth® Keyboard and Case.
QuickSpecs
HP Slate 2 Tablet
Overview
DA - 14196 North America — Version 8 — June 25, 2012
Page 2
Processors
Intel Atom Processor Z670 (1.5 GHz, 512 KB L2 cache, 667 MHz FSB)
* Intel's numbering is not a measurement of higher performance. Processor speed denotes maximum
performance mode; processor will run at lower speeds in battery optimization mode.
Operating System
Preinstalled
Genuine Windows® 7 Professional 32*
Genuine Windows ® 7 Home Premium 32*
Windows® Embedded Standard 7**
* System may require upgraded and/or separately purchased hardware and/or a DVD drive to install the
Windows 7 software and take full advantage of Windows 7 functionality. See
http://www.microsoft.com/windows/windows-7/
for details.
**Operating system only available to customers with qualified usage models.
Chipset
Intel® System Controller Hub (SCH) SM35
Graphics
Intel® Graphics Media Accelerator 600
Display
Internal
8.9-inch diagonal WSVGA HP Touchscreen
(1024 x 600)
Wide-viewing angle
Capacitive multi-touch screen with digitizer
Auto rotate (selectable)
Anti-glare flushed glass display
Anti-fingerprint coating
Accelerometer (ST Micro)
External
Up to 32-bit per pixel color depth
HDMI port in optional HP Slate Dock supports resolutions up to 1440x900
non-interlaced
NOTE:
Resolutions are dependent upon monitor capability, and resolution and
color depth settings.
Memory
Standard
2 GB DDR2* on board memory
Not customer accessible or upgradeable
* Memory operates at the maximum system supported speed of 800 MHz.
QuickSpecs
HP Slate 2 Tablet
Standard Features (availability may vary by country)
DA - 14196 North America — Version 8 — June 25, 2012
Page 3
Wireless Support
Integrated wireless LAN +
Bluetooth
Wi-Fi certified
Integrated support for 802.11 a/b, g/n* + Bluetooth® 4.0 +HS
WLAN antenna integrated in the display enclosure
HP un2430 EV-DO/HSDPA
Mobile Broadband Module
(Gobi™ 3000)**
Integrated mobile broadband module that provides connectivity to both EVDO
and HSPA networks. It also provides standalone, Internet and network
assisted GPS functionality for various mapping applications and security
applications such as Computrace Pro for HP ProtectTools.
* Wireless access point and Internet service is required and is not included. Availability of public wireless
access points limited.
** For optimized WWAN performance, it is highly recommended that the case that came with this device is
used when the WWAN is turned on. WWAN use requires a separately purchased wireless service contract.
Check with your local vendor for coverage area and availability in your area. Connection and speeds will
vary due to location, environment, network conditions, and other factors.
Input Devices
Optional HP Slate Digital Pen*
Optional HP Wireless Mini Keyboard*
Optional HP Slate Bluetooth® Keyboard and Case*
Optional HP 2.4 GHz Wireless Optical Mobile Mouse*
* Sold separately or purchased as an optional feature.
Expansion Card Slots
Secure Digital slot
Supports SD, SDHC, and SDXC
Select models only
Internal Storage
mSATA SSD
Up to 64 GB
* For hard drives, GB = 1 billion bytes. Actual formatted capacity is less. Up to
15 GB (for Windows 7) of system disk is reserved for the system recovery
software.
Removable Storage
Optional HP External USB 2.0 CD/DVD R/RW Drive*
* Sold separately or purchased as an optional feature.
Interfaces
Combo stereo
headphone/mic jack
One (also available in optional HP Slate Cradle)
Integrated microphone
One
Power Connector/ HP
Slate Dock connector
One (power connector also available in optional HP Slate Dock)
USB 2.0
One (two additional with optional HP Slate Dock)
QuickSpecs
HP Slate 2 Tablet
Standard Features (availability may vary by country)
DA - 14196 North America — Version 8 — June 25, 2012
Page 4
Audio/Visual
HD Audio SRS Premium Sound
Integrated stereo speakers
Integrated microphone
Combo stereo headphone/microphone jack
Two integrated cameras
VGA Webcam* (inward facing)
3MP Camera (outward facing)
* Internet access required. Playback may vary due to connection speeds, location, environment,
network conditions and other factors. Video-enhanced IM software may be required.
HP Slate 2 Camera Specifications
Recording video
Slate 2 will have a maximum resolution equivalent to photo-capturing (Inward
camera is VGA, Outward camera is 3MP)
Video-conferencing
The Slate 2 camera driver was tuned to a maximum of VGA resolution
(640x480) in order to ensure higher quality playback experience.
Photo mode
Inward camera
160x120; 320x240; 640x480
Outward camera
160x120; 320x240; 640x480; 1024x768; 1280x720; 1280x1024; 1600x1200;
2048x1536
Video mode
0.3M
3.0M
640 x 480 @ 25 fps
2048 x 1536 @ 15 fps
320 x 240 @ 25 fps
1600 x 1200 @ 15 fps
160 x 120 @ 25 fps
1280 x 1024 @ 15 fps
1280 x 720 @ 15 fps
1024 x 768 @ 25 fps
640 x 480 @ 25 fps
320 x 240 @ 25 fps
160 x 120 @ 25 fps
Software
Preinstalled
(Windows
OS only)
HP Slate Camera
EVERNOTE
HP Support Assistant
Swype virtual keyboard
Security
Standard
TPM Embedded Security Chip 1.2
QuickSpecs
HP Slate 2 Tablet
Standard Features (availability may vary by country)
DA - 14196 North America — Version 8 — June 25, 2012
Page 5
HP ProtectTools
Security Manager
Embedded Security for HP ProtectTools
Computrace for HP ProtectTools*
* The Computrace Agent is shipped turned off and must be activated by customer when they purchase a
subscription. Subscriptions can be purchased for terms ranging from one to five years. Service is limited,
check with Absolute Software for service availability outside of North America. For more information, visit
www.absolute.com
.
Power Supply
30-watt AC adapter
Battery
2-cell, 30 WHr polymer
Not customer replaceable.
Battery Life
Up to 7 hours and 30 minutes*
* Battery life will vary depending on the product model, configuration, loaded applications, features, use,
wireless functionality, and power management settings. The maximum capacity of the battery will
naturally decrease with time and usage. See MobileMark07 battery benchmark
http://www.bapco.com/products/mobilemark2007
for additional details.
Power Conservation
Standby, hibernation
ACPI compliance
Docking (optional)
HP Slate Dock*
This has connectors for (2) USB 2.0 ports, (1) HDMI connector**, (1) combo stereo headphone
out/microphone in, and (1) power connector
* Sold separately or purchased as an optional feature.
** The HP Slate Dock with HDMI port is required for the monitor connectivity.
Service and Support
HP Services includes a one-year standard parts and labor warranty, pick-up or carry-in, and toll-free 7 x 24
hardware technical phone support (depending on model). On-site service and warranty upgrades are also
available (depending on model).
NOTE:
Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp
.
QuickSpecs
HP Slate 2 Tablet
Standard Features (availability may vary by country)
DA - 14196 North America — Version 8 — June 25, 2012
Page 6
Carrying Cases
HP Slate Bluetooth Keyboard and Case
A1C64AA
HP Slate Folio with Strap
H1A17AA
Docking
HP Slate Dock with AC Adapter
QQ676AA
HP USB Docking Station 2.0
AY052AA
HP LAN and USB Travel Hub
BM868AA
Input/Output
HP Wireless Mini Keyboard
A3X55AA
HP 2.4 GHz Wireless Optical Mobile Mouse
LX732AA
HP Optical USB Travel Mouse
RH304AA
HP Slate Digital Pen
QQ677AA
HP Mobile USB DVD/RW
A2U57AA
HP Slate Bluetooth® Keyboard and Folio
A1C64AA
Point of Sale
HP Retail Mobile POS Case
QY459AA
Power
HP Slate 30-Watt Power Adapter
QC252AA
HP Slate Power Cable
H0R85AA
Video
HP USB Graphic Adapter
NL571AA
Networking
HP USB Ethernet Adapter
XZ613AA
QuickSpecs
HP Slate 2 Tablet
Options (availability may vary by country)
DA - 14196 North America — Version 8 — June 25, 2012
Page 7
System Unit
Dimensions
(HxWxD)
5.9 x 9.21 x 0.61 in
15.0 x 23.4 x 1.5 cm
Weight
Starting at 1.5 lb (0.69 kg)
Stand-Alone Power
Requirements
Normal Operating Voltage
19.0 V
Average Operating Power
9.75 W
Max Operating Power
< 25 W
Temperature
Operating
50° to 95° F (10° to 35° C)
Non-operating
-4° to 140° F (-20° to 60° C)
Relative Humidity
Operating
10% to 90%, non-condensing
Non-operating
5% to 95%, 101.6° F (38.7° C)
maximum wet bulb temperature
Altitude
(unpressurized)
Operating
-50 to 10,000 ft (-15 to 3,048 m)
Non-operating
-50 to 40,000 ft (-15 to 12,192 m)
Shock
Operating
25G, 2 ms, half-sine
Non-operating
200 G, 2 ms, half-sine
Random Vibration
Operating
0.75 grms
Non-operating
1.50 grms
Altitude
(unpressurized)
Operating
-50 to 10,000 ft (-15.24 to 3,048 m)
Non-operating
-50 to 40,000 ft (-15.24 to 12,192 m)
Planned
Industry Standard
Certifications
UL
Yes
CSA
Yes
FCC Compliance
Yes
ICES
Yes
Australia / NZ A-Tick
Compliance
Yes
CCC
Yes
Japan VCCI Compliance
Yes
KCC
Yes
BSMI
Yes
CE Marking Compliance
Yes
Audio
SRS Premium Sound
QuickSpecs
HP Slate 2 Tablet
Technical Specifications
DA - 14196 North America — Version 8 — June 25, 2012
Page 8
Audio Output Quality
Frequency Response
20 Hz – 20 kHz
Signal to Noise Ratio
>85 dB
Total Harmonic Distortion
0.01%
Noise Floor
–110 dB
Play/Record Sampling
Rate
(s)
8 kHz – 48kHz
DAC
16, 20 or 24-bit
ADC
16 or 20-bit
Power
HP 30W Smart AC Adapter
Dimensions
5.00 x 1.97 x 1.1 in (9.3 x 4.0 x 2.8cm)
Weight
0.82 lb (370 g)
Input
100 to 240 VAC
Input Efficiency
Avg 87% min at 115 VAC (Level V)
Input frequency range
50 to 60 Hz
Input AC current
2.4 A at 90 VAC, 1.2 A at 180 VAC
Output
Output power
30W
DC output
19.0V
Hold-up time
5 msec at 115 VAC input
Output current limit
<11A, Over voltage protection- 29V max
automatic shutdown
Connector
3 pin/grounded, mates with interchangeable cords
Environmental Design
Operating temperature
32° to 104° F (0° to 40° C)
Non-operating (storage)
temperature
-4° to 149° F (-20° to 65° C)
Altitude
0 to 10,000 ft (0 to 3,048 m)
Humidity
20% to 80%
Storage Humidity
10% to 90%
EMI and Safety
Certifications
CE Mark - full compliance with LVD and EMC directives; Worldwide safety
standards - IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals -
C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B,
CCC, NOM-1 NYCE
QuickSpecs
HP Slate 2 Tablet
Technical Specifications
DA - 14196 North America — Version 8 — June 25, 2012
Page 9
2-Cell (30 WHr) polymer
battery
Dimensions
(H x W x L)
0.25 x 3.25 x 8.75 in (0.7 x 8.3 x 22.5cm)
Cells/Type
2-cell Lithium Ion Polymer
Energy
Watt-hour capacity
30 WHr
Temperature
Operating (Charging)
32° to 113° F (0° to 45° C)
Operating (Discharging)
14° to 140° F (–10° to 60° C)
Non-operating
–4° to 140° F (–20° to 60° C)
Battery Re-Charge Time
System in OFF or Standby
Mode
2.5 hours
System ON
3 to 5 hours (depending on system power
consumption)
Display
8.9-inch diagonal, WSVGA
capacitive multi-touch
panel with digitizer
Active Area
(W x H)
7.68 x 4.46 in (19.5072 x 11.34 cm)
Diagonal Size
8.9 in (39.6cm)
Surface Treatment
Anti-glare
Contrast Ratio
500:1 (typical)
Refresh Rate
60 Hz
Brightness
200 nit (typical)
Pixel Resolution
Pitch
0.1905(H) x0.189(V)mm
Format
1024 x 600
Configuration
RGB Stripe
Backlight
LED
PPI
133ppi
Viewing Angle
±60° Horizontal, ±40° Vertical (minimum) - 50 Vertical down (minimum)
30/30/20/10 (Left/Right/Down/Up) (minimum) or
45/45/35/25 (Left/Right/Down/Up) (typical)
Internal Storage
QuickSpecs
HP Slate 2 Tablet
Technical Specifications
DA - 14196 North America — Version 8 — June 25, 2012
Page 10
Otros manuales para Slate 2
1
Tabla de contenidos
Otros manuales de Tableta de HP
HP
HP Slate 7 Plus Manual de usuario
HP
HP EliteBook 2760p Manual de usuario
HP
HP Tr3000 - Rugged Tablet PC Instrucciones de uso
HP
HP Slate 6 VoiceTab Plus Manual
HP
HP ElitePad 1000 G2 Manual de usuario
HP
HP ElitePad 1000 G2 Manual
HP
HP ElitePad 1000 G2 Instrucciones de uso
HP
HP Pro 8 Manual
HP
HP SLATE 8 PLUS Manual
HP
HP Pro Tablet 608 G1 Manual
