HP A5585A - SureStore DLT E Tape Library 4/40 Manual

Tape Library Twenty Slot to

Forty Slot Upgrade Kit

Modular Scalability Guide for Library Models

2/20, 4/40, 6/60, and 6/140

Edition 2

Part Number: C7242-90011

June 2000

Printed in Greeley, CO USA

Notice

This document contains information that is protected by copyright. All

rights are reserved. No part of this document may be photocopied,

reproduced, or translated into another language. The information

contained in this document is subject to change without notice.

Printing History

New editions of this manual incorporate all material updated since the

previous edition. The manual printing date and part number indicate the

current edition. The printing date changes when a new edition is printed.

(Minor corrections and updates incorporated at reprint do not change

this date.)

Edition 1: January 2000: Initial printing.

Edition 2: June 2000: Added instructions for Library Model

6/140. See Chapter 4.

iii

Typographical Conventions and Terms

WARNING Warnings call attention to a procedure or practice that could

result in personal injury if not correctly performed. Do not

proceed until you fully understand and meet the required

conditions.

CAUTION Cautions call attention to an operating procedure or practice that could

damage the product if not correctly performed. Do not proceed until you

understand and meet these required conditions.

NOTE Notes explain significant concepts or operating instructions.

TIP Tips provide hints or shortcuts for a procedure.

For the purpose of this documentation, we will use the term

“Model 6/140” to indicate all library models that are five levels and

higher. These models include: 4/100, 6/100, 6/120, and 6/140.

In This Manual

Chapter 1 Preparing a 20 or 40-Slot Library for the

Upgrade: Describes how to remove parts from

the existing library to accommodate the upgrade

module.

Chapter 2 Upgrading a 20-Slot Library to 40 or 60 Slots:

Describes how to upgrade libraries with the

capacity for two drives and twenty slots to a

library with the capacity for four drives and forty

slots or six drives and sixty slots.

Chapter 3 Upgrading a 40-Slot Library to 60 Slots:

Describes how to upgrade library modules with

the capacity for four drives and forty slots to a

library with the capacity for six drives and sixty

slots.

Chapter 4 Upgrading Library Model 6/140: Describes

how to upgrade the library by increasing its

capacity by twenty slots. The total capacity of

Model 6/140 is up to six drives and 140 slots.

Contents

1. Preparing a 2/20 and 4/40 Library for the Upgrade

Installation Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Removing the Cosmetic Enclosure and Cover . . . . . . . 1-3

Removing the Cosmetic Doors . . . . . . . . . . . . . . . . . . . . 1-6

Removing the Front Panel Display . . . . . . . . . . . . . . . . 1-8

Preparing the Upgrade Module Chassis . . . . . . . . . . 1-10

2. Upgrading a 20-Slot Library to 40 or 60 Slots

Identifying Upgrade Kit Components . . . . . . . . . . . . . . 2-2

Upgrading 20-Slot Libraries to 40 Slots . . . . . . . . . . . . 2-5

Connecting the Library Modules . . . . . . . . . . . . . . . . . 2-11

Moving the Front Panel Components and Display. . . 2-18

Replacing the Display and Viewing Window . . . . . . 2-18

Replacing the Cosmetic Doors . . . . . . . . . . . . . . . . . 2-20

Verifying the Connection . . . . . . . . . . . . . . . . . . . . . . . 2-21

Powering on the Library . . . . . . . . . . . . . . . . . . . . . . 2-21

Running Diagnostic Tests . . . . . . . . . . . . . . . . . . . . . 2-21

Configuring the Library . . . . . . . . . . . . . . . . . . . . . . 2-22

Reconfiguring the Backup Software. . . . . . . . . . . . . 2-22

3. Upgrading a 40-Slot Library to 60 Slots

Identifying Upgrade Kit Components . . . . . . . . . . . . . . 3-2

Upgrading 40-Slot Libraries to 60 Slots . . . . . . . . . . . . 3-5

Connecting the Library Modules . . . . . . . . . . . . . . . . . . 3-8

Moving the Front Panel Components and Display. . . 3-13

Replacing the Display and Viewing Window . . . . . . 3-13

Replacing the Cosmetic Doors . . . . . . . . . . . . . . . . . 3-15

Verifying the Connection . . . . . . . . . . . . . . . . . . . . . . . 3-16

Powering on the Library . . . . . . . . . . . . . . . . . . . . . . 3-16

Running Diagnostic Tests . . . . . . . . . . . . . . . . . . . . . 3-16

Configuring the Library . . . . . . . . . . . . . . . . . . . . . . 3-17

Reconfiguring the Backup Software. . . . . . . . . . . . . 3-17

4. Upgrading Library Model 6/140

Chapter Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Preparing the Existing Library for Upgrade. . . . . . . . . 4-3

Removing the Side Panels. . . . . . . . . . . . . . . . . . . . . . 4-3

Removing the Forehead, Top Cover, and Silver

Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

Preparing the Upgrade Module for Installation . . . . . . 4-7

Check the Upgrade Kit Contents . . . . . . . . . . . . . . . . 4-7

Preparing the Upgrade Module . . . . . . . . . . . . . . . . . 4-9

Upgrading the 6/100 and 6/120 Model Libraries. . . . .4-10

Securing the Upgrade Module to the Cabinet . . . . . . . 4-11

Reassembling the Upgraded Library . . . . . . . . . . . . . . 4-15

Verifying the Connection . . . . . . . . . . . . . . . . . . . . . . . 4-18

Powering on the Library . . . . . . . . . . . . . . . . . . . . . . 4-18

Running Diagnostic Tests . . . . . . . . . . . . . . . . . . . . .4-18

Configuring the Library . . . . . . . . . . . . . . . . . . . . . . 4-19

Reconfiguring the Backup Software . . . . . . . . . . . . . 4-19

Chapter 1 1-1

Preparing for the Upgrade

1 Preparing a 2/20 and 4/40

Library for the Upgrade

Preparing a 2/20 and 4/40 Library for the Upgrade

Installation Overview

Chapter 11-2

Installation Overview

IMPORTANT These procedures are only applicable for Library Models 2/20 and 4/40.

See Chapter 4 for information on upgrading a 6/140 library.

For this upgrade, you are adding additional library modules to increase

the library’s capacity by twenty slots and two drives per upgrade module.

Though these procedures are described later in this guide, here is an

overview of the entire upgrade procedure:

NOTE This procedure should only be performed by a trained service technician.

Remove the top cover and

cosmetic enclosure on the

existing library.

Remove the front panel

components and display

from the existing library.

Remove the silver label

from the top of the existing

library.

For 20 to 40-slot

upgrades, add the vertical

lift assembly to the

transport assembly.

Stack the upgrade module

on top of the existing

library.

Secure the two modules

together with screws.

Install the interconnect

cable between the

motherboards on both

modules.

For 20 to 40-slot

upgrades, install the

vertical lift/transport

assembly into the top of

the chassis.

Add the upgrade notice

label to the back of the

library and under the front

magazine on the lowest

module.

Connect the power cord

and power on the library.

Verify the connection and

run diagnostic tests.

Move the display to the

top module. Replace the

front panel components.

Preparing a 2/20 and 4/40 Library for the Upgrade

Removing the Cosmetic Enclosure and Cover

Chapter 1 1-3

Preparing for the Upgrade

Removing the Cosmetic Enclosure and Cover

This chapter describes the disassembly procedures needed to prepare the

existing 2/20 and 4/40 library for this upgrade. If your library is

rackmounted and you are upgrading a twenty-slot library to forty slots,

you will need 6 EIA of clearance (10.5 inches) above the existing library

to accommodate the upgrade module. For a forty to sixty-slot upgrade,

you will need 5 EIA of clearance (8.75 inches) above the existing library.

CAUTION This library contains very sensitive electrical components. It is important

to follow the proper procedures for preventing electrostatic discharge

(ESD). Use wrist-grounding straps and anti-static mats when removing

and replacing cards and major assemblies.

Failure to follow proper procedures could damage the circuitry.

WARNING For rackmounted upgrades, extend the rack’s anti-tip foot and

lower the leveler feet. Failure to extend the anti-tip foot could

result in personal injury or damage to the tape library if the rack

tips over.

Preparing a 2/20 and 4/40 Library for the Upgrade

Removing the Cosmetic Enclosure and Cover

Chapter 11-4

Remove the cosmetic enclosure, cover, and label by following these steps:

1. Power off and unplug the library.

2. For a standalone library, remove the cosmetic enclosure. Refer to

Figure 1-1 for the screw locations. You will not reuse this enclosure

after the upgrade.

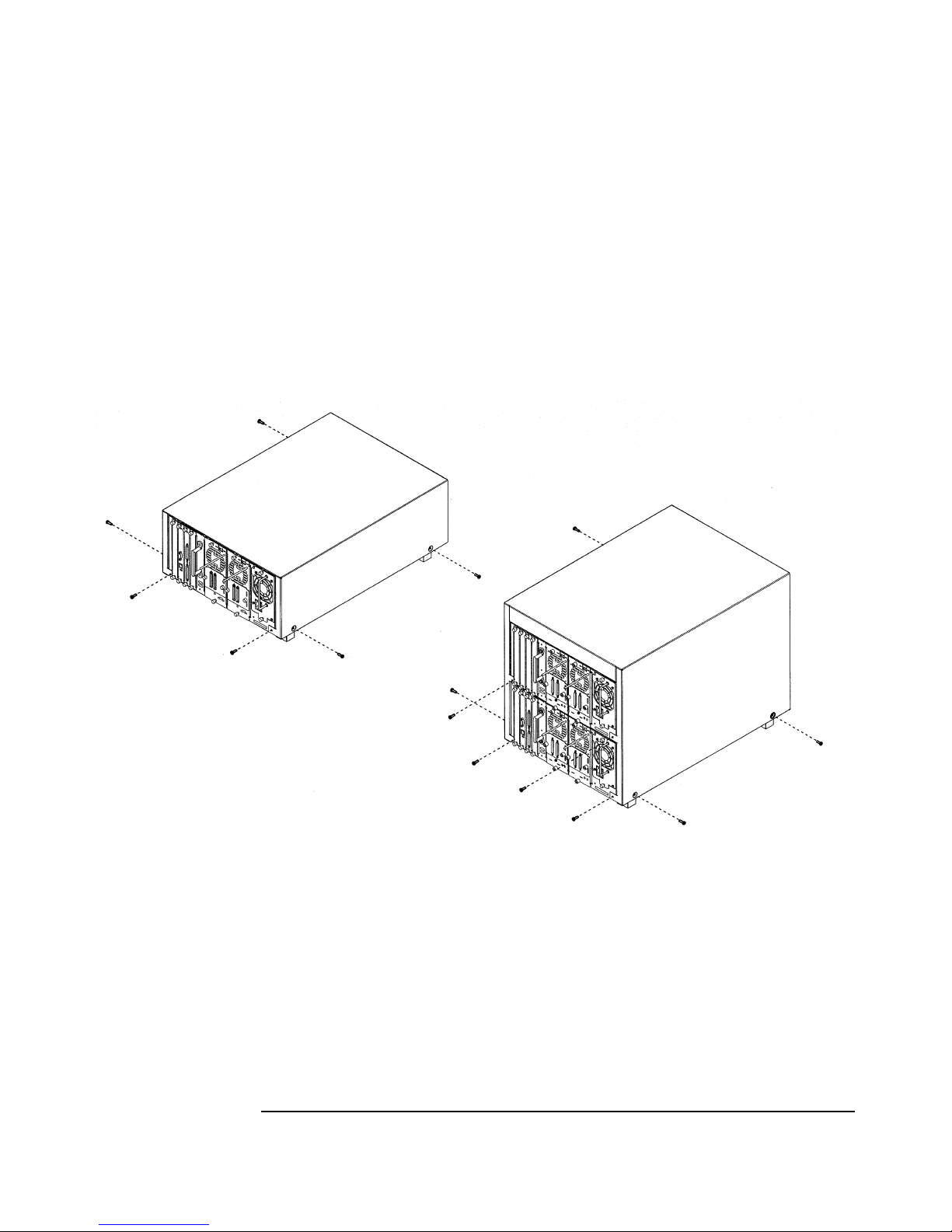

Figure 1-1 Removing the Cosmetic Standalone Enclosure
