13 Alternative Rack Mounting (4-Post)

Version 2, April 2001

Introduction

This chapter provides the instructions for mounting the HP Netserver in a

four-post (column) HP Systems rack. Figure 13-1 shows the Systems rack. If you

have the newer 4-post HP System/E or System/U racks, go to Chapter 8. If you

are mounting the Netserver in a 2-post non-HP rack, refer to Chapter 7, or see the

documentation in the appropriate rack accessory kit.

Characteristics of

HP System Rack:

a. 3-Cornered Columns

b. Fan-Only Vent

c. "HP Systems" Name Plate

d. EIA Units Marked by Triangles

e. Anti-Tip Foot Extends

Out Front Only

Figure 13-1. HP System Rack

Chapter 13 Alternative Rack Mounting (4–Post)

Before mounting the Netserver, determine the Netserver's location in the rack

relative to other rack components. Proper placement is vital both for safety and

operating efficiency. For more information, refer to "Rack Configuration Tools"

later in this chapter.

NOTE If the HP Netserver is completely configured by the vendor

before delivery to the customer, then mounting the HP

Netserver in the rack may be the final step in the installation

procedure. If the vendor configures the HP Netserver at the

customer's site, installation of the network operating system

and other software may occur after the HP Netserver is

mounted in the rack.

CAUTION If other rack components are to be mounted in the rack below

the HP Netserver, install those components before starting to

mount the Netserver.

Tools Required

This rack mounting kit is provided as a tool-less assembly, but does need a nut

drive or wrench to release the spring mechanism after shipping.

•Nut driver (10-mm) or wrench (removing spring assembly)

•Phillips screwdriver (removing spring assembly)

•Masking tape or marking pen

Rack Configuration Tools

The HP rack configuration tools, including white papers, are available on

worldwide web at HP's web site. Enter the following URL in your browser:

http://www.hp.com/netserver

At the Web site, search for "configuration tools" and "high density rack

solutions," specifically Rack Assistant, Rack Configuration, Order Assistant, and

HP Netserver High Density Rack Solutions Overview (LP 1000r and LP 2000r).

You can read about the tools or download copies for installation. These tools can

be used to plan a rack configuration for the components in your system.

The white papers, specifically HP Netserver High Density Rack Solutions

Overview (LP 1000r and LP 2000r), provide rack information for HP Netservers

Chapter 13 Alternative Rack Mounting (4–Post)

in the high-density racks and additional information for rack systems not listed in

this manual. You will need this information to complete a rack system installation.

Safety Precautions

Always keep the following safety and environmental issues in mind, especially if

you install the HP Netserver in a non-HP rack environment:

•Optimum Operating Environment – The optimum operating conditions

for the HP Netserver is in an environmental controlled computer room with

a temperature range of 20 to 22°C (68 to 72°F) at 40 to 60% relative

humidity.

•Maximum Ambient Temperature – Ensure the maximum ambient

temperature does not exceed 35°C (95°F).

•Elevated Operating Ambient Temperature – The ambient operating

temperature within a closed or multi-unit rack assembly may exceed the

room's ambient temperature. Ensure the temperature within the rack itself

does not exceed 35°C (95°F).

•Reduced Air Flow – As you mount equipment in the rack, ensure you

allow enough air flow for safe operation of the equipment. The Netserver's

fans will only operate correctly if both front and rear doors of the rack

allow free air flow (perforated openings), or are removed.

•Mechanical Loading – Uneven mechanical loading within the rack can

cause hazardous conditions. To prevent uneven loading plan to place the

heaviest components in the bottom of the rack, mounting all components as

low in the rack as possible.

•Circuit Overloading – Ensure the total configuration of equipment in the

rack does not overload the supply circuit. To this end, check the nameplate

ratings on all equipment. Consider the effect of circuit overloading on

overcurrent protection and supply wiring.

•Reliable Earth Grounding – Maintain reliable grounding of

rack-mounted equipment. Give particular attention to supply connections

not directly connected to the branch circuit (such as, using non-HP power

strips).

Chapter 13 Alternative Rack Mounting (4–Post)

Preparing the Rack

The outer-rail assemblies have spring assemblies that must be removed after

shipment and the columns must be marked before mounting the outer-rail

assemblies. Once the outer-rails are correctly mounted, then the HP Netserver LP

1000r can be installed into the rack. A template is not provided because the

Netserver is exactly one EIA unit high and can only fit into one EIA unit, but not

across two EIA units.

NOTE The HP Netserver weighs 32 lbs. (14.5 kg.) fully loaded. It is

not necessary to use two people when placing the Netserver

into the rack, but it may be helpful.

HP Netserver Rack Mount Parts List

Ensure the rack-mounting kit provided with the HP Netserver contains the

following parts:

Table 13-1. Parts for Rack Mount Kit

Quantity Description

2 Outer-rail assembly

Removing Spring Assemblies

The outer-rail assemblies are shipped with spring assemblies used on the newer

HP System/E or System/U racks, but not used on the older HP System racks. The

spring assemblies (coiled wire and flat spring) must be removed, before mounting

the outer rails. The coiled spring assemblies on the outer-rails are compressed for

shipping and held in place with two 10-mm nuts. These nuts must be removed

along with the coiled spring to remove the rear spring assemblies, but two of the

nuts must be kept to secure the rails to the rear columns of the rack. See Figure

13-2.

1. Turn both nuts on each rail counterclockwise (CCW) to release the rear

spring assembly and remove the nuts. See Figure 13-2.

Keep one nut from each outer rail to attach the rear of the outer rail to the

rear column.

Chapter 13 Alternative Rack Mounting (4–Post)

2. Remove the coiled wire spring at both ends (outer rail and sliding

mechanism). See Figure 13-2.

The coiled wire spring must be removed to separate the sliding mechanism

from the outer rail.

3. Pull the sliding mechanism away from the outer rail.

4. At the front of the outer rail, remove the screw holding the two flat springs

to the outer rail.

5. Lift both flat springs and the double washer away from the outer rail.

6. Repeat Steps 1-5 for the other outer rail.

Remove

hardware

as shown (2x).

Keep one

nut from

each side.

Figure 13-2. Removing Spring Assembly Hardware

Marking the Columns

Use this section to mark the front and rear columns of the HP Systems rack. The

outer-rails mount to the face of the front columns and the inside face of the rear

columns. The masking tape (or marking pen) is used to identify and mark the

locations on the columns.

CAUTION If other rack components are to be mounted in the rack below

the HP Netserver, install those components before starting to

mount the Netserver.

Chapter 13 Alternative Rack Mounting (4–Post)

NOTE Use the HP Rack Configuration Tools to determine where in

the rack to mount the HP Netserver.

1. Find the EIA unit markings on the rack and the location for the Netserver.

The screw holes cover a span of only one EIA unit, which is the height

requirement of the HP Netserver.

NOTE The Netserver can only be mounted into both holes of one EIA

Unit, but cannot be mounted across two EIA units. You cannot

use a hole in one EIA unit and a hole in another EIA unit.

2. Use the masking tape (or marking pen) to mark above the 3rd hole up on

both front columns, as shown in Figure 13-3.

Mark this face and

edge of the columns

with masking tape

or marking pen, as

shown.

Right

Side

Left

Side

Front of

Rack

Rear of

Rack

Bottom of

HP NetServer

represents

the EIA unit

numbers on the

rack columns.

3rd Hole

From Bottom

1st Hole

From Bottom

Masking

Tape

Marker

Figure 13-3. Location Marks on the Rack's Columns

3. Mark the forward face and edge of the left-rear and right-rear rack

columns, with masking tape, as shown in Figure 13-3.

Attaching Outer-Rails to the Rack

1. Pull the anti-tip foot forward out of the bottom of the rack.

See Figure 13-4 for the anti-tip foot location.

Chapter 13 Alternative Rack Mounting (4–Post)

2. Lower the leveler screws on the rack's lower four corners to make firm

contact with the floor. See Figure 13-4.

3. Align the left outer-rail assembly to the left front and rear columns as

shown in Figure 13-4.

4. Insert the front outer-rail pins into the column holes (1st & 3rd) just below

the marking tape on the front column. See Figure 13-3.

The front mounting pins of the outer-rail should go into the front face of

the front column.

Leveler

Screws (4)

nti-tip Foot

Extended

Figure 13-4. Mounting Outer-Rails to Columns

5. Insert the last screw stud on the outer rail into the center hole of the three

holes in the EIA unit just below the marking tape on the rear column. See

Figure 13-4.

6. Repeat Steps 3 through 5 for the outer-rail assembly on the right front and

rear columns.

Chapter 13 Alternative Rack Mounting (4–Post)

Placing the HP Netserver in the Rack

Use this topic to insert the HP Netserver into the outer-rail assembly mounted in

the rack. Once the Netserver is in the rack, you can connect the cables to the rear

of the Netserver.

WARNING To prevent rack instability while mounting the HP Netserver,

ensure the rack's anti-tip foot is pulled forward out of the

bottom of the rack. Failure to do so could result in injury and

equipment damage.

To prevent the rack from rolling while you mount the HP

Netserver, ensure the leveler screws on the rack's lower four

corners are in firm contact with the floor. See Figure 13-4.

1. Lower the leveler screws on the rack's lower four corners to make firm

contact with the floor. See Figure 13-4.

2. Ensure you have extended the anti-tip foot from the rack before continuing

this procedure. See Figure 13-4.

NOTE The HP Netserver weighs 32 lbs. (14.5 kg.) fully loaded. It is

not necessary to use two people when placing the Netserver

into the rack, but it may be helpful.

3. Lift the HP Netserver by its inner-rails off the floor or pallet.

4. Move the rear of the inner-rails mounted on the Netserver just beyond the

inside edge of the outer-rail assemblies. See Figure 13-5.

The mounting inner-rails should sit just inside the outer-rails with nothing

preventing the Netserver from moving into the outer-rails.

Chapter 13 Alternative Rack Mounting (4–Post)

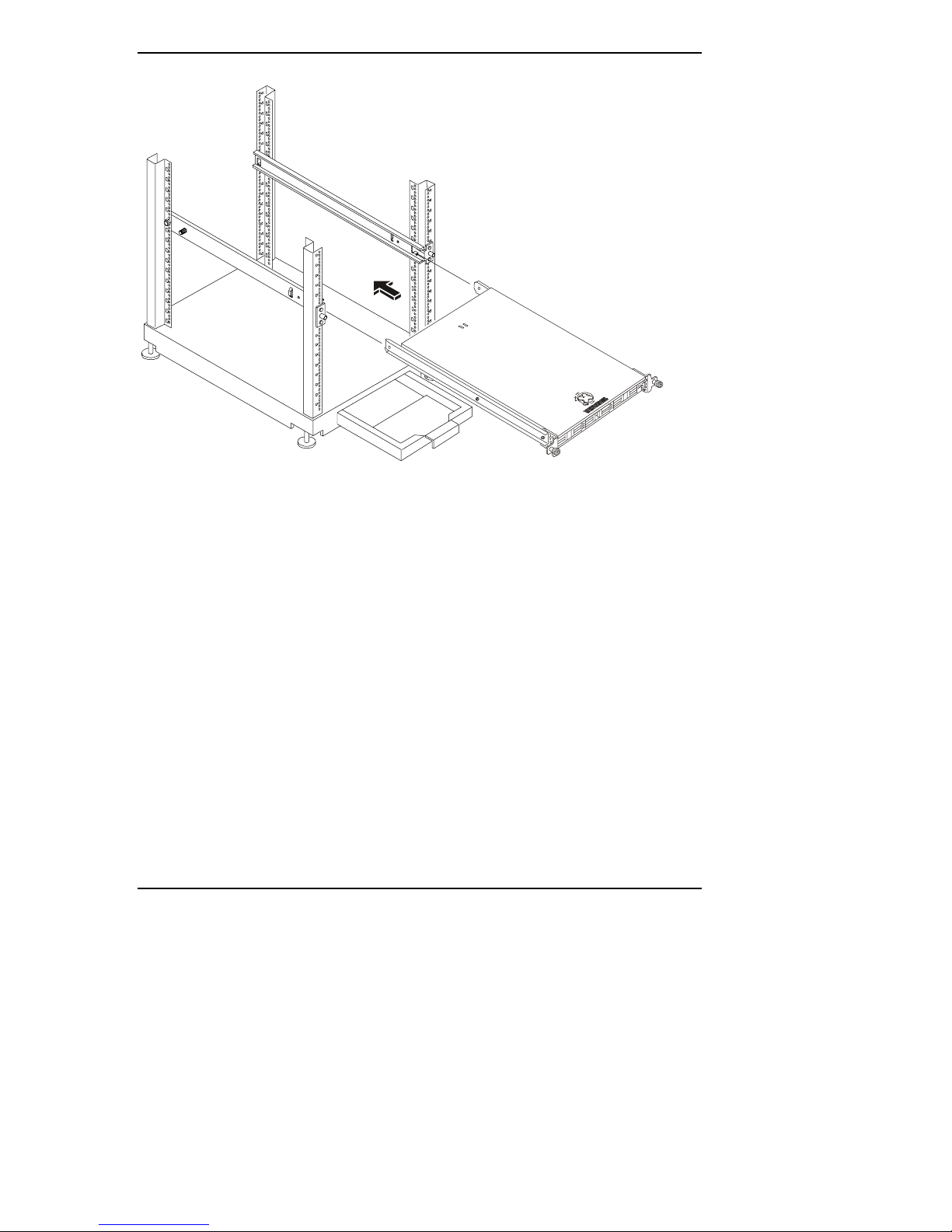

Figure 13-5. Mounting the HP Netserver

5. Slowly move the Netserver chassis into the outer-rail assemblies until the

Netserver is completely in the rack. See Figure 13-5.

The securing brackets on the front of the Netserver should stop the chassis

from going all the way into the rack.

6. Secure the Netserver chassis to the rack with captive screws.

Attaching the Front Bezel

The front bezel attaches to the HP Netserver by pivoting on two pins at the bottom

and grasping the top pins with spring latches. The middle pins force the bezel to

pivot in or out, ensuring a rotating action.

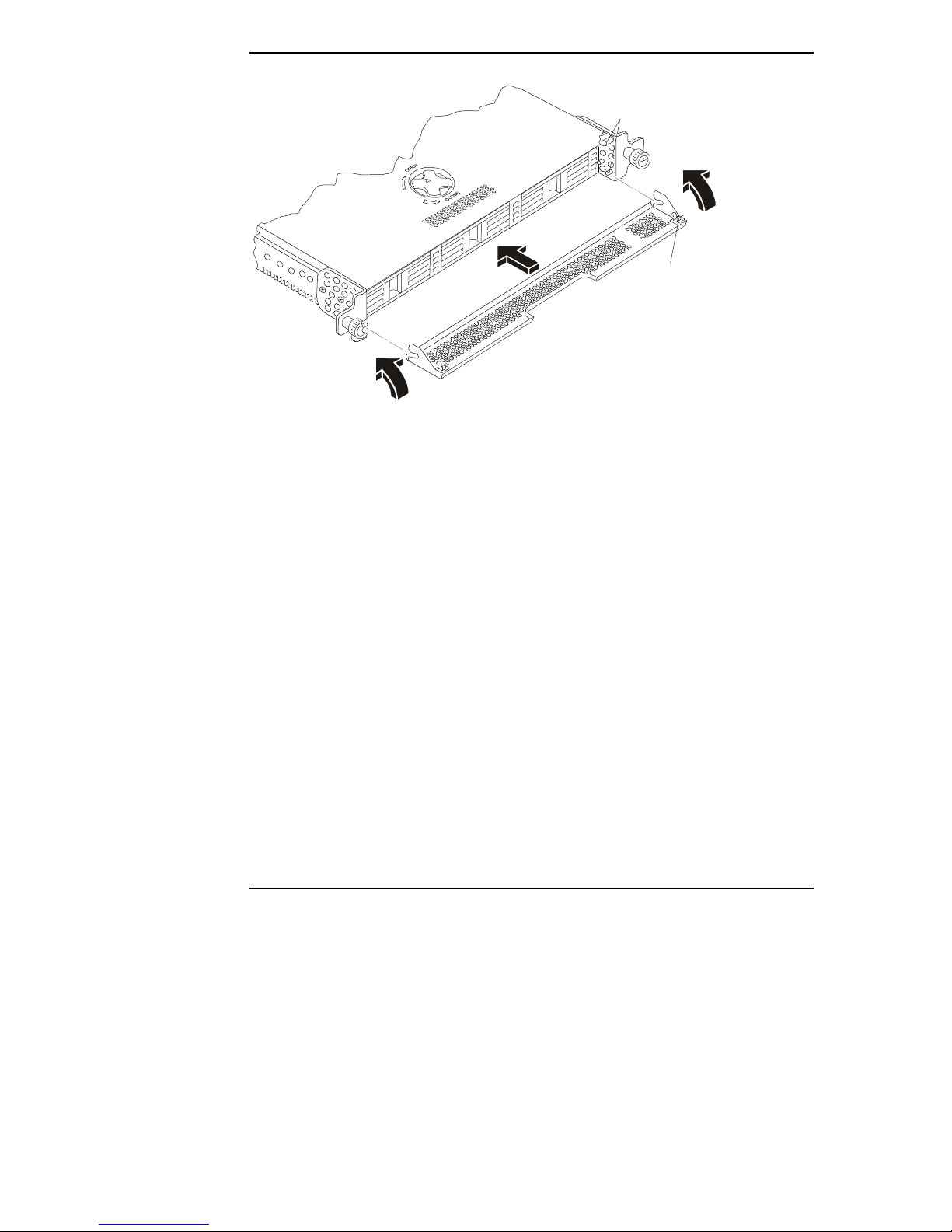

1. Position the Bezel in front of the HP Netserver LP 1000r as shown in

Figure 13-6.

2. Push in on the bottom to engage the pins, allowing it to rotate up.

3. Push the bezel in at the top to engage the spring latches.

The spring latches should click when engaged.

Chapter 13 Alternative Rack Mounting (4–Post)

Pins

Spring

Latches (2)

Figure 13-6. Attaching the Bezel to the Netserver

Continuing with the Rack Installation Process

After you install the HP Netserver in the rack, refer to the white paper, located on

the HP web site for high-density rack configurations, to continue the process of

installing and configuring the rack system. The white paper is titled

HP Netserver High Density Rack Solutions Overview (LP 1000r and LP 2000r).

Otros manuales para D7171A - NetServer - LPr

117

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Servidor de HP

HP AlphaStation DS20 Manual de usuario

HP NetServer LP 1000r Manual de usuario

HP rp7400 Manual de usuario

HP Integrity rx4610 Actualización de firmware

HP ProLiant WS460c Gen9 Manual

HP 9000 rp7440 Manual del propietario

HP D5970A - NetServer - LCII Manual de usuario

HP DL385 - ProLiant - G5 Instrucciones de uso

HP ProLiant MicroServer Generation 8 Instrucciones de uso

HP ProLiant DL320e Manual de instrucciones

HP Integrity rx2660 Manual de usuario

HP ProLiant MicroServer Instrucciones de montaje

HP Proliant DL580 Instrucciones de montaje

HP ProLiant DL380 G6 Server Manual de usuario

HP 127695-B21 - Smart Array 431 RAID Controller Manual de usuario

HP D7171A - NetServer - LPr Manual de instalación y operación

HP Integrity rx4640 Manual de instalación y operación

HP ProLiant ML350p Gen8 Manual

HP NetServer LH 3r Manual de usuario

HP NetServer E60 Manual de usuario

HP 9000 V2500 SCA Manual

HP Tc2100 - Server - 128 MB RAM Manual de usuario

HP D5970A - NetServer - LCII Manual de usuario

HP Integrity rx6600 Manual de usuario

Manuales populares de Servidor de otras marcas

Dell

Dell PowerEdge R410 Manual de usuario

PowerNAS

PowerNAS CMA Manual de usuario

Supero

Supero FatTwin F617R3-FT Manual de usuario

MSI

MSI P1-109N-L70 Manual de usuario

Dell

Dell PowerEdge XE9640 Manual

Dell

Dell PS4100 Instrucciones de montaje

EtroVISION

EtroVISION EV3151 Manual de usuario

NEC

NEC Express5800/T110j Manual de usuario

Compaq

Compaq ProLiant 3000 Manual

Dell

Dell PowerEdge 3YPMN Manual de usuario

iRobo

iRobo IPC2U Manual de usuario

Nortel

Nortel 1000 Con?guration guide Manual de usuario

Asus

Asus AP7500 Manual de operación y mantenimiento

Avid Technology

Avid Technology AirSpeed 5000 Manual de usuario

Milestone

Milestone Husky IVO 350T Manual de usuario

Planet

Planet NAS-7410 Manual de usuario

Lenovo

Lenovo ThinkSystem SR635 V3 Manual de usuario

Dell

Dell PowerEdge HS5610 Manual
