Technical Support: For more detailed usage instructions, please download the

HP BP5000 / BP5000 Plus user manual at

GT Technology (Chongqing) Limited

The manufacturer under the

license of HP Inc.

Email: [email protected]

Web: www.hp-projector.com

Projector BP5000/BP5000PLUS

HP Projector

Quick Start Guide

Congratulations and thank you for choosing HP BP5000 / BP5000 Plus, part of the definitive premium

cinema projection series. Be prepared for unparalleled audio-visual immersive experiences of up to

150 inches.

Package Contents：

HP BP5000 or HP BP5000 PLUS *1

<Accessories>

·Power Cord * 1

· Remote Control * 1

· AA battery * 2

·Quick Start Guide * 1

·HP Warranty Card * 1

·Product Notice * 1

Device Overview：

-Do not place any articles around the air inlet hole to prevent cold air from entering

and heat exchange cannot be carried out.

-Do not place any articles near the air outlet, which will cause the internal heat

cannot be discharged and the internal heat will accumulate.

1

2

3

7

6

5

4

HDMI2

HDMI1(ARC)

AC IN

Notice:

8

10

9USB2.0

Adjustable Stand

Air inlet 11 Air outlet

USB2.0

AUX 3.5mm Stereo

(Audio-out External

Speakers/Headphone)

S/PDIF

LAN

EN

Specification parameter：

·USB ：5V,0.5A

·HDMI resolution：4K

·Hardware specifications：3G+32G

·Appearance of size：595*340*140 MM

·Resolution：4k UHD (3840*2160)

·Environmental characteristics: ambient

temperature 0-40℃, elevation below 5000m

·AC-IN：110-240V~,4A,50/60Hz

·LAN ：10/100Mbps

·Product size：595*340*140mm

·Product net weight：16kg

EN

How to use:

1. Place the projector onto a stable horizontal level surface (eg. table, TV stand) facing the desired vertical

projection surface (eg. wall,

projection screen). Plug the projector with

the power cable into a working

AC power socket, connect your external video and

audio sources into the applicable input ports.

2. Before using the remote controller for the first time, insert the included AA batteries* 2 into the remote.

Power on the projector and follow the on-screen instructions to pair the remote.

3. Enter the main page, as shown in the figure below:

HP BP5000/BP5000 PLUS Supported Input Sources:

·Embedded digital content platform (via wireless stick and/or RJ45 Ethernet port)

· Digital and Ananlog TV

·HDMI * 2 (including HDMI ARC)

·USB2.0*2

HP BP5000/BP5000 PLUS features an embedded powerful 30-watt stereo speaker set with deep bass,

detailed mids and clear

treble. However, the below audio outputs

are also supported to suit your

individual needs.

·S/PDIF * 1

·HDMI ARC *1

·3.5mm earphone out

·Bluetooth (4.0)

EN

4.

If you would like to set-up the projection area yourself, please select (Settings > Projection >

Installation Assistant). Please follow the on-screen instructions. Alternatively,you may seek professional

assistance by contacting your local installation provider.

EN

5. When you are installing an external video device or audio system, the HP BP5000 /

BP5000 Plus position is touched to cause the image Out of focus or abnormal change,

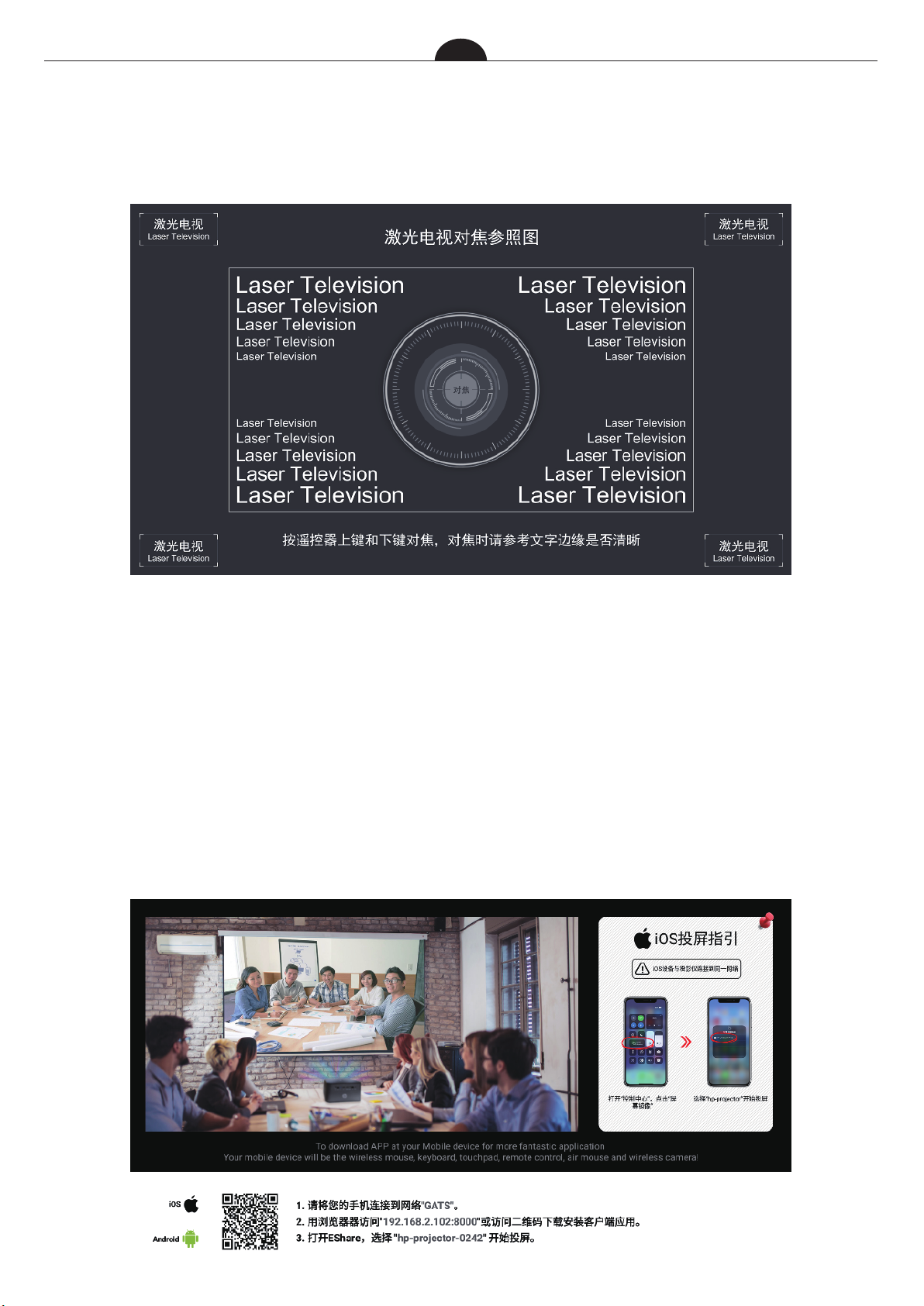

please go to "Settings/Projection"

6.

To ensure safe viewing and prevent eyesight damage, we recommend you enable Smart Eye Protection

(Settings > Projection > Smart Eye Protection). During operation, DO NOT look directly straight-

on at the projector lens.

7.

You may also use BP5000/BP5000 Plus as a speaker (audio-only) without using the screen.

(Settings > Switch off Display).

8.

Voice input support is limited to mainland China.

9. If you want to watch photos and videos of mobile phones and Pads on the projector, you

can use the wireless projection screen on the main interface

To achieve screen sharing, you can refer to the connection instructions as shown in the figure

to complete the screen sharing function.
