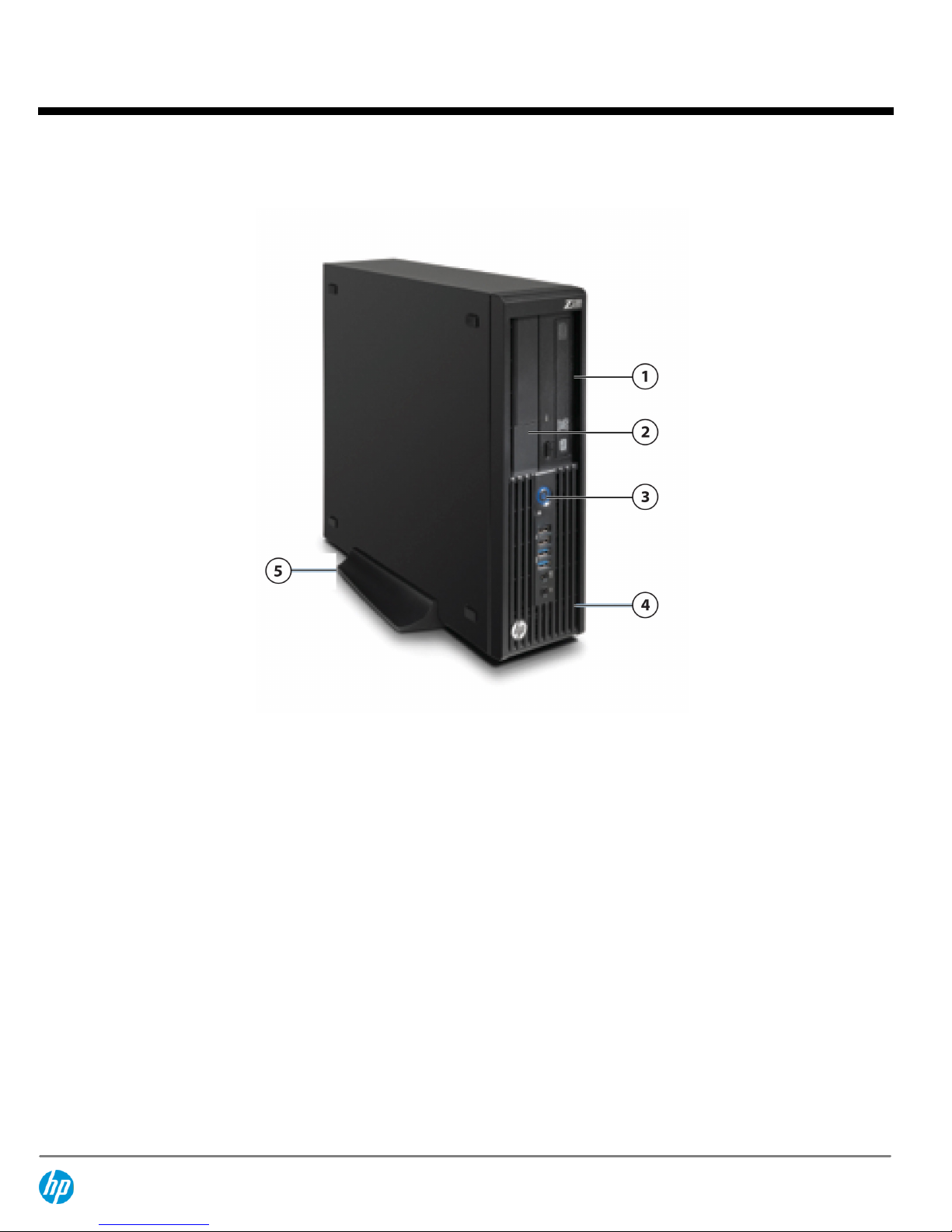

External 5.25" bay

External/internal shared 3.5" bay

Power button

Front I/O (top to bottom order): 2 USB 2.0 ports, 2 USB 3.0 ports, Microphone/Headphone, Headphone

Optional SFF tower stand

QuickSpecs

HP Z230 SFF Workstation

Overview

DA - 14630 Worldwide — Version 14 — April 1, 2014

Page 1

1 Audio Line In, 1 Audio Line Out

2 USB 3.0, 2 USB 2.0

1 serial port

3 DisplayPort (DP 1.2) outputs from Intel HD graphics (available on specific processors only)

RJ-45 to integrated GBE

2 USB 2.0

PS/2 ports (keyboard, mouse)

Form Factor

Small Form Factor

Operating Systems

Preinstalled:

Windows 7 Ultimate 64-bit

Windows 7 Professional 32/64

Windows 7 Home Premium 32/64

Windows 8 Pro 64-bit

Windows 8 Simplified Chinese Edition 64-bit

Windows 8 Pro Downgrade to Windows 7 Professional 32-bit

Windows 8 Pro Downgrade to Windows 7 Professional 64-bit

Windows 8.1 Pro 64-bit

Windows 8.1 Simplified Chinese Edition 64-bit

Windows 8.1 Pro Downgrade to Windows 7 Professional 32-bit

Windows 8.1 Pro Downgrade to Windows 7 Professional 64-bit

QuickSpecs

HP Z230 SFF Workstation

Overview

DA - 14630 Worldwide — Version 14 — April 1, 2014

Page 2

Windows 8.1 Pro Downgrade to Windows 7 Professional 32-bit (National Academic)

Windows 8.1 Pro Downgrade to Windows 7 Professional 64-bit (National Academic)

HP Installer Kit for Linux [includes drivers for 64-bit OS versions of Red Hat Enterprise Linux 6 and

SUSE Linux Enterprise Desktop (SLED) 11]

SUSE Linux Enterprise Desktop 11 64-bit (90 day license)

Red Hat Enterprise Linux Workstation (1 year paper license available; Preinstall not available)

Supported:

Genuine Windows® 7 Enterprise 32/64

Notes: For detailed OS/hardware support information for Linux, see:

http://www.hp.com/support/linux_hardware_matrix

Name

Cores

Clock

Speed

(GHz)

Intel® Turbo

Boost

Technology

Cache

(MB)

Memory

Speed

(MHz)

Hyper-

Threading

Integrated

Graphics

Featuring

Intel®

vPro™

Technology

TDP

(W)

Intel® Xeon® processor E3-1280v3

3.6 4.0

8 1600

N/A

80W

Intel® Xeon® processor E3-1270v3

3.5 3.9

8 1600

N/A

80W

Intel® Xeon® processor E3-1245v3

3.4 3.8

8 1600

Intel HD

Graphics

P4600

84W

Intel® Xeon® processor E3-1240v3

3.4 3.8

8 1600

N/A

80W

Intel® Xeon® processor E3-1230v3

3.3 3.7

8 1600

N/A

80W

Intel® Xeon® processor E3-1225v3

3.2 3.6

8 1600

Intel HD

Graphics

P4600

84W

Intel® Core

i7-4771 processor

3.5 3.9

8 1600

Intel HD

Graphics

4600

84W

Intel® Core

i7-4770 processor

3.4 3.9

8 1600

Intel HD

Graphics

4600

84W

Intel® Core

i5-4670 processor

3.4 3.8

6 1600

Intel HD

Graphics

4600

84W

Intel® Core

i5-4570 processor

3.2 3.6

6 1600

Intel HD

Graphics

4600

84W

Intel® Core

i3-4330 processor

3.5

4 1600

Intel HD

Graphics

4600

54W

Intel® Core

i3-4130 processor

3.4

3 1600

Intel HD

Graphics

4400

54W

Intel® Pentium® G3220 processor

3.0

3 1333

Intel HD

Graphics

54W

The specifications shown in this column represent the maximum turbo frequency with one core active. Turbo boost stepping occurs

in 100MHz increments. Processors that do not have turbo functionality are denoted as N/A.

QuickSpecs

HP Z230 SFF Workstation

Overview

DA - 14630 Worldwide — Version 14 — April 1, 2014

Page 3

Available Processor

Disclaimers

Integrated Intel® HD graphics is not supported on the Intel® Xeon Processor E3-1230v3, E3-1240v3, E3-

1270v3 or E3-1280v3.

Intel® Xeon E3, Intel Core i3 and Intel Pentium processors can support either ECC or non-ECC memory;

Intel® Core i5/i7 processors only support non-ECC memory.

Intel's numbering is not a measurement of higher performance. Processor numbers differentiate features

within each processor family, not across different processor families. See:

http://www.intel.com/products/processor_number/

for details.

64-bit computing on Intel® 64 architecture requires a computer system with a processor, chipset, BIOS,

operating system, device drivers and applications enabled for Intel 64 architecture. Processor will not

operate (including 32-bit operation) without an Intel 64 architecture-enabled BIOS. Performance will vary

depending on your hardware and software configurations. See:

http://www.intel.com/info/em64t

for more

information.

Dual-Core and Quad-Core technologies are designed to improve performance of multithreaded software

products and hardware-aware multitasking operating systems and may require appropriate operating

system software for full benefits; check with software provider to determine suitability; Not all customers

or software applications will necessarily benefit from use of these technologies.

Color

Jack Black

Convertibility

The Z230 SFF can either be placed flat on the desktop or made to stand on the desk with the optional

tower stand.

Expansion Slots (see

system board section for

more details)

1 PCIe Gen3 x16 slot

1 PCIe Gen2 x4 slot /x16 connector

1 PCIe Gen2 x1 slot/x4 connector

1 PCIe Gen2 x1 slot

(all slots are Low Profile)

Note: In the PCIe Gen3 x16 slot, if it is not being used for a graphics card, only cards certified as After

Market Options for this platform are supported.

Expansion Bays (see

storage section for more

details)

1 external Half Height 5.25" bay

1 shared internal/external 3.5" bay

1 internal 3.5" bay

1 internal 2.5" bay (for SSD only)

Front I/O

2 USB 3.0, 2 USB 2.0, 1 Headphone, and 1 Microphone

Internal I/O

1 USB 3.0 and 3 USB 2.0 ports available as 2 separate 2x10(3.0 x1, 2.0 x1) and 2x5(2.0 x2) header:

supports one HP Internal USB 2.0 Port Kit and one USB 3.0 Media Card Reader.

Rear I/O

3 DisplayPort (DP 1.2) outputs from Intel HD graphics (available on specific processors only); 2 USB 3.0

ports, 4 USB 2.0 ports, 2 serial ports (1 standard, 1 optional), 1 parallel port (optional), 2 PS/2, RJ-45 (LoM),

1 Audio Line-in, and 1 Audio Line-out; 2 IEEE 1394b ports (optional).

Interfaces Supported

14-in-1 Media Card Reader (optional)

Chassis Dimensions

(H x W x D)

Standard desktop orientation: 100 x 337 x 384 mm (3.95 x 13.3 x 15.1 in); Optional SFF Tower orientation

(excluding stand dimension): 337 x 100 x 384 mm (13.3 x 3.95 x 15.1 in)

QuickSpecs

HP Z230 SFF Workstation

Overview

DA - 14630 Worldwide — Version 14 — April 1, 2014

Page 4

Weight

Exact weights depend upon configuration;

Typical Weight* 7.2 kg (15.87 lbs)

Shipping Weight* 9.8 kg (21.6 lbs)

Max Supported Weight (desktop orientation) 35 kg (77 lb)

Note*: Configured with 2 3.5" hard drives, 1 optical drive, 2 DIMMs and 1 NVIDIA Quadro K600 graphics card

Temperature

Operating: 5° to 35°C (40° to 95°F)

Non-operating: -40° to 60°C ( -40° to 140°F)

Notes: Derate the maximum operating temperature by one degree C (1.8 degrees F) for every 305m (1,000

ft) altitude over 1,524m (5,000 ft).

Humidity

Operating: 8% to 85%

Non-operating: 8% to 90%

Maximum Altitude

(non-pressurized)

Operating: 3,000 m; 10,000 ft

Non-operating: 9,100 m; 30,000 ft

Power Supply

240W 92% Efficiency wide-ranging, active Power Factor Correction (PFC)

240W Standard Efficiency wide-ranging, active PFC Power Supply option available in some countries.

The Power Supply Efficiency Report for the 240W, 92% efficiency power supply may be found at these

links:

http://www.plugloadsolutions.com/psu_reports/HEWLETT-PACKARD%20COMPANY_PS-4241-

1HA_240W_ECOS%203449_Report.pdf

http://www.plugloadsolutions.com/psu_reports/HEWLETT-PACKARD_D12-

240P2A_240W_ECOS%203384_Report.pdf

http://www.plugloadsolutions.com/psu_reports/Hewlett-Packard%20Company_DPS-240AB-

3%20A_240W_ECOS%203416_Report.pdf

http://www.plugloadsolutions.com/psu_reports/HEWLETT-PACKARD%20COMPANY_PCC002-

020H2_240W_ECOS%203440_Report.pdf

Backup Devices

For a complete listing of compatible DAT tape drives, LTO tape drives and RDX Removable Disk Backup

System offerings, please visit

http://www.hp.com/go/connect

Chipset

Intel® C226 chipset

Memory

4 DIMM slots, supporting up to 32GB ECC/non-ECC, DDR3 1600 MHz

Memory disclaimers

The CPUs determine the speed at which the memory is clocked. If a 1333 MHz capable CPU is used in the

system, the maximum speed the memory will run at is 1333 MHz regardless of the specified speed of the

memory.

Workstation ISV

Certifications

See the latest list of certifications at

http://www.hp.com/united-states/campaigns/workstations/partnerships.html

QuickSpecs

HP Z230 SFF Workstation

Overview

DA - 14630 Worldwide — Version 14 — April 1, 2014

Page 5

Processors

Factory

Configured

Option

Kit

Support

Notes

Intel® Xeon® processor E3-1200 v3 family (Z230)

Intel® Xeon® processor E3-1280v3, Quad-Core, 8 MB cache, 3.6 GHz, up

to 4.0 GHz with Intel Turbo Boost Technology

See Note

Intel® Xeon® processor E3-1270v3, Quad-Core, 8 MB cache, 3.5 GHz, up

to 3.9 GHz with Intel Turbo Boost Technology

See Note

Intel® Xeon® processor E3-1245v3, Quad-Core, 8 MB cache, 3.4 GHz, up

to 3.8 GHz with Intel Turbo Boost Technology

See Note

Intel® Xeon® processor E3-1240v3, Quad-Core, 8 MB cache, 3.4 GHz, up

to 3.8 GHz with Intel Turbo Boost Technology

See Note

Intel® Xeon® processor E3-1230v3, Quad-Core, 8 MB cache, 3.3 GHz, up

to 3.7 GHz with Intel Turbo Boost Technology

See Note

Intel® Xeon® processor E3-1225v3, Quad-Core, 8 MB cache, 3.2 GHz, up

to 3.6 GHz with Intel Turbo Boost Technology

See Note

4th generation Intel® Core™ processor family

Intel® Core™ i7-4771 processor, Quad-Core, 8 MB cache, 3.5 GHz, up to

3.9 GHz with Intel Turbo Boost Technology

See Note

Intel® Core™ i7-4770 processor, Quad-Core, 8 MB cache, 3.4 GHz, up to

3.9 GHz with Intel Turbo Boost Technology

See Note

Intel® Core™ i5-4670 processor, Quad-Core, 6 MB cache, 3.4 GHz, up to

3.8 GHz with Intel Turbo Boost Technology

See Note

Intel® Core™ i5-4570 processor, Quad-Core, 6 MB cache, 3.2 GHz, up to

3.6 GHz with Intel Turbo Boost Technology

See Note

Intel® Core™ i3-4330 processor, Dual-Core, 4 MB cache, 3.5 GHz

See Note

Intel® Core™ i3-4130 processor, Dual-Core, 4 MB cache, 3.4 GHz

See Note

Dual Core Intel® Pentium® Processors (Z230)

Intel® Pentium® G3220 processor, Dual-Core, 3 MB cache, 3.0 GHz

See Note

NOTE 1:

Intel HD Graphics P4600 supports workstation-specific graphics drivers for improved

compatibility and performance on select professional applications, compared to Intel HD Graphics 4600.

NOTE 2:

These processors support either ECC or non-ECC memory

NOTE 3:

These processors support only non-ECC memory

QuickSpecs

HP Z230 SFF Workstation

Supported Components

DA - 14630 Worldwide — Version 14 — April 1, 2014

Page 6

Monitors / Displays

Factory

Configured

Option

Kit

Option

Kit Part

Number

Support

Notes

HP DreamColor LP2480zx Professional Display

HP Z Display Z30i 30-inch IPS LED Backlit Monitor

HP Z Display Z27i 27-inch IPS LED Backlit Monitor

HP Z Display Z24i 24-inch IPS LED Backlit Monitor

HP Z Display Z23i 23-inch IPS LED Backlit Monitor

HP Z Display Z22i 21.5-inch IPS LED Backlit Monitor

HP ZR2740w 27-inch LED Backlit IPS Monitor

HP ZR2440w 24-inch LED Backlit IPS Monitor

HP ZR2330w 23-inch IPS LED Backlit Monitor

Supported by all Operating Systems available from HP

Screen Size Diagonally Measured

Hard Drives

SATA Hard Drives

Factory

Configured

Option

Kit

Option

Kit Part

Number

Support

Notes

SATA (Serial ATA) Hard Drives for HP Workstations

500GB SATA 7200 rpm 6Gb/s 3.5" HDD

Y Y

LQ036AA

1TB SATA 7200 rpm 6Gb/s 3.5" HDD

Y Y

LQ037AA

2.0TB SATA 7200 rpm 6Gb/s 3.5" HDD

Y Y

QB576AA

3.0TB SATA 7200 rpm 6Gb/s 3.5" HDD

Y Y

QF298AA

250GB SATA 10K rpm SFF HDD

Y Y

B8X18AA

500GB SATA 10K rpm SFF HDD

Y Y

B8X19AA

1TB SATA 10K rpm SFF HDD

Y Y

B8X20AA

500GB SATA 7.2K SED SFF HDD

(not

available

today as

After

Market

Option)

Sub-Section

Description/Notes

Note: The 2.5" internal drive bay on the Z230 SFF only supports a Solid State Drive, and not a 10K rpm

HDD.

SATA Solid State Drives

HP Solid State Drives (SSDs) for Workstations

HP 128GB SATA 6Gb/s SSD

Y Y

A3D25AA

HP 256GB SATA 6Gb/s SSD

Y Y

A3D26AA

QuickSpecs

HP Z230 SFF Workstation

Supported Components

DA - 14630 Worldwide — Version 14 — April 1, 2014

Page 7

HP 256GB SATA 6Gb/s SED SSD

Y Y

(not

available

as After

Market

Option)

Intel Pro 1500 180GB SATA SSD

Y Y

F5Z70AA

Samsung SM843T 240GB SATA SSD

Y Y

F0W94AA

Samsung SM843T 480GB SATA SSD

Y Y

TBD

Intelligent Disk Caching Intelligent Disk Caching

64GB SSD Disk Cache Module

(not

available

today as

After

Market

Option)

Hard Drive Controllers

Factory

Configured

Option Kit

Support

Notes

Integrated SATA Controller (Z230)

Integrated SATA Controller, RAID 0,1 supported: 5x 6 Gb/s ports

Factory integrated RAID on motherboard for SATA drives

RAID 0 Configuration – Striped Array

RAID 1 Configuration – Mirrored Array

NOTE 1

: Windows OS only; Supported only with two drives of identical type and capacity.

SATA hardware RAID is not supported on Linux systems. The Linux kernel, with built-in software RAID,

provides excellent functionality and performance. It is a good alternative to hardware-based RAID. Please

visit

http://h20000.www2.hp.com/bc/docs/support/SupportManual/c00060684/c00060684.pdf

for RAID

capabilities with Linux.

Graphics

Factory

Configured

Option

Kit

Option

Kit Part

Number

Support

Notes

Supported

# of

cards

Mixed

Integrated Intel HD Graphics Media Accelerators (Z230)

Intel HD Graphics P4600

Available

on Intel®

Xeon® E3-

12x5 v3

processors

only. See

Note 1.

Intel HD Graphics 4600

Available

on Intel

QuickSpecs

HP Z230 SFF Workstation

Supported Components

DA - 14630 Worldwide — Version 14 — April 1, 2014

Page 8

CoreTM i7-

4xxx/ Core

i5-4xxx/

Core i3-

4330

processors.

See Note

1.Available

on Intel

CoreTM i7-

4xxx/ Core

i5-4xxx/

Core i3-

4330

processors.

See Note 1.

Intel HD Graphics 4400

Available

on Intel

Core i3-

4130

processor.

See Note 1.

Intel HD Graphics

Available

on Intel

Pentium®

3220

processor.

See Note 1

Professional 2D

NVIDIA NVS 310 512MB Graphics

Y Y

A7U59AA

Can be

mixed with

one NVS

510

YES

NVIDIA NVS 315 1GB Graphics

Y Y

E1U66AA

NVIDIA NVS 510 2GB Graphics

Y Y

C2J98AA

Can be

mixed with

one NVS

310

YES

Graphics Cable Adapters

HP DisplayPort To DVI-D Adapter

Y Y

FH973AA

HP DisplayPort To DVI-D Adapter (2-

Pack)

HP DisplayPort To DVI-D Adapter (4-

Pack)

HP DisplayPort To VGA Adapter

Y Y

AS615AA

QuickSpecs

HP Z230 SFF Workstation

Supported Components

DA - 14630 Worldwide — Version 14 — April 1, 2014

Page 9

HP DisplayPort to Dual Link DVI

Adapter

Y Y

NR078AA

Entry 3D

AMD FirePro V3900 1GB Graphics

Y Y

A6R69AA

NVIDIA Quadro 410 512MB Graphics

Y Y

A7U60AA

NVIDIA Quadro K600 1GB Graphics

Y Y

C2J92AA

Note 1:

Intermixing integrated Intel HD graphics and discrete graphics cards in order to drive more than

three displays can be enabled using the Computer (F10) Setup Utility. However, HP recommends using only

discrete graphics when four or more displays are required to be supported. Utility. However, HP

recommends using only discrete graphics cards when four or more displays are required to be supported.

Memory

Sub-Section Description/Notes

Intel® Xeon E3, Intel Core i3 and Intel Pentium processors can support either ECC or non-ECC memory;

Intel® Core i5/i7 processors only support non-ECC memory.

CTO

Support Notes

DDR3-1600 nECC Unbuffered DIMMs CTO

HP 32GB (4x8GB) DDR3-1600 nECC RAM

HP 16GB (2x8GB) DDR3-1600 nECC RAM

HP 16GB (4x4GB) DDR3-1600 nECC RAM

HP 8GB (2x4GB) DDR3-1600 nECC RAM

HP 4GB (1x4GB) DDR3-1600 nECC RAM

DDR3-1600 ECC Unbuffered DIMMs - CTO

HP 32GB (4x8GB) DDR3-1600 ECC RAM

HP 16GB (2x8GB) DDR3-1600 ECC RAM

HP 16GB (4x4GB) DDR3-1600 ECC RAM

HP 8GB (2x4GB) DDR3-1600 ECC RAM

HP 8GB (1x8GB) DDR3-1600 ECC RAM

HP 4GB (2x2GB) DDR3-1600 ECC RAM

HP 4GB (1x4GB) DDR3-1600 ECC RAM

Sub-Section Description/Notes

Two channels of DDR3 memory are supported. To realize full performance at least one DIMM must be

inserted into each channel.

The CPUs determine the speed at which the memory is clocked. If a 1333 MHz capable CPU is used in the

system, the maximum speed the memory will run at is 1333 MHz regardless of the specified speed of the

memory.

AMO

Option Kit Part

Number

Support Notes

DDR3-1600 nECC Unbuffered DIMMs AMO

HP 8GB (1x8GB) DDR3-1600 non-ECC RAM

B1S54AA

HP 4GB (1x4GB) DDR3-1600 nECC RAM

B1S53AA

DDR3-1600 ECC Unbuffered DIMMs - AMO

QuickSpecs

HP Z230 SFF Workstation

Supported Components

DA - 14630 Worldwide — Version 14 — April 1, 2014

Page 10

Otros manuales para Z230 SFF Workstation

Tabla de contenidos

Otros manuales de De oficina de HP

HP A6300f - Pavilion - 2 GB RAM Instrucciones de instalación

HP Workstation xw8000 Manual de usuario

HP Pavilion Slimline s3401f Manual de instrucciones

HP Zbook Studio G3 Instrucciones de uso

HP s7600n - Pavilion Media Center Hoja de especificaciones

HP 2133 Mini-Note Instrucciones de uso

HP Pavilion v300 - Desktop PC Manual de usuario

HP Z4 G4 Manual

HP Compaq Business PC dc7600 Series Instrucciones de montaje

HP xw9400 Instrucciones de uso

HP All-in-One Instrucciones de montaje

HP Xw6400 - Workstation - 4 GB RAM Manual de uso y cuidado

HP Media Center m7100 - Desktop PC Hoja de especificaciones

HP Compaq D315 Manual de uso y cuidado

HP Brio BA Manual

HP Pavilion a250 Manual de instrucciones

HP 9826 Manual de usuario

HP dc72 - Blade Workstation Client Manual de usuario

HP ProDesk 405 G1 Instrucciones de instalación

HP Presario SR1700 - Desktop PC Instrucciones de instalación

HP dx7400 - Microtower PC Manual de usuario

HP Compaq d338 MT Manual de operación y mantenimiento

HP Pavilion d4100 - Desktop PC Manual de usuario

HP Compaq GX5000T CTO Hoja de especificaciones

Manuales populares de De oficina de otras marcas

Asus

Asus E210 Series Manual de usuario

Dell

Dell Inspiron 600m Manual de usuario

Dell

Dell Inspiron 3662 Manual de usuario

TotalFlow

TotalFlow uFLO Manual de usuario

Logitech

Logitech MK320 Manual de usuario

Dell

Dell XPS 730 H2C Manual de usuario

Sony

Sony Vaio Series Manual de usuario

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manual de usuario

Alto

Alto MD 250 Manual de usuario

Lenovo

Lenovo ThinkCentre Edge 72 Manual

Lenovo

Lenovo ThinkStation D20 Manual

Arbor Technology

Arbor Technology FPC-7800 Series Manual de usuario

Sony

Sony VAIO VGX-TP1 Series Manual de usuario

Asus

Asus Eee Box B204 Manual de usuario

Dell

Dell Optiplex 9010 All In One Manual de usuario

Everex

Everex eXplora Manual de usuario

Lenovo

Lenovo ThinkCentre M75e Manual de usuario

Dell

Dell Alienware Area-51 R4 Manual de usuario
