WELCOME TO YOUR HP VECTRA PC

Your high-performance HP Vectra PC provides:

• a Pentium™ processor in a Zero Insertion Force (ZIF) socket

• an integrated level-two cache of 256 KB for high performance (optional on some models)

• a main memory of 8 MB or 16 MB, upgradeable to 128 MB

• an Ultra VGA PCI (Peripheral Component Interconnect) video controller with 1 MB of

video memory upgradeable to 2 MB

• an integrated Enhanced IDE (Integrated Drive Electronics) controller on the PCI bus

supporting Fast IDE and Standard IDE

• four free slots for accessory boards:

• one 32-bit PCI (Peripheral Component Interconnect) slot

• one 16-bit ISA (Industry Standard Architecture) slot

• one 16-bit ISA short slot (16 cm/6.3-inch maximum length)

• one combination ISA or PCI slot

• BIOS stored in Flash ROM

• BIOS support for ISA “Plug and Play”

• pre-installed operating system software (on some models).

• DMI compliant

• designed for Windows® 95

• Vectra Ergonomic Power Solution—Windows 95 soft power-down using the mouse, and

keyboard power-on.

• Energy Star compliant power management.

The PC range described in this manual has a power saving capability that complies with

the Environment Protection Agency’s 30 watt maximum power consumption in “sleep

mode”, except those PCs to which you add certain extra accessories, such as a CD-

ROM. These PCs also have energy saving capabilities, but use slightly more than the

maximum 30 watt limit in power saving mode, required for the Energy Star label

approval.

1 SETTING UP AND USING YOUR PC

This chapter leads you through the first time installation of your HP Vectra PC and explains

how to use it.

UNPACKING YOUR PC

1 When you receive your PC, unpack all the components:

• the computer and power cord

• the display and its cables

• the keyboard and mouse

• the manuals.

On some models, the operating system software, drivers, and HP User Tools are preloaded on

the hard disk.

WARNING: If you have any doubt that you can lift the PC or

display safely, do not try to move it without help.

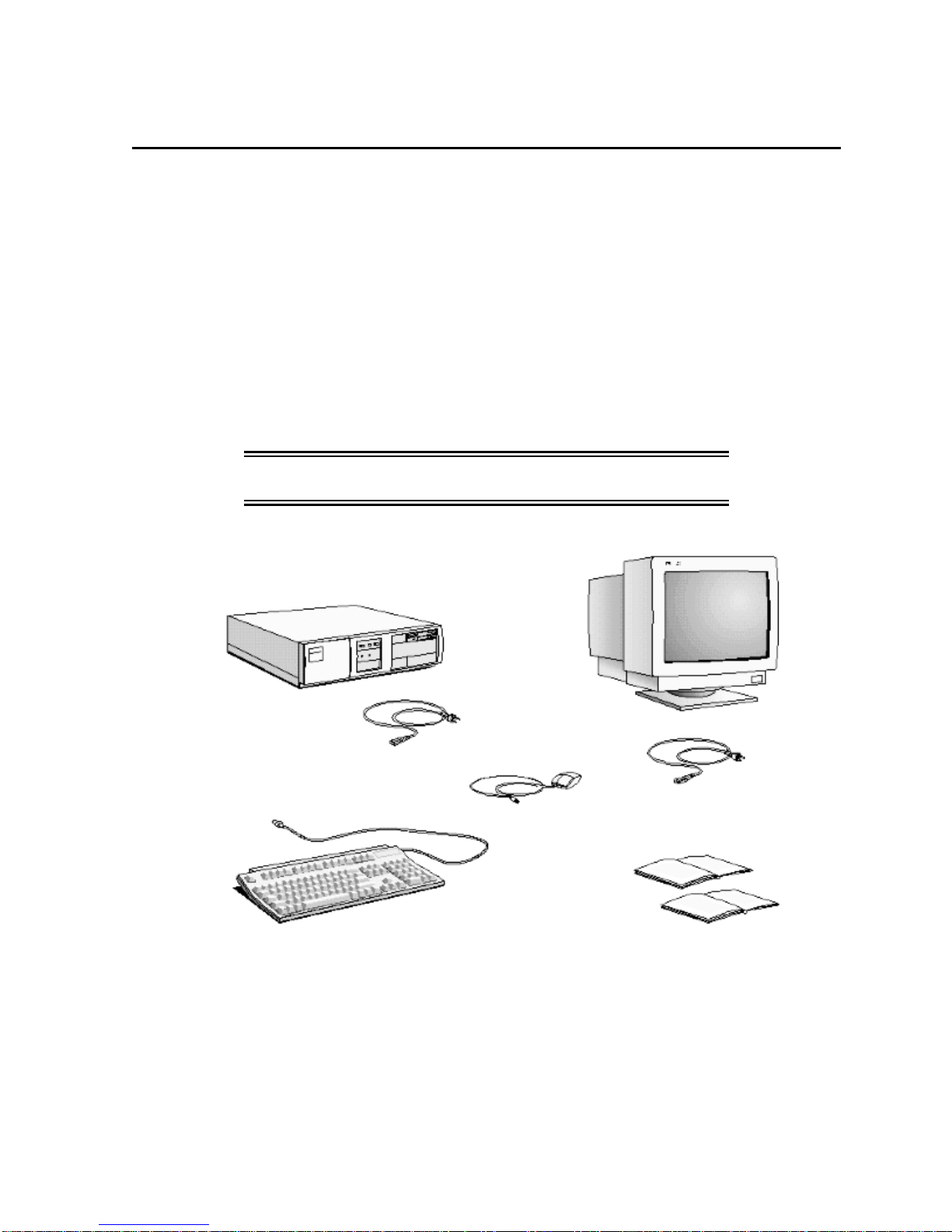

Computer

Typical Display

Computer Power Cord

Mouse

Keyboard

Display Power Cord

Manuals

2 Place the PC on a sturdy desk near to easily accessible power outlets, with enough space for

the keyboard, mouse, and any other accessories.

3 Position the PC so that its rear connectors are easily accessible.

4 Place the display on top of the computer. If you have a large display, place it next to the

computer. Refer to the display’s manual for information about the display.

Installation Tools

No tools are required to set up your PC. However, if you plan to install a disk drive or an

accessory board in your PC, you will need a flat-blade screwdriver. For further information

about installing accessories, refer to chapter 3, “

How to Install Accessories In Your PC

”.

CONNECTING THE MOUSE, KEYBOARD, AND DISPLAY

1 Connect the mouse, keyboard, and display to the back of the computer.

The connectors

are shaped to go in one way only

2 Tighten the display cable attachment screws.

Mouse Keyboard Display

CONNECTING TO A NETWORK

Let your Network Administrator know you are connecting your PC to the network. Connect the

network cable to the RJ-45 UTP (Unshielded Twisted Pair) LAN connector.

To configure your network connection, refer to "Configuring Your Network Connection"

(chapter 3)

NOTE If you need a BNC Coax connector to connect to the

network, you can install an optional BNC coax

adapter (order HP D3979A). Refer to "Installing a

BNC Coax Adapter" (chapter 2).
