Product End-of-Life Disassembly Instructions

Product Category: Personal Computers

Marketing Name / Model

[List multiple models if applicable.]

HP ProOne 440 G3 Non-Touch All-in-One Business PC

Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions

for the disassembly of HP products to remove components and materials requiring selective treatment, as defined by EU

directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).

1.0 Items Requiring Selective Treatment

1.1 Items listed below are classified as requiring selective treatment.

1.2 Enter the quantity of items contained within the product which require selective treatment in the right column, as

applicable.

Item Description Notes

Quantity

of items

included

in product

Printed Circuit Boards (PCB) or Printed Circuit

Assemblies (PCA)

With a surface greater than 10 sq cm

Motherboard, RAM*2, Transform board

Batteries

All types including standard alkaline and lithium coin

or button style batteries RTC battery

Mercury-containing components

For example, mercury in lamps, display backlights,

scanner lamps, switches, batteries

Liquid Crystal Displays (LCD) with a surface greater

than 100 sq cm

Includes background illuminated displays with gas

discharge lamps LCD

Cathode Ray Tubes (CRT)

Capacitors / condensers (Containing PCB/PCT)

Electrolytic Capacitors / Condensers measuring

greater than 2.5 cm in diameter or height

External electrical cables and cords

EPS and power cord

Gas Discharge Lamps

Plastics containing Brominated Flame Retardants

weighing > 25 grams (not including PCBs or PCAs

already listed as a separate item above)

Components and parts containing toner and ink,

including liquids, semi-liquids (gel/paste) and toner

Include the cartridges, print heads, tubes, vent

chambers, and service stations.

Components and waste containing asbestos

Components, parts and materials containing

refractory ceramic fibers

EL-MF877-00 Page 2

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Components, parts and materials containing

radioactive substances

2.0 Tools Required

List the type and size of the tools that would typically be used to disassemble the product to a point where components

and materials requiring selective treatment can be removed.

Tool Description

Tool Size (if

applicable)

Description #1 Screwdiver

TORX T8

Description #2

Description #3

Description #4

Description #5

3.0 Product Disassembly Process

3.1 List the basic steps that should typically be followed to remove components and materials requiring selective treatment:

1. Removed Stand base

2. Removed Rear Cover

3. Removed Hinge

4. Removed Converter board & others

5. Removed HDD module

6. Remove MB Shielding

7. Removed Thermal module

8. Removed Fan module

9. Removed Base pan

10. Removed MB

11. Removed Speaker module

12. Removed Camera module

13. Removed Speaker Grill

14. Removed LCD panel

3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items

contained in the product that require selective treatment (with descriptions and arrows identifying locations).

1. Removed Stand base

EL-MF877-00 Page 3

Template Revision B

PSG instructions for this template are available at EL-MF877-01

2. Removed Rear Cover

3. Removed Hinge

4. Removed Converter board & others

5. Removed HDD module

EL-MF877-00 Page 4

Template Revision B

PSG instructions for this template are available at EL-MF877-01

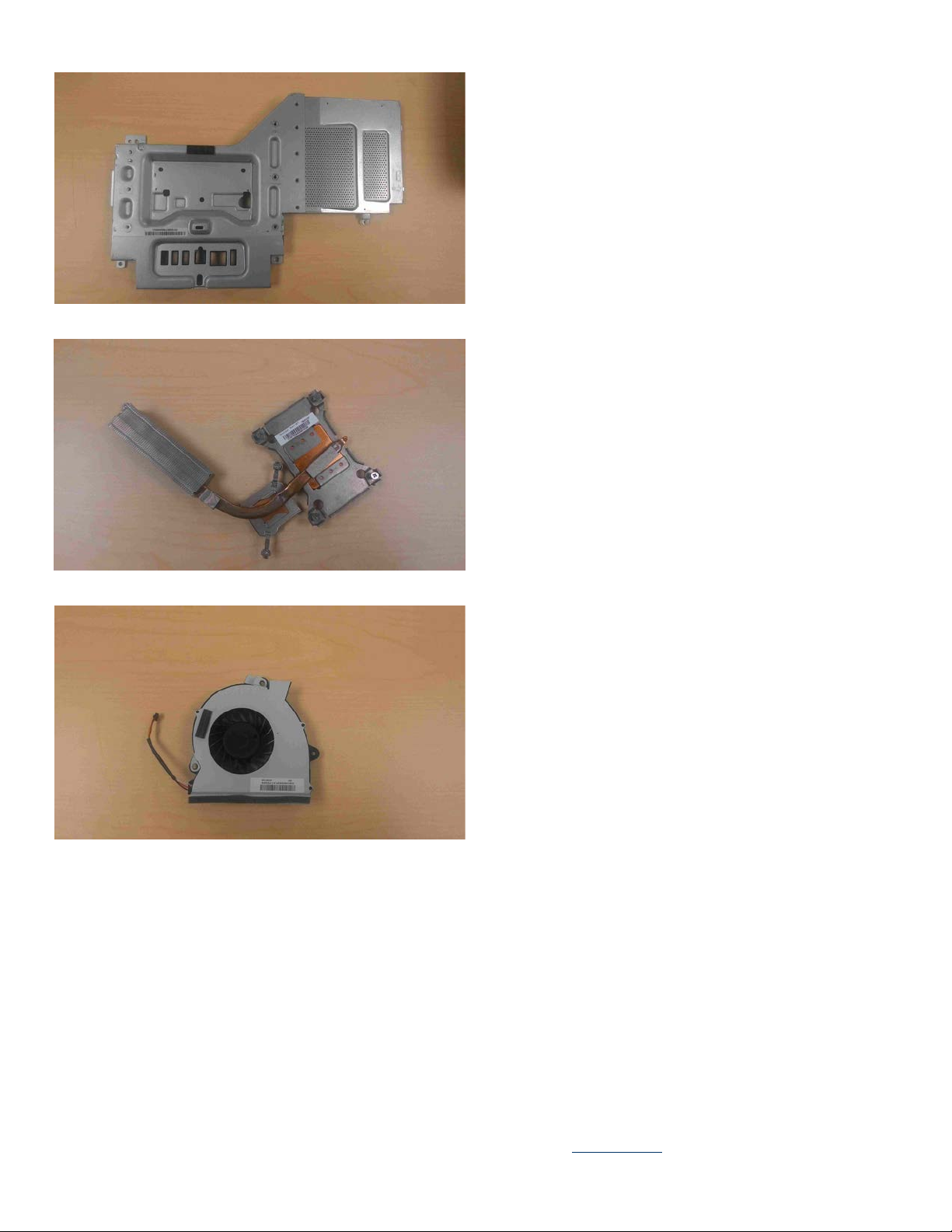

6. Removed MB Shielding

7. Removed Thermal module

8. Removed Fan module

EL-MF877-00 Page 5

Template Revision B

PSG instructions for this template are available at EL-MF877-01

9. Removed Base pan

10. Removed MB

11. Removed Speaker module

12. Removed Camera module

EL-MF877-00 Page 6

Template Revision B

PSG instructions for this template are available at EL-MF877-01

13. Removed Speaker Grill

14. Removed LCD panel
