HP Kayak XU 03xx Guía

HP Kayak XU 03xx PC Workstation —

Setting Up and Using Your

HP PC Workstation

Cristal-sett.fm Page 1 Thursday, February 4, 1999 4:09 PM

HP Kayak XU 03xx PC Workstation — Setting Up and Using Your HP PC Workstation

Connecting the Mouse, Keyboard, Display and Printer

2English

Connecting the Mouse, Keyboard, Display and Printer

Connect the mouse, keyboard, display and printer to the back of the

PC workstation. The connectors are shaped to go in one way only.

Tighten the display cable attachment screws.

Connect the printer cable to the back of the computer and tighten the

attachment screws. Use the connector labeled:

•Parallel (25-pin parallel connector) for a parallel device.

•Serial A (9-pin serial connector) for a serial device.

•Serial B (9-pin serial connector) for a second serial device.

NOTE The Universal Serial Bus (USB) connectors can be used for USB

accessories. Most USB accessories are automatically configured as soon

as they are physically attached to the PC Workstation. USB accessories

are not supported by all operating systems.

Mouse

Connector

Keyboard

Connector

2 USB Connectors

(see note below)

Serial B

Port

Serial A

Port

Parallel

Connector

Monitor

Connector

Cristal-sett.fm Page 2 Thursday, February 4, 1999 4:09 PM

English 3

HP Kayak XU 03xx PC Workstation — Setting Up and Using Your HP PC Workstation

Connecting to a Network

Your PC Workstation has a 10BT/100TX LAN interface adapter.

The LAN adapter supports both 10 Mbit/s and 100 Mbit/s operations

and automatically detects which network type is being used.

1Connect the RJ-45 plug on your network cable to the LAN connector

on the LAN Adapter. Push the plug into the connector until the plug

clicks into place.

2Attach the other end of the LAN cable to a hub (or into a wall socket

that is connected to a hub).

Let your Network Administrator know that you are connecting

your PC Workstation to the network.

Refer to the online Network Administrator’s Guide (preloaded

onto your PC Workstation) for further instructions on setting up

your PC Workstation for a LAN connection.

The board shown here is

a combined SCSI/LAN

board.

Cristal-sett.fm Page 3 Thursday, February 4, 1999 4:09 PM

HP Kayak XU 03xx PC Workstation — Setting Up and Using Your HP PC Workstation

Connecting Audio Accessories

4English

Connecting Audio Accessories

Your PC Workstation has a Headphone Out jack and a Microphone In

jack on the Audio Front Panel. A LINE IN jack, LINE OUT jack, MIC IN

jack, and MIDI/Joystick connector are located on the rear panel.

WARNING To avoid discomfort from unexpected noise, always turn down the

volume before connecting headphones or speakers.

Listening to loud sounds for prolonged periods may permanently

damage your hearing.

Before putting on headphones, place them around your neck and turn

down the volume. When you put on the headphones, slowly increase

the volume until you find a comfortable listening level, then leave the

volume control in that position.

Dual MIDI/Joystick

connector

LINE IN jack

LINE OUT

jack

Audio Front Panel

MIC IN

jack

NOTE

The internal speaker and LINE

OUT jack on the rear panel of your

PC Workstation are deactivated

when you use the Headphones

jack on the Audio Front Panel.

The internal speaker is

deactivated when you use the

LINE OUT jack.

External speakers you connect

should have a built-in power

supply.

The audio accessories shown

here (microphone, speakers, and

audio system) are not supplied

with your PC Workstation.

Volume can be controlled through

the HP enhanced keyboard, or the

software volume control.

Cristal-sett.fm Page 4 Thursday, February 4, 1999 4:09 PM

English 5

HP Kayak XU 03xx PC Workstation — Setting Up and Using Your HP PC Workstation

Connecting an External SCSI Accessory

Your PC Workstation is equipped with an UltraWide 16-bit SCSI

connector for external SCSI devices.

When an external SCSI device is connected, the UltraWide 16-bit SCSI

controller automatically switches to non-Ultra mode (maximum

capacity of 20 MBs per second).

An external SCSI device is connected as follows:

1You should assign an unused SCSI address to the accessory. SCSI

addresses range from 0 to 15 for wide 16-bit SCSI. The SCSI

address 0 is reserved for the first SCSI hard disk drive and SCSI

address 7 is reserved for SCSI controller (the default for narrow and

wide SCSI devices).

Refer to the manual provided with the SCSI accessory for

instructions on selecting a SCSI address.

NOTE You don’t need to set a SCSI address for Plug and Play SCSI devices

(SCSI devices which support the SCAM protocol).

2Make sure the SCSI accessory is terminated correctly—either

internally or by a terminating resistor (refer to the manual provided

with the SCSI accessory).

Make sure the SCSI

accessory is terminated

Cristal-sett.fm Page 5 Thursday, February 4, 1999 4:09 PM

HP Kayak XU 03xx PC Workstation — Setting Up and Using Your HP PC Workstation

Connecting an External SCSI Accessory

6English

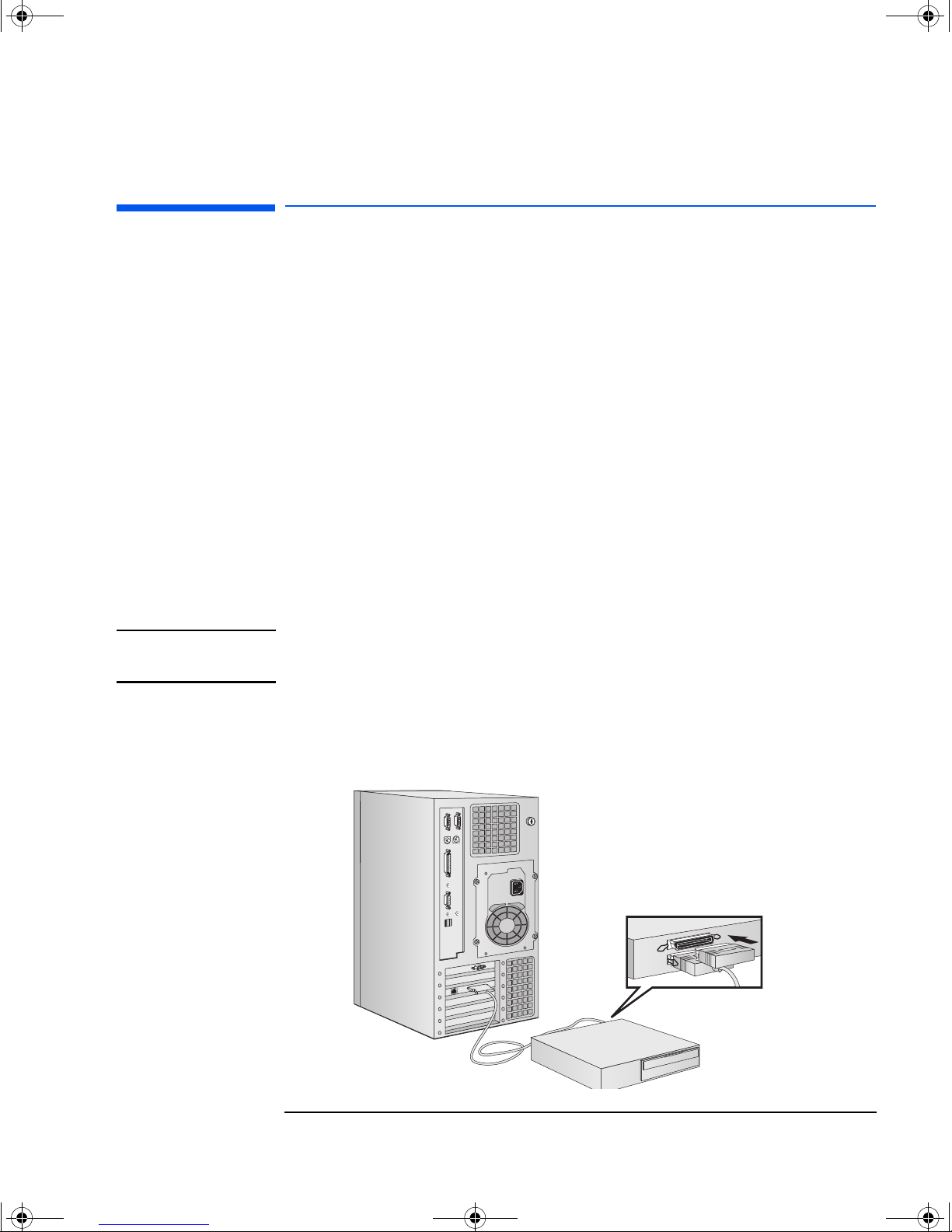

3Connect the SCSI accessory to your PC Workstation’s external 16-

bit SCSI connector with a shielded SCSI cable.

4Refer to the manual provided with the SCSI accessory to learn how

to install any software that may be necessary to use it.

NOTE The total length of the external SCSI cables should not exceed 3 meters

(approximately 10 feet).

Contact your dealer to order shielded HP SCSI cables to connect

external SCSI accessories.

Cristal-sett.fm Page 6 Thursday, February 4, 1999 4:09 PM

English 7

HP Kayak XU 03xx PC Workstation — Setting Up and Using Your HP PC Workstation

Your PC Workstation’s Hardware Control Panel

The hardware control panel is located on the front of your

PC Workstation.

PC Lock Button With HP Lock installed, you can use this button to prevent

unauthorized access of your PC Workstation during your absence.

Your applications will remain active. You unlock the PC Workstation by

entering a password.

HP MaxiLife and it’s

Liquid Crystal Display

(LCD)

HP MaxiLife and it’s LCD helps you diagnose problems with your PC

Workstation and provides system information you may need to obtain

support. Press one of the LCD control buttons to display the menu. Use

to scroll through the menu items and to select the item

required..

Network Activity Light This light glows/flickers when your PC Workstation is accessing

the network.

Hard Disk Activity

Light

This light glows/flickers when your hard disk drive is being accessed.

Power On/Off Button

and LED

Reset Button

PC Lock Button

and LED

Network Activity Light

Hard Disk Activity Light LCD Control Buttons

Cristal-sett.fm Page 7 Thursday, February 4, 1999 4:09 PM

HP Kayak XU 03xx PC Workstation — Setting Up and Using Your HP PC Workstation

Using Your HP Enhanced Keyboard

8English

Using Your HP Enhanced Keyboard

The HP enhanced keyboard includes soft keys you can use to:

•Display and configure the actions assigned to keys.

•Perform one-touch shortcuts to start applications, open files, or

open sites on the WWW.

•Launch the Internet browser supplied with your system.

•Lock or suspend your PC Workstation.

•Access HP TopTools and customer information.

•Mute or adjust the volume of the audio system.

Menu key

Lock/Suspend key

Internet key

HP TopTools

Shortcut key HP Customer

Information

Volume

control

keys

Shortcut keys

Mute key

Cristal-sett.fm Page 8 Thursday, February 4, 1999 4:09 PM

English 9

HP Kayak XU 03xx PC Workstation — Setting Up and Using Your HP PC Workstation

Using Your HP Enhanced Keyboard

Menu Key Pressing the Menu soft key displays the soft key section of the HP

enhanced keyboard on your screen. Click any of the keys on the

screen to display the action assigned to an individual key or to change

or assign an action to a key. Shortcut keys are provided specifically for

user-defined actions.

Shortcut Keys The Shortcut soft keys can be used to start an application, open a

document, or open a site on the Internet. Actions can be assigned to

the Shortcut keys by pressing the Menu key and clicking the key you

want to configure in the keyboard displayed on your screen.

Internet Key This soft key is used to start the Netscape™Communicator 4.0

browser configured on the PC Workstation (default setting). The

Microsoft® Internet Explorer is also available.

Lock/Suspend Key The action of the Lock/Suspend key is configured by pressing the

Menu Key, and then clicking on Configure, the Extended Keys tab

and the onscreen Lock button. With HP Lock installed, the actions you

can specify for the Lock/Suspend key are:

•Launch screen saver

•Lock the front panel

HP TopTools Pressing this soft key opens HP TopTools. This application helps you

manage and reduce overall ownership costs and provides advanced

PC management tools that can, for example, be used for remote BIOS

updates and security management.

NOTE Before using HP TopTools for the first time, you must install it as

follows: From the Start menu, select Programs, then HP DMI, then

Setup. The HP TopTools application is installed automatically.

Cristal-sett.fm Page 9 Thursday, February 4, 1999 4:09 PM

HP Kayak XU 03xx PC Workstation — Setting Up and Using Your HP PC Workstation

Using Your HP Enhanced Keyboard

10 English

The System Health window of the HP TopTools hardware monitoring

facility provides information on:

•Fan Control in the HP UltraFlow cooling system

•System Temperature for PC Workstation components

•ECC Error Notification (only when ECC DIMMs are installed)

•Voltage Monitoring for components

HP Customer

Information

This soft key accesses HP Customer Information, which includes:

•Information on product features

•The preloaded software on the system

•Details on how to configure the HP enhanced keyboard

•Information on how to configure the WWW browser

•Detailed HP support information

•Links to the HP PC and PC Workstation website

Mute and Volume

Keys

Pressing the Mute key mutes the audio, or restores the audio if it has

been muted. The Volume keys can be used to control the volume level.

For more information on controlling audio on your system, see the

Using Sound guide preloaded onto your PC Workstation.

Cristal-sett.fm Page 10 Thursday, February 4, 1999 4:09 PM

Otros manuales para Kayak XU 03xx

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de De oficina de HP

HP s7600n - Pavilion Media Center Guía de inicio rápido

HP Presario All-in-One CQ1-1200 - Desktop PC Hoja de especificaciones

HP e-PC c10/s10 Manual de usuario

HP SignagePlayer mp8000r Guía de configuración

HP EliteDesk 800 G2 Desktop Mini Manual de operación y mantenimiento

HP 742n - Pavilion - 512 MB RAM Manual de usuario

HP Autodesk Lustrexw8400 Manual de usuario

HP Bc1500 - BladeSystem - Blade PC Instrucciones de funcionamiento y seguridad

HP EX470 - MediaSmart Server - 512 MB RAM Cómo utilizar

HP Omni 100-5200 - Desktop PC Cómo utilizar

HP Compaq dc5100 MT Manual de operación y mantenimiento

HP Workstation xw3100 Manual de usuario

HP ProDesk 405 G2 Manual de usuario

HP Pavilion a1000 - Desktop PC Manual de usuario

HP Deskpro 4000 Documento técnico

HP 288 Pro G4 Instrucciones de instalación

HP Pavilion h8-1120 Manual de usuario

HP Compaq Elite 8300 All-in-One Manual de usuario

HP b2600 Guía de inicio rápido

HP Brio 7100 Manual de usuario

HP Media Center m400 - Desktop PC Hoja de especificaciones

HP Deskpro EX Manual de uso y cuidado

HP Xw4400 - Workstation - 2 GB RAM Manual de usuario

HP ZBook 14u G4 Manual

Manuales populares de De oficina de otras marcas

Asus

Asus E210 Series Manual de usuario

Dell

Dell Inspiron 600m Manual de usuario

Dell

Dell Inspiron 3662 Manual de usuario

TotalFlow

TotalFlow uFLO Manual de usuario

Logitech

Logitech MK320 Manual de usuario

Dell

Dell XPS 730 H2C Manual de usuario

Sony

Sony Vaio Series Manual de usuario

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manual de usuario

Alto

Alto MD 250 Manual de usuario

Lenovo

Lenovo ThinkCentre Edge 72 Manual

Lenovo

Lenovo ThinkStation D20 Manual

Arbor Technology

Arbor Technology FPC-7800 Series Manual de usuario

Sony

Sony VAIO VGX-TP1 Series Manual de usuario

Asus

Asus Eee Box B204 Manual de usuario

Dell

Dell Optiplex 9010 All In One Manual de usuario

Everex

Everex eXplora Manual de usuario

Lenovo

Lenovo ThinkCentre M75e Manual de usuario

Dell

Dell Alienware Area-51 R4 Manual de usuario
