HP J6700 Guía de inicio rápido

HP VISUALIZE J6700 UNIX®Workstations

PA8700

Upgrade Instructions

Manufacturing Part Number: A6056-90000

Edition E0501

Notice

The information contained in this document is subject to change without notice.

Hewlett-Packard assumes no responsibility for the use or reliability of its software on equipment that is not

furnished by Hewlett-Packard.

this document may be photocopied, reproduced or translated to another language without the prior written

consent of Hewlett-Packard Company.

Hewlett-Packard Warranty Statement

Refer to Warranty & Support for your HP Workstation for warranty terms applicable to your Hewlett-Packard

product and replacement parts.

Restricted Rights Legend

Use, duplication, or disclosure by the U.S. Government Department of Defense is subject to restrictions as set

forth in paragraph (b)(3)(ii) of the Rights in Technical Data and Software clause in DFARS 252.227.7013.

This document contains proprietary information that is protected by copyright. All rights are reserved. No

part of this document may be photocopied, reproduced or translated to another language without the prior

written consent of Hewlett-Packard Company.

UNIX is a registered trademark in the United States of America and other countries, licensed exclusively

through X/Open Company Limited.

This software and documentation is based in part on the Fourth Berkeley Software Distribution under

license from the Regents of University of California.

1Getting Started

The following important information must be adhered to for proper removal and

replacement of all Hewlett-Packard parts.

CAUTION This upgrade process should be performed by experienced hardware users

only.

Safety Warnings

WARNING Removing the device cover may expose sharp edges in the equipment

chassis. To avoid injury, use care when installing customer add-on

devices.

NOTE Before performing removal/replacement procedures, position the workstation

on a cushioned ﬂat, stable surface, such as a table top or workbench.

NOTE Installing the recommended HP replacement part in your J6700 workstation

does not affect the regulatory and safety classiﬁcations or approvals listed in

the original owner’s guide.

Electrostatic Discharge (ESD) Precautions

To prevent damage to the J6700 workstation, observe all of the following ESD precautions

while performing removal and replacement procedures:

• Remove all ESD-generating materials from the work area in which you will remove and

replace the workstation ﬁeld replaceable unit(s).

• Open the ESD materials provided with the replacement part kit. Unfold the black

conductive sheeting (antistatic mat) and place it under a corner of the workstation.

• Wear a static strap to ensure that any accumulated electrostatic charge is discharged

from your body to ground. Attach the static-grounding wrist strap by following the

instructions on the package. Attach the sticky end of the wrist strap to bare metal on

the rear panel of the workstation.

• Connect all equipment together, including the static-free mat, static strap, clips

attached to the wrist strap, and peripheral units.

4Chapter1

Getting Started

Replacement Part Kit Contents

• Keep uninstalled printed circuit boards in their protective antistatic bags.

• Once you have removed printed circuit boards from their protective antistatic bags,

handle the printed circuit boards by their edges only.

Replacement Part Kit Contents

Take a moment to verify that your kit contains the following contents:

• System board upgrad tray assembly

• Electrostatic Discharge (ESD) materials

• Removal/Replacement Instructions

If you are missing any part or any documentation, please call your designated service

representative.

Required Tools

You will need the following tools for removal/replacement procedures:

• Light-duty ﬂat blade screwdriver with 6-inch (150 mm) blade

• T-15 and/or T-20 Torque drivers

• ESD materials

• Sufﬁcient ESD protected surfaces on which to lay out parts

Chapter 1 5

Getting Started

Preparing Your Workstation

You must prepare your workstation before you install new upgrades or remove old

components. Here is the procedure for doing this:

1. Determine if you have the correct version of the operating system. Note that your workstation must

be running the HP-UX 11.0 operating system and the Workstation Additional Core Enchancements

(ACE) for HP-UX 11.0 (November 1999) or HP-UX 11i operating system and the Hardware

Enablement Bundle (HWE) for HP-UX 11i (June 2001) to accommodate the PA8700 upgrade. Use

the command uname -r to determine the version of your operating system. For example, it should

report B.11.00. if you are running an HP-UX 11.0 operating system. If the workstation is running

an older version of HP-UX, update the operating system software before continuing. Use the

command:

/usr/sbin/swlist -l bundle

to view what software products are loaded in your system. If the bundle list includes

B6261AA, HP-UX 11.0 with ACE (Nov., 1999), or HWEnable11i, HP-UX 11i with HWE

(June, 2001), you do not need to update HP-UX.

2. Determine the workstation’s LAN ID by entering the following command: /usr/sbin/lanscan.

The output is similar to the following:

Hardware Station Crd Hardware Net-Interface NM MAC HP DLPI Mjr

Path Address In# State NameUnit State ID Type Support Num

2.0.2 0x08000970ECC0 0 UP lan0 UP 4 ETHER YES 130

Record the LAN ID here. You will need it after installing the new system board:

Enter LAN ID: ___ ___ ___ ___ ___ ___ -___ ___ ___ ___ ___ ___

You must supply the dash (-) between the ﬁrst six digits and the last six digits

After you install the new CPU board and power on the system for the ﬁrst time, you may be prompted

for the LAN ID.

6Chapter1

Getting Started

Safely Powering Down the J6700 Workstation

You must complete the following steps before performing any of the removal and

replacement procedures:

CAUTION Do not use the power supply interlock thumbscrew on the rear panel to power

down the workstation. This power down method may hang the operating

system in an unrecoverable state.

NOTE Remove any accessory bag(s) and their black tab screws, if present, from the

rear of the workstation. Remove any existing SCSI terminators.

1. Power off the workstation by simply pressing the power switch on the front panel of the

workstation. Also, power off the monitor and any attached peripheral devices.

If necessary, shut down the workstation by executing “shutdown -h” as user root.

This ensures that all programs are terminated and all data is saved before switching

the power off.

2. After 30 seconds, unplug the workstation’s power cord and all peripheral devices from

AC power outlets. Before attempting to move the workstation to a disassembly area,

disconnect all peripherals from the back of the system.

3. Place the workstation on a ﬂat, stable surface, such as a tabletop or ﬂoor. To protect

against scratches, remove miscellaneous debris from the work surface.

Chapter 1 7

Getting Started

Product Exploded Diagram

Figure 1-1 shows an exploded view of the internal components (FRUs) in the J6700

workstations and Table 1-1 describes each of the exploded views components.

Refer to this ﬁgure to identify the various workstation FRUs while performing the FRU

removal and replacement procedures in Chapter 2.

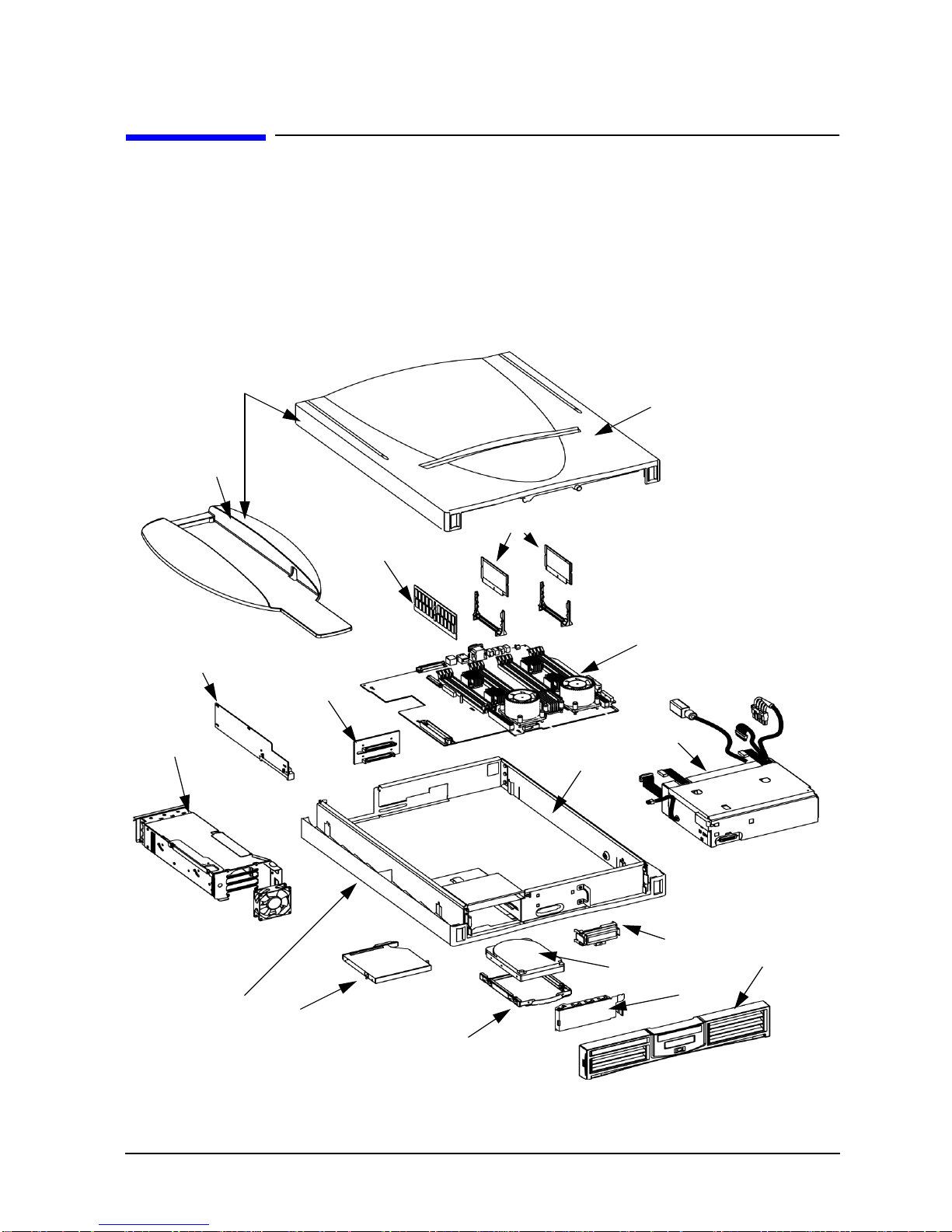

Figure 1-1. Exploded View of the J6700 Workstation

13 14

Desk side only

Plastic cover

desk side only

8Chapter1

Getting Started

Product Exploded Diagram

Table 1-1. Description of the Components in the J6700 Exploded Diagram

Numbers in Figure 1-1 Description

1J6700 System Board Assembly

2Power supply 500W includes system speaker,

power supply fans, and LCD display cable

3SDRAM DIMMs

4LVD Ultra SCSI hard disk

5 CD ROM slim-line, ATAPI Assembly

6 PCA, SCA backplane (disk drive)

7 LCD/power switch assembly

8 VRM assembly

9 PCA-PCI backplane board

10 PCI cage assembly includes PCI tray fan

11 Disk drive bracket assembly

12 Main chassis assembly

14 Internal SCSI cable

13 Disk EMI cover assembly

14 Front bezel assembly

15 Cosmetic cover (without logo)

16 Deskside pedestal

2Component Remove/Replacement

This chapter provides procedures for removing and replacing the components in the J6700

workstations.

Chapter Overview

Here are the main sections in this chapter:

• Front Bezel and Top Panel

• Bezel-Label Strip

• LCD Panel

• Hard Disk Drives

• Hard disk Drive Backplane

• CD ROM Drive

• Memory DIMMs

• Power Supply

• PCI Cage

• PCI Backplane

• Speaker

• System Board

• Real-Time Clock

WARNING For most of the removal and replacement procedures in this chapter,

you must power off the workstation and unplug the workstation

power cord from the AC power outlet. The exceptions to this are the

removal and replacement of DIMMs and the PCI cage. For these you

only need to power off the workstation.

NOTE To maintain FCC/EMI compliance, verify that all covers are replaced and

that all screws are properly seated.

10 Chapter2

Component Remove/Replacement

Component Removal and Replacement

The procedures in this section describe how to remove the components from your

workstation. You can follow the same procedures in reverse to replace or install new

accessories or components. Observe the electrostatic discharge (ESD) precautions and the

prerequisites for removing and replacing components or accessories as discussed in

Chapter 1. Also, read any NOTEs, CAUTIONs, and WARNINGs in each component or

accessory removal and replacement procedures.

Front Bezel and Top Cover

This section describes how to remove and replace the J6700 workstation’s front bezel and

top cover.

Note that you can perform certain operations, like removing and replacing hard disk

drives, simply removing the front bezel of the workstation. Other operations require more

access to the interior of the workstation, so you will need to remove the front bezel or top

panel to perform those procedures.

CAUTION The system will not operate with the top panel removed.
