HP Compaq Presario Manual

Volume Two 3-93

Presario 5700

Processor/System

Boards Assembly Spare Part System

Board, w/o

Processor/UI, w/ FP, no

display cache

278309-006

388251-102 120695-102 5711, 12, 14, 15, 21,

Board, w/o Processor,

Video – S,F 387640-101 120694-101 5710

Board, w/o Processor,

Video - S 142805-101 148938-001 5710

Board, w/o Processor,

Video – S,M 387640-111 120694-111 5710

Board, w/o Processor,

1394 w/ Flat Panel Port 388249-102 136109-102 5716, 17, 22, 26, 33,

35, 36, 38

Board, w/o Processor,

1394 388249-101 136109-101 5716, 18, 26, 28

Configuration Jumper Settings (Models 5716, 22, 26, 35, 36, 38)

Jumper Pins Function

P1 1-2 Normal operation

2-3 Clear CMOS

P6 1-2 Disable audio

2-3 Enable audio

Processor Core Ratio (Model 5710)

Processor Speed BF2 BF1 BF0 Ratio

K6-2 350 MHz 1-2 1-2 1-2 3.5X

K6-2 380/400 MHz 2-3 1-2 2-3 4.0X

K6-2 450 MHz

K6-3 450 MHz 2-3 2-3 2-3 4.5X

K6-2 475 MHz 2-3 2-3 1-2 5.0X

Configuration

Code Assembly System Board

Spare Part Model

CLP2 388249-101, 102 136109-101 5726

CLP3 388249-102 136109-102 5722

CLP4 388249-102 136109-102 5726

CLPB 388249-102 136109-102 5722

CLQ2 388249-102 136109-102 5736

CLQ3 388249-102 136109-102 5733

CLQ4 388249-102 136109-102 5736

CLQ5 388249-102 136109-102 5738

CLQ6 388249-102 136109-102 5735

CQV2 388249-101, 102 136109-102 5716

CQV5 388249-102 136109-102 5717

CQV6 388249-102 136109-102 5716

CQVC 388249-102 136109-102 5716

CSB2 278309-006

388251-102 120695-102 5712

CSB3 278309-006

388251-102 120695-102 5715

CSB4 278309-006

388251-102 120695-102 5711

Continued

3-94 Volume Two

Presario 5700

Configuration

Code Assembly System Board

Spare Part Model

CSB5 278309-006

388251-102 120695-102 5714

CYS2 278309-006

388251-102 120695-102 5710

CYT2 278309-006

388251-102 120695-102 5721

CYT3 278309-006

388251-102 120695-102 5724

Microprocessors Assembly Spare Part System

Processor, 450, K6-2,

w/ Heat Sink 330631-006 136439-001 5710

Processor, 450, PIII, w/

Heat Sink 388110-001 5716, 17, 18

Processor, 466, (128),

C2, w/ Heat Sink 401264-006 138158-001 5711, 12, 14, 15

Processor, 500, PIII, w/

Heat Sink 388109-001 5728

Processor, 500, PIII, w/

Heat Sink 352772-005 153840-001 5722, 26

Processor, 500, (128),

C2, w/ Heat Sink 401264-002 149267-001 5721, 24

Processor, 550, PIII, w/

Heat Sink 352772-006 138159-001 5733, 35, 38

Processor, 550, PIII, w/

Heat Sink 352772-006 153841-001 5736

Memory DIMMs Assembly Spare Part System

32 MB, 100 MHz 323029-001 337372-001 5710, 21, 24

32 MB, 100 MHz 323029-001 166890-001 5710, 16, 17, 21, 22,

24, 26, 28

64 MB, 100 MHz 323012-001 179190-001 5710, 11, 12, 14, 15,

16, 17, 18, 21, 22, 24,

26, 28

128 MB, 100 MHz 323013-001 166966-001 5716, 22, 26, 33, 35,

36, 38

Miscellaneous Assembly Spare Part System

Audio Board, PCI, ESI

1373 102392-001 113897-001 5722, 26, 36

Button/Headphone

Board, w/ Cable 127738-001 141011-001 5710, 11, 12, 14, 15, 16,

17, 21, 22, 24, 26, 33,

35, 36, 38

Fan, 92MM 327276-004 154393-001 5722, 26, 36

Hardware/Plastic Kit,

Misc./MT and MC 128386-001 5711, 12, 14, 15, 21, 24

Keyboard, Internet Opal

–US 341162-006 387084-XX3 5710, 11, 12, 14, 15, 16,

17, 21, 22, 24, 26, 35,

36, 38

Mouse, Scroll 334684-006 334689-002 5710, 11, 12, 14, 15, 16,

17, 21, 22, 24, 26, 33,

35, 36, 38

Video Board, 8 MB 142707-001 5716

Video Board, 16 MB 144307-001 5722, 26, 36

Video Graphics, S3

Savage 4, 8 MB 128244-001 128479-001 5716, 17, 18, 22, 26, 28,

33, 35, 36, 38

Volume Two 3-95

Presario 5700

Controller Boards Assembly Spare Part System

NIC, 10/100 153110-001 157045-001 5722, 26, 36

PCI, 10/100 w/ TX 122849-001 123494-001 5710, 11, 12, 14, 16, 17,

21, 22, 24, 26, 33, 36

PCI, TUT 116158-001 120788-001 5712, 14, 16, 22, 24, 26

Hard Drives Assembly Spare Part System

8.0 GB 305891-100 134127-001 5716, 18

10.0 GB, IDE 305891-101 127244-001 5712, 16

10.0 GB 320662-001 5716

12.0X, 13.0X GB, IDE 352745-001 480080-001 5711, 14, 15, 16, 18,

24, 28, 38

13.0 GB 118179-020 157401-001 5722, 26

13.0 GB, 5400 ATA66 122259-001 134128-001 5726

13.5 GB, 7200 rpm 386910-001 123635-001 5726

15.0 GB, IDE 305891-103 128476-001 5710, 16, 21, 26, 35, 36

17.0 GB 127245-001 5736

19.0 GB 320880-001 334788-001 5717, 22, 26, 33, 36

CD-ROM Drive Assembly Spare Part System

32X, IDE 170730-806 135083-001 5710, 11, 14, 15, 18

4X, Read/Write 120893-001 5726, 35, 36, 38

6X, DVD, Stone 401335-812 136435-001 5712, 16, 17, 18, 21, 24,

28, 33, 35, 38

6X, DVD, Special RH 401335-812 158959-001 5722, 26, 36

Diskette Drives Assembly Spare Part System

Zip, 100 MB 270928-803 135568-001 5712, 14, 15, 16, 17,

22, 24, 33, 38

5710

Zip, 100 MB 328934-001 5722

1.44 MB 388617-806 136436-001 5710, 11, 12, 14, 15,

16, 17, 21, 22, 24, 26,

33, 35, 36, 38

Modems Assembly Spare Part System

56K DSL, Combo (NA

only) 116159-001 120789-001 5716, 17, 22, 26, 35, 38

56K, Katana (APD only) 334790-021 334808-021 5713, 16, 22, 26, 36, 46

56K, Controllerless –

Goldwing 125366-001 128384-001 5710, 11, 12, 14, 15,

16, 18, 21, 24, 26, 33,

35, 36, 38

Cables Assembly Spare Part System

Modem –US, PR,

Canada, Caribbean, LA,

Brazil

112666-003 137256-001 5710, 11, 12, 14, 15,

16, 17, 21, 22, 24, 26,

33, 35, 36, 38

Cable Kit, Misc./MT and

MC 128385-001 5710, 11, 12, 14, 15,

16, 17, 21, 22, 24, 26,

33, 35, 36, 38

Cable, SVideo 388342-001 5716, 22, 26, 36

Power Supply/Battery Assembly Spare Part System

Battery, RTC, 3V 220m 298031-001 234556-001 5710, 11, 12, 14, 15,

21, 24

Power Supply, 200W 155469-021 5716, 22, 26, 36

Power Supply, 200W

w/ Fan, ACPI 124892-001 128017-001 5710, 11, 12, 14, 15,

16, 17, 18, 21, 22, 24,

26, 28, 33, 35, 36, 38

3-96 Volume Two

Presario 5700

Presario 5710

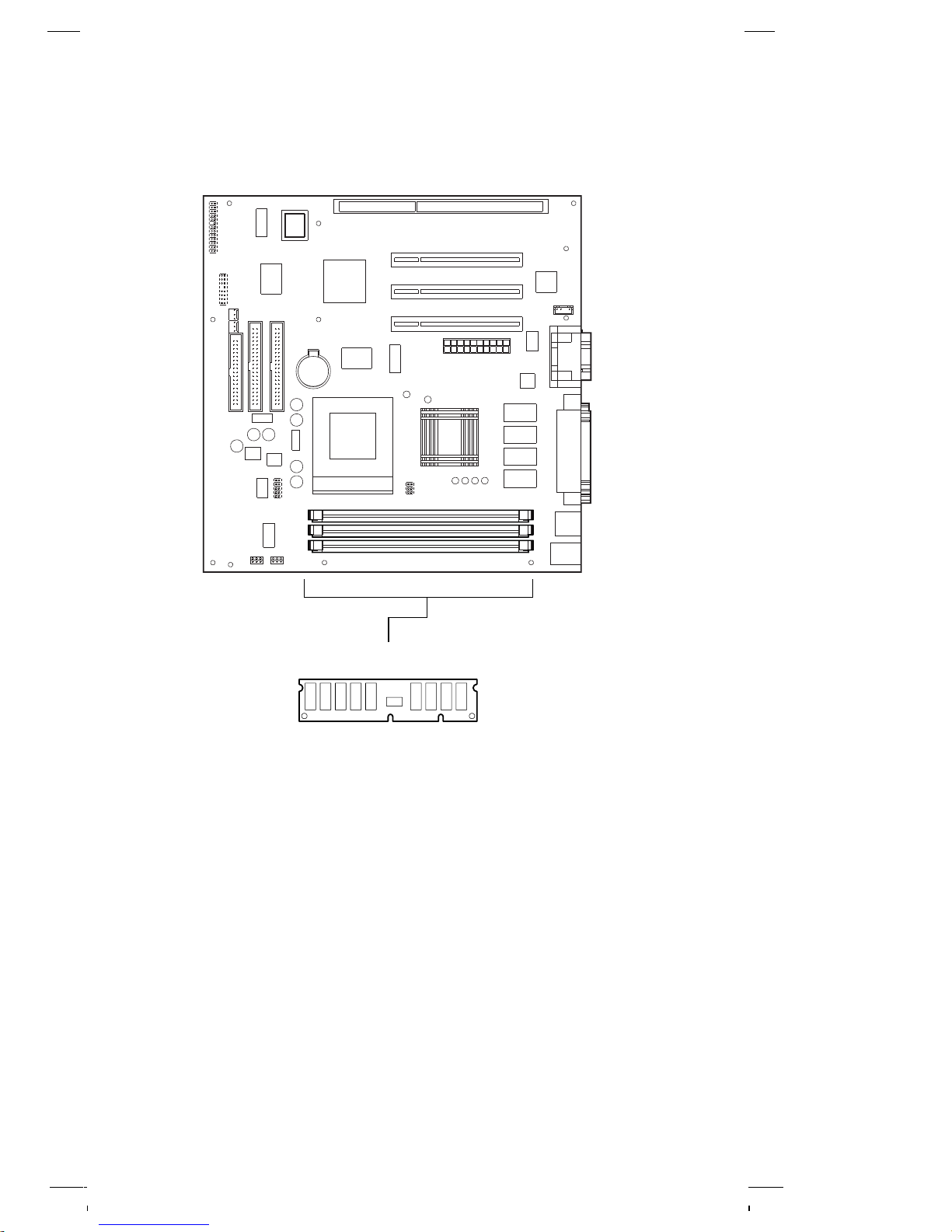

Memory Upgrade Chart

MAXIMUM MEMORY 384MB

MEMORY OPTIONS NOT AVAILABLE

SYSTEM BOARD

142805-001

Volume Two 3-97

Presario 5700

Presario 5711, 12, 14, 15, 21, 24

Memory Upgrade Chart

MAXIMUM MEMORY 256MB

32-MB 100MHz SDRAM DIMM - OPTION PN 308875-001

64-MB 100MHz SDRAM DIMM - OPTION PN 308877-001

128-MB 100MHz SDRAM DIMM - OPTION PN 308878-001

SYSTEM BOARD

388251-101

(64MB)

3-98 Volume Two

Presario 5700

Presario 5716, 17, 18, 22, 26, 28, 33, 35, 36, 38

Memory Upgrade Chart

MAXIMUM MEMORY 384MB

32-MB 100MHz SDRAM DIMM - OPTION PN 308875-001

64-MB 100MHz SDRAM DIMM - OPTION PN 308877-001

128-MB 100MHz SDRAM DIMM - OPTION PN 308878-001

SYSTEM BOARD

388249-101, 388249-102

(96MB)
