HP Brio BA Manual

Microtower Brios hp brio ba 1-1

hp brio ba

models and accessories

Product

Number

Hard

Drive

Video

Controller1

Std.

RAM

Multi-

media2

Modem/

LAN

OS3Soft-

ware4

Models with Intel Celeron Processor PPGA5package (socket 370) and

66MHz System Bus Speed

333MHz / 128k (CPL: 04/99 discontinued 12/99)

D7580A 4.3 GB

IDE

Integrated SiS

super AGP

(4 MB SGRAM

SO-DIMM,

upgradeable to

8 MB)

32 MB

SDRAM

100 MHz

no 10/100

BaseT

W98 no

D7580T

D7581A no

366MHz / 128k (CPL: 04/99 discontinued 12/99))

D7582T 8.4 GB

IDE

Integrated SiS

super AGP

(4 MB SGRAM

SO-DIMM,

upgradeable to

8 MB)

64 MB

SDRAM

100 MHz



Max

IDE

CD-ROM

56K W98 Office6

D7584A 4.3 GB

IDE

32 MB

SDRAM

100 MHz

no no

D7584A

#G02

56K

D7584T no

D7585A no

D7585T

D7587A 8.4 GB

IDE

64 MB

SDRAM

100 MHz



Max

IDE

CD-ROM

Office6

D7587T

D7590A 4.3 GB

IDE

32 MB

SDRAM

100 MHz

56K Lotus7

D7598T 64 MB

SDRAM

100 MHz

no no

hp brio ba

1-2 hp brio ba Microtower Brios

400MHz / 128k (CPL: 04/99 discontinued)

D7583A 8.4 GB

IDE

Integrated SiS

super AGP

(4 MB SGRAM

SO-DIMM,

upgradeable to

8 MB)

64 MB

SDRAM

100 MHz

W98

D7586A 32



Max

IDE

CD-ROM

D7586T

D7588A 4.3 GB

IDE

32 MB

SDRAM

100 MHz

D7589A



Max

IDE

CD-ROM

D7591A 8.4 GB

IDE

64 MB

SDRAM

100 MHz

56K

Office6

D7592A 4.3 GB

IDE

32 MB

SDRAM

100 MHz

Lotus7

D7595A 8.4 GB

IDE

64 MB

SDRAM

100 MHz

plus 4W

Speakers Games8

D7596A 4.3 GB

IDE

32 MB

SDRAM

100 MHz no

10/100

BaseT no

D7597T 64 MB

SDRAM

100 MHz

Win

NT4

Office9

D8415A 32 MB

SDRAM

100 MHz



Max

IDE

CD-ROM

W98

D8415T

D8416A 8.4 GB

IDE

64 MB

SDRAM

100 MHz

Office9

D8416T

D8427A 4.3 GB

IDE

32 MB

SDRAM

100 MHz

56K No

Product

Number

Hard

Drive

Video

Controller1

Std.

RAM

Multi-

media2

Modem/

LAN

OS3Soft-

ware4

hp brio ba

Microtower Brios hp brio ba 1-3

433MHz / 128k (CPL: 04/99 )

D7593T 8.4 GB

IDE

Integrated SiS

super AGP

(8MB SGRAM

SO-DIMM)

64 MB

SDRAM

100 MHz



Max

IDE

CD-ROM

D7594A W98

D8410A

4.3 GB

IDE

Integrated SiS

super AGP

(4MB SGRAM

SO-DIMM,

upgradeable to

8 MB)

32 MB

SDRAM

100 MHz

D8410T

D8413A no

D8417T 64 MB

SDRAM

100 MHz



Max

IDE

CD-ROM

D8420T 56K Office9

466MHz / 128k (CPL: 04/99 discontinued)

D8411A

8.4 GB

IDE

Integrated SiS

super AGP

(4MB SGRAM

SO-DIMM,

upgradeable to

8 MB)

64 MB

SDRAM

100 MHz



Max

IDE

CD-ROM

no NT no

D8411T

W98

D8412A 56K Lotus10

D8414A

4.3 GB

IDE

32 MB

SDRAM

100 MHz

no no

D8414B

D8418A no 10/100

BaseT

D8419A 32



Max

IDE

CD-ROM

500MHz / 128k (CPL: 07/00 )

D8421B 4.3 GB

IDE

Integrated SiS

super AGP

(4MB SGRAM

SO-DIMM,

upgradeable to

8 MB)

32 MB

SDRAM

100 MHz

W98 no

533MHz / 128k (CPL: 07/00 )

D8422B 4.3 GB

IDE

Integrated SiS

super AGP

(4MB SGRAM

SO-DIMM,

upgradeable to

8 MB)

32 MB

SDRAM

100 MHz



Max

IDE

CD-ROM

W98 no

Product

Number

Hard

Drive

Video

Controller1

Std.

RAM

Multi-

media2

Modem/

LAN

OS3Soft-

ware4

hp brio ba

1-4 hp brio ba Microtower Brios

1. Upgrade video memory by replacing the 4 MB module with an 8 MB module.

2. All models have an integrated full-duplex PCI audio controller.

3. Operating system preloaded on these models, as indicated in the table.

4. In addition to the HP Brio pre-loaded software.

5. PPGA=Plastic Pin Grid Array.

6. Microsoft Office 97 Small Business Edition.

7. Lotus SmartSuite Millennium.

8. Electronic Arts Games (3 games).

9. Microsoft Office 2000 Small Business Edition

10. Lotus SmartSuite

Product

Number

Hard

Drive

Video

Controller

Std.

RAM

Multi-

media1

1. All models have an integrated full-duplex PCI audio controller.

Modem/

LAN

OS2

2. Operating system preloaded on these models, as indicated in the table.

Soft-

ware3

3. In addition to the HP Brio pre-loaded software.

Models4with User Defined Processor, Main Memory, and Hard Disk

4. Channel Assembly Program (CAP) models

P7599E

User

defined

Integrated SiS

super AGP

User

defined

User

defined

User

defined

User

defined

User

defined

hp brio ba

Microtower Brios hp brio ba 1-5

supported accessories

32-MB kit 32-bit SDRAM, 100 MHz non-ECC main memory module D6501A/T2

32-MB kit 32-bit SDRAM, 100 MHz non-ECC main memory module

(pack of 20)

D6504A/T

64-MB kit 32-bit SDRAM, 100 MHz non-ECC main memory module D6502A/T2

64-MB kit 32-bit SDRAM, 100 MHz non-ECC main memory module

(pack of 20)

D6505A/T

128-MB, 32-bit SDRAM, 100 MHz non-ECC main memory module D6503A/T2

256-MB, 32-bit SDRAM, 100 MHz ECC main memory module D6743A/T



8 MB 143 MHz SGRAM, SO-DIMM video memory module D8389A

Input Devices

HP Standard Keyboard C4735A

HP Standard Mouse C3751A

HP Scrolling Mouse C4736A

HP Cordless Scrolling Mouse C4740A

Monitors

All current HP Monitors (see the HP Monitors Service Handbook)

Mass Storage

4.3 GB IDE hard disk D8371A

6.4 GB IDE hard disk D8372A

8.4 GB IDE hard disk D8373A

13.5 GB IDE hard disk D8092A

Backup Accessories

HP 100 MB Atapi II Iomega ZIP drive D6650A

HP 100 MB Atapi II Iomega ZIP drive (pack of 10) D6651A

HP Colorado 5GB Travan Drive — internal C4355B

HP Colorado 5GB Travan Drive — external C4362B

HP Colorado 8GB Travan Drive — internal C4387B

HP Colorado 8GB Travan Drive — external C4389B

hp brio ba

1-6 hp brio ba Microtower Brios

Multimedia / Audio Accessories



Max IDE CD-ROM drive D4384A



Max IDE CD-ROM drive (pack of 10) D6656A

HP W95\W98 5X Video DVD-ROM D6935A

HP SureStore CD-Writer Plus 7200e (external) C4381A

HP SureStore CD-Writer Plus 8100 (internal IDE) C4400A

HP Amplified Speakers by Labtec — 10WRMS D4545A

HP Amplified Speakers by Labtec — 4WRMS D6861A

HP Amplified Speakers by Labtec — 4WRMS (pack of 4) D6860A

Data Communications and LAN Adapter Boards

HP 56K V90 PCI Fax Modem D7808A

HP 10/100 3Com 3C905B-TX, 10/100BT Ethernet card D7504A

HP 10/100 3Com 3C905B-TX, 10/100BT Ethernet card (pack of 10) D7505A

HP 10/100 Intel PRO/100+, 10/100BT Management adapter D7506A

HP 10/100 Intel PRO/100+, 10/100BT Management adapter (pack of 10) D7507A

HP 10/100 Base-T PCI Network Card D7531A

HP 10/100 Base-T PCI Network Card (pack of 10) D7532A

HP USB Hub Accessory Kit D6804A

Security

HP Master Pass Key System Kit D6655A

HP Master Pass Key D6658A

HP Locks for Master Pass Key System (pack of 50) D6659A

I/O Interfaces

HP Serial interface card D8388A

N.B. For manuals and documentation refer to the Brio Support web where PDF files are

available for download at http://www.hp.com/briosupport

hp brio ba

Microtower Brios hp brio ba 1-7

system board, BIOS, and memory

Processor: Celeron PPGA

(Plastic Pin Grid Array)

package with Zero

Insertion Force (ZIF)

socket.

Main Memory:

Two DIMM sockets which support

up to a maximum of 512 MB.

Install 32 MB, 64 MB, 128 MB or 256

MB 100 MHz SDRAM modules.

Video memory: One socket

for a 4 or 8MB SGRAM SO-

DIMM (Small Outline Dual In-

line Memory Module).

System Board Jumpers:

See the diagram on the next page.

hp brio ba

1-8 hp brio ba Microtower Brios

system board jumpers

BIOS History

For the latest BIOS, the flasher utility program, and the BIOS history refer to the

HP World Wide Web site.

http://www.hp.com/go/briosupport/

Clear CMOS jumper

Default position

Clear CMOS

and Password

Clear Password jumper

Default position

Clear Passwords

hp brio ba

Microtower Brios hp brio ba 1-9

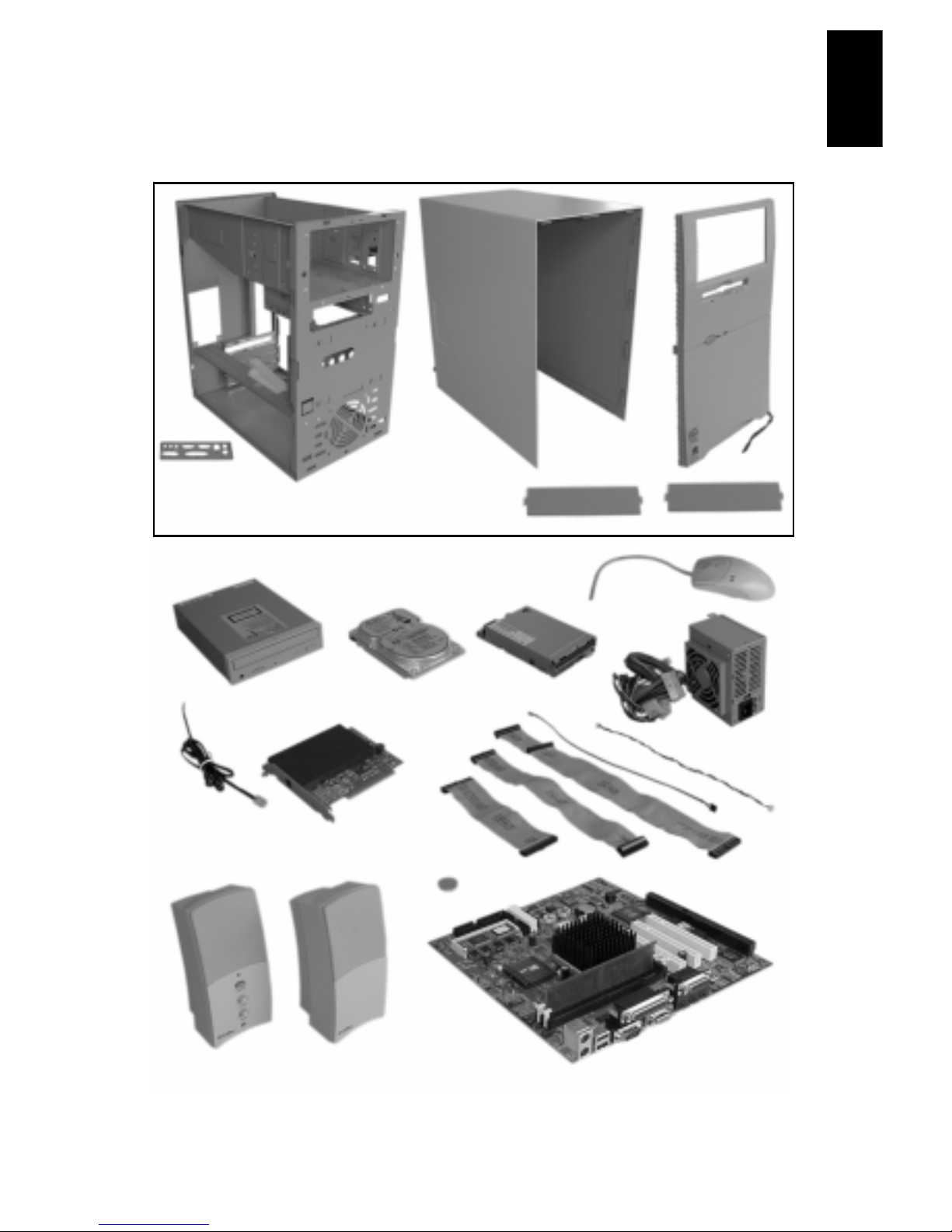

part numbers

16 17

hp brio ba

1-10 hp brio ba Microtower Brios

parts list for hp brio ba pcs

Item Description Repl.

Part Number

Exchange

Part Number

1 Chassis assembly15064-7483 —

2 Front bezel assembly25064-7482 —

3 Power supply 0950-3423 &

0950-3646 &

D9095-63010

—

Power cord See Appendix

for full list

4 HDD cable 5183-9425 —

5 CD-ROM cable 5183-9426 —

6 FDD cable 5183-9427 —

7 Floppy disk drive (bezel-less) D2035-60391 —

8 IDE hard disk drive3

4.3GB

8.4GB

13.5GB

—

D7528-69001 &

D8604-69001

D7530-69001 &

D9067-69001 &

D9069-69003

D8438-69001

932



Max IDE CD-ROM drive



Max IDE CD-ROM drive

DVD ROM Toshiba

CD-RW

—D4385-69021

D4389-63001 &

D4389-63031

D4386-69001

D4398-69001

10 CD-ROM to audio connector cable 5182-1857 —

11 Scrolling mouse C4736-60101 —

Standard keyboard4C4739-601xx5—

12 Battery type CR2032 1420-0356 —

13 3COM Wake on LAN Cable 5183-2769 —

14 LAN Pro 10/100 D7531-63001 —

US Modem V90 UX 5064-7448 —

EU Modem V90 UX 5064-7449 —

15 Telephone Cable See Appendix

for full list
