HP B2600 Workstation Disassembly November 2005
Page 1
HP B2600 Workstation Disassembly Procedures
410891-001
November, 2005 Edition
1PRODUCT END-OF-LIFE DISASSEMBLY INSTRUCTIONS ..................................2
1.1 Product Identification .....................................................................................................................................2
1.2 Purpose.............................................................................................................................................................2
1.3 Removal Items..................................................................................................................................................2
1.4 Required Tools.................................................................................................................................................3
2WORKSTATION DISASSEMBLY PROCEDURES ..................................................4
3POWER SUPPLY DISASSEMBLY PROCEDURES ..............................................15
HP B2600 Workstation Disassembly November 2005
Page 2
1 Product End-of-Life Disassembly Instructions
This document describes the disassembly of an HP workstation for the removal of Annex-2 components.
1.1 Product Identification
The procedures in this document apply to the workstation identified in Table 1-1.
Table 1-1 Product ID
Marketing Name / Model Description
HP B2600 Workstation Workstation
1.2 Purpose
This document is for end-of-life recyclers or treatment facilities. It provides basic instructions for
disassembling an HP workstation to remove components and materials that require selective treatment.
1.3 Removal Items
Table 1-2 lists the items to be removed.
Table 1-2 Removal Items
Item Description Notes Quantity of Items
in Workstation
Printed Circuit Boards (PCB) or Printed
Circuit Assemblies (PCA) with a
surface greater than 10 square cm
Four―two in the
power supply, one
graphics card, and
one system board.
(Additional cards may
be present depending
on the configuration.)
Batteries All types including standard
alkaline and lithium coin or button
style batteries
One
Components containing mercury Examples: mercury in lamps,
display backlights, scanner
lamps, switches, batteries
None
Liquid Crystal Displays (LCD) with a
surface greater than 100 square cm
Includes background illuminated
displays with gas discharge lamps
None
HP B2600 Workstation Disassembly November 2005
Page 3
Item Description Notes Quantity of Items
in Workstation
Cathode Ray Tubes (CRT) None
Capacitors / condensers that contain
PCB / PCT
None
Electrolytic capacitors / condensers
that measure greater than 2.5 cm in
diameter or height
Seven on the power
supply PCB cards.
External electrical cables and cords One
Gas Discharge Lamps None
Plastics containing Brominated Flame
Retardants
None
Components and parts containing toner
and ink, including liquids, semi-liquids
(gel/paste), and toner
Includes the cartridges, print
heads, tubes, vent chambers, and
service stations
None
Components and waste that contain
asbestos
None
Components, parts, and materials that
contain refractory ceramic fibers
None
Components, parts, and materials that
contain radioactive substances
None
1.4 Required Tools
Table 1-3 lists the tools required for disassembly.
Table 1-3 Required Tools
Tool Description Tool Size (if applicable)
Torx drivers, screwdriver, diagonal cutter
HP B2600 Workstation Disassembly November 2005
Page 4
2 Workstation Disassembly Procedures
Table 2-1 lists the steps to follow to disassemble the workstation.
Table 2-1 Workstation Disassembly
1. Remove/disengage any security devices that prohibit opening the workstation.
2. Disconnect the power cord from the electrical outlet and then from the workstation.
3. Disconnect all peripheral device cables from the workstation.
4. Remove the front bezel and top cover.
Press in on both release buttons found on the ends of the bezel and pull outward from the
workstation to remove it. Next, unscrew the captive screws and pull forward on the cover and
lift it off.
5. Disconnect all internal cables from System Board, Power Supply, and other components.
HP B2600 Workstation Disassembly November 2005
Page 5
6. Remove the CD Drive.
Disconnect the CD drive control cable by pulling up on its pull tab and disconnect the power
cable by pressing in on its latch release
.
If the workstation has an audio card, disconnect the audio-extender cable and the CD drive
audio cable by pressing in on the audio-extender cable’s latch release. Lift up on the PCI cage
audio retainer tabs to remove the audio cable from the PCI cage.
Press in on the retainer clips on both sides of the CD drive bay and pull toward you.
HP B2600 Workstation Disassembly November 2005
Page 6
7. Remove the PCI cage.
Lift up on the PCI cage handle. (The CD, DAT, or flexible disk drives must be removed).
Remove the PCI cage from the system.
HP B2600 Workstation Disassembly November 2005
Page 7
8. Remove I/O cards. (The PCI card cage must first be removed from the system.)
Remove the PCI cage cover, and unscrew the I/O card’s bulkhead screw.
.
Grasp the I/O card’s bulkhead and the rear edge and lift it out of its PCI slot. As you lift
the I/O card, you may need to slightly rock it back and forth. This will loosen the I/O card from
its PCI slot
.
HP B2600 Workstation Disassembly November 2005
Page 8
9. Remove the PCI backplane.
Unscrew the three T-15 Torx screws.
Slide the PCI backplane board away from the PCI cage’s I/O card openings and remove
it from the PCI cage. Note that the PCI backplane board has two elongated slots cut in it that
allow the card to slide in grooves located on the top of two PCI cage standoffs. The PCI
backplane board will stop sliding when it reaches the opposite end of the elongated slot. At
this point, the slot has been enlarged to allow you to lift the PCI backplane board out of the
PCI cage
.
HP B2600 Workstation Disassembly November 2005
Page 9
10. Remove the hard drive(s).
Grasp the hard disk drive handle and pull it back, then lift up on the handle.
Unscrew the four hard disk drive mounting screws and pull the hard disk drive out of the hard
disk drive bracket.
HP B2600 Workstation Disassembly November 2005
Page 10

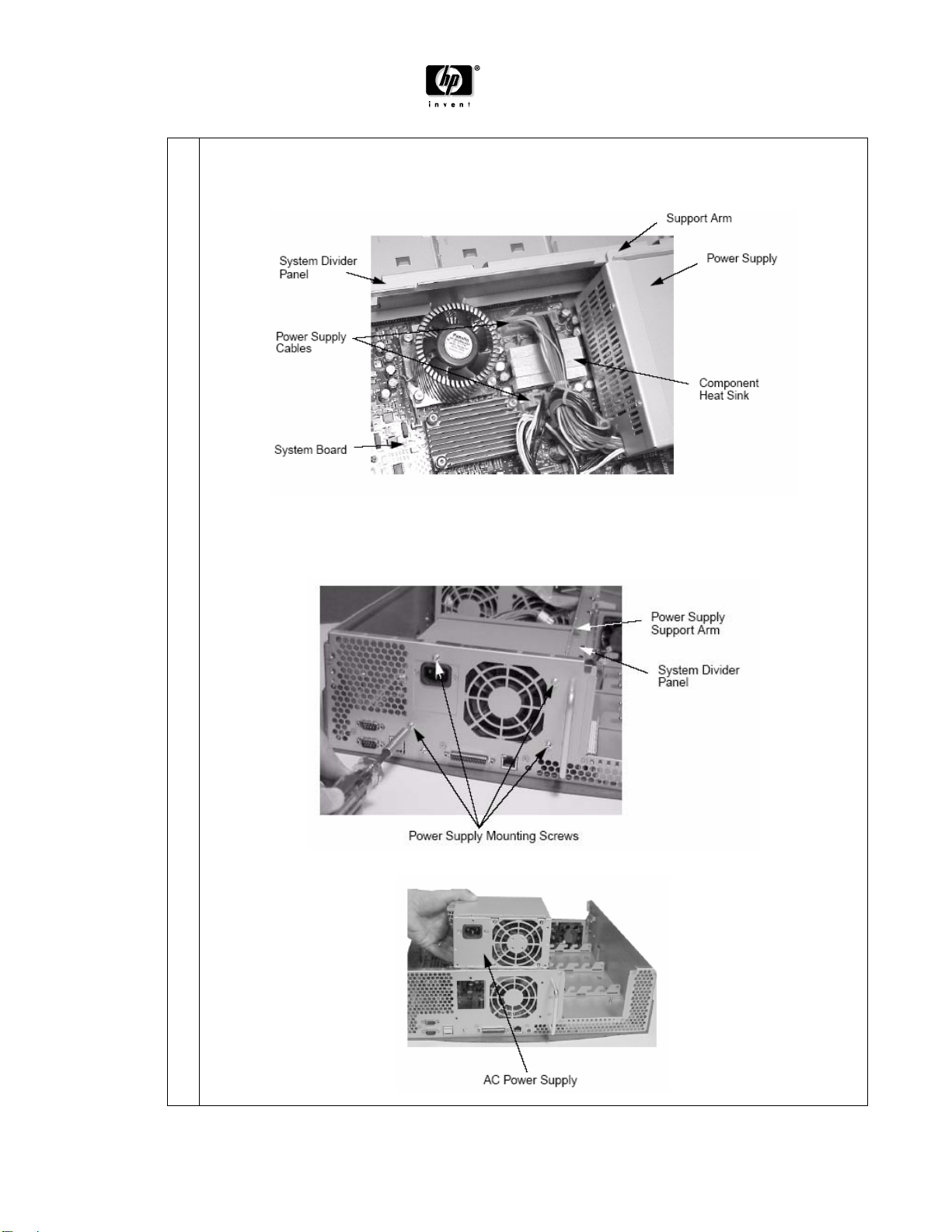

11. Remove the power supply.
Disconnect the power supply cables from the system board by pressing in on the latch
releases on the connectors and pulling outward.
Unscrew the four power supply mounting screws located on the back of the system. Note that
there is a power supply support arm that fits into a slot on the system divider panel. This
support arm prevents the supply from falling onto the system board while you are unscrewing
the mounting screws.
Remove the AC power supply from the system by sliding the support arm out of its slot.
