FRIDGE FREEZER - MODELS RFA07, RFM07, RFA06, RFM06

INSTRUCTIONS FOR INSTALLATION & USE

This appliance must not be installed in a location where the room temperature

drops below 10oC, or exceeds 32oC, for prolonged periods.

For Your Safety

For your safety, read the following advice:

The fridge freezer cooling system contains a small amount of gas which is

environmentally friendly but flammable. To avoid any risk :-

Install the fridge freezer following the installation instructions and ensure

that ventilation openings are kept clear of obstruction.

Take care when installing or moving the fridge freezer to avoid damaging

the pipes on the rear.

If you suspect a leak, do not switch on the fridge freezer, but open the

windows and doors to ventilate the room.

Do not use any mechanical or electrical devices inside the fridge freezer, for

instance for manual defrosting, they may cause damage.

Only use this fridge freezer for storing domestic foodstuffs.

When installing your fridge freezer :-

Ensure that the mains cable is not trapped underneath or behind the fridge

freezer when you install or move it.

Do not stack any other appliance on top of this fridge freezer as they may

damage the fridge freezer or become unstable.

When using your fridge freezer :-

Do not sit or stand on top of your fridge freezer.

Do not store poisonous, flammable or dangerous substances in your fridge

freezer.

Do not use aerosol sprays for defrosting or cleaning your fridge freezer.

If you sell the fridge freezer, pass on this booklet to the new owner.

SAFETY &

INSTALLATION

Installation

Location & Air Circulation

WARNING: This appliance must not be installed in a

location where the room temperature drops below 10oC,

or exceeds 32oC, for prolonged periods.This is because

correct storage temperatures will not be maintained.

Locate your fridge freezer away from sources of heat e.g.

cookers, radiators, direct sunlight as extreme temperature

will affect its performance.

Allow a minimum 100mm (4 inches) between the top of

the fridge freezer and the ceiling or the underside of a

wall cupboard.

Providing you follow the recommended ventilation

requirements you will :-

Prolong the life of the fridge freezer.

Minimise the risk of condensation on the outside of

the fridge freezer.

Minimise the running costs.

Minimise operating sounds caused by vibration.

Minimum space required to open door

The fridge freezer needs a space of 600mm (24 inches) in front to allow the door

to open.

When positioning the fridge freezer next to a unit, a gap of 30mm (11/4inch) can

be left at the hinge side of the door to allow the easy removal of furniture. If

preferred the fridge freezer can be positioned so that a gap is not left.This will

restrict how far the door can be opened but the furniture can still be removed

(see diagrams below).The door hinge side can be changed to make it easier to

open (see ‘Door Reversal’ in the CLEANING & MAINTENANCE section).

SAFETY &

INSTALLATION

100mm

(4 inches)

TOP VIEW TOP VIEW

less than 30mm

30mm or more

600mm

Installation

Levelling:

Level the fridge freezer when it is in its final location by adjusting the front feet, until

firm contact is made with the floor. This will stop rocking or vibration and keep the

doors aligned which helps the fridge freezer run reliably and efficiently.

Note: Before plugging in and switching on, leave the fridge freezer standing

in its final location for at least 15 minutes to allow it to settle.

SAFETY &

INSTALLATION

Defrost Tube:

A tube is supplied to help feed defrost water into a collecting vessel, ie. a bowl (see

‘Defrosting’ in the CLEANING & MAINTENANCE section).

For safe keeping until required, the tube can be stored in the floor of the freezer

compartment.

Floor of the freezer compartment

Defrost tube in storage position

WARNING: Failure to level the appliance correctly may result in misalignment

of the cabinet and/or doors.

Installation

Electrical Supply

WARNING: This appliance must be earthed.

The appliance must be positioned so that the plug is accessible after

installation.

Fuses

Your appliance comes fitted with a plug and a 13A fuse. If you need to replace the

fuse, only use those rated at 13A and ASTA approved to BS1362.

Changing the Plug

Cut off and dispose of the supplied plug if it does not fit your socket.

WARNING: To avoid a shock hazard do not insert the discarded plug into a socket

anywhere else.

IMPORTANT WIRES IN THE MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE

FOLLOWING CODE :

Green/Yellow - Earth

Blue - Neutral Brown - Live

If you change the plug, the colour of wires in the mains lead may not correspond with

the colour of the markings identifying terminals in the plug. You should therefore

wire it as shown above.

Changing the Mains Lead

This appliance is fitted with a special mains lead. If you need to replace the mains

lead due to damage, one can be bought from Hotpoint Service (see KEY CONTACTS,

back page).

It is strongly advised that this work is carried out by a qualified electrician.

CE Marking certifies that this appliance conforms to the following EEC

directives : Low Voltage Equipment - 72/23/EEC & 93/68 EEC

Electromagnetic Compatibility 89/336/EEC, 92/31/EEC & 93/68/EEC

SAFETY &

INSTALLATION

Controls

Controlling the Temperature of the Fridge Compartment

The control wheel on the front of the worktop adjusts the internal fridge

compartment temperature. The internal temperature should be 5˚C or colder,

although some sections such as the salad bin will be slightly warmer.

The setting of the control wheel will depend on the location of the appliance, the

room temperature and how often the doors are opened. The normal set point

(marked by a 3 and N on the dial) is usually suitable. If you need to adjust the

temperature turn the control wheel:

Clockwise (higher number) - Colder

Anti-clockwise (lower number) - Warmer

Controlling the Temperature of the Freezer Compartment

With a suitable fridge compartment temperature, the freezer compartment will

automatically be maintained at the correct temperature (below -18˚C).

You can check the temperature of the fridge freezer compartments by using a Fridge

Freezer Thermometer available from Hotpoint Genuine Parts and Accessories Mail

Order Hotline (see KEY CONTACTS back page).

WARNING: Do not use a mercury filled thermometer, as breakage would cause a

health hazard.

CONTROLS

Useful Advice

Note:

The Rating Plate, which lists the

appliance Model Number and Serial

Number can be found near the bottom

of the freezer compartment on the

interior wall.

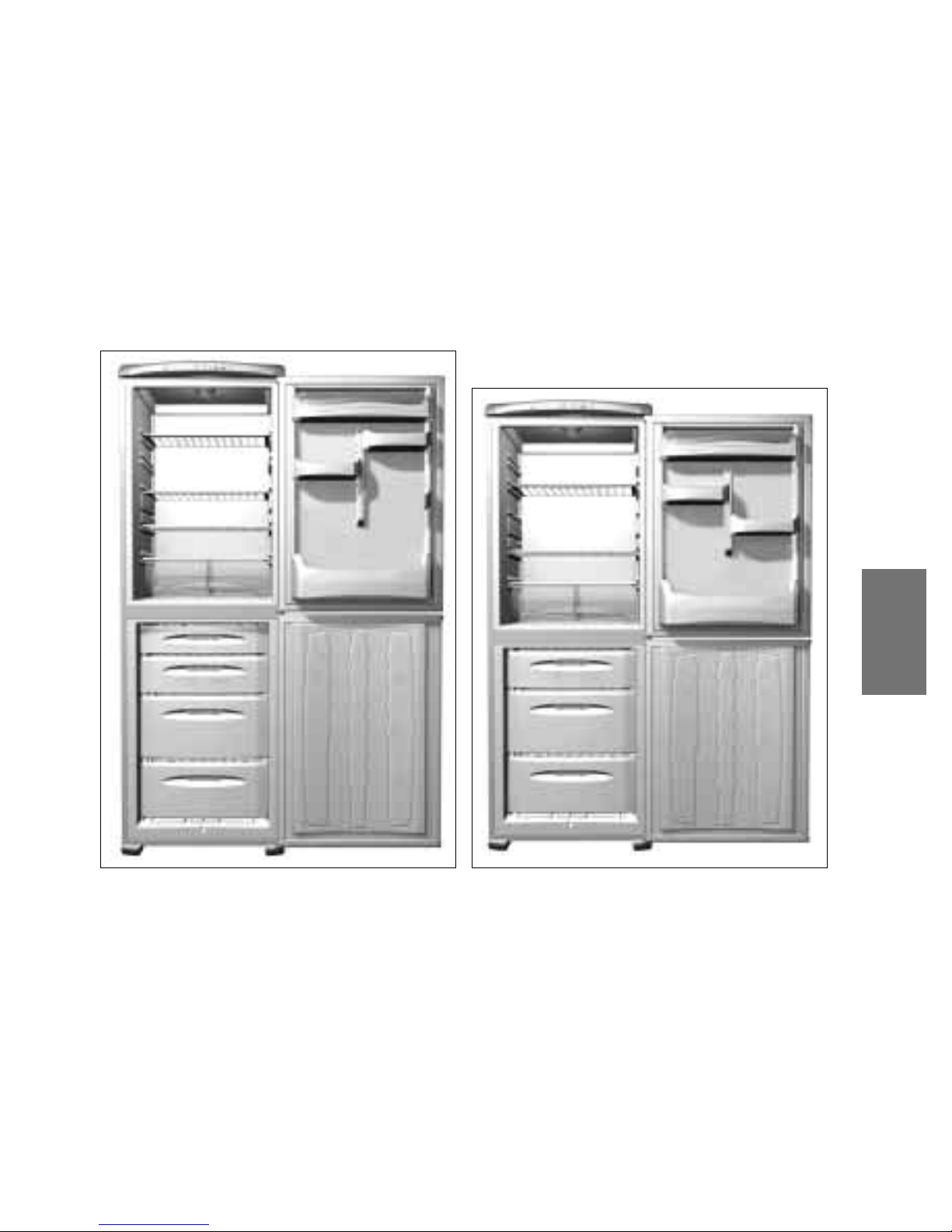

Note:

The photographs indicate the Fast

Freeze and storage areas (see tables).

The fridge cabinet and door furniture

will vary according to each model

specifications.

USEFUL ADVICE

Fast Freeze

Making the best use of your Fridge Freezer

Note : Always use the handle provided to open the fridge / freezer door.

To ensure that your fridge freezer operates as efficiently as possible :

Follow food packaging “best before/use by”instructions or your suppliers

advice on a suitable maximum storage time.

Keep foods tightly covered to retain moisture and prevent flavour/odour

transference. Plastic bags, aluminium foil, plastic stretch wrap and containers

with lids are ideal.

Select chilled and frozen food last when shopping, transport in a ‘cool bag’

and place in freezer as soon as possible after arriving home.

Avoid opening the doors unnecessarily or for longer than needed.

Allow hot or warm food to cool down in covered containers before placing in

the fridge or freezer, as placing hot food inside reduces efficiency.

Prepare fresh foods for freezing in small quantities to ensure that the food

freezes quickly and so that its quality does not deteriorate.

Ensure that packets/containers of food are dry before freezing otherwise

they may freeze together.

Storing Food in a Fridge

Pack and store cooked and fresh food separately.

Wrap raw or defrosting meat and poultry in polythene or foil and store

below cooked foods and dairy products to avoid contamination of dripping

food juices.

Wrap cheese in greaseproof paper and place in an airtight container or

polythene bag.

Bring to room temperature before consuming.

Empty left over canned food into a covered storage containers before

placing in the fridge.

Position food to allow cold air to circulate freely, ensuring nothing comes

into contact with the back of the fridge compartment, or covers the defrost

gutter drain hole below this.

Use the different storage zones inside your fridge compartment to store a

wide variety of food items.

Useful Advice

USEFUL ADVICE

STORAGE ZONES

Zone Type Food Storage

A Cool Dairy products, Cheese, butter, margarine,

Low fat spreads, cooking fats / lards

Preserves - Jam, curd, marmalade,

spread, salad dressing or sauces.

B Colder General food storage

C Coldest Meat fish & poultry

Pre-cooked / chilled food

D Salad Bins Vegetables, fruit and salad items

(Not recommended for the storage of

bananas or onions).

Useful Advice

USEFUL ADVICE

Advice on Adjusting Shelves

Make the most of the interior storage

space by repositioning shelves to suit the

various heights of individual items you

wish to store.

To remove, ensure that the door is open fully.

Slide the shelf forward and tilt from position.

Commodity and Bottle Racks

Commodity racks can be repositioned in the door to suit your storage requirements.

The lidded commodity rack is recommended for the storage of dairy items, such as

butter, margarine and cheese.

To remove, lift rack vertically to release from fixing supports. To replace, align grooves

on either side of the rack above fixing supports and push down until secure.

In order to get the best results from the bottle retainer it is advised that it be

positioned centrally on the bottle rack.

Salad Bins

For the storage of fruit, vegetables and salad items.

When storing vegetables, remove unusable leaves and soil. Leave lettuce, cabbage

and cauliflower on the stem.

It is advisable to clean the salad bin regularly, it can be removed by sliding it out from

position.

Note : Care must be taken to ensure that the salad bin is pushed in fully before

shutting the fridge door.

Useful Advice

USEFUL ADVICE

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Refrigerador de Hotpoint

Hotpoint

Hotpoint FF65 Manual de usuario

Hotpoint

Hotpoint HTM18IBPSA - 18' Refrigerator Instrucciones de montaje

Hotpoint

Hotpoint Energy Star HTH18GBTWW Instrucciones de uso

Hotpoint

Hotpoint HPS10L Instrucciones de funcionamiento

Hotpoint

Hotpoint FF46TP Manual de usuario

Hotpoint

Hotpoint HTS18GBS Manual de usuario

Hotpoint

Hotpoint E2BLH xxxx F (TK) Manual de usuario

Hotpoint

Hotpoint FFA52K Manual de usuario

Hotpoint

Hotpoint HM450 Manual de usuario

Hotpoint

Hotpoint HTS17HBS Manual

Hotpoint

Hotpoint FF7190EP Manual de usuario

Hotpoint

Hotpoint CTF16E Manual del propietario

Hotpoint

Hotpoint HME40N Manual de usuario

Hotpoint

Hotpoint FF Series Manual de usuario

Hotpoint

Hotpoint DC 85 Series Manual de usuario

Hotpoint

Hotpoint HTN16BBEWW Manual

Hotpoint

Hotpoint HSS25GFTWW Manual de usuario

Hotpoint

Hotpoint HTN17BBTRWW - 16.6 cu. Ft. Top Freezer... Manual de usuario

Hotpoint

Hotpoint HSS25GFTHWW and Instrucciones de funcionamiento

Hotpoint

Hotpoint HM31AAE Instrucciones de funcionamiento e instalación

Hotpoint

Hotpoint CSX24X Instrucciones de instalación

Hotpoint

Hotpoint BCB 3 AA Series Manual de usuario

Hotpoint

Hotpoint FFFL Manual de usuario

Hotpoint

Hotpoint HotPoint CSX22D Instrucciones de instalación

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario
