PRODUCT DESCRIPTION

CONTROL PANEL

1. Control panel

2. Fan and circular heating element

3. Light

4. Shelf guides

(the level is indicated on the wall of

the cooking compartment)

5. Door

6. Upper heating element/grill

7. Identification plate

(do not remove)

1. SELECTION KNOB

For switching the oven on by

selecting a function.

Turn to the position to switch

off the oven.

2. TIMER KNOB

Turn to set and start the timer.

This will not start a function or

stop any function that is currently

active.

3. THERMOSTAT KNOB

Turn to select the temperature you

require.

4. THERMOSTAT/PREHEATING

LED

This will light up while the oven is

preheating and will go out once

the oven has reached the required

temperature.

DAILY REFERENCE

GUIDE

Before using the appliance carefully read the Health and Safety guide.

THANK YOU FOR PURCHASING AN

HOTPOINT PRODUCT

To receive more comprehensive help and

support, please register your product at

www.hotpoint.eu/register

WWW

You can download the Safety Instructions

and the Use and Care Guide by visiting our

website docs.hotpoint.eu and following

the instructions on the back of this booklet.

1 2 3 4

LIGHT

For switching on the oven light.

DEFROSTING

For accelerating the defrosting of food.

FORCED AIR

For cooking different foods on multiple shelves

(maximum of three) at the same time. This function

can be used to cook different foods without odours

being transferred from one food to another.

GRILL

For grilling steaks, kebabs and sausages,

cooking vegetables au gratin or toasting bread.

When grilling meat, we recommend using a dripping

pan to collect the cooking juices: Position the pan on

any of the levels below the wire shelf and add 200 ml

of drinking water.

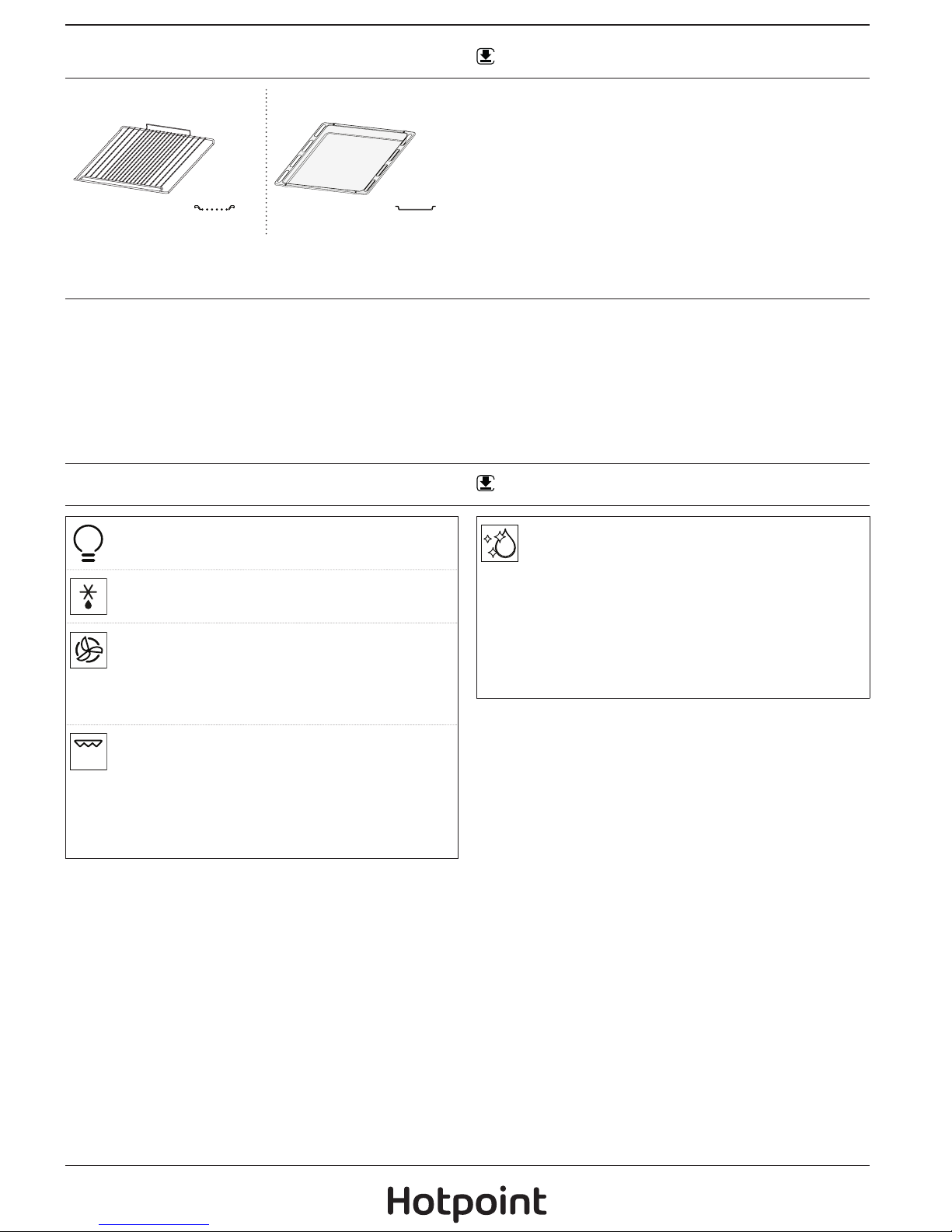

ACCESSORIES Download the Use and Care Guide from

docs.hotpoint.eu for more information

WWW

WIRE SHELF BAKING TRAY

The number of accessories may vary depending on which model is purchased.

Other accessories can be purchased separately from our After-sales Service.

INSERTING THE WIRE SHELF

AND OTHER ACCESSORIES

. Insert the wire shelf onto the level you require by

holding it tilted slightly upwards and resting the

raised rear side (pointing upwards) down first. Then

slide it horizontally along the shelf guide as far as

possible.

. The other accessories, such as the dripping pan, are

inserted horizontally by sliding them along the shelf

guides.

DIAMOND CLEAN

The action of the steam released during this

special low-temperature cleaning cycle allows dirt

and food residues to be removed with ease. Pour

200 ml of drinking water into a tray and place this on

the third level. Run the function for 35 minutes at a

temperature of 100 °C.

Leave the oven to cool down at the end of the

cleaning cycle.

Only activate this function when the oven is cold.

FUNCTIONS Download the Use and Care Guide from

docs.hotpoint.eu for more information

WWW

HEATING THE OVEN

A new oven may release odours that have been left

behind during manufacturing – this is completely

normal.

Before starting to cook food, we therefore

recommend heating the oven with it empty in order

to remove any possible odours.

Remove any protective cardboard or transparent film

from the oven and remove any accessories from inside

it.

Heat the oven to 250 °C for about one hour,

preferably using the “Forced air” function. The oven

must be empty during this time.

Follow the instructions for setting the function

correctly.

Please note: It is advisable to air the room after using the

appliance for the rst time

USING THE APPLIANCE FOR THE FIRST TIME

1. SELECT A FUNCTION

To select a function, turn the selection knob to the

symbol for the function you require.

2. ACTIVATE A FUNCTION

To start the function you have selected, turn the

thermostat knob to set the temperature you require.

To end an active function at any time, turn the

selection knob and the thermostat knob to the

position to switch the oven off.

DIAMOND CLEAN FUNCTION

To use the “Diamond Clean” cleaning function, pour

200 ml of drinking water onto the bottom of the oven,

then turn the selection knob and the thermostat knob

to the symbol.

We recommend activating this function for 35

minutes.

3. PREHEATING PHASE

After starting the function, the thermostat LED will

light up to indicate that preheating is in progress.

Once preheating is complete, the thermostat LED will

switch off to indicate that the oven has reached the

set temperature: Place the food into the oven and

proceed with cooking.

Please note: Placing food in the oven before preheating has

nished may have an adverse eect on the nal cooking

result.

. SETTING THE TIMER

This option does not interrupt or program cooking

but allows you to use the display as a timer, either

while a function is active or when the oven is

switched off.

To set and start the timer, turn the timer knob to the

length of time you require: An audible signal will

sound once the timer has finished counting down the

selected time.

DAILY USE

COOKING TABLE

RECIPE FUNCTION PREHEATING TEMPERATURE

(°C)

TIME

(MIN)

LEVEL

AND ACCESSORIES

Leavened cakes

Yes 150 - 170 30 - 90 3

Yes 160 - 180 30 - 90 4

Biscuits/tartlets

Yes 150 - 170 15 - 35 3

Yes 150 - 170 20 - 45 4

Yes 150 - 170 20 - 45 531

Choux buns

Yes 180 - 200 30 - 50 3

Yes 170 - 190 35 - 50 4

Meringues

Yes 90 150 - 200 3

Yes 90 140 - 200 4

Yes 90 140 - 200 531

Pizza/focaccia

Yes 220 - 250 10 - 25 3

Yes 200 - 240 20 - 45 42

Bread loaf 80 g Yes 180 - 200 30 - 45 3

Sliced bread 500 g Yes 180 50 - 70 3

Bread Yes 180 - 200 30 - 80 42

Frozen pizza

Yes 250 10 - 20 3

Yes 230 - 250 10 - 25 42

Savoury bakes

(vegetable pie, quiche)

Yes 180 - 200 30 - 45 3

Yes 180 - 200 35 - 50 42

Yes 180 - 200 35 - 50 53 1

Vols-au-vents/

pu pastry crackers

Yes 190 - 200 20 - 30 3

Yes 180 - 190 20 - 40 42

Yes 180 - 190 20 - 40 53 1

Lasagne/pasta bake/

canneloni/ans Yes 180 - 200 45 - 65 3

Lamb/veal/beef/pork 1 kg Yes 180 - 200 80 - 110 3

ACCESSORIES

Wire shelf Oven dish or baking tray

on the wire shelf

Dripping pan/baking tray

on the wire shelf

Dripping pan with 200ml

of water Baking tray

RECIPE FUNCTION PREHEATING TEMPERATURE

(°C)

TIME

(MIN)

LEVEL

AND ACCESSORIES

Roast pork with crackling 2 kg Yes 180 - 190 110 - 150 3

Chicken/rabbit/duck 1 kg Yes 200 - 230 50 - 100 3

Turkey/goose 3 kg Yes 180 - 200 150 -200 2

Baked sh/en papillote

(llets, whole) Yes 170 - 190 30 - 45 3

Stued vegetables

(tomatoes, courgettes, aubergines) Yes 180 - 200 50 - 70 3

Baked potatoes Yes 200 - 220 30 - 50 3

Toasted bread 5 mins 250 1 - 3 5

Fish llets/slices 5’ 250 15 - 30 * 43

Sausages/kebabs/

spare ribs/hamburgers 5 mins 250 15 - 30 * 54

Vegetable gratin 5 mins 250 5 - 15 4

Meat and potatoes Yes 190 - 200 45 - 100 *** 41

Fish and vegetables Yes 180 30 - 50 *** 42

Lasagne and meat Yes 200 50 - 100 *** 41

Complete meal: fruit tart (level 5)/

lasagne (level 3)/meat (level 1) Yes 180 - 190 40 - 120 *** 53 1

FUNCTIONS

Grill Forced Air

* Turn food halfway through cooking

** Turn food two thirds of the way through cooking (if

necessary).

*** Estimated length of time: Dishes can be removed

from the oven at dierent times depending on personal

preference.

Download the Use and Care Guide from docs.hotpoint.eu

for the table of tested recipes, compiled for the certication

authorities in accordance with the standard IEC 60350-1.

EXTERIOR SURFACES

Clean the surfaces with a damp microfibre cloth. If

they are very dirty, add a few drops of pH-neutral

detergent. Finish off with a dry cloth.

Do not use corrosive or abrasive detergents. If any of

these products inadvertently comes into contact with

the surfaces of the appliance, clean immediately with

a damp microfibre cloth.

INTERIOR SURFACES

• After every use, leave the oven to cool and then

clean it, preferably while it is still warm, to remove

any deposits or stains caused by food residues. To

dry any condensation that has formed as a result of

cooking foods with a high water content, leave the

oven to cool completely and then wipe it with a cloth

or sponge.

• The door can be easily removed and refitted to

facilitate cleaning of the glass.

• Clean the glass in the door with a suitable liquid

detergent.

• The upper heating element of the grill can be

lowered to clean the ceiling of the oven.

ACCESSORIES

Soak the accessories in a washing-up liquid solution

after use, handling them with oven gloves if they

are still hot. Food residues can be removed using a

washing-up brush or a sponge.

Do not use steam cleaning

equipment.

Use protective gloves during all

operations.

Carry out the required

operations with the oven cold.

Disconnect the appliance from

the power supply.

Do not use wire wool, abrasive

scourers or abrasive/corrosive

cleaning agents, as these could

damage the surfaces of the

appliance.

LOWERING THE UPPER HEATING ELEMENT

1. Pull the heating element out a little and lower it

down. 2. To reposition the heating element, lift it up and

pull it slightly towards you, making sure to fit it into

its seating.

MAINTENANCE

AND CLEANING

Download the Use and Care Guide from

docs.hotpoint.eu for more information

WWW

HOW TO READ THE COOKING TABLE

The table lists the best function, accessories and level

to use to cook various different types of food.

Cooking times start from the moment food is placed

in the oven, excluding preheating (where required).

Cooking temperatures and times are approximate

and depend on the amount of food and the type

of accessory used. Use the lowest recommended

settings to begin with and, if the food is not cooked

enough, then switch to higher settings. Use the

accessories supplied and preferably dark-coloured

metal oven dishes and baking trays. You can also use

Pyrex or stoneware pans and accessories, but bear in

mind that cooking times will be slightly longer.

COOKING DIFFERENT FOODS AT THE SAME TIME

The “Forced Air” function enables you to cook

different foods (such as fish and vegetables) on

different shelves at the same time. Remove the food

which requires a shorter cooking time and leave the

food which requires a longer cooking time in the

oven.

HINTS AND TIPS Download the Use and Care Guide from

docs.hotpoint.eu for more information

WWW

REMOVING AND REFITTING THE DOOR

1. To remove the door, open it fully and lower the

catches until they are in the unlock position.

2. Close the door as much as you can.

Take a firm hold of the door with both hands – do not

hold it by the handle.

Simply remove the door by continuing to close it

while pulling it upwards (a) at the same time until it is

released from its seating (b).

~60°

~15°

Put the door to one side, resting it on a soft surface.

3. Refit the door by moving it towards the oven,

aligning the hooks of the hinges with their seating

and securing the upper part onto its seating.

4. Lower the door and then open it fully.

Lower the catches into their original position: Make

sure that you lower them down completely.

5. Try closing the door and check to make sure that it

lines up with the control panel. If it does not, repeat

the steps above.

CLICK TO CLEAN  CLEANING THE GLASS

1. After removing the door and resting it on a soft

surface with the handle downwards, simultaneously

press the two retaining clips and remove the upper

edge of the door by pulling it towards you.

2. Lift and firmly hold the inner glass with both

hands, remove it and place it on a soft surface before

cleaning it.

3. To correctly reposition the inner glass, make sure

that the “R” is visible in the left-hand corner.

First insert the long side of the glass indicated by “R”

into the support seats, then lower it into position.

4. Refit the upper edge: A click will indicate correct

positioning. Make sure the seal is not broken before

refitting the door.

Problem Possible cause Solution

The oven is not working. Power cut.

Disconnection from the

mains.

Check that the mains electricity supply is

working and that the oven is connected to it.

Turn the oven off and on again to see if the

fault persists.

PRODUCT FICHE

WWW The product fiche with energy data of this

appliance can be downloaded from the website

docs.hotpoint.eu

HOW TO OBTAIN THE USE AND CARE GUIDE

> WWW Download the Use and Care Guide

from our website docs.hotpoint.eu (you

can use this QR Code), specifying the

product’s commercial code.

> Alternatively, contact our Client After-sales Service.

CONTACTING OUR AFTERSALES SERVICE

You can find our contact details in the warranty

manual. When

contacting our Client

After-sales Service,

please state the codes

provided on your

product’s identification

plate.

Model: xxxXXXXxx

XXXXXX XXXXXX XXXXX XXXXXXX

400010869547

Printed in Italy

001

TROUBLESHOOTING Download the Use and Care Guide from

docs.hotpoint.eu for more information

WWW

Tabla de contenidos

Otros manuales de Horno de Hotpoint

Hotpoint

Hotpoint DBZ 891 C Manual de usuario

Hotpoint

Hotpoint SD97PEH Manual de usuario

Hotpoint

Hotpoint SX 1049L CX S Manual de usuario

Hotpoint

Hotpoint 6117 Manual de usuario

Hotpoint

Hotpoint SQ872T - SE872X Manual de usuario

Hotpoint

Hotpoint FE9 831 JSH WH Manual de usuario

Hotpoint

Hotpoint OK 1037ELDP.20 X/HA S Manual de usuario

Hotpoint

Hotpoint SA4 544 C IX Manual de instalación y operación

Hotpoint

Hotpoint DHS53X S Manual de usuario

Hotpoint

Hotpoint AHP67X/1 Manual de usuario

Hotpoint

Hotpoint BS63E Manual de usuario

Hotpoint

Hotpoint SC88X Manual de usuario

Hotpoint

Hotpoint FH 1039P /HA S Manual de usuario

Hotpoint

Hotpoint SX 1046Q PX Manual de usuario

Hotpoint

Hotpoint SKD 33J C X Manual de usuario

Hotpoint

Hotpoint SD 52K - SD 52 Manual de usuario

Hotpoint

Hotpoint OSX 896 DC 0 X Manual de usuario

Hotpoint

Hotpoint SE1012X Manual de usuario

Hotpoint

Hotpoint 6190 Manual de instrucciones

Hotpoint

Hotpoint BD31 Manual de usuario

Hotpoint

Hotpoint DT77 Instructions for and use Manual de usuario

Hotpoint

Hotpoint SA4 544 C IX Manual de usuario

Hotpoint

Hotpoint EG 902 GX S Manual de usuario

Hotpoint

Hotpoint SX 898 CK S Manual de usuario

Manuales populares de Horno de otras marcas

Bosch

Bosch HVA531NS0 Manual de usuario

Electrolux

Electrolux EOF6P46X Manual de usuario

NEFF

NEFF B44S32 5GB Series Manual de usuario

Combi

Combi BLODGETT BC142GDS Manual de usuario

AEG

AEG COMPETENCE 311704300 Manual de usuario

Falcon

Falcon DOMINATOR PLUS G3106 Series Guía del usuario

Rational

Rational SCC WE 61G Manual de usuario

Smeg

Smeg DOSPA38X Manual de instalación y operación

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manual de usuario

Miele

Miele HR 1954-2 Manual de usuario

KHIND

KHIND OT50 Manual de usuario

Henny Penny

Henny Penny Smoker Box Manual de usuario

Lang

Lang ECOD-AP Manual de usuario

AEG

AEG BEK455310M Manual de usuario

Frigidaire

Frigidaire FNGE90JGR Manual de usuario

GE Advantium SCB2000 Manual de usuario

AEG

AEG DE401301DM Manual de usuario

DeLonghi

DeLonghi XA660 Manual
