Congratulations!

You Are Now Part of the Hotpoint Family.

Welcome to the Hotpoint family. We’re

proud of our quality products and we are

committed to providing dependable service.

You’ll see it in this easy-to-use Owner’s

Manual and you’ll hear it in the friendly

voices of our customer service department.

Best of all, you’ll experience these values

each time you use your dishwasher. That’s

important, because your new dishwasher will

be part of your family for many years. And we

hope you will be part of ours for a long time

to come.

We thank you for buying Hotpoint. We

appreciate your purchase, and hope you will

continue to rely on us whenever you need

quality appliances for your home.

Important!

Fill out and return the Consumer Product

Ownership Registration card that is packed

with this product. If you cannot find it,

please send in the duplicate card printed in

the back of this manual.

Write the model and serial

numbers here.

You can find them on the tub wall just

inside the door.

Staple sales slip or cancelled check

here.

Proof of the original purchase date is

needed to obtain service under the

warranty.

Hotpoint & You,

A Service Partnership.

Inside you will find many

helpful hints on how to use and

maintain your dishwasher

properly. Just a little preventive

care on your part can save you a

great deal of time and money

over the life of your dishwasher.

Read this Manual

Ask any Hotpoint appliance owner and they

will tell you we stand behind our products

with unmatched quality service. However,

did you know that most questions result

from simple problems that you can easily

fix yourself in just a few minutes? This

Owner’s Manual can tell you how.

You’ll find many answers to

common problems here.

If you review our chart of

Troubleshooting Tips first,

you may not need to call for

service at all.

Review the Section on

Troubleshooting Tips

If you do need service, you can

relax knowing help is only a

phone call away. A list of toll-free

customer service numbers is

included in the back section.

Or you can always call the

GE Answer Center®at

800.626.2000, 24 hours a day,

7 days a week.

If You Need Service

Customer ServiceTroubleshooting TipsOperating InstructionsSafety Information

Safety Information . . . . . . .4–7

Operating Instructions

Control Panel . . . . . . . . . . . . . . .8

Control Settings . . . . . . . . . . . . .9

Dial Cycles . . . . . . . . . . . . .10, 11

Using the Dishwasher . . . .12, 13

Loading the

Dishwasher Racks . . . . . . .14, 15

Care and Cleaning . . . . . . .16, 17

Optional Accessories . . . . . . . .18

Troubleshooting Tips

Before You

Call For Service . . . . . . . . .19–24

Customer Service

Product Registration . . . . . . . .29

Warranty . . . . . . . . . . . . . . . . .31

Service Telephone

Numbers . . . . . . . . . .Back Cover

Safety InformationOperating InstructionsTroubleshooting TipsCustomer Service

IMPORTANT SAFETY INFORMATION.

READ ALL INSTRUCTIONS BEFORE USING.

WARNING!

For your safety, the information in this manual must be

followed to minimize the risk of fire, explosion, electric

shock, or to prevent property damage, personal injury,

or loss of life.

Under certain conditions hydrogen gas may be produced in

a water heater that has not been used for two weeks or

more. HYDROGEN GAS IS EXPLOSIVE.

If the hot water has not been used for two weeks or more, prevent

the possibility of damage or injury by turning on all hot water

faucets and allow them to run for several minutes. Do this before

using any electrical appliance which is connected to the hot water

system. This simple procedure will allow any built-up hydrogen gas

to escape. Since the gas is flammable, do not smoke or use an open

flame or appliance during this process.

WATER HEATER SAFETY

Customer ServiceTroubleshooting TipsOperating InstructionsSafety Information

Use your dishwasher only for its intended purpose as

described in this Owner’s Manual.

This dishwasher must be properly installed and located in

accordance with the Installation Instructions before it is used.

If you did not receive an Installation Instructions sheet with

your dishwasher, you can receive one by calling us toll-free

at the GE Answer Center®

, 800.626.2000.

■Connect to a grounded

metal, permanent wiring

system; or run an equipment-

grounding conductor with

the circuit conductors and

connect to the equipment-

grounding terminal or lead

of the appliance.

■Improper connection of the

equipment-grounding

conductor can result in a risk

of electric shock. Check with

a qualified electrician or

service representative if you

are in doubt whether the

appliance is properly

grounded.

■Dispose of discarded

appliances and shipping or

packing material properly.

■Do not attempt to repair or

replace any part of your

dishwasher unless it is

specifically recommended in

this manual. All other

servicing should be referred

to a qualified technician.

■To minimize the possibility of

electric shock, disconnect

this appliance from the

power supply before

attempting any maintenance.

NOTE:

Turning the

dishwasher off does not

disconnect the appliance

from the power supply. We

recommend having a

qualified technician service

your appliance.

PROPER INSTALLATION

AND MAINTENANCE

Safety InformationOperating InstructionsTroubleshooting TipsCustomer Service

IMPORTANT SAFETY INFORMATION.

READ ALL INSTRUCTIONS BEFORE USING.

DO NOT…

■Do not tamper with controls.

■Do not abuse, sit on, or stand

on the door or dish rack of

the dishwasher.

■Do not discard a dishwasher

without first removing the

door of the washing

compartment.

■Do not store or use

combustible materials,

gasoline or other flammable

vapors and liquids in the

vicinity of this or any other

appliance.

■Do not allow children to play

inside, on or with this

appliance or any discarded

appliance.

WARNING!

Customer ServiceTroubleshooting TipsOperating InstructionsSafety Information

WHEN USING YOUR DISHWASHER

■Use only powder, tabs or

liquid detergents or wetting

agents recommended for use

in a dishwasher and keep

them out of the reach of

children. Cascade®

Automatic Dishwashing

Detergent has been approved

for use in all GE dishwashers.

■Locate sharp items so that

they are not likely to damage

the door seal.

■Load sharp knives with the

handles up to reduce the risk

of cut-type injuries.

■Do not wash plastic items

unless marked

dishwasher

safe

or the equivalent. For

plastic items not so marked,

check the manufacturer’s

recommendations.

■Non-Dishware Items: Do not

wash items such as electronic

air cleaner filters, furnace

filters and paint brushes in

your dishwasher. Damage to

dishwasher and discoloration

or staining of dishwasher

may result.

■Do not touch the heating

element during or

immediately after use.

■Do not operate your

dishwasher unless all

enclosure panels are properly

in place.

■Close supervision is necessary

if this appliance is used by or

near children.

■Load light plastic items so

they will not become

dislodged and drop to the

bottom of the dishwasher—

they might come into contact

with the heating element and

be damaged.

Read and follow

this Safety Information carefully.

SAVE THESE INSTRUCTIONS

Safety InformationOperating InstructionsTroubleshooting TipsCustomer Service

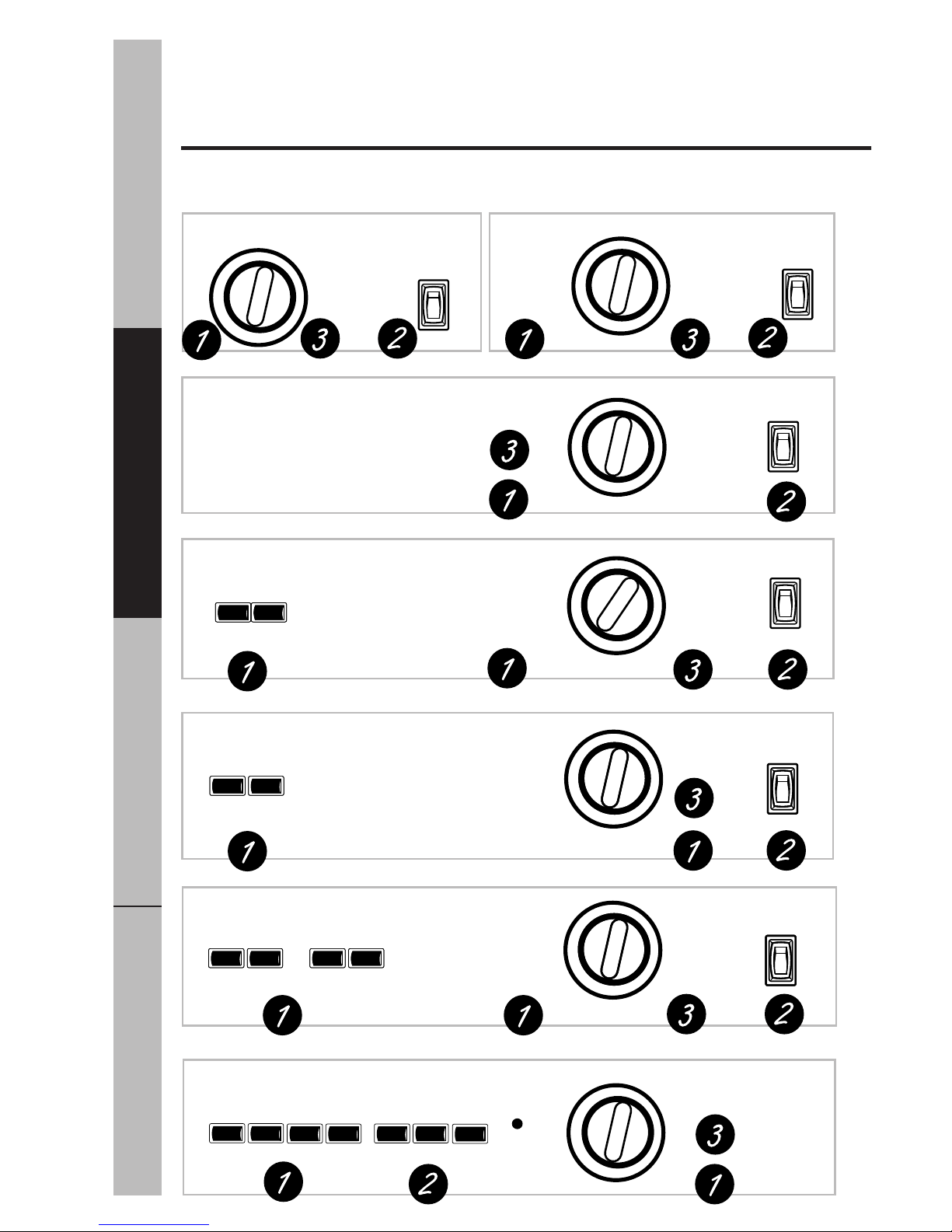

About the dishwasher control panel.

You can locate your model number on the tub wall just inside the door.

Throughout this manual, features and appearance may vary from your model.

OFF ON

OFF

HEATED

DRY

OFF

DRYING

OFF

HEATED

DRY

HEAVY WASH

NORMAL WASH

WATER SAVER

RINSE & HOLD (HEATED DRY OFF)

OFF ON

RINSE & HOLD

OFF

HEATED

DRY

NORMAL

WASH

POTS

& PANS

OFF

WATER SAVER

PLATE WARMER

(HEATED DRY OFF)

OFF

HEATED

DRY

(HEATED DRY ON)

NORMAL

WASH

FF ON

RINSE & HOLD (HEATED DRY OFF)

OFF

HEATED

DRY

NORMAL

WASH

POTS

& PANS

FF ON

WATER SAVER

RINSE & HOLD (HEATED DRY OFF)

OFF

HEATED

DRY

(HEATED DRY ON)

NORMAL

WASH

cycle

selector

energy saver

options

HI TEMP WASH

ON OFF

PLATE WARMER

HOURS

DELAY

OFF

RINSE & HOLD

PLATE WARMER

(HEATED DRY OFF)

NORMAL

WASH

POTS

& PANS

(HEATED DRY ON)

ENERGY

SAVER

DELAYED

START

WATER

SAVER

LIGHT

WASH

HI TEMP

WASH

HEATED

DRY 6

Model HDA1000

Models HDA2000, HDA2020 and HDA2030

Model HDA2220

OFF NORMAL/

POTS & PANS

ON OFF SHORT WASH

OFF

HEATED

DRY

DRYING

RINSE & HOLD (HEATED DRY OFF)

Models HDA2120 and HDA2130

Models HDA3220 and HDA3230

Models HDA3420, HDA3430, HDA3520 and HD3530

OFF

DRYING

OFF

HEATED

DRY

NORMAL WASH

SHORT WASH

RINSE & HOLD (HEATED DRY OFF)

Model HDA1100

Energy Options

HI TEMP Provides extra heat for best performance. It is used best with

WASH ON/ heavily-soiled dishes.

HI TEMP WASH

HI TEMP Turns

HI TEMP WASH

off.

WASH OFF

HEATED DRY/ Turns the heating element on for fast drying. This option will extend

HEATED DRY ON the time of your wash cycle.

HEATED DRY OFF Turns

HEATED DRY

off.Dishes air dry naturally and energy

is saved.

ENERGY SAVER Turns all options off.

Customer ServiceTroubleshooting TipsOperating InstructionsSafety Information

Control Settings

Cycles

POTS & PANS/ For heavily soiled dishes or cookware with dried-on or baked-on soils.

HEAVY WASH Everyday dishes may be included. This cycle will not remove

burned-on foods.

NORMAL WASH

For loads of everyday dishes, glasses and cookware with medium

soils.

NOTE:

Many dishes have lighter soil than normal. Choosing

a cycle other than

NORMAL WASH

will save energy and water.

SHORT WASH For quickly washing loads of everyday dishes with medium soils

that have not dried on, such as loads consisting mostly of glasses.

LIGHT WASH/ For dishes with light soils.

WATER SAVER

RINSE & HOLD For rinsing partial loads that will be washed later.

Do not use detergent.

PLATE WARMER For warming clean dishes and serving plates. This cycle will take

approximately 32 minutes.

Start

Slowly turn t

he Dial to the

START

position, or the selected cycle.

Don’t turn it past the

START, ON

or cycle position, or you could

accidentally miss a rinse. For models

HDA2120

and

HDA2130,

when

using the

POTS & PANS

cycle, slowly turn the Dial to the

NORMAL/POTS

& PANS

position and press the

POTS & PANS ON

button. When using

the

NORMAL

cycle, slowly turn the Dial to the

NORMAL/POTS & PANS

position and press the

POTS & PANS OFF

button. See

About the Dial

Cycles

section for other cycles on these models.

There is a time delay between start-up and water fill so you will not

hear any wash action right away.

■Latch the door to begin the cycle. 9

Safety InformationOperating InstructionsTroubleshooting TipsCustomer Service

About the dial cycles.

Rinse & Hold

(HDA1100, HDA2000, HDA2020, HDA2030, HDA2120,

HDA2130, HDA2220, HDA3220, HDA3230, HDA3420, HDA3430, HDA3520

and HDA3530 only)

For rinsing partial loads that will be washed later.

Do not

use detergent.

Make sure

ENERGY SAVER / HEATED DRY OFF

is selected.

Be sure the door is unlatched.

Slowly turn the Dial to

RINSE & HOLD.

Latch the door to start the cycle.

OFF ON

WATER SAVER

RINSE & HOLD

PLATE WARMER

(HEATED DRY OFF)

(HEATED DRY ON)

Plate Warmer

(HDA2220, HDA3220, HDA3230, HDA3420, HDA3430,

HDA 3520 and

HDA3530 only)

For warming clean dishes and serving plates. This cycle

will take approximately 32 minutes.

Load clean dishware to be warmed.

Select

HEATED DRY / HEATED DRY ON.

Be sure the door is unlatched.

Slowly turn the Dial to

PLATE WARMER.

Latch the door to start the cycle.

OFF ON

WATER

SAVER

RINSE & HOLD

PLATE WARMER

(HEATED DRY OFF)

(HEATED DRY ON)

Delayed Start

(HDA3420, HDA3430

, HDA3520 and HDA3530

only)

The

HOURS DELAY

will allow you to delay the start

time of any cycle not on the Dial automatically for up

to 6 hours.

Be sure the door is unlatched.

Select the wash cycle and option you want.

Slowly turn the Dial to desired time. The

DELAYED

START

light will come on.

Latch the door to start the cycle.

HOURS

DELAY

OFF

RINSE & HOLD

PLATE WARMER

(HEATED DRY OFF)

(HEATED DRY ON)

START

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Lavavajillas de Hotpoint

Hotpoint

Hotpoint Ultima FDW85 Instrucciones de funcionamiento e instalación

Hotpoint

Hotpoint Aquarius DWF50 Manual de usuario

Hotpoint

Hotpoint HDA3400FAA Manual de servicio

Hotpoint

Hotpoint H7F HP43 X UK Manual de instalación y operación

Hotpoint

Hotpoint LFFA++ 8H14 Manual de usuario

Hotpoint

Hotpoint HDB727 Instrucciones de instalación

Hotpoint

Hotpoint HDA797K Instrucciones de instalación

Hotpoint

Hotpoint HDA487 Instrucciones de instalación

Hotpoint

Hotpoint HDA787K Instrucciones de instalación

Hotpoint

Hotpoint FDM 554 Manual de usuario

Hotpoint

Hotpoint LTF 8B019 Manual de usuario

Hotpoint

Hotpoint FDAL28 Manual de usuario

Hotpoint

Hotpoint LTF 11S111 Manual de usuario

Hotpoint

Hotpoint HDA2000VBB Guía del usuario

Hotpoint

Hotpoint PFT834 Manual de usuario

Hotpoint

Hotpoint HDA2000T Instrucciones de uso

Hotpoint

Hotpoint BFZ 700 Manual de usuario

Hotpoint

Hotpoint HDA760 Manual de usuario

Hotpoint

Hotpoint HDA1000ZWH Manual de servicio

Hotpoint

Hotpoint HDA1000 series Manual de usuario

Hotpoint

Hotpoint LTB 4B019 Manual de usuario

Hotpoint

Hotpoint LBF 52 Manual de usuario

Hotpoint

Hotpoint LFFA+ 8M14 Manual de usuario

Hotpoint

Hotpoint HDA787 Instrucciones de instalación

Manuales populares de Lavavajillas de otras marcas

Electrolux

Electrolux ESI5211LOX Manual de usuario

KitchenAid

KitchenAid KUDB230B Manual de usuario

Brandt

Brandt BDJ424DB Manual de usuario

Asko

Asko DSD767UXXL.AU Manual de usuario

Beko

Beko DFN26210W Manual de usuario

NEFF

NEFF S153ITX00E Hoja de especificaciones

Midea

Midea SV 4.45 wi Manual de usuario

LG LDF7932 Manual de usuario

Gorenje

Gorenje GV63214 Manual de usuario

Blomberg

Blomberg LDFN2240W Manual de usuario

AEG

AEG FFB83836PM Manual de usuario

Cylinda

Cylinda DM3220RFD Manual de usuario

Atag

Atag DW8214MB Manual de usuario

GE GLD8000 Series Manual de usuario

Siemens

Siemens SN23HI02KE Hoja de especificaciones

Omega

Omega ODW717X Manual de usuario

BORETTI

BORETTI BVW-683 Manual de usuario

Siemens

Siemens SN 56N591 Manual de usuario
