Hoshizaki KML-400MAE Manual de usuario

NO.

ISSUED:

71121

JAN. 26, 1998

MODEL

KML-400MAE

KML-400MWE

HOSHIZAKI

MODULAR CRESCENT CUBER

(FINAL) PARTS LIST

REVISED: SEPT. 12, 2000

KML-400MAE

G-0 MARCH, 1997

H-0 DEC., 1997

H-1 APRIL, 1998

H-2 JUNE, 1998

H-3 OCT., 1998

J-0 DEC., 1998

KML-400MWE

G-0 MARCH, 1997

H-1 JAN., 1998

H-2 MAY, 1998

H-3 JUNE, 1998

H-4 OCT., 1998

J-0 DEC., 1998

HA MATERIAL ABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate = Tetlon

PP = Polypropylene

PS = Polystyrene

PTFE = Polytetrafluoroethylene = Teflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARY CODE

Ex.1 K-0

Parts are the same as in the preceding (Note) - = Part deleted.

year.

x = Part deleted and replaced

"K" is the tenth in alphabetical order with "I" by "o" part.

skipped. So, "K" indicates "1990".

o = New part for "x"

Ex.2 A-1 in the same auxiliary code.

"A" is the first in alphabetical

order. So, "A" indicates "1991".

Ex.3 A-2

Each time a part is changed

in a year, this number advances.

FASTENER ABBREVIATION LIST

ST Phillips Truss Machine Screw

SP Phillips Pan Head Machine Screw

SF Phillips Flat Head Machine Screw

SS Phillips Pan Head Machine Screw with Split Lock Washer

SW Phillips Pan Head Machine Screw with Split Lock Washer

and Flat Washer

T1 Phillips Truss Head Tapping Screw (Correspond to Type A)

T2 Phillips Truss Head Tapping Screw (Correspond to Type B)

T3 Phillips Truss Head Tapping Screw (Correspond to Type C)

FT Phillips Truss Head Tapping Screw (Special)

BH Hexagon Head Bolt

BC Socket Head Cap Screw

BS Hexagon Bolt with Split Washer

BW Hexagon Bolt with Split Washer and Flat Washer

BF Hexagon Flange Bolt

BR Cross-Recessed Hexagon Head Bolt

BRW Cross-Recessed Hexagon Head Bolt with Split Lock Washer

and Flat Washer

WL Split Lock Washer

WT External Tooth Washer

WF Flat Washer

WS Spring Washer

NH Hexagon Nut

NF Hexagon Flange Nut

NC Hexagon Cap Nut

NS Square Nut

NW Wing Nut

Ex. ST0308S (Phillips Truss Head Machine Screw

3x8, made of stainless steel)

Material None: Plated Steel

Length (mm) S: Stainless Steel

Nominal Diameter (mm) B: Brass

Form of Head P: Plastic

Description

(Note) Second character is numerical except toe list.

Ex. S1, S2, B3 etc.

And abbreviations and names are shown under the illustration.

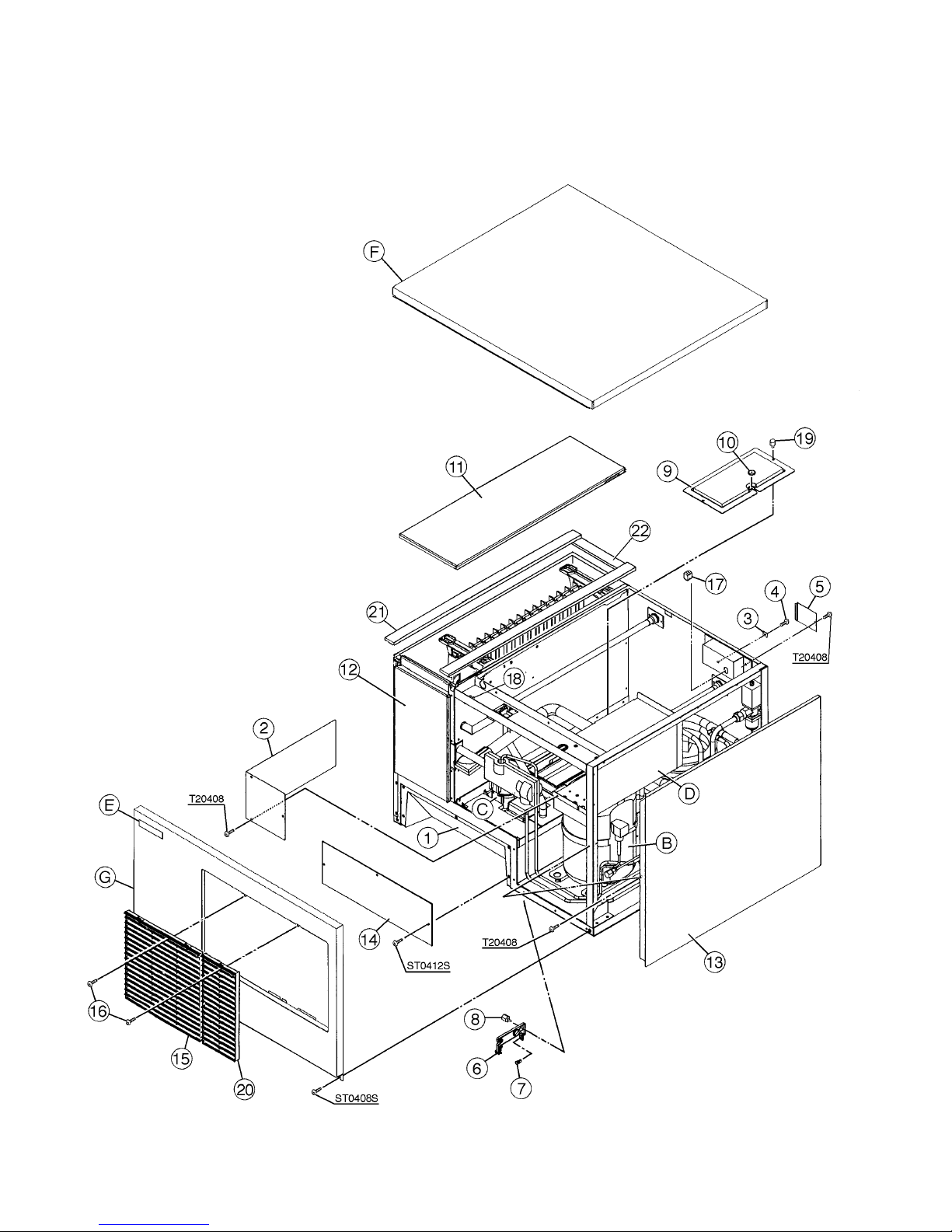

KML-400MAE A. ICE CUBER ASSEMBLY G-0, H-0, H-1, H-2

KML-400MAE A. ICE CUBER ASSEMBLY H-3, J02385M-J02784B

KML-400MAE A. ICE CUBER ASSEMBLY J02785C--

MODEL: KML-400MAE TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION MATERIAL OR

MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER G-0

H-0

H-1 H-2 H-3

J02385M-

J02784B

J02785C-

B REFRIGERATION CIRCUIT - 2A0718A01 1 1 1 x1

- 1A0386A01 o1 1

C WATER CIRCUIT - 2A0692A01 1 1 -

- 2A0692A02 1 1 -

- 1A0438A01 1

D CONTROL BOX ASSEMBLY - 2A0657A01 1 -

- 2A0657A05 1 1 1 1

T2 SCREW 4X8 7P31-0408 3 3 3 3 3

E LABEL LOCATION - 3A0676A01 1 -

- 3A0676A02 1 1 1 -

- 3A1372A01 1

F TOP PANEL ASSEMBLY - 3A0674A01 1 1 1 1 1

G FRONT PANEL ASSEMBLY - 3A0905A01 1 1 1 1 -

- 3A1273A01 1

TRUSS HEAD SCREW 4X8, SS 7C32-0408 2 2 2 2 1

1 EVAPORATOR CASE - 2A0687G01 1 1 1 1 -

- 2A1448G01 1

2 CONTROL BOX COVER GS 3A0594-01 1 1 1 1 1

T2 SCREW 4X8 7P31-0408 3 3 3 3 3

3 SQUARE WASHER BRASS 433537-02 1 1 1 1 1

4 SCREW - GROUNDING BRASS 433304-02 1 1 1 1 1

5 JUNCTION BOX COVER GS 433410-01 1 1 1 1 1

T2 SCREW 4X8 7P31-0408 1 1 1 1 1

6 BULB HOLDER PE 328919-01 1 1 1 -

7 SPACER PE 443545-01 1 1 1 1 1

8 THUMBSCREW SS, ABS 415949G03 2 2 2 2 2

9 BIN CONTROL COVER GS 3A0664G01 1 1 1 1 1

MODEL: KML-400MAE TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION MATERIAL OR

MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER G-0

H-0

H-1 H-2 H-3

J02385M-

J02784B

J02785C-

10 CAPILLARY RING EP RUBBER 425307-01 1 1 1 1 1

11 TOP INSULATION PP 215730G01 1 1 1 1 1

12 FRONT INSULATION PP 2A0664G01 1 1 1 1 1

13 SIDE PANEL (R) SS 2A0649G01 1 1 1 1 -

SS 2A1456G01 1

T2 SCREW 4X8, SS 7P32-0408 1 1 1

14 COVER - MANUAL FILL ABS, POLYOLEFIN 4A1015G01 1 1 1 1 -

TRUSS HEAD SCREW 4X12, SS 7C32-0412 3 3 3 3 -

15 LOUVER (B) ABS 103121-05 1 1 1 1 1

16 TAPPING SCREW (BLACK) STEEL, 4X8 433954-01 2 2 2 2 2

17 AIR FILTER (B) ABS 208283G03 1 1 1 1 1

18 BUSHING SR-30-1 420472-03 1 1 1 1 1

19 WIRE SADDLE VWS4238-C 4A0338-02 2 2 2 2 2

20 THUMBSCREW SS, ABS 415949G04 2 2 2 2 2

21 LOUVER (C) ABS 103122-03 1 1 1 1 1

22 AIR FILTER (C) ABS 208284G01 1 1 1 1 1

23 GASKET L=655 4A0808L02 2 2 2 2 2

24 GASKET L=190 4A0808L02 1 1 1 1 1

25 THERMOSTAT EXTENSION BRACKET - 4A1722-01 1 1

KML-400MWE A. ICE CUBER ASSEMBLY G-0, H-1, H-2, H-3
