Hoshizaki KM-150BAF-E Manual de usuario

PARTS LIST

SELF-CONTAINED CRESCENT CUBER

89/336

73/23

HOSHIZAKI

NUMBER: 71179

ISSUED: FEB. 29, 2000

KM-150BAF-E

KM-150BWF-E

REVISED: MARCH 7,2000

Auxiliary Codes

KM-150BAF-E J-0 FEB. 1999

KM-150BWF-E K-0 MARCH 2000

IMPORTANT

IEC standards require that the clamping means of earthing terminals be

adequately secured against accidental loosening and that accessible metal parts

of the icemaker which may become live in the event of an insulation fault be

permanently and reliably connected to an earthing terminal within the icemaker or

to the earthing contact of the icemaker inlet.

This is accomplished in this icemaker through the use of stainless steel toothed

washers, Hoshizaki Part # 7R22-0400.

MATERIAL ABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide =Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate = Tetlon

PP = Polypropylene

PS = Polystyrene

PTFE = Polytetrafluoroethylene = Teflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = VinylNitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanizedsteel

SS = Stainless steel

PS = Plated steel

PAS = Primedsteel

AUXILIARYCODE

Ex.1 K-0Parts are the same as in the preceding (Note) - = Part deleted.

year. x = Part deleted and replaced

"K" is the tenth in alphabetical order with "I" by "o" part.

skipped. So, "K" indicates "2000". o = New part for "x"

Ex.2 A-1 in the same auxiliary code.

"A" is the first in alphabetical

order. So, "A" indicates "2001".

Ex.3 A-2Each time a part is changed (non-interchangeably)

in a year, this number advances.

KM-150BAF-E A.ICE CUBER ASSEMBLY J-0

MODEL: KM-150BAF-E TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO. DESCRIPTION MATERIAL OR

MODEL PART

NUMBER REQUIRED NUMBER

NUMBER J-0

B REFRIGERATION CIRCUIT - 1A0404A01 1

C WATER CIRCUIT - 108446A02 1

D CONT. BOX ASSEMBLY (A) - 338868A03 1

D1 T2 SCREW 4X8 7P31-0408 1

E CONT. BOX ASSEMBLY (B) - 226318A02 1

E1 T2 SCREW 4X8 7P31-0408 2

F TRANSFORMER BOX ASSEMBLY - 3A1243A01 1

F1 TRUSS HEAD SCREW 4X8, SS 7C32-0408 4

G LABEL LOCATION - 3A1255A01 1

1 BASE - 108448G02 1

2 LEG AE62-99124 4A1181-01 4

3 PANEL REAR - 226469G02 1

3a TRUSS HEAD SCREW 4X25, SS 7C32-0425 5

4 GASKET L=1260 4A0753L01 1

5 BODY-INSULATION - 108444G01 1

5a T2 SCREW 4X8, SS 7P32-0408 4

6 STOPPER GS 452825-01 1

6a T2 SCREW 4X8, SS 7P32-0408 1

7 CAPILLARY RING EPDM 425307-01 2

8 CLAMP WS50-25-C 4A0337-07 2

9 CLAMP WS75-25-C 4A0337-10 2

10 REAR PANEL (B) GS 452641-01 1

10a T2 SCREW 4X8, SS 7P32-0408 4

11 REAR PANEL (A) GS 2A1436-01 1

11a T2 SCREW 4X8, SS 7P32-0408 6

12 POWER SUPPLY CORD - 452359-02 1

13 BUSHING CEE SR-6P30 450414-01 1

13a TRUSS HEAD SCREW 4X8, SS 7C32-0408 1

13b HEX NUT 4, SS 7N12-0400 1

14 FRONT COVER (B) PS 338861-01 1

MODEL: KM-150BAF-E TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO. DESCRIPTION MATERIAL OR

MODEL PART

NUMBER REQUIRED NUMBER

NUMBER J-0

14a T2 SCREW 4X8, SS 7P32-0408 3

15 FRONT PANEL GS 226307-01 1

15a TRUSS HEAD SCREW 4X8, SS 7C32-0408 2

16 LOUVER - 103344-08 2

17 TAPPING SCREW (BLACK) - 433954-01 2

18 AIR FILTER (A) ABS 208840G03 1

19 CUSHION SJ-5027 4A1178-01 2

20 INSULATION (D) PE FOAM 452649-01 2

21 INSULATION (A) PE FOAM 452694-01 1

22 INSULATION-TOP PS 338859G01 1

23 SUPPORT-TOP PANEL SS 453877-01 1

23a FLAT HEAD SCREW 4X12, SS 7C22-0412 2

24 DOOR PE 226305G01 1

25 COLLAR AC 431496-01 2

26 FRONT COVER (L) SS 339026-01 1

27 HINGE (L) SS 452824G01 1

27a TRUSS HEAD SCREW 4X16, SS 7C32-0416 3

28 FRONT COVER (R) SS 338860-01 1

29 HINGE (R) SS 452640G01 1

29a TRUSS HEAD SCREW 4X16, SS 7C32-0416 3

30 TOP PANEL SS 108449-01 1

30a TRUSS HEAD SCREW 4X8, SS 7C32-0408 2

31 T2 SCREW 4X8, SS 7P32-0408 1

32 WASHER 8, SS 7W22-0800 2

KM-150BWF-E A.ICE CUBER ASSEMBLY K-0

MODEL: KM-150BWF-E TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO. DESCRIPTION MATERIAL OR

MODEL PART

NUMBER REQUIRED NUMBER

NUMBER K-0

B REFRIGERATION CIRCUIT - 1A0405A01 1

C WATER CIRCUIT - 108446A02 1

D CONT. BOX ASSEMBLY (A) - 338868A03 1

D1 T2 SCREW 4X8 7P31-0408 1

E CONT. BOX ASSEMBLY (B) - 226318A02 1

E1 T2 SCREW 4X8 7P31-0408 2

F TRANSFORMER BOX ASSEMBLY - 3A1243A01 1

F1 TRUSS HEAD SCREW 4X8, SS 7C32-0408 4

G LABEL LOCATION - 3A1256A01 1

1 BASE - 108448G02 1

2 LEG AE62-99124 4A1181-01 4

3 PANEL REAR - 226469G02 1

3a TRUSS HEAD SCREW 4X25, SS 7C32-0425 5

4 GASKET L=1260 4A0753L01 1

5 BODY-INSULATION - 1A0312G01 1

5a T2 SCREW 4X8, SS 7P32-0408 4

6 STOPPER GS 452825-01 1

6a T2 SCREW 4X8, SS 7P32-0408 1

7 CAPILLARY RING EPDM 425307-01 2

8 CLAMP WS50-25-C 4A0337-07 2

9 CLAMP WS75-25-C 4A0337-10 2

10 REAR PANEL (B) GS 452641-01 1

10a T2 SCREW 4X8, SS 7P32-0408 4

11 REAR PANEL (A) GS 226306-01 1

11a T2 SCREW 4X8, SS 7P32-0408 6

12 POWER SUPPLY CORD - 4A1773-02 1

13 BUSHING CEE SR-6P30 450414-01 1

13a TRUSS HEAD SCREW 4X8, SS 7C32-0408 1

13b HEX NUT 4, SS 7N12-0400 1

14 FRONT COVER (B) PS 338861-01 1

MODEL: KM-150BWF-E TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO. DESCRIPTION MATERIAL OR

MODEL PART

NUMBER REQUIRED NUMBER

NUMBER K-0

14a T2 SCREW 4X8, SS 7P23-0408 3

15 FRONT PANEL GS 226783-01 1

15a TRUSS HEAD SCREW 4X8, SS 7C32-0408 2

16 LOUVER - 103344-08 2

17 TAPPING SCREW (BLACK) - 433954-01 2

18 REAR PANEL (C) GS 4A1667-01 1

18a T2 SCREW 4X8, SS 7P32-0408 2

19 CUSHION SJ-5027 4A1178-01 2

20 INSULATION-TOP PS 338859G01 1

21 SUPPORT-TOP PANEL SS 453877-01 1

21a FLAT HEAD SCREW 4X12, SS 7C22-0412 2

22 DOOR PE 226305G01 1

23 COLLAR AC 431496-01 2

24 FRONT COVER (L) SS 339026-01 1

25 HINGE (L) SS 452824G01 1

25a TRUSS HEAD SCREW 4X16, SS 7C32-0416 3

26 FRONT COVER (R) SS 338860-01 1

27 HINGE (R) SS 452640G01 1

27a TRUSS HEAD SCREW 4X16, SS 7C32-0416 3

28 TOP PANEL SS 108449-01 1

28a TRUSS HEAD SCREW 4X8, SS 7C32-0408 2

29 T2 SCREW 4X8, SS 7P32-0408 1

30 WASHER 8, SS 7W220800 2

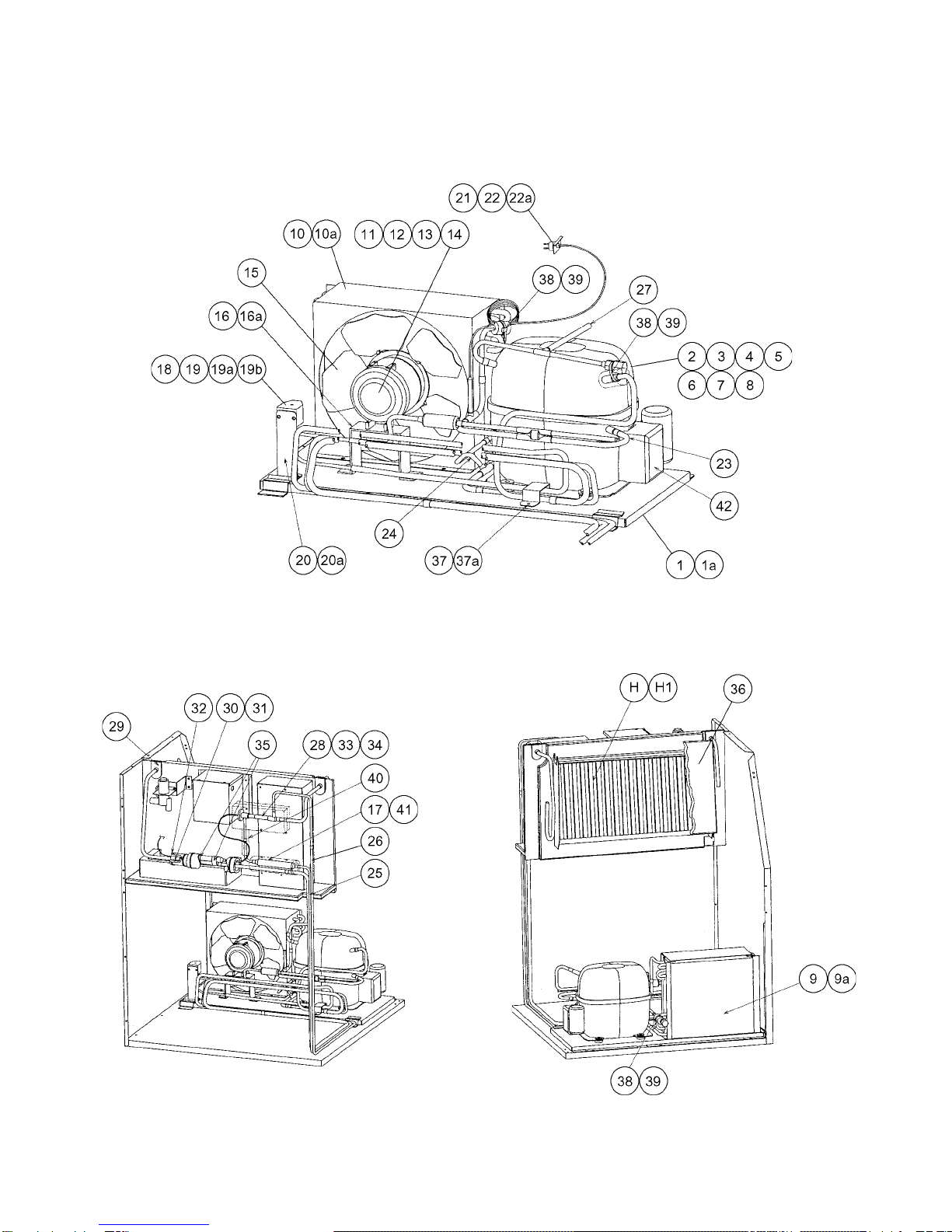

KM-150BAF-E B. REFRIGERATION CIRCUIT J-0
