EN The manufacturer declines all responsability in the event of any

printing mistakes in this booklet. The manufacturer also reser-

ves the right to make appropriate modifications to its products

without changing the essential characteristics.

T 185 E/1

T 205 E/1

T 225 E/1

T 120 E

04-02

46 000 259

User instructions

EN RU

2 3

Please read this booklet

carefully as it provides

important guidelines for safe

installation, use and

maintenance and some useful

advise for best results when

using your washing machine.

Keep this booklet in a safe

place for further consultation.

When contacting HOOVER or

a Customer Services Centre

always refer to the Model, No.,

and G number (if applicable) of

the appliance (see panel).

..................... 3 .......................

..................... 4 .......................

..................... 5 .......................

..................... 6 .......................

..................... 8 .......................

..................... 9 .......................

.................... 12 ......................

.................... 16 ......................

.................... 18 ......................

.................... 19 ......................

.................... 21 ......................

.................... 22 ......................

.................... 26 ......................

.................... 29 ......................

.................... 30 ......................

.................... 31 ......................

INDEX

Introduction

General points on delivery

Guarantee

Safety Measures

Technical Data

Setting up and Installation

Control Description

Opening the lid

Detergent dispenser

Selection

The Product

Ta b le of Programmes

Washing

Cleaning and routine

maintenance

Cleaning the filter

Faults Search

EN RU

GENERAL

POINT ON

DELIVERY

On delivery, check that the

following are included with the

machine:

A)INSTRUCTION MANUAL

B) CUSTOMER SERVICE

ADDRESES

C) CAPS

KEEP THEM IN A

SAFE PLACE

also check that the machine

has not incurred damage during

transport. If this is the case,

contact your nearest HOOVER

Centre.

SAFETY AQUASTOP

(Mod. T 185 E/1 - T 205 E/1 -

T 225 /1)

This appliance is fitted with a

safety system (aquastop), which

ensures maximum freedom from

anxiety for users. A water leak

detector sensor located along the

inlet pipe and the devoce fitted

to the tap, automatically block the

flow of water in the case of acci-

dental leaks. Even without

electricity supply.

4 5

GUARANTEE

The appliance is supplied with a

guarantee certificate which allows

free use of the Technical

Assistance Service for a period of

one year from the date of

purchase.

Remember to post part Bof the

guarantee certificate within 10

days of the purchase date.

Part Ashould be filled in and kept

by you to be shown if necessary

to the technician from the

Technical Assistance Service. The

sales receipt should also be kept.

EN RU

6 7

SAFETY

MEASURES

IMPORTANT:

FOR ALL CLEANING

AND MAINTENANCE

WORK

•Remove the plug

•Turn off the water inlet tap.

•HOOVER fits all its machines

with an earth conncetion.

Ensure that the electrical

installation has an earth

connection and that it is

connected; if not call for service.

The earth connection is

essential for user safety, as it

eliminates the risk of electrical

discharge.

The manufacturer cannot

accept any responsibility

for any damage or injury

due to connection

problems or faults, a

defective earth connection

or for not having

connected it.

•Do not touch the appliance

with wet or damp hands or feet.

•Do not use the appliance when

bare-footed.

•Extreme care should be taken

if extension leads are used in

bathrooms or shower rooms.

Avoid this where possible.

WARNING: DURING THE

WASHING CYCLE, THE

WATER CAN REACH A

TEMPERATURE OF 90

•Do not use adaptors or

multiple plugs.

•Do not allow the appliance to

be used by children without due

supervision.

•Do not pull the mains lead or

the appliance itself to remove

the plug from the socket.

•Do not leave the appliance

exposed to atmospheric agents

(rain, sun etc.)

Important!

Do not install the washing

machine on a surface which

blocks the space be ween the

floor and the base of the

appliance, like for example,

carpets, rugs, etc., as this could

cause overheating due to lack

of ventilation.

•Lift the appliance in pairs as

illustrated in the diagram.

•In the case of failure

and/or bad functioning, turn the

washing machine off, close the

water inlet tap and do not

tamper with the appliance.

Contact a HOOVER Technical

Assistance Centre for any

eventual repairs and ask for

original HOOVER spare parts.

Avoidance of these points may

compromise the safety of the

appliance.

EN RU

DRY LOAD CAPACITY

NORMAL WATER LEVEL

WASH MOTOR POWER

SPIN MOTOR POWER

ELECTROPUMP POWER

POWER RESISTANCE

MAX ABSORBED POWER

ENERGY CONSUMPTION

(PROG.60º C)

POWER CURRENT FUSE

AMPERE

SPIN

r.p.m.

WATER SUPPLY PRESSURE

kWh

giri/

min.

Mpa

8 9

T 185 E/1 T 205 E/1 T 225 E/1

4,5

125

340

1950

2200

0,85

1200

0,05 min.

0,8 max.

T 185 E/1

T 205 E/1

T 225 E/1

T 120 E

4,5

175

300

1950

2200

0,85

850

0,05 min.

0,8 max.

4,5

125

340

1950

2200

0,85

1200

0,05 min.

0,8 max.

TECHNICAL DATA SETTING UP

INSTALLATION

Remove the 4 screws (A) from

the clamp and the other 4

screws (B).

Replace the 4 screws (A) and fit

the trims provided (D).

WARNING:

DO NOT LEAVE THE

PACKAGING IN THE

REACH OF CHILDREN AS

IT IS A POTENTIAL

SOURCE OF DANGER.

4,5

175

400

1950

2200

0,85

1000

0,05 min.

0,8 max.

EN RU

10 11

Connect one end of the water

inlet pipe to the electrovalve

(top back part of the machine)

and the other to a tap or a

permanently plumbed-in

3/4” threaded connection.

IMPORTANT:

DO NOT TURN THE TAP

ON.

(Mod. T 185 E/1 - T 205 E/1 -

T 225 /1)

To move the washing machine

easily, turn the lever to the right.

Once you have finished moving

the machine, return the lever to

its original position.

Position the washing machine

next to the wall. Hook the outlet

pipe to the edge of the bath tub,

paying attention that there are

no bends along the tube.

It is better to connect the outlet

tube to a fixed outlet of a

diameter greater than that of

the outlet pipe and at a height

of min. 50 cm. If necessary use

the rigid bend supplied.

•

Use the front feet to level

the machine

a) Tu rn the nut clockwise to

release the screw adjuster for

the foot.

b) Rotate the foot to raise or

lower it until it stands firmly on

the ground.

c) Lock the foot in position by

turning the nut anticlockwise

until it comes up against the

bottom of the machine.

Check that the appliance is

properly levelled. To do so, try

and move the washing

machine by pushing on two

diagonally opposite top

corners at the same time to

see if it rocks.

If you move your washing

machine from oplace to

another, level the feet again.

Important!

If your washing machine is not

properly levelled, it will not

work properly. There could be

a lot of noise and unusual

vibrations.

Ensure that the machine is

switched off.

Ensure that all controls are set

to “0” and that the lid is shut.

When you close the door you

will hear a “click” confirming

that it is properly closed.

Insert the plug.

Press the On/Off button. The

power on light will light up. If

this does not light up see the

faults search section of this

booklet.

EN RU

.................... A.................

.................... B .................

.................... C ................

.................... D .................

.....................E .................

..................... F .................

.................... G ................

.................... H .................

..................... L .................

.................... M ................

.................... N.................

.................... O ................

.................... P .................

12 13

CONTROLS

Timer knob for wash

programmes

Washing cycle temperature

control knob

Spin speed control

Anticreasing button

Extra-rinse button

Extra-delicate button

ON/OFF Indicator light

ON/OFF Button

Lid

Syphons

Drum opening button

Drum

Detergent gate

T 185 E/1

T 205 E/1

T 225 E/1

T 120 E

CONTROL

DESCRIPTION

•

PROGRAM

TIMER CONTROL FOR WASH

PROGRAMMES

IMPORTANT:

ALWAYS ROTATE THE

CONTROL IN A

CLOCKWISE DIRECTION,

NEVER IN AN ANTI-

CLOCKWISE DIRECTION.

DO NOT PRESSTHE “ON”

BUTTON (H) BEFORE

SELECTING THE

PROGRAMME

The tables describe the

washing programme on the

basis of the number or symbol

chosen.

WASHING CYCLE

TEMPERATURE CONTROL

KNOB

ROTATES IN BOTH

DIRECTIONS

This washing machine is fitted

with this device to select the

wash temperature required.

WARNING :

THE TEMPERATURE

SELECTED WITH THE

SELECTOR MUST NEVER

BE HIGHER THAN THAT

INDICATED IN THE WASH

PROGRAMME TABLE.

EN RU

EXTRA RINSE BUTTON

By pressing the “EXTRA

RINSE” button, even the

slightest residue of detergent is

removed from fabrics. This is

particularly important for people

with delicate skins.

EXTRA-DELICATE BUTTON

Press this button to reduce the

number of drum revolutions

from 55 to 40 revolutions per

minute.

This gives an extra-delicate

wash, which is especially

recommended for wool and

very delicate fabrics. It is also

recommended for mixed

fabrics, articles which are not

very dirty and for fabrics which

do not need to be ironed.

ON/OFF INDICATOR LIGHT

ON/OFF BUTTON

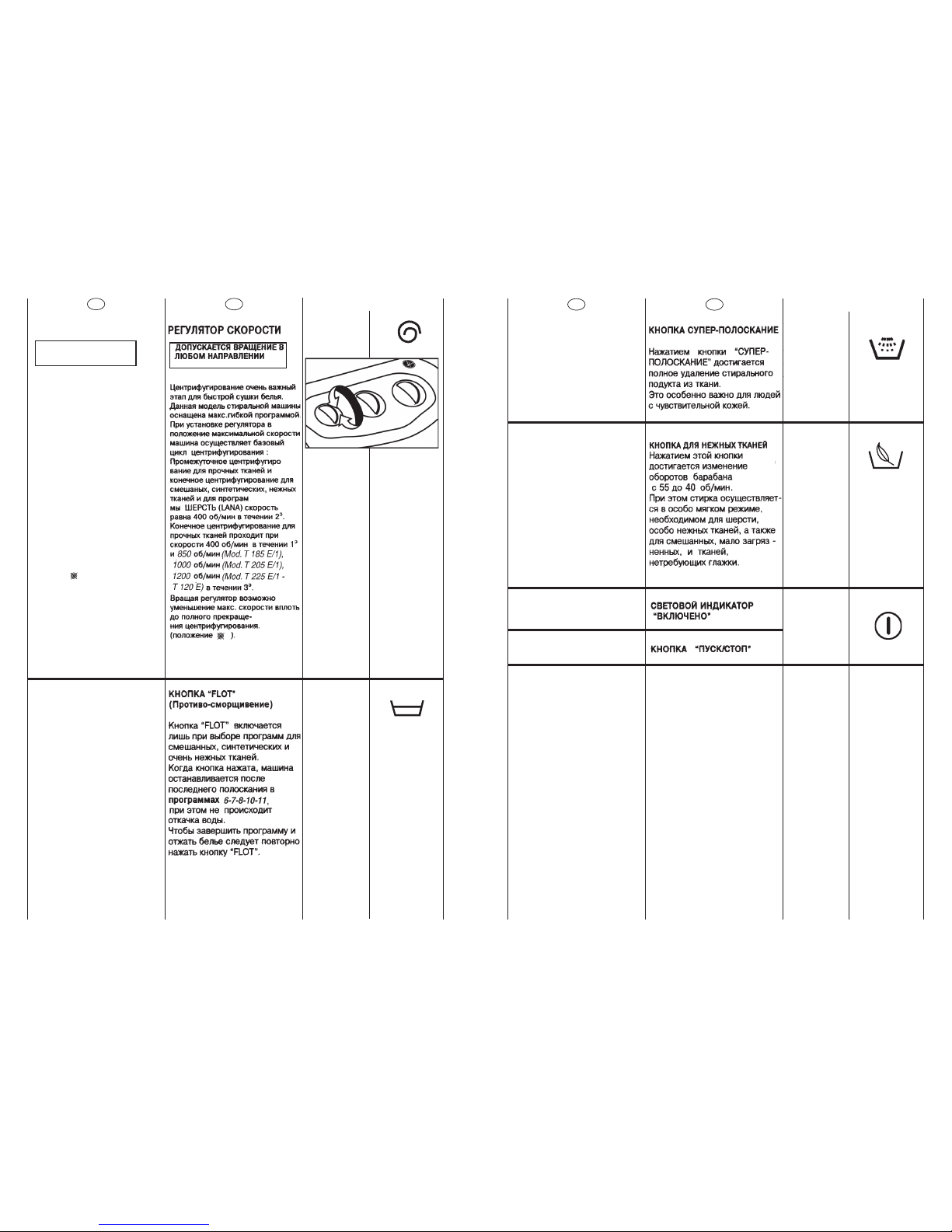

SPIN SPEED CONTROL

ROTATES IN BOTH

DIRECTIONS

The spin cycle is very important

to remove as much water as

possible from the laundry

without damaging the fabrics.

You can adjust the spin speed

of the machine to suit your

needs.

The final spin for strong fabrics

at 400 rpm lasts 1´; at 850 rpm.

(Mod. T 185 E/1), 1000 rpm.

(Mod. T 205 E/1), 1200 rpm.

(Mod. T 225 E/1 - T 120 E) lasts

3´.

By adjusting the control, it is

possible to reduce the

maximum speed, completely

eliminating the spin

(position ) if required.

FLOT BUTTON

This function is recommended

for synthetics or delicates. If this

button is not pressed your

machine will drain normally.

When the button is pressed the

machine will stop full of water at

the end of last rinse. (Program

6-7-8-10-11). To finish the

programme with the spin cycle,

press the button again to

release it.

14 15

•

EN RU

16 17

FRONT OF THE

WASHING

MACHINE

FRONT OF THE

WASHING

MACHINE

FRONT OF THE

WASHING

MACHINE

WASHING

MACHINE LID

Ensure that both shutters are

perfectly aligned and properly

closed.

IMPORTANT: IT IS

IMPORTANT TO MAKE

SURE THAT THE DRUM IS

CAREFULLY CLOSED

BEFORE OPERATING THE

MACHINE, OTHERWISE

THE MACHINE OR

LAUNDRY COULD GET

DAMAGED.

IMPORTANT: A SPECIAL

SAFETY DEVICE

PREVENTSTHE LID FROM

BEING OPENED

IMMEDIATELY AFTER THE

WASH HAS FINISHED.

ONCE THE SPIN CYCLE

HAS FINISHED, WAIT FOR

2 MINUTES BEFORE

TRYING TO OPENTHE LID.

OPENING THE

DRUM

Lift the lid (A) and open

completely. Next open the drum

door following these instructions:

Press catch (B) and kept it

pressed down.

Press the first shutter (C) to

unlock the two shutters (C) and

(D).

Open the second shutter (D).

Open the first shutter (C).

Place the washing in the drum.

Close the first shutter (C).

Close the second shutter (D)

so that the catch on the first

shutter fits correctly into the

slot. Release.

2 min.

FRONT OF THE

WASHING

MACHINE

EN RU

DETERGENT

DISPENSER

The detergent dispenser is

divided into 4 compartments:

-COMPARTMENT I is for

prewash detergent, either

liquid or powder.

-COMPARTMENT II is for wash

detergent.

1For POWDERED

DETERGENT, the blue gate

should be in the top

position. To do this, pull the

gate up.

2For LIQUID DETERGENT,

the blue gate should be in the

bottom position. To do this,

push the gate right down.

* Before doing this, check

that there is no water

remaining from the previous

wash. If there is, drain the

water by lifting the gate.

CAUTION:

REMEMBER THAT SOME

DETERGENTS DO NOT

GET TAKEN AWAY EASILY

BY THE WATER. IN THIS

CASE, IT IS BEST TO PUT

A "WASH BALL"

STRAIGHT IN THE DRUM.

-The compartment is for

bleach.

-The compartment is for

special additives, fabric

conditioners, scenting agents,

starch, bluing agents, etc.

18 19

SELECTION

For the various types of fabrics

and various degrees of dirt the

washing machine has 3

different programme bands

according to: wash cycle,

temperature and length of cycle

(see table of washing cycle

programmes).

1 Strong Fabrics

The programmes have been

designed for a maximum wash

and rinses, with spin intervals,

ensure perfect rinsing. The

gradual reduction of the water

temperature ensures less

creasing of fabrics.

2 Mixed and Synthetic

Fabrics

Pre-wash and main wash give

best results thanks to the

rotation rhythms of the drum;

the rinses with high water levels

ensure delicate treatment and

best results.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Arandela de Hoover

Hoover

Hoover HNF 9167 Manual de usuario

Hoover

Hoover HWED4 37AMBS/1-S Manual de usuario

Hoover

Hoover Auto-Washer 1100 AC170 Manual de usuario

Hoover

Hoover HNT6414 Manual

Hoover

Hoover WA 115 Manual de usuario

Hoover

Hoover HWE 410AMBS/1-S Manual de usuario

Hoover

Hoover HWDP610AMBC/1-S Manual de usuario

Hoover

Hoover AC154 Manual de usuario

Hoover

Hoover VISION HD ZD Manual de usuario

Hoover

Hoover ASM 160 Manual de usuario

Hoover

Hoover HOOVER AL 86 Manual de usuario

Hoover

Hoover Dyn P Manual de usuario

Hoover

Hoover AS116 Manual de usuario

Hoover

Hoover HC6 145M Manual de usuario

Hoover

Hoover Six. Express 1300 WDM130 Manual de usuario

Hoover

Hoover WDYN 10743D Manual de usuario

Hoover

Hoover DYN33 D Manual de usuario

Hoover

Hoover H-WASH 500 HW 48AMC/1-S Manual de usuario

Hoover

Hoover DXA 175AH/1-AUS Manual de usuario

Hoover

Hoover DXA 47/1-AUS Manual de usuario

Hoover

Hoover WDWFT4138AH Manual de usuario

Hoover

Hoover H9A3TCEX-S Manual de usuario

Hoover

Hoover AM 1243 S Manual de usuario

Hoover

Hoover SIX.Handwash 1200 AL120 Manual de usuario

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Electrolux

Electrolux EWF1284EDW Manual de usuario

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Whirlpool

Whirlpool 3LBR5132AN0 Manual de usuario
