Hoover HHIP680X Manual de usuario

Model no.: HHIP680X

ENGLISH INSTALLATION AND USER’S MANUAL

CONTENT

INTRODUCTION..........................................................................3

SAFETYPRECAUTION............................................................3-4

PREPARE FOR INSTALLATION................................................5

SPECIFICATIONS......................................................................6

INSTALLATION......................................... ................ .............6-9

OPERATION..............................................................................10

MAINTENANCE.........................................................................11

TROUBLESHOOTING...............................................................12

ENVIRONMENTALPROTECTION.............................................12

INTRODUCTION

Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required

Instructions related to the installation, use and maintenance of the

appliance.

In order to operate the unit correctly and safety, please read this instruction

manual carefully before installation and usage.

The cooker hood use high quality materials, and is made with a

streamlined design. Equipped with large power electric motor and

centrifugal fan, it also provides strong suction power, low noise operation,

non-stick grease filter and easy assembly installation.

SAFETY PRECAUTION



Never let the children operate the machine.



The cooker hood is for home use only, not

suitable for barbecue, roast shop and other

commercial purpose.



The cooker hood and its filter should be

clean regularly in order to keep in good

working condition.



Clean the cooker hood according to the

instruction manual and keep the unit from

danger of burning. There is a fire risk if

cleaning is not carried out in accordance

with the instructions.



Forbid the direct baking from the gas

cooker.



Please keep the kitchen room a good

convection.



If the supply cord is damaged, it must be

replaced by the manufacturer, its service

agent similarly qualified persons in order to

avoid a hazard.



There shall be adequate ventilation of the

room when the range hoods used at the

same time as appliances burning gas or

other fuels;



he air must not be discharged into a flue

that is used for exhausting fumes from

appliances burning gas or other fuels;



Regulations concerning the discharge of air

have to be fulfilled.



This appliance can be used by children aged

from 8 years and above and persons with

reduced physical, sensory or mental

capabilities or lack of experience and

knowledge if they have been given

supervision or instruction concerning use of

the appliance in a safe way and understand

the hazards involved.



Children should be supervised to ensure that

they do not play with the appliance.



Cleaning and user maintenance shall not be

made by children without supervision.



Do not flame under the range hood.



CAUTION: Accessible parts may become

hot when used with cooking appliance.



The warning shall be in the same part of the

instructions that include details of how to

mount the equipment.

Electrical Shock Hazard



Only plug this unit into a properly earthed outlet. If

in doubt seek advice from a suitably qualified

engineer.



Failure to follow these instructions can result in

death, fire, or electrical shock.

Prepare for installation:

a. If you have an outlet to the outside, your cooker hood can be connected

as below picture by means of an extraction duct (enamel, aluminum,

flexible pipe or inflammable material with an interior diameter of 150mm)

b. Before installation, turn the unit off and unplug it from the outlet.

c. The cooker hood should be placed at a distance of 65~75cm above the

cooking plane for best effect.

Specifications

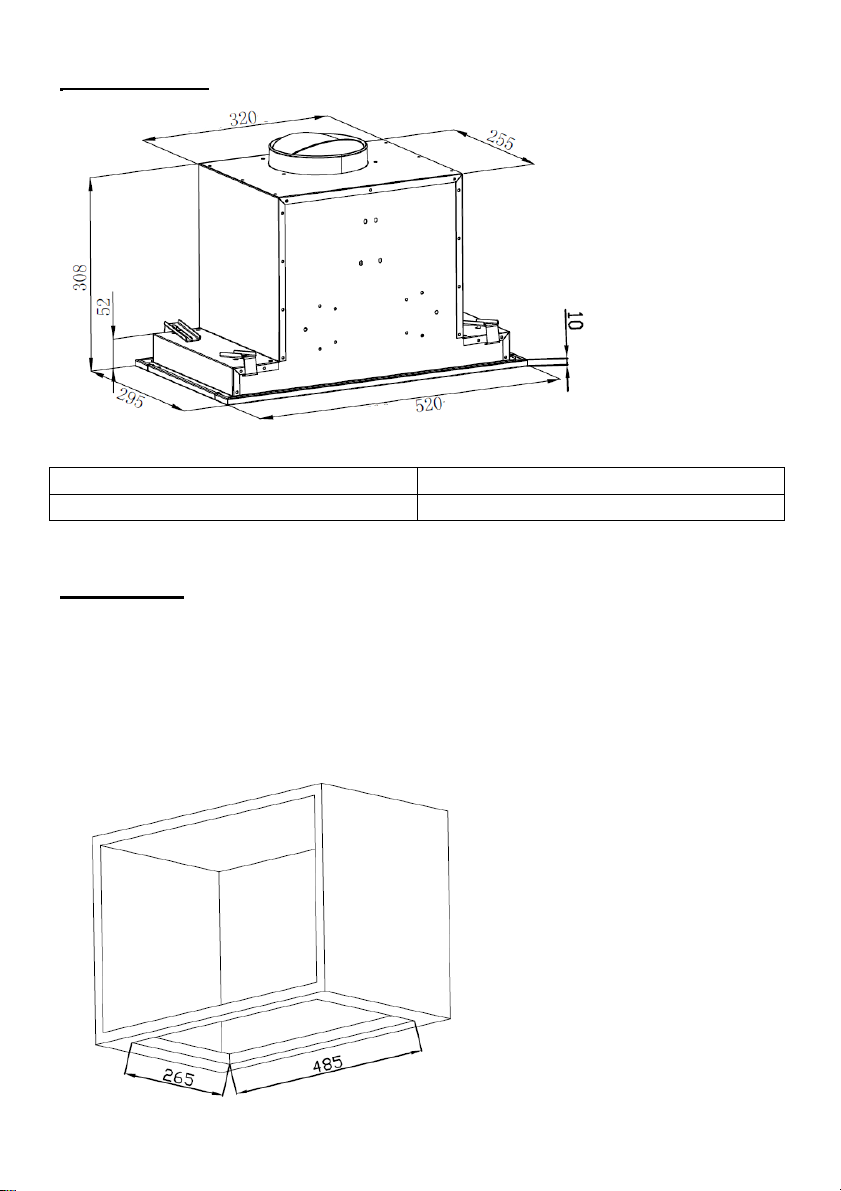

Model Product dimension(W,D,H mm)

HHIP680X 520mm x 295mm x 308mm

Installation

–The typical installation method for your range hood is into a purpose

built overhead/wall cabinet.

–Using a jigsaw, create the required cut-out for your range hood, as per

the following:

RHIP680X: 485 × 265mm

–Make sure the cut-out is at least 20mm from the cabinet edge.

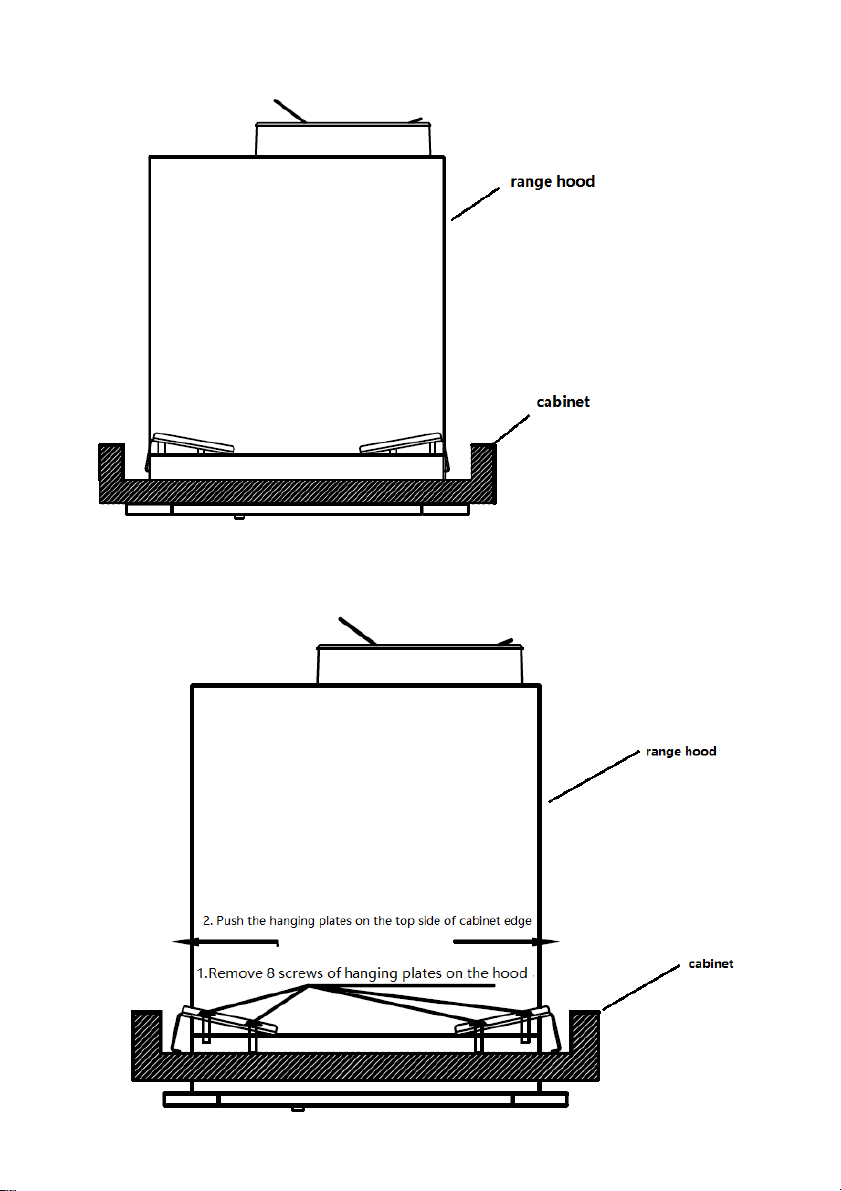

1. Insert the range hood to the cabinet

2. Remove 8 screws of 4 hanging plates on the range hood, push the

4 hanging plates on the top side of cabinet edge.

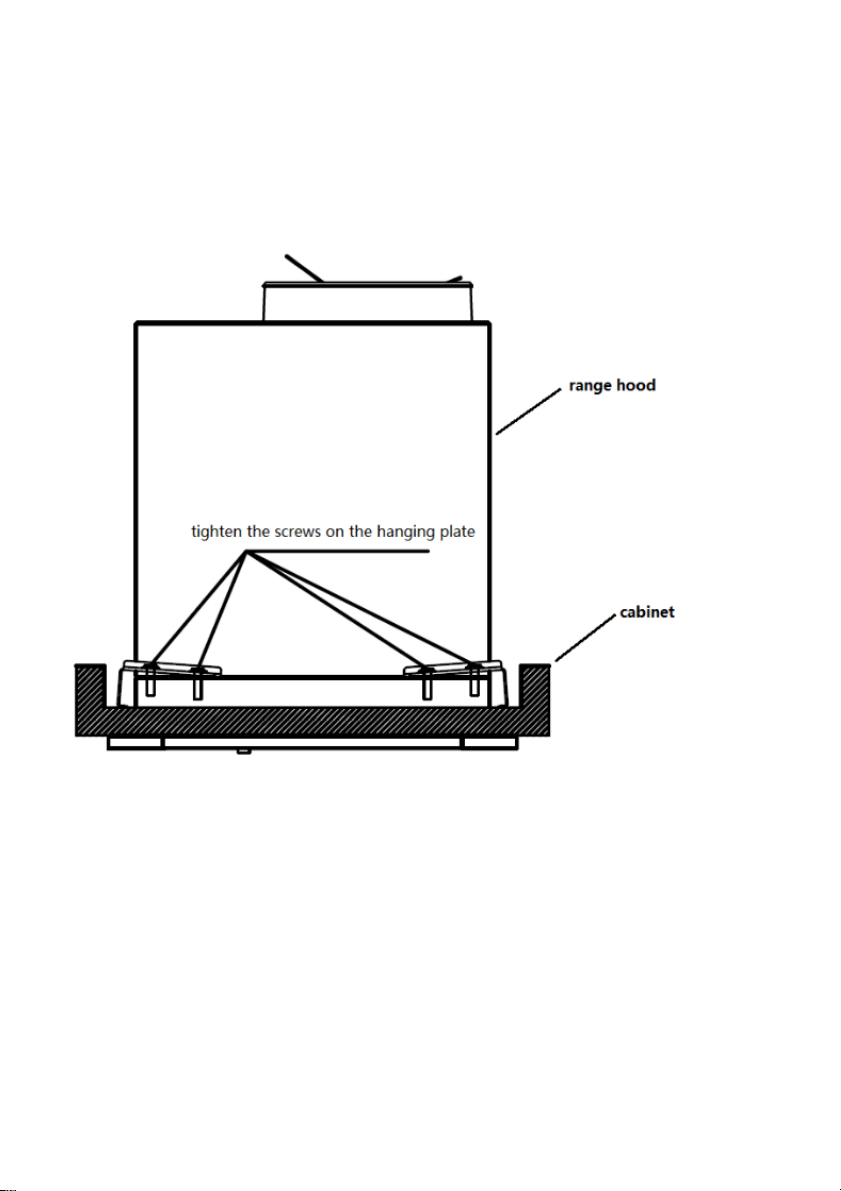

3. Screw 4 hanging plates onto the range hood using 8

screws( previously removed on step 2).

Note: Make sure the screws MUST be securely tightened.

Activated carbon filter can be used to trap odors.

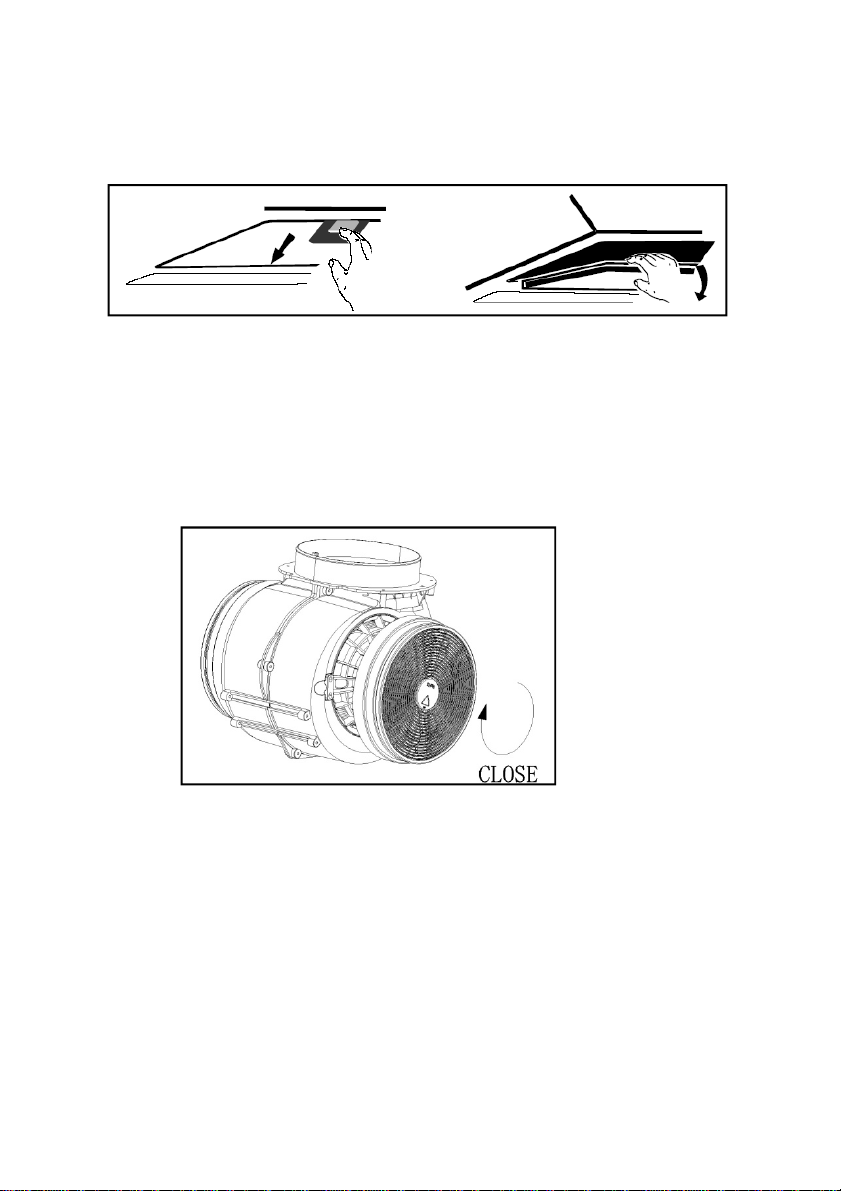

In order to install the activated carbon filter, the grease filter should be

detached first. Press the lock and pull it downward.

Plug the activated carbon filter into the unit and turn it in clockwise direction.

Repeat the same on the other side.

NOTE:

oMake sure the filter is securelylocked. Otherwise, it would

loosen and cause dangerous.

oWhen activated carbon filter attached, the suction power will

be lower.

OPERATION

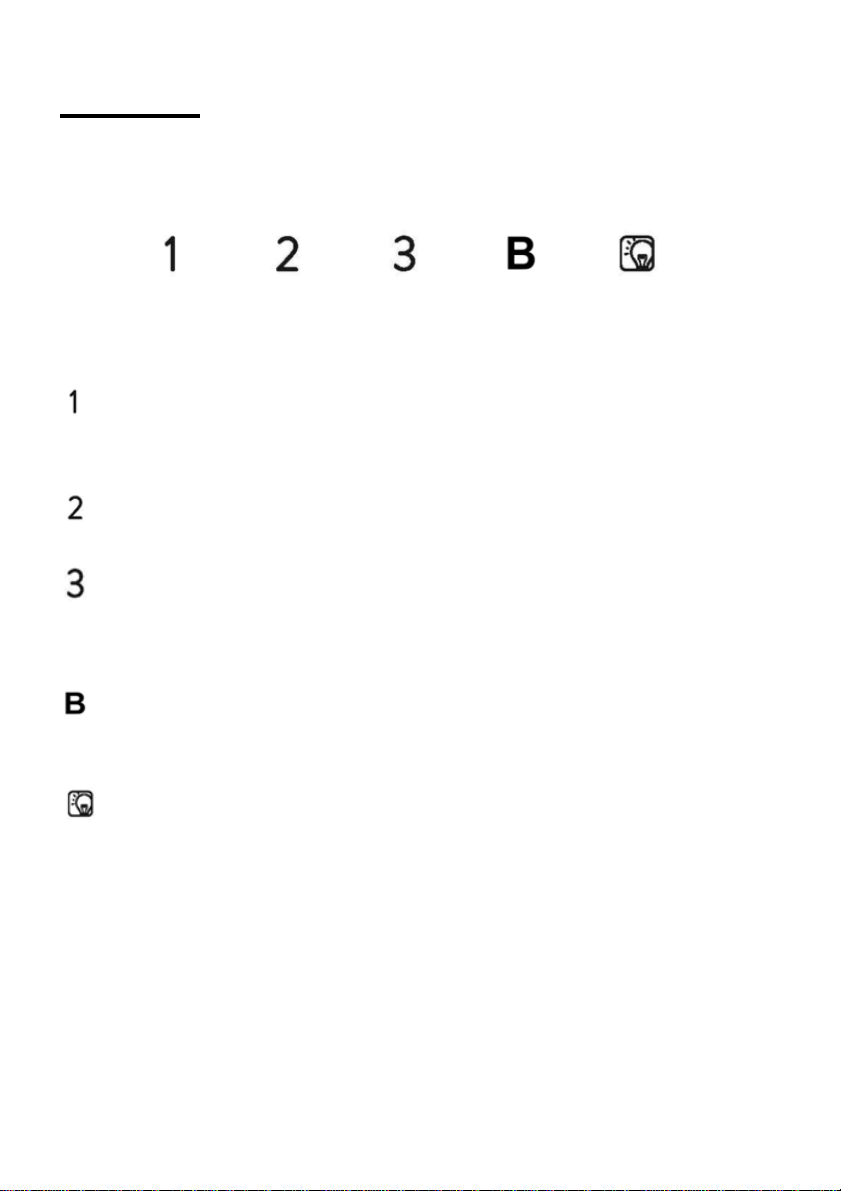

Electronic button

STANDBY MODE

After plug in, all lighting, system in STANDBY MODE.

Low Speed button

It’s used for Ventilation on the kitchen. It is suitable for simmering

and cooking which do not make much steam.

Medium Speed button

Airflow speed is ideally for ventilation in standard cooking operation.

High Speed button

When high density of smoke or steam produced, press high-speed

button for highest effective ventilation.

Booster button

Depress this button to enter into highest speed and it will increase

speed for 5 minutes, before slowing down again.

Light button

Short press for lamp control.
