Honeywell Farenhyt Series Manual de usuario

Farenhyt Series

FEATURES & BENEFITS

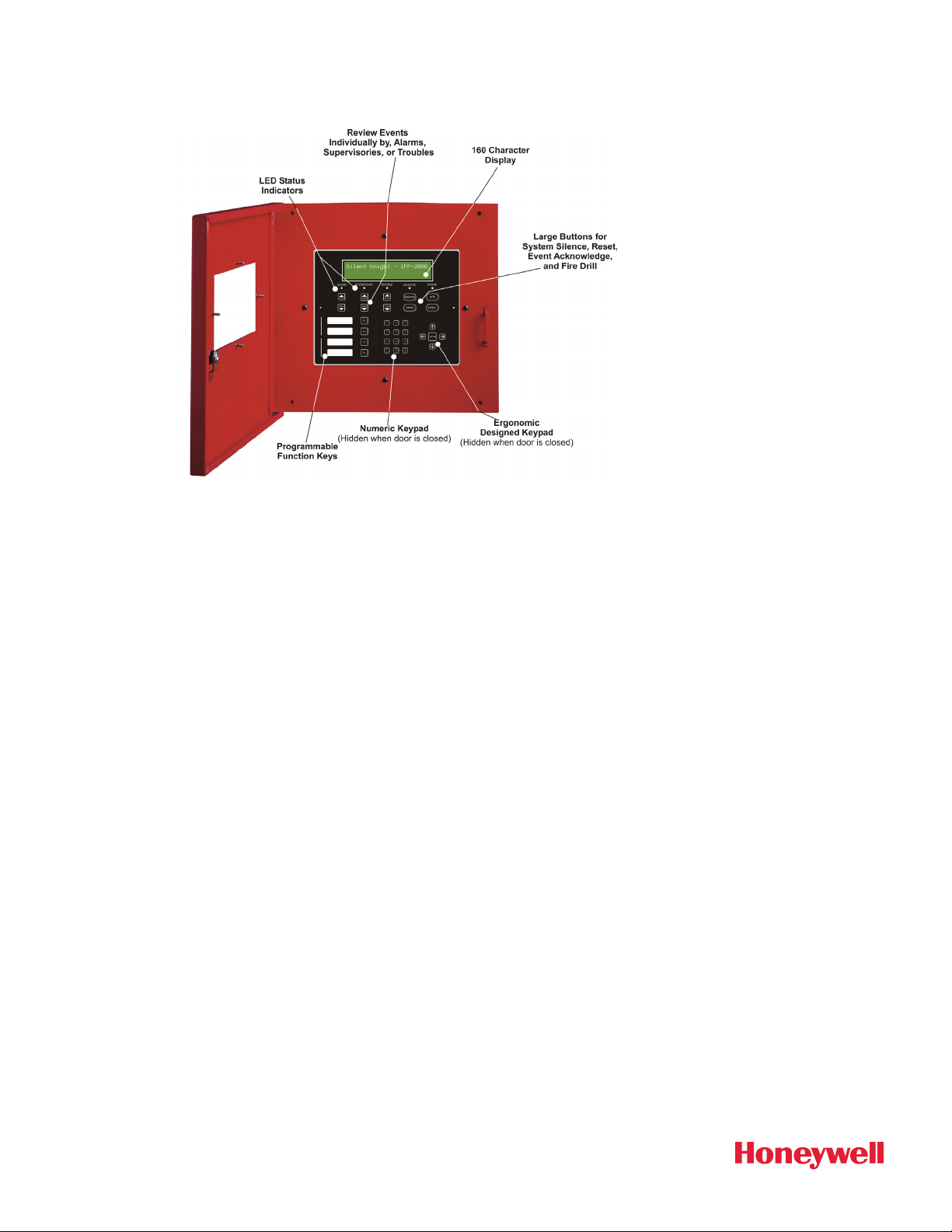

• Four line LCD display

with 40 characters per

line

• Tactile/audible

feedback when key is

pressed on

annunciator

• RS485 SBUS

interface to panel

• Initiate and end ﬁre

drills with a single key

press

• Can be ﬂush or

surface mounted. Trim

ring (P/N RA100TR or

RA2000GRAY TR)

available for surface

mounting

• Multi-panel displays

can display the status

and event history of all

the panels they are

assigned in a network

• Multi-panel

annunciators will

sound the highest

priority tone from the

panel it is assigned to

• View current status by

alarms, supervisories,

or troubles

• On-board piezo

sounder audibly

indicates alarms,

troubles, and

supervisories

• Five Status LEDs for;

alarms, supervisory,

trouble, silence and AC

power indications

• Four programmable

function keys

• Available in red or gray

color

• Wiring lengths up to

6000 ft. from the

control panel

• UL listed, complies

with NFPA 72

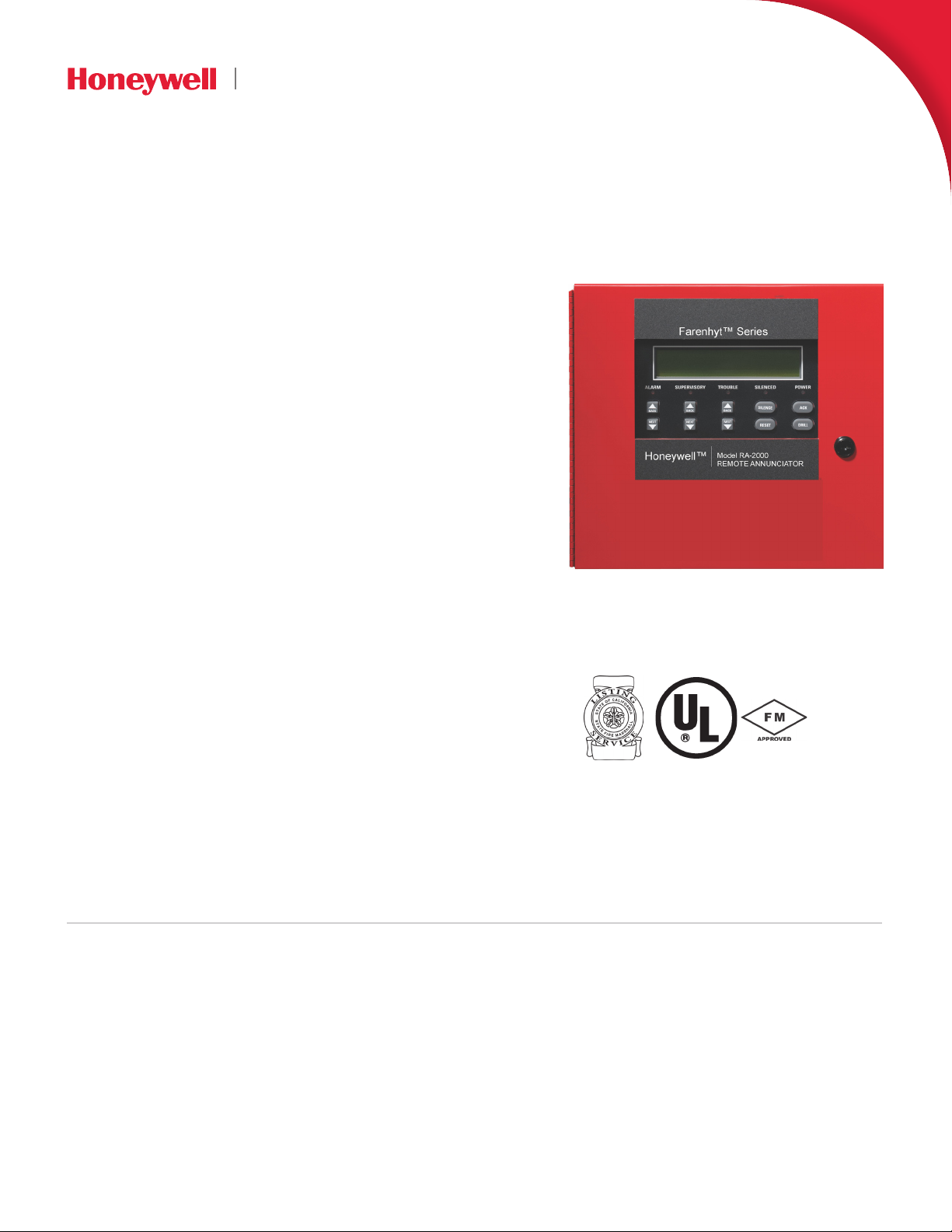

Remote Annunciator

RA2000 / RA2000GRAY

The RA2000 , 4x40, red remote annunciator can be used to operate and

program the Honeywell Farenhyt Series FACP's.

The remote annunciator connects to the control panel via the RS485

SBUS. When the system is in normal operation and has AC power, the

Power LED is lit and all other LEDs are off. The other LEDs turn on as

alarms, supervisories, troubles, and system silenced occur.

The RA2000 can be surface or ﬂush mounted and is also available in

gray color as RA2000GRAY.

Compatibility

The RA2000 is compatible with the following Farenhyt Seies FACP's:

• IFP2000/ECS

• IFP2100/ECS

• IFP75

• IFP300/ECS

• RPS2000

• RFP2100

• ECSLOC

• ECSLOC2100

Agency Listings

RA2000

City of

New York

Pending

For a complete listing of all

compliance approvals and

certiﬁcations, please visit

www.farenhyt.com.

For a complete listing of

all supported bar code

symbologies, please visit

www.farenhyt.com.

Microsoft, Windows, and

the Windows Logo are

registered trademarks

or trademarks of

Microsoft Corporation.

All other trademarks

are the property of their

respective owners.

This document is not

intended to be used for

installation purposes. We

try to keep our product

information up-to

date and accurate. We

cannot cover all speciﬁc

applications or anticipate

all requirements. All

speciﬁcations are subject

to change without notice.

For Technical

Support, Please call

8004466444.

RA2000 Technical Speciﬁcations

SPECIFICATIONS

Dimensions:

Flush Mount

Outside wall 12.25”W x 11.5”H x 7/8”D

(31.1W x 29.2H x 2.2D cm)

Inside wall 9-3/8”W x 8-3/8”H x 2”D

(23.8W x 21.3H x 5.1D cm)

Surface Mount

Including Trim Ring 12.25”W x 11.5”H x 3”D

(31.1W x 29.2H x 2.2D cm)

Environmental Operating Temperature: 32°F to 120°F

(0°C to 49°C)

Humidity: 0 to 93% relative humidity (non-

condensing)

ELECTRICAL:

Operating Voltage: 24 VDC

Standby Current: 25 mA

Alarm Current: 50 mA

ORDERING INFORMATION

RA2000 RED REMOTE ANNUNCIATOR

RA2000GRAY GRAY REMOTE ANNUNCIATOR

OPTIONAL ACCESSORIES

RA100TR RED SURFACE MOUNT TRIM RING

RA2000GRAYTR GRAY SURFACE MOUNT TRIM

RINGECS

Doc 350401 | Rev G | 04/17

For more information

www.farenhyt.com

Honeywell

12 Clintonville Road

Northford, CT 06472

8003280103

www.farenhyt.com
