Honeywell HF680 Manual de usuario

HF680 (Second Generation)/

HF680E

Hands-Free Area-Imaging Scanner

Quick Start Guide

HF680-2G-EN-QS-01 Rev C

2/23

Introduction

This quick start guide provides set up steps for the HF680

(Second Generation) and HF680E hands-free scanners.

Refer to your user guide for information about cleaning your

device.

About HF680 Second Generation Models

This guide is only intended for HF680 Second Generation use.

Before starting, verify the scanner’s part number includes “-R”

after HF680 (e.g., HF680-Rx-xxxxxx). The part number can be

found on the label on the bottom of your device.

Note: For earlier models of the HF680 scanner, refer to

HF680-EN-QS, available for download at

sps.honeywell.com (region dependent).

Getting Started

Turn Off the computer’s power before connecting the scanner,

then power up the computer once the scanner is fully

connected.

Power Supply Assembly (if included)

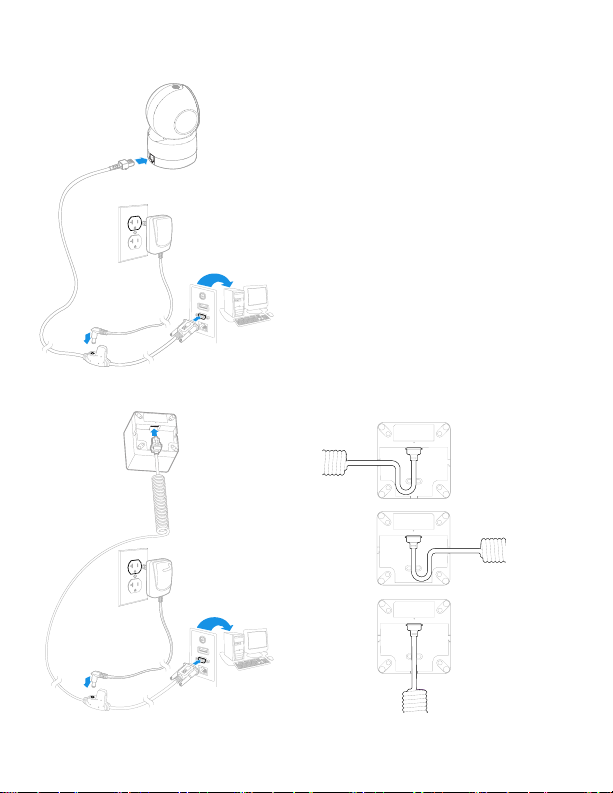

Connecting the Scanner

USB

HF680

HF680E

RS232 Serial Port

HF680

HF680E

Reading Techniques

Align the barcode to the center of the scanner to acquire a good

read.

Hold the scanner close to smaller barcodes, and farther away

from large barcodes to get a proper read.

If the barcode is highly reflective (e.g., laminated), you may need

to tilt the scanner at an angle so the barcode can be scanned.

Standard Product Defaults

The following barcode resets all standard product default

settings.

Note: Resetting to factory defaults will not change the interface

setting of the product. For example, if the unit’s interface

is set to USB, it will remain USB after the standard product

barcode is scanned.

Interface Types

The HF680 supports three interface types: USB PC keyboard,

USB serial and RS232 serial port. To alter interface type, scan

the corresponding barcode below:

Standard Product

USB PC Keyboard

Keyboard Country

Scan the appropriate country code that follows to program the

keyboard layout for your country or language. By default,

national character replacements are used for the following

characters: # $ @ [ ] \ | ^ ‘ { } ~

Refer to the ISO 646 Character Replacements chart in your User

Guide to view the character replacements for each country.

USB Serial

RS232 Serial Port

USA (Default)

Belgium

Denmark

Finland

Note: For a complete list of country codes, see the User Guide for

your product.

Scan Modes

When in IR Trigger mode, the scanner uses an infrared (IR)

sensor to detect objects and start to scan and decode barcode

symbols.

France

Germany/Austria

Great Britain

Italy

Norway

Spain

Switzerland

When in Presentation mode, the scanner is activated when it

“sees” a barcode.

In Streaming Presentation mode, the scanner’s illumination

remains on all the time to continuously search for barcodes.

Suffix

If you want a carriage return after the barcode, scan the Add CR

Suffix barcode. To add a tab after the barcode, scan the Add Tab

Suffix barcode. Otherwise, scan the Remove Suffix barcode to

remove the suffixes.

IR Trigger Mode

Presentation Mode

Streaming Presentation

Mode

Add CR Suffix

Add Tab Suffix

Add Code ID Prefix to all Symbologies

Scan the following barcode if you wish to add a Code ID prefix to

all symbologies at once.

Note: For a complete list of Code IDs, see the User Guide for your

product.

Function Code Transmit

When this selection is enabled and function codes are

contained within the scanned data, the scanner transmits the

function code to the terminal. Charts of these function codes

are provided in your User Guide. When the scanner is in

keyboard wedge mode, the scan code is converted to a key code

before it is transmitted.

Remove Suffix

Add Code ID Prefix To All Symbologies

(Temporary)

Enable

(Default)

Disable

Data Format Editor Instructions

The following are abbreviated instructions for entering a data

format. For complete instructions refer to your User Guide.

Step 1. Scan the Enter Data Format symbol.

Step 2. Primary/Alternate Format: scan 0for Primary Format

Step 3. Terminal Type: scan 099 for any terminal type

Step 4. Code I.D.: scan 99 for any barcode type

Step 5. Length: scan 9999 for any length barcode.

Step 6. Editor commands: use the Programming Chart that

follows.

Step 7. Scan Save to save your entries.

Enter Data Format

Clear All Data Formats

Save
