Honeywell 8675i Manual de usuario

8675i

Rugged Compact Wearable Scanner

Quick Start Guide

8675i-EN-QS-01 Rev A

2/22



Out of the Box

Make sure that your shipping box contains these items:

• Honeywell 8675i Rugged Wearable Compact Scanner

• Rechargeable battery

• Product Documentation

If you ordered accessories for your device, verify that they are

also included with the order. Be sure to keep the original

packaging in case you need to return the device for service.

Before you attempt to use, charge or replace the

battery in the device, carefully read all labels, markings

and product documentation provided in the box or

online at sps.honeywell.com. To learn more about

Battery Maintenance for Portable Devices, go to

honeywell.com/PSS-BatteryMaintenance.

Avant d’essayer d’utiliser, de charger ou de remplacer

la batterie de l’appareil, lisez attentivement toutes les

étiquettes, marquages et documentation du produit

fournis dans la boîte ou en ligne à sps.honeywell.com.

Pour en savoir plus sur l’Entretien de Batteries pour

Appareils Portables, consultez-le honeywell.com/

PSS-BatteryMaintenance.

Device Features

Battery

Scanner

Battery

Latches

Scan/Battery

Status LED

Scan/Bluetooth

Status LED

Scan

Trigger

NFC Touch

Point

Strap Loop

Triggered

Ring

Scan

Status

LEDs

Strap Buckle

Release

Latch

Charging the Battery

The 8675i rugged compact wearable scanner ships with a

partially charged battery. The battery must be fully charged

before first use. The following charging stations are available for

the device and must be purchased separately:

• MB8-BAT-SCN10

• MB24-BAT-SCN10

•MB4-SCN10

• MB12-SCN10

•MB1-SCN10

We recommend the use of Honeywell accessories

and power adapters. Use of non-Honeywell

accessories or power adapters may cause damage

not covered by the warranty.

Ensure all components are dry prior to mating the

computers and batteries with peripheral devices.

Mating wet components may cause damage not

covered by the warranty.

Install the Battery

The device ships with a 3.85V, 570 mAh battery

manufactured by Honeywell International Inc.

Use only Honeywell battery model BAT-SCN10.

Replace the Battery

Note: The battery should be replaced in an environment free

from excessive dust or particulate to avoid an internal

buildup of dust in the unit.

When the battery is low, the 8675i beeps, vibrates, and the

Battery LED flashes. To replace the battery, squeeze the battery

latches and lift up on the battery.

Replace the battery by aligning it with the back of the device and

snapping it in to the device.

Right or Left Handed Operation

To release the finger trigger, turn over the device. Press the

Release Latch on the bottom. Rotate the trigger and snap it into

place to change the operation to the correct hand.

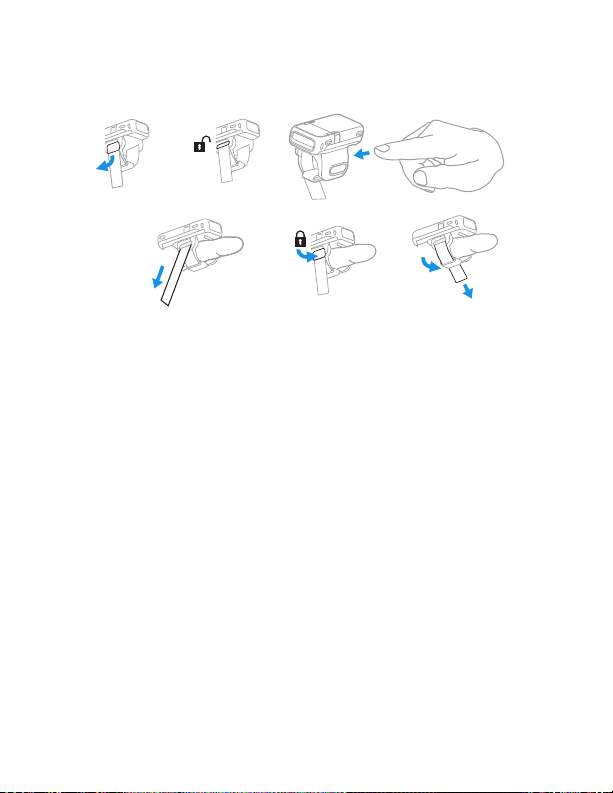

Attach the Device to Your Finger

Lift up on the Strap Buckle to unlock the strap. Insert your finger

through the Trigger Ring. Pull the excess strap down. Press

down on the Strap Buckle. Pull the excess strap through the

Strap Loop.

Power Up the Device

Press the trigger to power up the device.

Wrist Position When Scanning

How to Scan a Barcode

The 8675i scanner has a view finder that projects a bright laser

aiming pattern. This aiming pattern should be centered over the

barcode, but it can be positioned in any direction for a good

read.

Warning: Do not stare directly into the laser beam.

SR Models: FR Models:

Connect the Device via Bluetooth®

Pair with a PC or Laptop Bluetooth Serial Port: Host

Reconnect Mode

The 8675i can pair with host Bluetooth devices such as personal

computers, laptops, and tablets. In this mode, the host will

continually attempt to connect with the device. If the device and

the host become disconnected, the host will manage the

reconnection.

1. Scan the Host Reconnect Mode barcode, below.

2. Set your host device so it searches for other Bluetooth

devices. (Refer to your host device’s User’s Guide for pairing

instructions.)

3. When your host device has located the 8675i, you can select

it from the list displayed.

Note: Refer to the 8675i User’s Guide if your host device displays

a PIN.

Host Reconnect Mode
