Honeywell TOUCHDOWN Manual de usuario
TOUCHDOWN 48” CEILING FAN
MODEL #50205
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-877-361-3883, Monday - Thursday, 8 am - 6 pm, EST and Friday,
8 am - 5 pm, EST.
Español p. 20
2
WELCOME
PREPARATION
Before beginning the assembly of this product, ensure
that all parts are present. Compare all parts with the
package contents list and hardware contents list. If
any part is missing or damaged, do not attempt to
assemble the product.
After opening the top of the carton, remove the
mounting hardware package from the foam inserts,
then remove the motor from the packaging and
place it on a soft surface, such as a carpet, to avoid
damage to the nish.
Estimated Assembly Time: Under 120 minutes
Tools Required for Assembly (not included): Electrical
Tape, Phillips Screwdriver, Pliers, Safety Glasses,
Step Ladder, and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape
Measure, Wiring Handbook, and Wire Cutters
CARE AND MAINTENANCE
At least twice each year, lower the canopy to check
the downrod assembly, and then tighten all screws
on the fan. Clean the motor housing with only a soft
brush or lint-free cloth to avoid scratching the nish.
Clean the blades with a lint-free cloth. You may
occasionally apply a light coat of furniture polish to
wood blades for added protection.
Important: Shut off the main power supply before you
begin any maintenance tasks. Do not use water or a
damp cloth to clean the ceiling fan.
FAN WEIGHT
The net weight of this fan is: 14.55 lbs. (6,6 kg).
TABLE OF CONTENTS
ATTACH YOUR RECEIPT HERE
Serial Number
Purchase Date
Care and Maintenance ........................2
Package Contents ...........................3
Safety Information ...........................4
Mounting Options ............................5
Mounting Bracket Installation ...................6
Standard or Angle Mounting Instructions . . . . . . . . . .7
Closemount Instructions......................10
Wiring ....................................11
Canopy Installation..........................12
Blade Installation ...........................13
Light Kit Installation .........................14
Operating Installation . . . . . . . . . . . . . . . . . . . . . . . .16
Replacement Parts List ......................17
Troubleshooting ............................18
Limited Lifetime Warranty.....................19
3
PACKAGE CONTENTS
Unpack your fan and check the contents. You
should have the following items:
1. Motor Housing
2. Light Kit
3. Socket Ring Tool
4. Blade Arm (5)
5. Canopy
6. Hanger Bracket
7. Canopy Cover
8. Optional Cap
9. Downrod
10. Blade (5)
11. Yoke Cover
12. Glass Shade (3)
13. Bulb (3)
14. Loose parts bags containing (not shown):
Mounting hardware, blade attachment
hardware, electrical hardware, pull chains, wire
connectors, etc.
1
2
7
4
8
5
10
9
3
6
11
13
12
4
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate, or install the product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit
breakers.
• Make sure that all electrical connections comply with local codes, ordinances, the National Electrical
Code, and ANSI/NFPA 70-199. Hire a qualied electrician or consult a do-it-yourself wiring handbook if
you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. (2,14 m) from the blades to
the oor and at least 30 in. (76 cm) from the end of the blades to any obstruction.
DANGER
WARNING
WARNING
When using an existing outlet box, make sure
the outlet box is securely attached to the building
structure and can support the full weight of
the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is
essential in minimizing wobble and noise in the
fan after installation is complete.
To reduce the risk of re or electric shock, do not
use the fan with any solid-state speed-control
device or control the fan speed with a full-range
dimmer switch.
To reduce the risk of re, electric shock, or personal
injury, mount the fan to an outlet box marked
“ACCEPTABLE FOR FAN SUPPORT” and use the
mounting screws provided with the outlet box. Most
outlet boxes commonly used for the support of
lighting xtures are not acceptable for fan support
and may need to be replaced. Consult a qualied
electrician if in doubt. Secure the outlet box directly
to the building structure. The outlet box and its
support must be able to support the moving weight
of the fan, at least 35 lbs. (15,88 kg).
!
!
!
!
WARNING
CAUTION
CAUTION
To reduce the risk of re, electric shock, or
personal injury, do not bend the blade arms
when installing them, balancing the blades, or
cleaning the fan. Do not insert objects between
the rotating fan blades. Read all instructions and safety information
before installing your new fan. Review the
accompanying assembly diagrams.
Carefully check all screws, bolts, and nuts on
the fan motor housing to ensure that they are
secured.
!
!
!
!
!
!
!
!
5
MOUNTING OPTIONS
DANGER
Turn off the circuit breakers and the wall
switch to the fan supply line leads. Failure to
disconnect the power supply prior to installation
may result in serious injury or death.
Fig. 1
Fig. 2
Fig. 3
1. Your fan has 3 mounting options:
• Standard (Fig. 1)
• Angled (Fig. 2)
• Closemount (Fig. 3)
Helpful Hint: Downrod style mounting is best suited for
ceilings 8 ft. (2,44 m) or higher. For taller ceilings
you may want to use a longer downrod (sold
separately). Angle style mounting is best suited
for angled or vaulted ceilings. A longer downrod
is sometimes necessary to ensure proper blade
clearance. Closemount mounting is most suitable
for ceilings lower than 8 ft. (2,44 m) high.
Note: The fans in gures 1 through 3 are not the actual
fan in your package, they are a representation of
the 3 different mounting options.
Important: If using the angle mount, check to ensure
the ceiling angle is not steeper than 16°.
2. Ensure that the blades of the fan are 30 in. (76 cm)
from any obstruction.
3. Check the downrod length to ensure the blades will
be at least 7 ft. (2,14 m) above your oor.
! !
Fig. 5
6
MOUNTING BRACKET INSTALLATION
Fig. 4
Mounting
Bracket
Screws
Mounting
Bracket
Canopy
Washer
5. Secure the mounting bracket to the outlet box using
screws and washers provided with the outlet box
(not included) (Fig. 5).
Note: It is very important that you use proper hardware
when installing the mounting bracket as it supports
the fan.
Important: If using the angle mount, ensure that the
open end of the mounting bracket is installed facing
the peak of the ceiling.
4. Loosen the four mounting bracket screws.
Completely remove the two mounting bracket
screws and washers from the round holes in the
canopy. Set aside for later use. Detach mounting
bracket from the canopy (Fig. 4).
Mounting Bracket
Screw
Washer
Fig. 8
Downrod
Canopy
Yoke
Cover
Motor
Housing
7
STANDARD OR ANGLE MOUNTING INSTRUCTIONS
Downrod
Clip
Downrod
Pin
Fig. 7
Fig. 6
Set Screws
Downrod Pin
Downrod Clip
6. Partially loosen the two set screws in the yoke at
the top of the motor housing (Fig. 6).
7. Remove the downrod pin and downrod clip from
the downrod (Fig. 7).
8. Thread the wires from the motor housing through
the yoke cover, canopy and out through the top of
the downrod (Fig. 8).
8
STANDARD OR ANGLE MOUNTING INSTRUCTIONS
9. Slide the downrod into the yoke of the motor
housing, align the holes, and reinstall the downrod
pin and downrod clip. Then retighten the set
screws (Fig. 9).
10. Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires, it is
suggested that you do so in the following manner:
Take the lead wires and make sure that you have
pulled them all the way through the top of the
downrod and measure 8 in. (20 cm) of lead wire,
and then cut the excess wire off with wire cutters
(not included) (Fig. 10).
11. If you cut back the lead wire in Step 10, strip 1/2
in. (12 mm) of insulation from the end of each wire.
Twist the stripped ends of each strand of wire within
the insulation with pliers (not included) (Fig. 11).
Note: If you did not cut back the lead wires in Step 10,
Step 11 is not necessary and you may proceed to
Step 12 instead.
Downrod
Downrod
Pin
Set Screw
Downrod
Clip
Fig. 9
Fig. 10
Fig. 11
Cut Wires
Stripped
Wires
Downrod Pin
Downrod Clip
9
STANDARD OR ANGLE MOUNTING INSTRUCTIONS

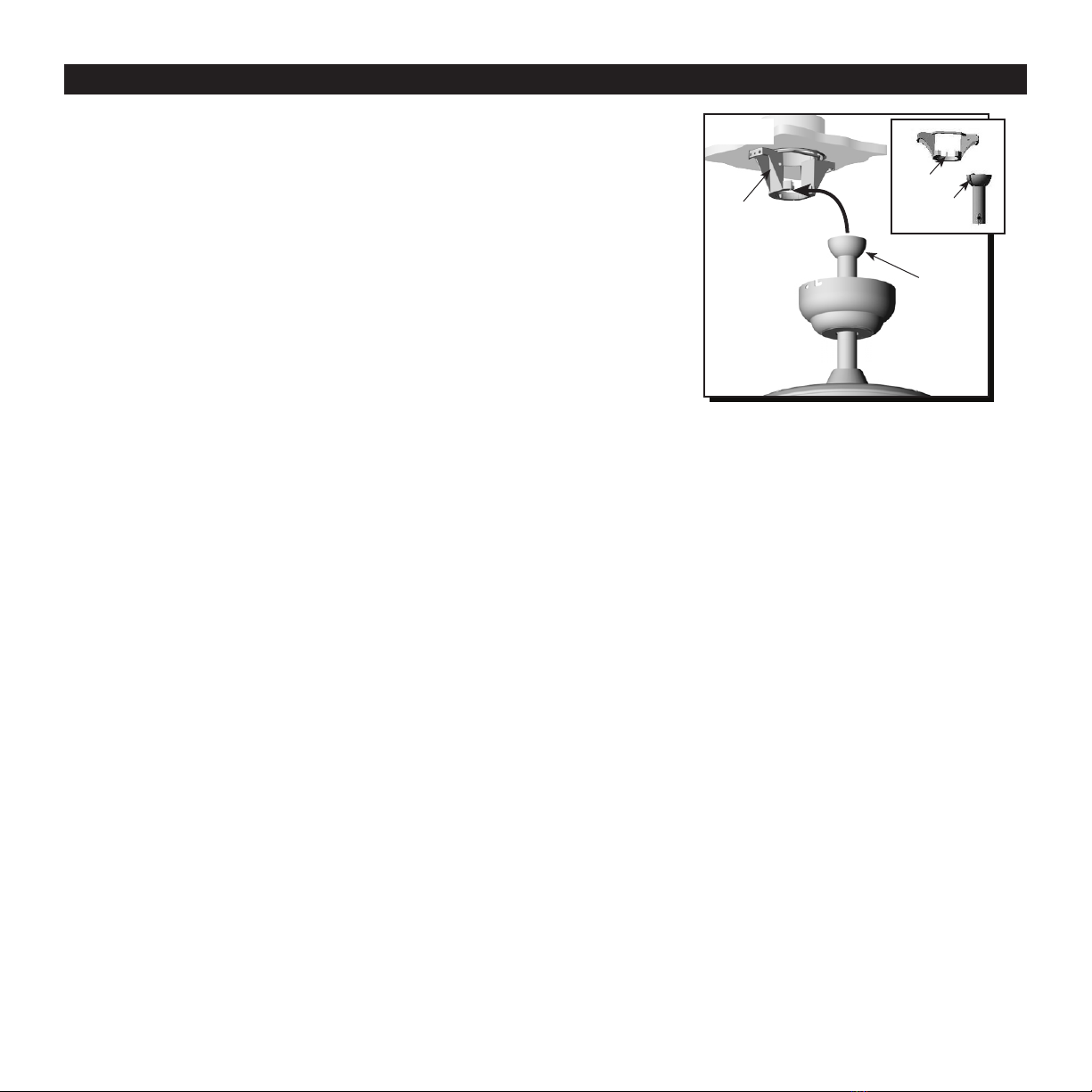

12. Install the downrod ball into the mounting bracket
opening. Align the slot in the downrod ball with the
tab in the mounting bracket. The downrod should
not rotate if installed correctly (Fig. 12).
Mounting
Bracket
Downrod
Ball
Tab
Slot
Fig. 12
Closemount
Screws
Spring
Washer
Fig. 14
10
CLOSEMOUNT INSTRUCTIONS
13. Remove the canopy cover from the bottom of the
canopy (Fig. 13).
Helpful Hint: The downrod, hanging ball, and canopy
cover are not used in this type of installation.
15. Raise the fan and place the canopy on the
mounting bracket hook for wiring (Fig. 15).
Canopy
Canopy
Hook
Canopy
Cover
Fig. 13
Fig. 15
Closemount Screw Spring Washer
14. Align the canopy with the closemount screw holes
in the top of the motor housing. Secure the canopy
to the top of the motor housing by installing three
closemount screws and spring washers into the top
of the motor housing (Fig. 14).
