Honeywell SABAL PALM Manual de usuario

SABAL PALM 52” CEILING FAN

MODEL #50204

Questions, problems, missing parts? Before returning to your retailer, call our customer

service department at 1-877-361-3883, Monday - Thursday, 8 am - 6 pm, EST and Friday,

8 am - 5 pm, EST.

Español p. 21

WELCOME

PREPARATION

Before beginning the assembly of this product, ensure

that all parts are present. Compare all parts with the

package contents list and hardware contents list. If

any part is missing or damaged, do not attempt to

assemble the product.

After opening the top of the carton, remove the

mounting hardware package from the foam inserts,

then remove the motor from the packaging and place it

on a soft surface, such as a carpet, to avoid damage to

the nish.

Estimated Assembly Time: Under 60 minutes

Tools Required for Assembly (not included): Electrical

Tape, Phillips Screwdriver, Pliers, Safety Glasses, Step

Ladder, and Wire Strippers

Helpful Tools (not included): AC Tester Light, Tape

Measure, Wiring Handbook, and Wire Cutters

CARE AND MAINTENANCE

At least twice each year, lower the canopy to check

the downrod assembly, and then tighten all screws on

the fan. Clean the motor housing with only a soft brush

or lint-free cloth to avoid scratching the nish. Clean

the blades with a lint-free cloth. You may occasionally

apply a light coat of furniture polish to wood blades for

added protection.

Important: Shut off the main power supply before you

begin any maintenance tasks. Do not use water or a

damp cloth to clean the ceiling fan.

FAN WEIGHT

The net weight of this fan is: 17.16 lbs. (7,78 kg).

TABLE OF CONTENTS

ATTACH YOUR RECEIPT HERE

Serial Number

Purchase Date

Care and Maintenance .........................2

Package Contents ............................3

Safety Information ............................4

Mounting Options .............................5

Mounting Bracket Installation ....................6

Standard or Angle Mounting Instructions . . . . . . . . . . .7

Closemount Instructions.......................10

Wiring .....................................11

Canopy Installation...........................12

Blade Installation ............................13

Light Kit Installation ..........................14

Operating Installation . . . . . . . . . . . . . . . . . . . . . . . . .17

Replacement Parts List .......................18

Troubleshooting .............................19

Limited Lifetime Warranty......................20

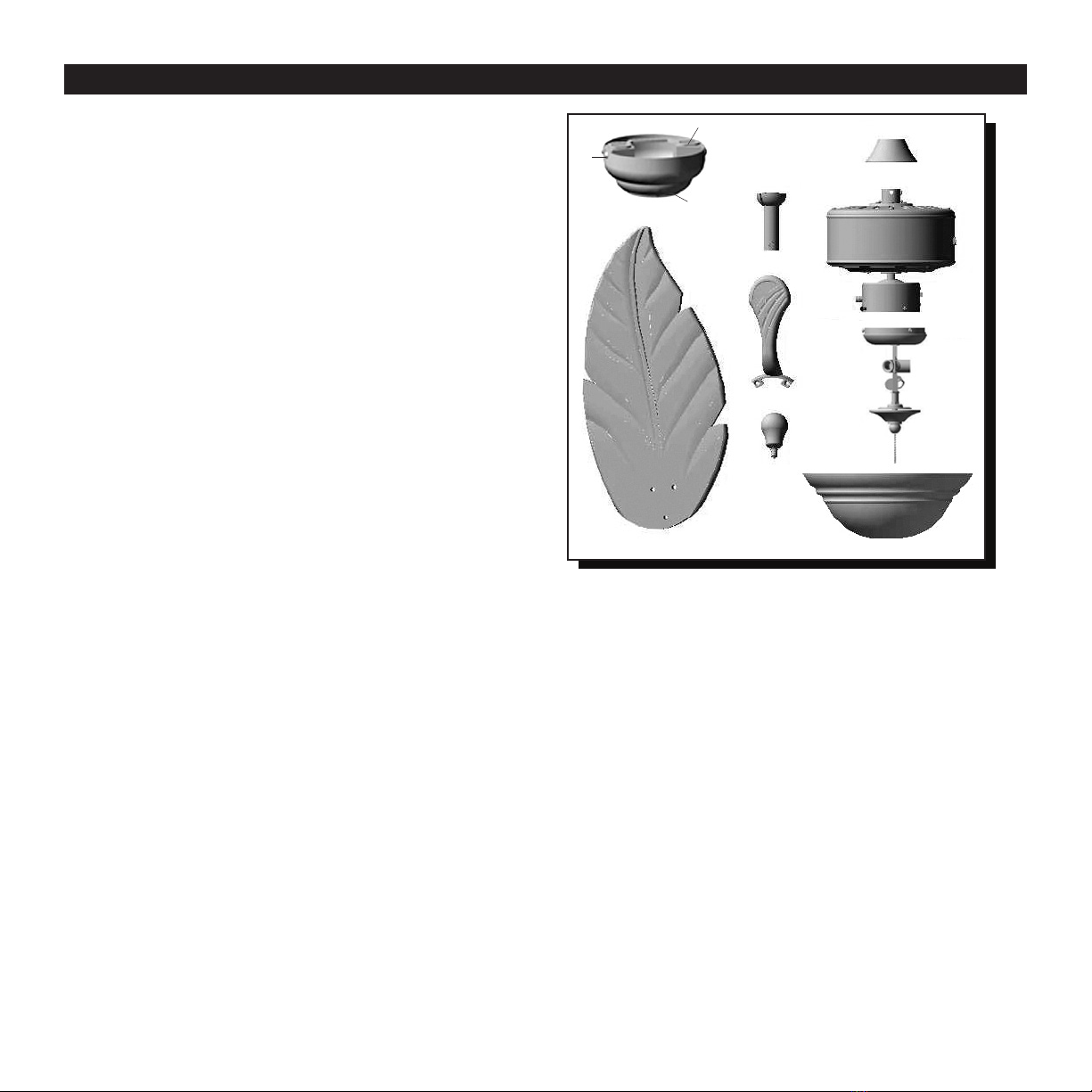

PACKAGE CONTENTS

Unpack your fan and check the contents. You should

have the following items:

1. Canopy

2. Mounting Bracket

3. Canopy Cover

4. Blade (5)

5. Downrod

6. Blade Arm (5)

7. Bulb (3)

8. Yoke Cover

9. Motor Housing

10. Switch Housing

11. Light Kit

12. Finial Cap

13. Finial

14. Glass Shade

15. Loose parts bags containing (not shown):

Mounting hardware, blade attachment hardware,

electrical hardware, pull chains, wire connectors, etc.

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, operate, or install the product.

• Before you begin installing the fan, disconnect the power by removing fuses or turning off the

circuit breakers.

• Make sure that all electrical connections comply with local codes, ordinances, the National Electrical

Code, and ANSI/NFPA 70-199. Hire a qualied electrician or consult a do-it-yourself wiring handbook if

you are unfamiliar with installing electrical wiring.

• Make sure the installation site you choose allows a minimum clearance of 7 ft. (2,14 m) from the

blades to the oor and at least 30 in. from the end of the blades to any obstruction.

DANGER

WARNING

When using an existing outlet box, make sure

the outlet box is securely attached to the building

structure and can support the full weight of

the fan. Failure to do this can result in serious

injury or death. The stability of the outlet box is

essential in minimizing wobble and noise in the

fan after installation is complete.

To reduce the risk of re or electric shock, do not

use the fan with any solid-state speed-control

device or control the fan speed with a full-range

dimmer switch.

To reduce the risk of re, electric shock, or personal

injury, mount the fan to an outlet box marked

“ACCEPTABLE FOR FAN SUPPORT” and use the

mounting screws provided with the outlet box. Most

outlet boxes commonly used for the support of

lighting xtures are not acceptable for fan support

and may need to be replaced. Consult a qualied

electrician if in doubt. Secure the outlet box directly

to the building structure. The outlet box and its

support must be able to support the moving weight

of the fan of at least 35 lbs. (15,88 kg).

WARNING

CAUTION

To reduce the risk of re, electric shock, or

personal injury, do not bend the blade arms

when installing them, balancing the blades, or

cleaning the fan. Do not insert objects between

the rotating fan blades.

Read all instructions and safety information

before installing your new fan. Review the

accompanying assembly diagrams.

Be sure the outlet box is properly grounded or

that a ground (green or bare) wire is present.

! !

MOUNTING OPTIONS

DANGER

Turn off the circuit breakers and the wall switch to

the fan supply line leads. Failure to disconnect

the power supply prior to installation may result in

serious injury or death.

Fig. 1

Fig. 2

Fig. 3

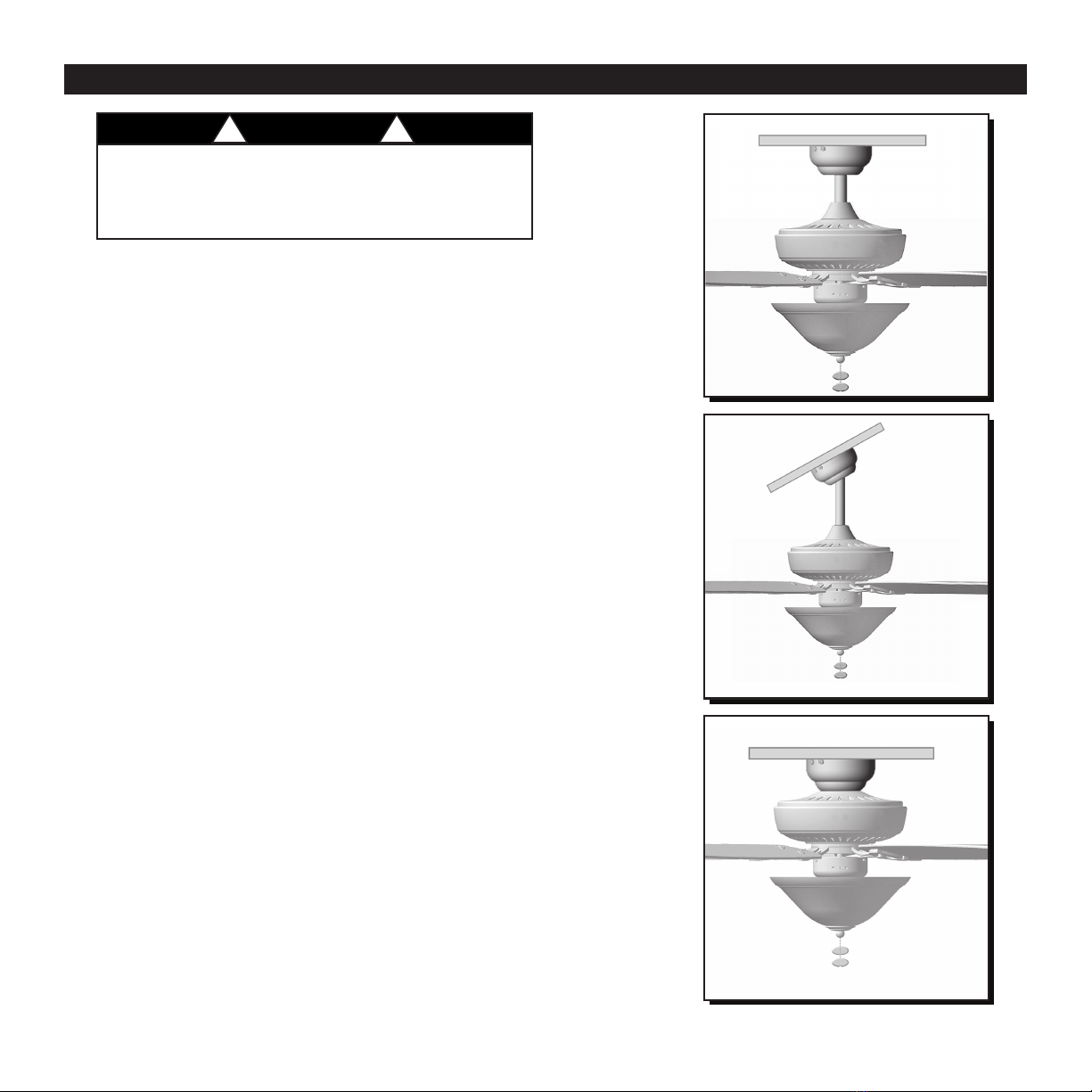

1. Your fan has 3 mounting options:

• Standard (Fig. 1)

• Angled (Fig. 2)

• Closemount (Fig. 3)

Note: The fans in gures 1 through 3 are not the actual

fan in your package, they are representation of the

3 different mounting options.

Important: If using the angle mount, check to ensure

the ceiling angle is not steeper than 16°.

Helpful Hint: Standard mounting is best suited for

ceilings 8 ft. or higher. For taller ceilings you may

want to use a longer downrod (sold separately).

Angled mounting is best suited for angled or

vaulted ceilings. A longer downrod is sometimes

necessary to ensure proper blade clearance.

Closemount-style mounting is more suitable for

ceilings lower than 8 ft. (2,44 m) high.

2. Ensure that the blades of the fan are 30 in. (76 cm)

from any obstruction.

3. Check the downrod length to ensure the blades will

be at least 7 ft. (2,14 m) above your oor.

! !

MOUNTING BRACKET INSTALLATION

Fig. 5

Fig. 4

Mounting

Bracket

Screws

Mounting

Bracket

Canopy

Washer

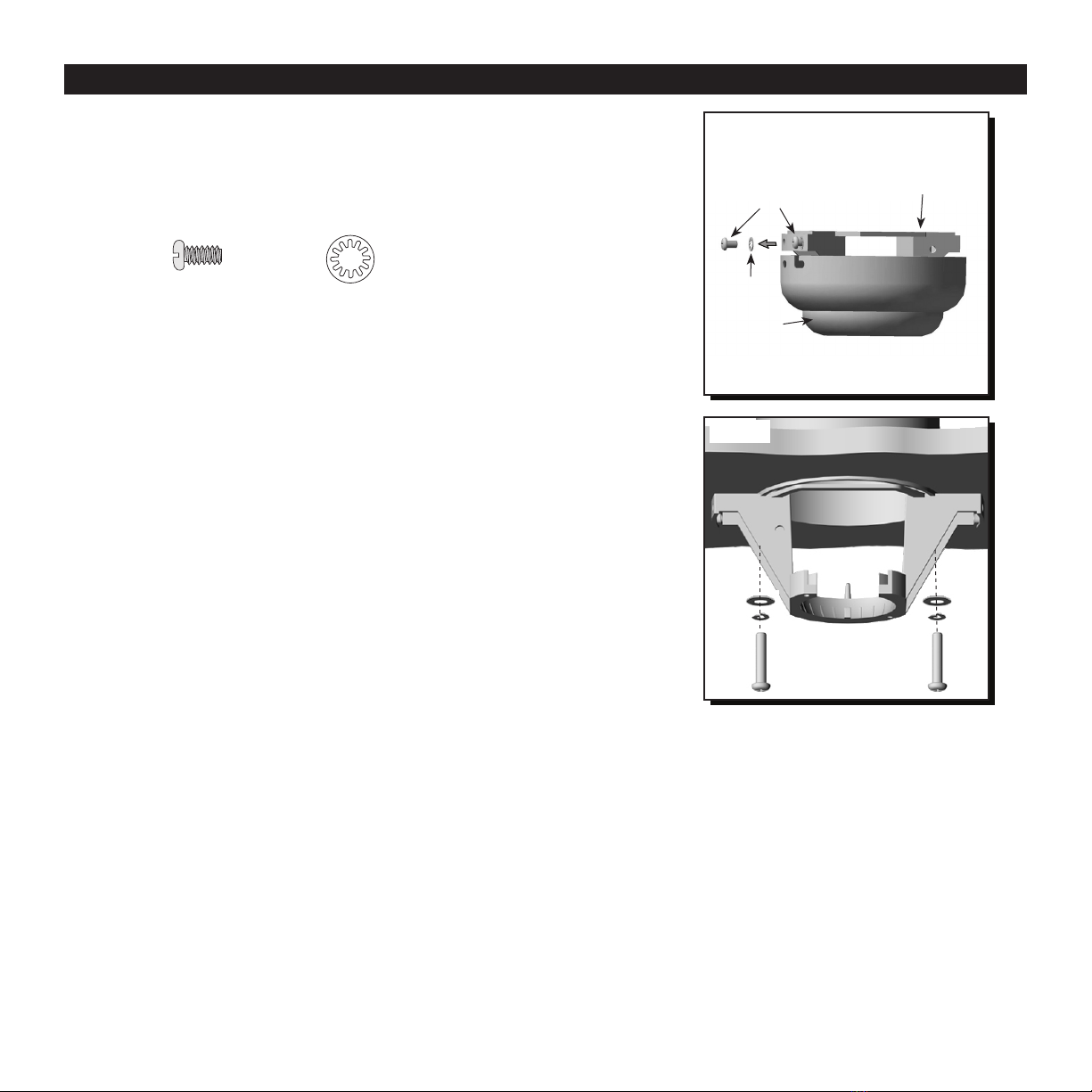

4. Loosen all four mounting bracket screws.

Completely remove the two mounting bracket

screws and washers from the round holes of

canopy. Set aside for later use. Detach mounting

bracket from canopy (Fig. 4).

5. Secure the mounting bracket to the outlet box using

screws and washers provided with the outlet box

(not included) (Fig. 5).

Note: It is very important that you use proper hardware

when installing the mounting bracket as it supports

the fan.

Important: If using the angle mount, ensure the open

end of the mounting bracket is installed facing the

peak of the ceiling.

Mounting Bracket

Screw

Washer

Fig. 8

Downrod

Canopy

Yoke

Cover

Motor

Housing

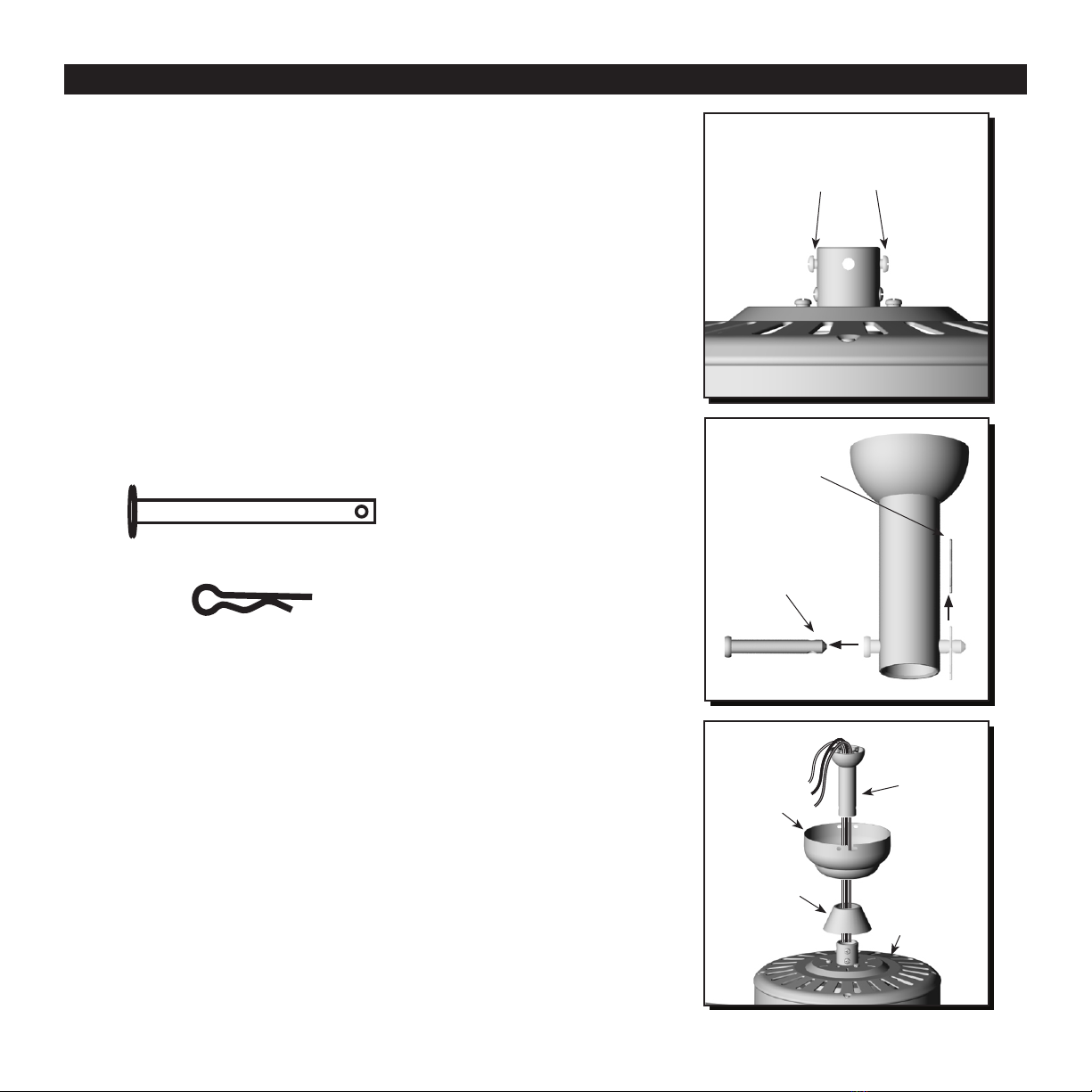

STANDARD OR ANGLE MOUNTING INSTRUCTIONS

6. Partially loosen the set screws in the yoke at the

top of the motor housing (Fig. 6).

7. Remove the downrod pin and downrod clip from

the downrod (Fig. 7).

8. Thread the wires from the motor housing through

the yoke cover, canopy, and out the top of the

downrod (Fig. 8).

Downrod

Clip

Downrod

Fig. 7

Fig. 6

Set Screws

Downrod Pin

Downrod Clip

Fig. 10

Cut Wires

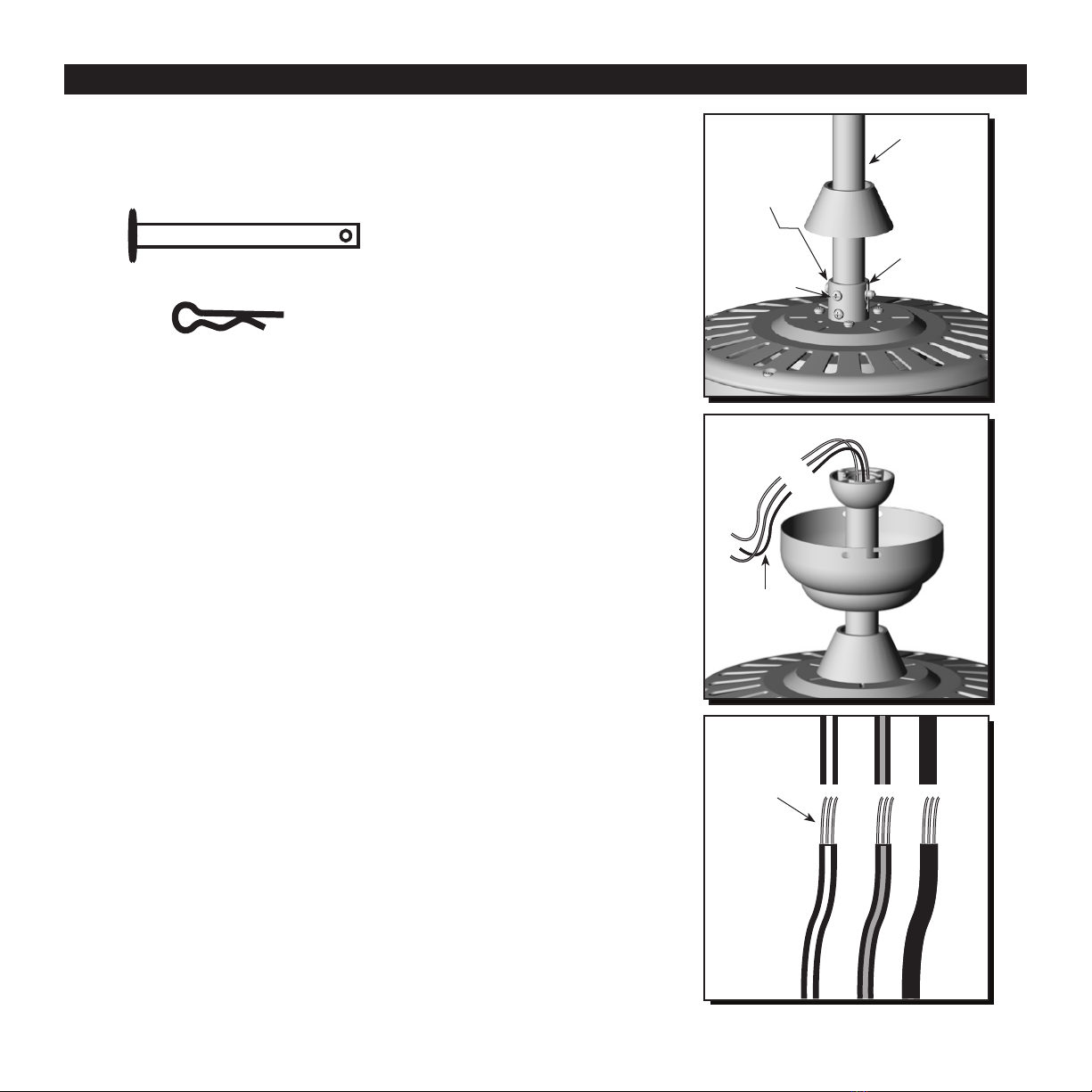

STANDARD OR ANGLE MOUNTING INSTRUCTIONS

9. Slide the downrod into the yoke of the motor

housing, align the holes, and re-install the downrod

pin and downrod clip. Then re-tighten the set

screws (Fig. 9).

10. Depending on the length of downrod you use, you

may need to cut the lead wires back to simplify the

wiring. If you decide to cut back the lead wires,

it is suggested that you do so in the following

manner: Take the lead wires and make sure that

you have pulled them all the way through the top

of the downrod and measure 8 in. of lead wire, and

then cut the excess wire off with wire cutters (not

included) (Fig. 10).

11. If you cut back the lead wire in Step 10, strip 1/2

in. of insulation from the end of each wire. Twist

the stripped ends of each strand of wire within the

insulation with pliers (not included) (Fig. 11).

Note: If you did not cut back the lead wires in Step 10,

Step 11 is not necessary and you may proceed to

Step 12 instead.

Downrod

Set Screw

Downrod

Clip

Fig. 9

Fig. 11

Stripped

Wires

Downrod Pin

Downrod Clip

Mounting

Bracket

Downrod

Ball

Tab

Slot

Fig. 12

STANDARD OR ANGLE MOUNTING INSTRUCTIONS

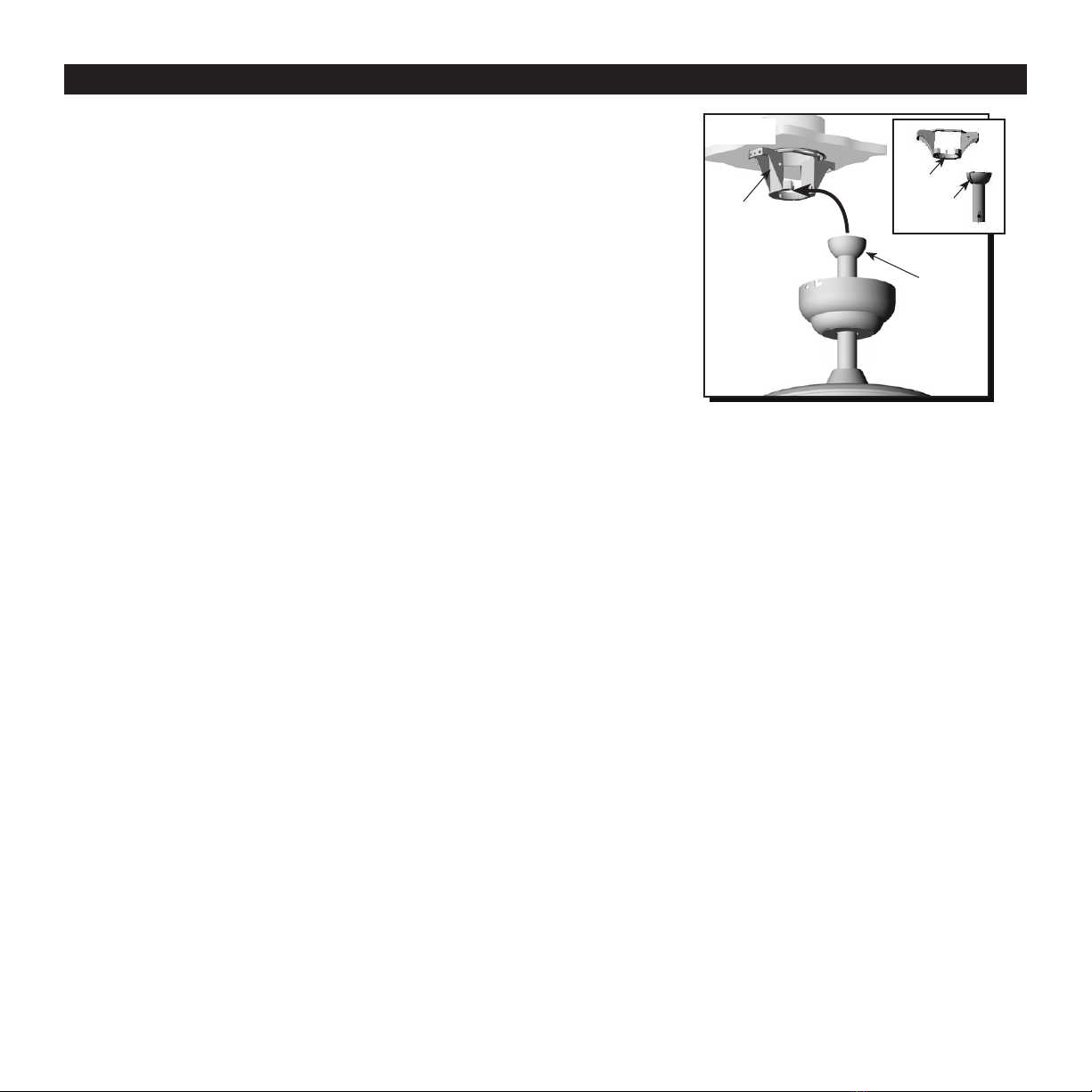

12. Install the downrod ball into the mounting bracket

opening. Align the slot in the ball with the tab in

the mounting bracket. The downrod should not

rotate if installed correctly (Fig. 12).

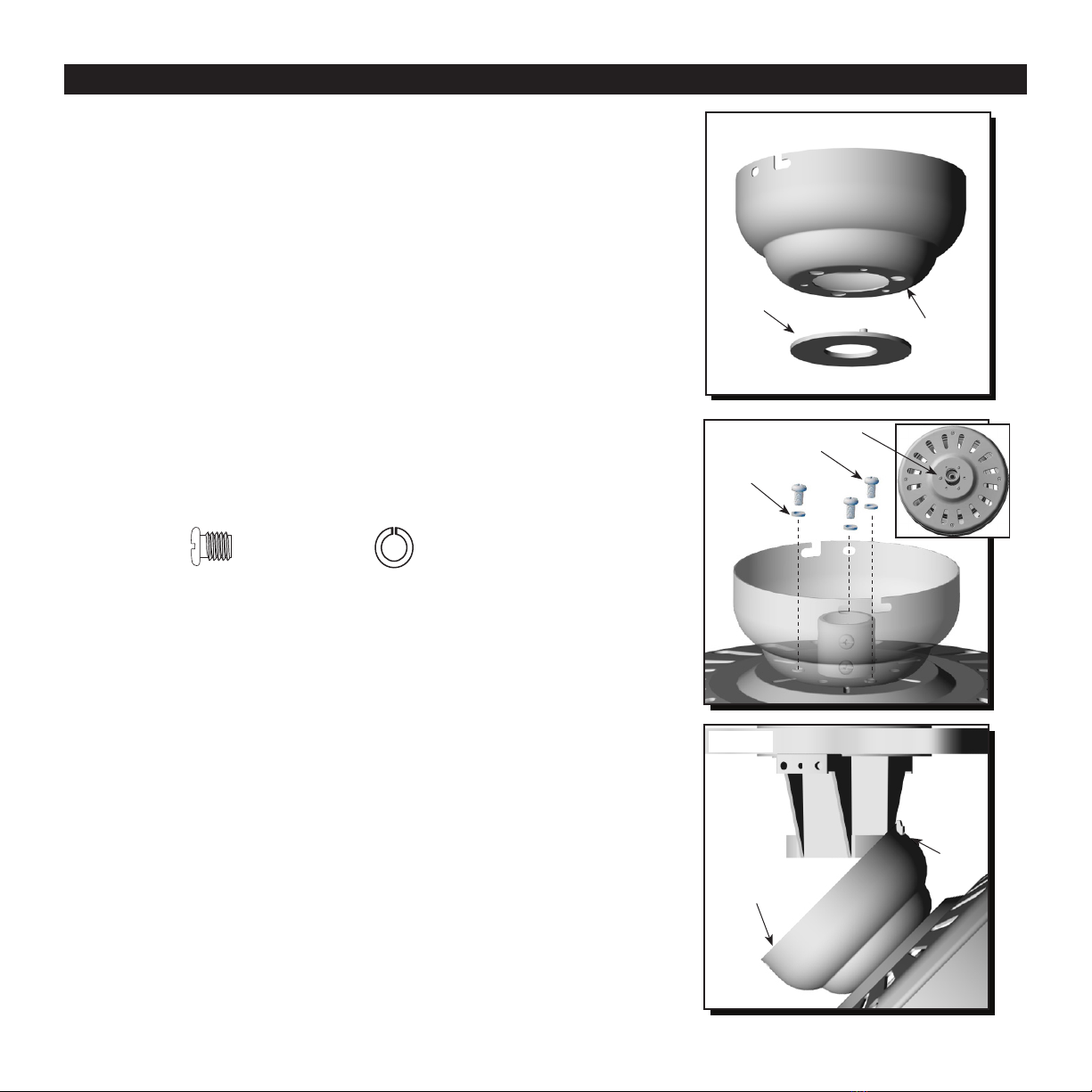

CLOSEMOUNT INSTRUCTIONS

13. Remove the canopy cover from the bottom of the

canopy (Fig. 13)

Helpful Hint: The downrod, hanging ball, and canopy

cover are not used in this type of installation.

15. Raise the fan and place the canopy on the hook

located on the mounting bracket for wiring (Fig. 15).

Canopy

Hook

Canopy

Cover

Fig. 13

Fig. 15

14. Align the canopy with the closemount screw holes

in the top of the motor housing. Secure the canopy

to the top of the motor housing with the three

closemount screws and spring washers (Fig. 14).

Closemount Screw Spring Washer

Closemount

Screws

Spring

Washer

Fig. 14

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Admirador de Honeywell

Honeywell

Honeywell QUIETSET HY-254 Series Manual de usuario

Honeywell

Honeywell 527HHON001BLK Manual de usuario

Honeywell

Honeywell HT-70 SERIES Manual de usuario

Honeywell

Honeywell ESSER 781443 Manual de usuario

Honeywell

Honeywell HTF090E Series Manual de usuario

Honeywell

Honeywell HT-109E Manual de usuario

Honeywell

Honeywell WICKER PARK Manual de usuario

Honeywell

Honeywell HV-140E Manual de usuario

Honeywell

Honeywell PERFECT WINDOW HR150 Manual de operación

Honeywell

Honeywell HYF260E Manual de usuario

Honeywell

Honeywell ST9103A Manual de usuario

Honeywell

Honeywell Perfect Window HR150B Manual de usuario

Honeywell

Honeywell TWINDOW HW-628 Manual de usuario

Honeywell

Honeywell PERFECT WINDOW ER150C Manual de usuario

Honeywell

Honeywell 10288 Manual de usuario

Honeywell

Honeywell HF71X Series Manual de usuario

Honeywell

Honeywell Kaliza Manual de usuario

Honeywell

Honeywell HS-160R Series Manual de usuario

Honeywell

Honeywell HY-200 Series Manual de usuario

Honeywell

Honeywell HT-900 Series TURBO FORCE Manual de usuario

Honeywell

Honeywell HSF600B Manual de usuario

Honeywell

Honeywell DYF012 series Manual de usuario

Honeywell

Honeywell HY-026 Series Manual de usuario

Honeywell

Honeywell L4064A-F Manual de usuario

Manuales populares de Admirador de otras marcas

ELTA FANS

ELTA FANS H03VV-F Manual de usuario

Hunter

Hunter 20714 Manual de instrucciones

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manual de usuario

Hunter

Hunter Caraway Manual de instrucciones

Panasonic

Panasonic FV-15NLFS1 Manual de usuario

Kompernass

Kompernass KH 1150 Manual de usuario

VES

VES FALA100/12V/TR Manual de usuario

Vertiv

Vertiv Liebert DCD Manual de usuario

Westinghouse

Westinghouse GFP Series Manual de usuario

Venmar

Venmar KUBIX HRV PLUS Series Manual de usuario

Maico

Maico ECR 31 Manual de usuario

Sonnenkonig

Sonnenkonig Dinky Manual de usuario

S&P

S&P ECOWATT HXBR Manual de usuario

Wider

Wider IMP03369BH Manual de usuario

Panasonic

Panasonic F-60DHN Manual de usuario

Hinkley

Hinkley HIGHLAND Manual de usuario

Broan

Broan 766BN Manual de usuario

Premium

Premium PFS16022 Instrucciones de montaje
