Honeywell Thor VM1A Manual de usuario

Thor™ VM1A

Vehicle-Mount Computer

Quick Start Guide

VM1A-A8-EN-QS Rev A

10/18

Out of the Box

Make sure your shipping box contains these items:

• Thor VM1A vehicle-mounted computer (Model VM1A-L0N)

• Regulatory Sheet

If you ordered additional accessories for your computer, verify

that they are also included with the order. Be sure to keep the

original packaging in case you need to return the computer for

service.

Computer Features

Power

Button

Orange

Key LED

System

LEDs

Microphone

Speakers

Blue Key

LED

Blue Key

Ambient

Light

Sensor

Connection

LEDs

Touch

Panel

Orange

Key

Shift/Caps

Lock LED

Ctrl LED

Alt LED

Stylus

Wi-Fi

(MAIN)

SD Card

Access

Panel Dock

Contact

Pads

Provision for

Laptop Security

Cable

Provision for

Padlock

Quick Release

Handle

UPS

Disconnect

Button

Access

Panel

Wi-Fi

(AUX)

Dock Features

Dock Contact

Pads

Strain Relief Clamps

Power

Connector

COM 2

COM 1

RAM Ball

Fuse

Power

Switch

Audio

USB

Standard Dock

Accessory

Mount

Power

Switch

COM 2

Ethernet

USB 2

USB 1

Accessory

Mount

COM 1

Audio

Fuse

Power

Connector Dock USB Client Port

Enhanced Dock

Strain Relief Clamps

RAM Ball RAM Clamp RAM Plate

Mount to Vehicle

The Thor VM1A should be secured to an area in the vehicle

where it:

• Does not obstruct the driver's vision or safe vehicle operation.

• Will be protected from rain or inclement weather.

• Will be protected from extremely high concentrations of dust

or wind-blown debris.

• Can be easily accessed by a user seated in the driver's seat

while the vehicle is not in operation.

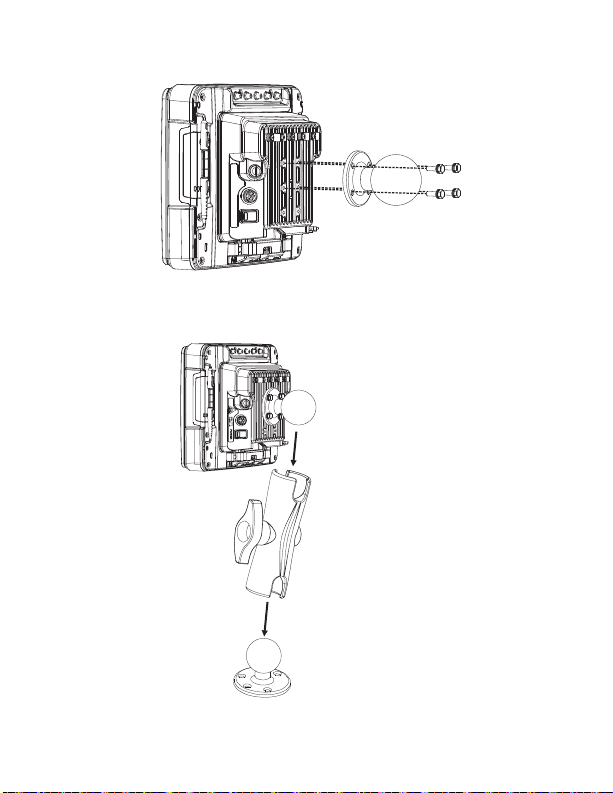

To mount the VM1A using a RAM mount system:

1. Attach RAM base to vehicle (RAM ball, RAM Clamp, RAM

Plate, etc.).

2. Attach RAM ball to the Smart Dock.

3. Attach VM1A assembly to RAM base using RAM arm and

tighten knob on RAM arm.

For more mounting details, refer to the user guide available at

www.honeywellaidc.com.

Connecting the Power Cable for 12-48 VDC Vehicles

(10-60 VDC Direct Connection)

Note: Refer to the Thor VM1A User Guide for other power

connections, available at www.honeywellaidc.com.

Caution: For installation by trained service

personnel only.

Warning: Fuse Requirements

For proper and safe installation, the input power cable

must be connected to a fused circuit on the vehicle. If

the supply connection is made directly to the battery,

the fuse should be installed in the positive lead within 5

inches of the battery’s positive (+) terminal. The fused

circuit requires a maximum time delay (slow blow) fuse

with a current rating as noted below.

• For 12VDC input, use a 10A slow blow fuse that has a

DC voltage rating greater than 12VDC.

• For 24VDC input, use a 6A slow blow fuse that has a

DC voltage rating greater than 24VDC.

• For 36VDC input, use a 4A slow blow fuse that has a

DC voltage rating greater than 36VDC.

• For 48VDC input, use a 3A slow blow fuse that has a

DC voltage rating greater than 48VDC.

Note: For North America, a UL Listed fuse must be used.

Power Cable Routing

Power Cable Wiring Diagram with Right Angle and 6 Wires

Twist the red and red/white wires together and twist the black

and black/white wires together before connecting to vehicle

power.

Connect the green wire to vehicle ground:

Caution: For battery powered vehicles, the green

wire must be connected to the vehicle

chassis ground.

Caution: For internal combustion engine powered

vehicles, the green wire is connected to the

vehicle chassis ground, which can also be

battery negative.

Wire Color Connection

Red DC + (10-60 VDC)

Red/White DC + (10-60 VDC)

Black DC -

Black/White DC -

Green Ground

Blue Ignition Sense Input (optional)

Refer to the Thor VM1A User Guide,

available at www.honeywellaidc.com, for

further information about ignition

control.
