Honeywell CS08AM Manual de usuario

Portable Evaporative Air Cooler

User Manual

Read and save these instructions before use

www.honeywellaircoolers.com

E-mail: info@honeywellaircoolers.com

Model: CS08AM

PARTS DESCRIPTION

1) Control Panel 7) Honeycomb Cooling Media

2) Handle 8) Water Fill Door

3) Front Grill 9) Water Tank

4) Power Cord & Plug 10) Drain Plug

5) Casters 11) Rear Grill Screw

6) Water Level Indicator 12) Swing Knob

WARNING -- READ AND SAVE THE AIR COOLER SAFETY & MAINTENANCE GUIDE AND USER

MANUAL BEFORE USING THIS PRODUCT. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY

DAMAGE AND/ OR IMPAIR ITS OPERATION AND VOID THE WARRANTY. IN CASE THERE IS

ANY INCONSISTENCY OR CONFLICT BETWEEN THE ENGLISH VERSION AND ANY OTHER

LANGUAGE VERSION OF THE CONTENT OF THIS MATERIAL, THE ENGLISH VERSION SHALL

PREVAIL.

USE & OPERATION

CONTROL PANEL

SPEED / ON - OFF

Connect to the power supply and turn the SPEED knob. The fan will start. Change the speed from 3

to 1 (3 for High, 2 for Medium and 1 for Low fan speed). To switch OFF the unit, turn the SPEED knob

to 0.

COOL

You must add water before operating the unit on Cool mode. Turn the COOL knob to the ON position

to activate evaporative cooling. The water pump will operate and you will feel the cooler air after the

Honeycomb Cooling Media is completely wet.

Make sure that the water in the tank is above the minimum water level mark. Running the unit in

COOL mode with inadequate water may cause pump failure.

SWING KNOB

Rotate it to right will lock the rotary grill, rotate it to left (normal/original position) the grill will rotate

once speed knob is turn to any speed level (except 0).

FUNCTION BUTTONS

CAUTION:

Unplug the unit from the electrical power outlet before emptying or reﬁlling the water tank.

Open the Water Fill Door located on the top of the unit.

The Water Level Indicator is located at the front of the unit. Reﬁll the water

tank when water level is low. Do not ﬁll water above the "Max." water level

mark to avoid water droplets collecting on the louvers. Check the water

level in the tank before running the COOL function.

Make sure that the water in the tank is above the minimum water level mark. Running the unit in

COOL mode with inadequate water may cause pump failure.

Note: The water capacity refers to the total volume of water that can be contained within the air

cooler water tank and water distribution system. The water capacity in the tank at the “Max.” indicator

level may be lower than the actual water capacity of the air cooler.

WARNING: Do not ﬁll water tank with dirty water or salt water. This can damage the unit and Honeycomb

media.

USE & OPERATION (CONTINUED)

COOLER LOCATION

FILLING WITH WATER

Make sure to position the air cooler correctly before you set up and start using the product. Please

refer to the COOLER LOCATION section of the separate Safety & Maintenance Guide.

Water Fill Door

Move the unit to a location where the water can be drained. Remove the cap from the Drain Plug

located at the bottom of the unit. Allow the tank to empty.

Reﬁll the water tank with clean water, up to the maximum level and drain it completely.

Use a damp cloth to remove the dirt and dust from the surface of the unit. Never use corrosive

elements or chemicals to clean this product.

When the product is not in use, store the unit in a dry place out of direct sunlight.

•

USE & OPERATION (CONTINUED)

Below are instructions on how to clean and maintain your air cooler. If the cooler will not be used for

a long period of time, please refer to the STORAGE & MAINTENANCE GUIDELINES located in the

separate Safety & Maintenance Guide.

WARNING:

Before cleaning the unit, switch the unit OFF and disconnect from the power outlet..

CLEANING & DRAINING THE WATER TANK

USE & OPERATION (CONTINUED)

CLEANING THE HONEYCOMB COOLING MEDIA

The appliance is supplied with a Honeycomb Cooling Media.

The Honeycomb Cooling Media is located inside the Rear Grill. See Figure 1 for instructions on

how to remove them from the unit for cleaning and maintenance.

Do not run the unit in COOL mode with stale water in the tank. You must empty the water tank

and reﬁll with fresh water, especially if the tank has not been cleaned in a long time.

The cleaning frequency for the Honeycomb media depends on local air and water conditions.

In areas where the mineral content of water is high, mineral deposits may build up on the

Honeycomb Cooling Media and restrict air ﬂow. Draining the water tank and reﬁlling with fresh

water at least once a week will help reduce mineral deposits. If mineral deposits remain on the

Honeycomb Cooling Media, the media should be removed and washed under fresh water. The

media should be cleaned every two months or sooner, depending on your needs.

For best results allow the Honeycomb Cooling Media to dry after each use by turning off the cool

function 15 minutes before turning the unit off.

•

Remove all the screws from the Rear Grill of the

Air Cooler.

Carefully slide out the rear grill from the cooler.

Carefully pull out the Honeycomb Cooling Media

from the cooler.

There are two Horizontal Bars holding the

Honeycomb Cooling Media in place. Remove all

the screws from the Horizontal Bars and then pull

the bars off of the Honeycomb Cooling Media.

Replace or clean media with water and a damp

cloth as needed.

Removing the Honeycomb Cooling Media:

WARNING: DO NOT operate the Air Cooler when the

Rear Grill or Honeycomb Media is removed from

the Air Cooler, or if there is a loose-ﬁtting Rear Grill

or Honeycomb Cooling Media. Doing so can cause

serious injury or dangerous electrical shock.

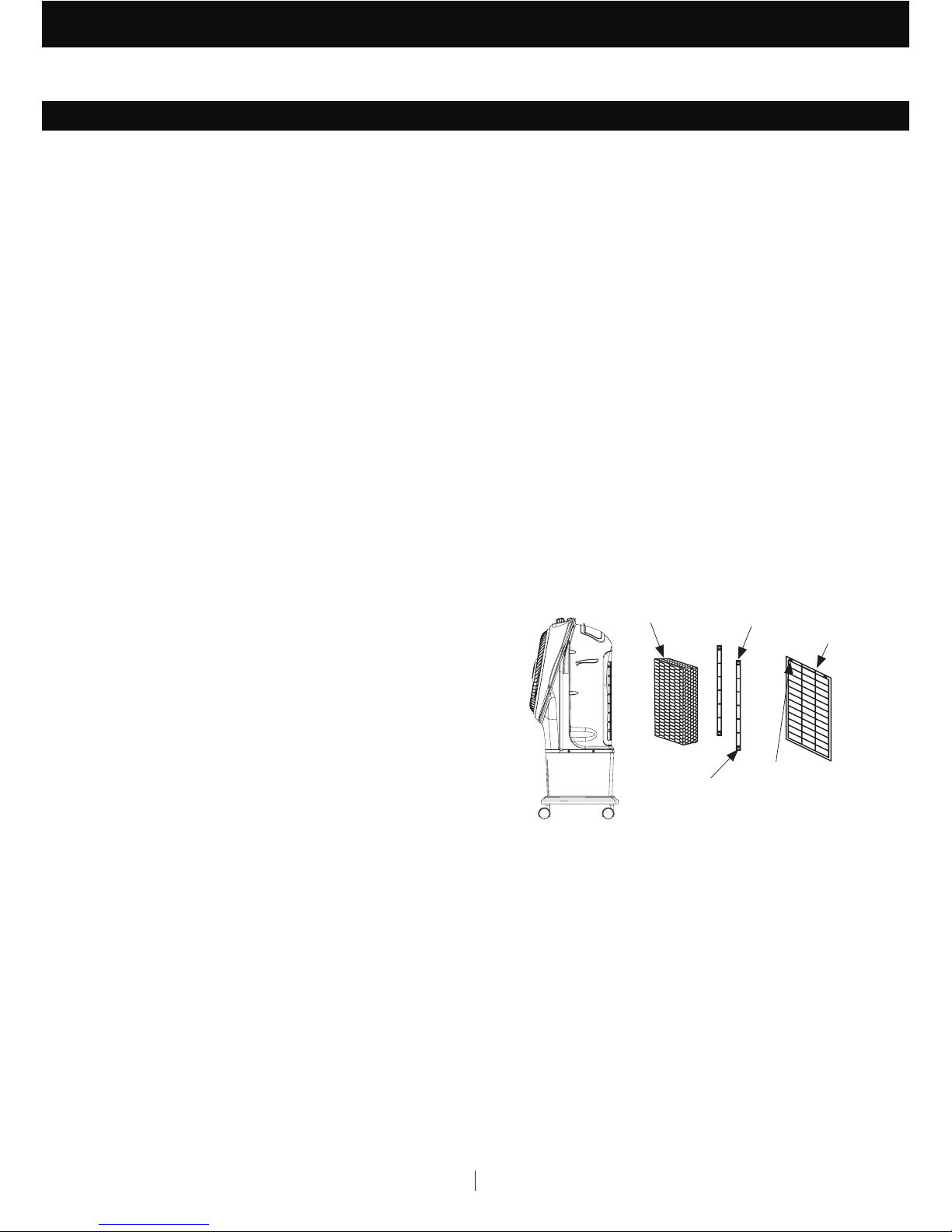

Figure 1:

Rear Grill

Honeycomb

Cooling Media Horizontal Bar

Screws

JMATEK Limited

Manulife Financial Centre,

Kwun Tong, Hong Kong

Phone: 85225595522

Email: [email protected]

Web: www.jmatek.com

Made in China

The Honeywell Trademark is used under license

from Honeywell International Inc.

Honeywell International Inc. makes no

representations or warranties with respect to this product.

This product is manufactured by Airtek Int'l Corp. Ltd.

(subsidiary of JMATEK Ltd.).
