USE AND CARE GUIDE

STILLMORE 52-INCH CEILING FAN

Questions, problems, missing parts? Before returning to the store,

call Home Decorators Collection Customer Service

8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturdayt

1-800-986-3460

HOMEDEPOT.COM/HOMEDECORATORS

THANK YOU

We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive

to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home

improvement needs. Thank you for choosing Home Decorators Collection!

Item #1004 773 036

Model #59203

UL Model #52-CANF

Table of Contents ................................................................2

Safety Information...............................................................2

Warranty ............................................................................... 3

Pre-Installation ....................................................................3

Installation............................................................................6

Assembly..............................................................................7

Operation ...........................................................................12

Care and Cleaning.............................................................13

Troubleshooting.................................................................13

1. To reduce the risk of electric shock, ensure the electricity has

been turned off at the circuit breaker or fuse box before you

begin.

2. All wiring must be in accordance with the National Electrical

Code ANSI/NFPA 70-1999 and local electrical codes. Electrical

installation should be performed by a qualied licensed

electrician.

3. The outlet box and support structure must be securely mounted

and capable of reliably supporting 35 lbs. (15.9 kg). Use only UL

Listed outlet boxes marked “Acceptable for Fan Support of 35

lbs. (15.9 kg) or less.”

4. The fan must be mounted with a minimum of 7 ft (2.1 m)

clearance from the trailing edge of the blades to the oor.

5. Do not operate the reversing switch while the fan blades are in

motion. You must turn the fan off and stop the blades before

you reverse the blade direction.

6. Do not place objects in the path of the blades.

7. Electrical diagrams are for reference only. Light kits that are not

packed with the fan must be UL-listed and marked suitable for

use with the model fan you are installing. Switches must be UL

General Use Switches. Refer to the instructions packaged with

the light kits and switches for proper assembly.

8. After making electrical connections, spliced conductors should

be turned upward and pushed carefully up into the outlet box.

The wires should be spread apart with the grounded conductor

and the equipment-grounding conductor on one side of the

outlet box.

9. All setscrews must be checked and retightened where

necessary before installation.

WARNING: To reduce the risk of personal injury,

do not bend the blade brackets (also referred to as

anges) during assembly or after installation. Do not

insert objects in the path of the blades.

WARNING: To reduce the risk of re, electric shock

or personal injury, mount to outlet box marked

“acceptable for fan support of 35 lbs. (15.9 Kg) or

less” and use screws provided with the outlet box.

WARNING: To reduce the risk of re or electric

shock, do not use this fan with any solid-state speed

control device.

WARNING: To avoid possible electrical shock,

turn the electricity off at the main fuse box before

wiring. If you feel you do not have enough electrical

wiring knowledge or experience, contact a licensed

electrician.

WARNING: Electrical diagrams are for reference

only. Optional use of any light kit shall be UL-listed

and marked suitable for use with this fan.

Safety Information

Table of Contents

CAUTION: To reduce the risk of personal injury,

use only the screws provided with the outlet box.

CAUTION: To avoid personal injury or damage to the fan

and other items, use caution when working around or

cleaning the fan.

READ AND SAVE THESE INSTRUCTIONS.

3HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Pre-Installation

Warranty

The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a lifetime

after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic blades, to be

free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date of purchase by the

original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior model if the product is

returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product

are your responsibility. Damage to any part such as by accident, misuse, improper installation, or by afxing any accessories, is not covered by

this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish, including rusting, pitting, corroding,

tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying weather conditions. A certain amount of

“wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is

no other express warranty. Home Decorators Collection hereby disclaims any and all warranties, including but not limited to those of merchantability

and tness for a particular purpose to the extent permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the

time period as specied in the express warranty. Some states do not allow a limitation on how long an implied warranty lasts,so the above limitation

may not apply to you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product

use or performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages,

so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other rights which vary

from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty must

be paid by the customer.

Contact the Customer Service Team at 1-800-986-3460 or visit www.HomeDepot.com/homedecorators.

SPECIFICATIONS

TOOLS REQUIRED

NOTE: These are approximate measures. They do not

include the Amps and Wattage used by the light kit.

Ladder

Size Speed Volts Amps Watts RPM CFM Net

Weight

Gross

Weight Cube Feet

52 in.

Low

Medium

High

120

0.25

0.37

0.52

135

194

2339

3763

5145

17.86 lbs

(8.1 kgs)

20.95 lbs

(9.5 kgs) 1.695 cu.ft.

Electrical

tape

Wire cutter/

Stripper

Adjustable

wrench

Flat head

screwdriver

Phillips

screwdriver

Part Description Quantity

AA Wire connecting nut 3

BB Blade arm screws 10

CC Blade screws 10

DD Pull chain 2

Pre-Installation (continued)

HARDWARE INCLUDED

NOTE: Hardware not shown to actual size.

BBAA CC DD

5HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Part Description Quantity

ASlide-on mounting bracket

(inside canopy) 1

B Ball/downrod assembly 1

C Canopy with canopy ring attached 1

D Decorative motor collar 1

E Fan motor assembly 1

Part Description Quantity

F Blade arms 3

G Blade 3

H Light kit pan 1

I Light kit tter assembly 1

J Glass bowl 1

IMPORTANT: This product and/or components are

governed by one or more of the following U.S. Patents:

5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117

and other patents pending.

Pre-Installation (continued)

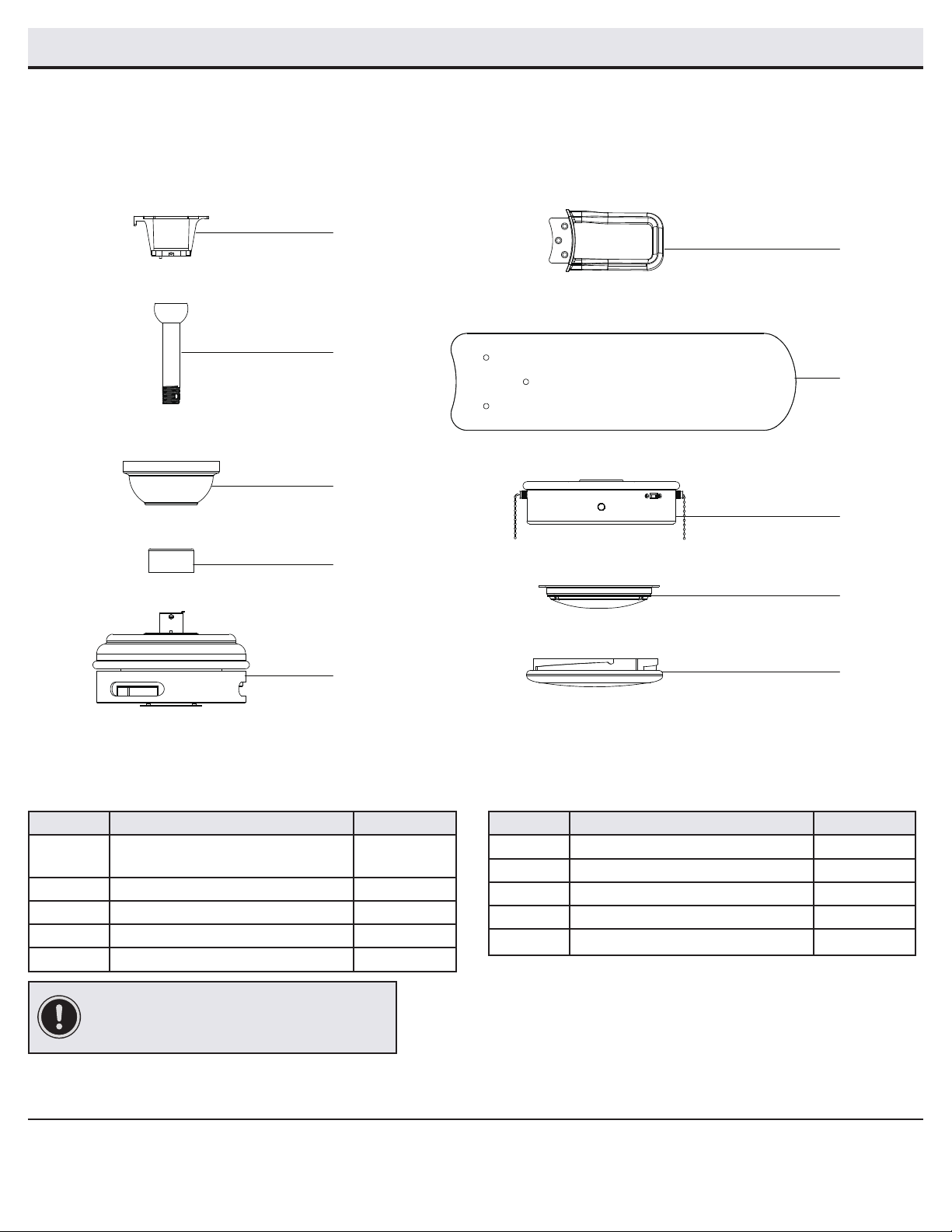

PACKAGE CONTENTS

Installation

MOUNTING OPTIONS

WARNING: To reduce the risk of re, electric shock or

personal injury, mount to outlet box marked “acceptable

for fan support of 35 lbs. (15.9 Kg) or less” using the

screws provided with the outlet box. An outlet box

commonly used for the support of lighting xtures may

not be acceptable for fan support and may need to be

replaced. If in doubt, consult a qualied electrician.

If your ceiling fan does not have an existing UL-listed mounting

box, then install one using the following instructions:

□Disconnect the power by removing the fuses or turning off

the circuit breakers.

□Secure the outlet box directly to the building structure.

Use the appropriate fasteners and materials. The outlet box

and its bracing must be able to fully support the weight

of the moving fan (at least 35 lbs.). Do not use a plastic

outlet box.

The illustrations below show three different ways to mount the

outlet box.

If the canopy touches the downrod, then remove the decorative canopy

bottom cover, and turn the canopy 180° before attaching the canopy to

the mounting plate.

To hang your fan where there is an existing xture but no ceiling joist,

you may need an installation hanger bar as shown above

(available at any Home Depot store).

NOTE: You may need a longer downrod to maintain

proper blade clearance when installing on a steep, sloped

ceiling. The maximum angle allowable is 30° away from

horizontal.

Outlet Box

Recessed

Outlet

Box

Provide Strong

Support

Ceiling

Mounting

Plate

Outlet Box

Hanger Bar

7HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Assembly - Standard Ceiling Mount

Routing the wires

Assembling the fan

Preparing for mounting

□Route the wires exiting the top of the fan motor

assembly (E) through the decorative motor collar

cover (D) and then the center of the canopy

bottom cover (FF).

□Make sure the opening of the canopy (C) is on

top and insert the ball/downrod (B) through the

canopy (C).

□Route the wires exiting the top of the fan motor

assembly (E) through the downrod as shown.

□Loosen, but do not remove, the setscrew (JJ) on the collar (HH)

on top of the fan-motor assembly (E).

□Install the downrod (B) by inserting it into the motor collar (HH),

and turning it clockwise until it is tight.

□Re-tighten the setscrew (JJ) on the collar (HH) on top of the

fan-motor assembly (E).

NOTE: This fan is equipped with a safety tab (EE).

Should the setscrew (JJ) ever become loose while

the fan is running in reverse, the safety tab (EE) will

engage and stop the fan from falling.

CAUTION: To ensure wobble-free operation and to avoid

damage to the fan, the downrod (B) and the setscrew

(JJ) must be completely tightened.

NOTE: The magnet is pre-attached on the canopy

bottom cover for you to remove and install easily.

□Pull off the canopy bottom cover (FF) from the canopy (C).

□Loosen the two canopy screws (GG) located in the

bottom of the mounting bracket (A), and turn the canopy

counterclockwise to remove the mounting bracket (A) from

the canopy (C).

Assembly - Hanging the Fan

Attaching the fan to the electrical

box Hanging the fan

□Pass the 120-Volt supply wires through the center hole in

the mounting bracket (A).

□Install the ceiling mounting bracket on the outlet box by sliding

the mounting bracket (A) over the two screws (OO) provided

with the outlet box. If necessary, use leveling washers (not

included) between the mounting bracket (A) and the outlet box.

Note that the at side of the mounting bracket (A) is toward

the outlet box. When using close-to-ceiling mounting, it is

important that the mounting bracket be level.

□Securely tighten the two mounting screws (OO).

□Carefully lift the fan-motor assembly (E) up to the slide-on

mounting bracket (A).

□Insert the ball portion of the ball/downrod assembly into

the socket of the slide-on mounting bracket (A).

□Turn the ball/downrod (B) assembly clockwise until it is

seated with the tab of the slide-on mounting bracket (A).

4 5

WARNING: To reduce the risk of re, electric shock

or personal injury, mount to outlet box marked

“acceptable for fan support of 35 lbs (15.9 kg) or

less” using the screws provided with the outlet box.

NOTE: The mounting bracket (A) is designed to slide

into place on an outlet box with the outlet box screws

(OO) installed.

9HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Assembly - Hanging the Fan (continued)

Making the electrical connection

IMPORTANT: Use the plastic wire connectors (AA) supplied with

your fan. Secure the connectors with electrical tape and ensure

there are no loose strands or connections.

WARNING: Each wire nut supplied with this fan is designed to

accept up to one 12-gauge house wire and two wires from the

fan. If you have larger than 12-gauge house wiring or more

than one house wire to connect to the fan wiring, consult an

electrician for the proper size wire nuts to use.

NOTE: The fan comes with 54 in. lead wires for use with an

extended ball/downrod assembly. If using the 6 in. ball/downrod

assembly (B) provided, you can cut the lead wires to your desired

length (no shorter than 12 in.).

□The fan comes with 54 in. lead wires for use with an

extended ball/downrod assembly. If using the 6 in. ball/

downrod assembly (B) provided, you can cut the lead wires

to your desired length (no shorter than 12 in.) This will make

extra room in the canopy (C). If you do not wish to cut the

wires, you will need to neatly wrap them.

□Connect the fan motor green wires to the household green

or bare wire using a wire connecting nut (AA).

□Connect the fan motor white wire to the household white

wire using a wire connecting nut (AA).

□Connect the fan motor black and blue wires to the

household black wire using a wire connecting nut (AA).

□Secure each wire connecting nut using electrical tape.

□Turn the wire connecting nut (AA) upward and push the

wiring into the outlet box (II).

Wrapping the extra wire

□Gently wrap the excess wire around the mounting bracket.

□Secure with electrical tape.

NOTE: Follow this step ONLY if you did not cut the extra length off

from the wires coming from the ceiling fan.

Outlet box

in the ceiling (II)

Green or Bare

Green

Black White

Blue & Black White

Mounting the fan-motor assembly

(standard mount)

Assembly - Hanging the Fan (continued)

□Align the locking slots of the canopy (C) with the two screws (GG)

and alignment post (KK) in the mounting bracket (A).

□Push up the canopy (C) and turn clockwise until the alignment

post (KK) engages to the round hole and the screws (GG) engage

to the key slots.

□Firmly tighten the two mounting screws (GG).

□Align the oval shape on the canopy (C) with the canopy bottom

cover (FF). Push up the canopy bottom cover (FF) until the screw

(GG) heads engage to the slots on the canopy bottom cover (FF)

so that the magnetic canopy bottom cover (FF) can be attached to

the bottom of the canopy (C) properly.

WARNING: When using the standard ball/downrod mounting,

the tab in the ring at the bottom of the mounting bracket

must rest in the groove of the hanger ball. Failure to properly

seat the tab in the groove could cause damage to the wiring.

Attaching the fan blades

□Attach the blade assembly to the motor assembly (E) by

aligning the screw holes on the blade arm (F) with the screw

holes on the bottom of the fan motor assembly (E).

□Insert the screws (BB) into the holes on the blade arm (F) and

through the holes on the bottom of the fan motor assembly (E),

and tighten each screw to secure the blade assembly.

□Repeat these steps for the remaining blade assemblies.

Installing the blades to the

blade brackets

□Attach a blade (G) to the blade arm (F) by aligning the holes

on the blades (G) and blade arms (F), inserting the screws (CC)

into the holes and through the blade (G) and blade arm (F).

□Tighten each screw to secure the blade (G).

□Repeat this step for each blade (G) and blade arm (F).

Assembly - Attaching the Fan Blades

NOTE: The magnet is pre-attached on the canopy bottom

cover for you to remove and install easily.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Admirador de Home Decorators Collection

Home Decorators Collection

Home Decorators Collection KENSGROVE YG493OD-ORB Manual de usuario

Home Decorators Collection

Home Decorators Collection ALTURA 68-ATR Manual de usuario

Home Decorators Collection

Home Decorators Collection 59201 Manual de usuario

Home Decorators Collection

Home Decorators Collection ALTURA II Manual de usuario

Home Decorators Collection

Home Decorators Collection ASHBY PARK 59252 Manual de usuario

Home Decorators Collection

Home Decorators Collection CANTERBURY SW17B2L BN Manual de usuario

Home Decorators Collection

Home Decorators Collection 1007 532 508 Manual de usuario

Home Decorators Collection

Home Decorators Collection Chartwell Manual de usuario

Home Decorators Collection

Home Decorators Collection OSSA CF2001-N Manual de usuario

Home Decorators Collection

Home Decorators Collection SFL-550L1 Manual de usuario

Home Decorators Collection

Home Decorators Collection ARLEIGH Manual de usuario

Home Decorators Collection

Home Decorators Collection HAVERBROOK AM634-PN Manual de usuario

Home Decorators Collection

Home Decorators Collection CHAMBERLAIN 42-CHAM Manual de usuario

Home Decorators Collection

Home Decorators Collection 52-MONT Manual de usuario

Home Decorators Collection

Home Decorators Collection N609-BN Manual de usuario

Home Decorators Collection

Home Decorators Collection AVONBROOK 59256 Manual de usuario

Home Decorators Collection

Home Decorators Collection VENDOME 51884 Manual de usuario

Home Decorators Collection

Home Decorators Collection CIRINO AM550-BN Manual de usuario

Home Decorators Collection

Home Decorators Collection VINWOOD 56001 Manual de usuario

Home Decorators Collection

Home Decorators Collection STATEWOOD 51770 Manual de usuario

Home Decorators Collection

Home Decorators Collection 56072 Manual de usuario

Home Decorators Collection

Home Decorators Collection 44001-HBC Manual de usuario

Home Decorators Collection

Home Decorators Collection KINGSBROOK 60-KBR Manual de usuario

Home Decorators Collection

Home Decorators Collection Bentley II 129828 Manual de usuario

Manuales populares de Admirador de otras marcas

ELTA FANS

ELTA FANS H03VV-F Manual de usuario

Hunter

Hunter 20714 Manual de instrucciones

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manual de usuario

Hunter

Hunter Caraway Manual de instrucciones

Panasonic

Panasonic FV-15NLFS1 Manual de usuario

Kompernass

Kompernass KH 1150 Manual de usuario

VES

VES FALA100/12V/TR Manual de usuario

Vertiv

Vertiv Liebert DCD Manual de usuario

Westinghouse

Westinghouse GFP Series Manual de usuario

Venmar

Venmar KUBIX HRV PLUS Series Manual de usuario

Maico

Maico ECR 31 Manual de usuario

Sonnenkonig

Sonnenkonig Dinky Manual de usuario

S&P

S&P ECOWATT HXBR Manual de usuario

Wider

Wider IMP03369BH Manual de usuario

Panasonic

Panasonic F-60DHN Manual de usuario

Hinkley

Hinkley HIGHLAND Manual de usuario

Broan

Broan 766BN Manual de usuario

Premium

Premium PFS16022 Instrucciones de montaje
