HOMCOM 824-051V91 Guía de instalación

ASSEMBLY & INSTRUCTION MANUAL

220-240V~50-60Hz 45W

IMPORTANTE, LEA Y GUARDE PARA FUTURAS REFERENCIAS.

824-051 V91

INcjh025V01_ES

Ventilador de torre

READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL,

OPERATE OR MAINTAIN THE PRODUCT DESCRIBED. PROTECT

YOURSELF AND.OTHER BY OBSERVING ALL SAFETY INFORMATION.

FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN

PERSONAL INJURY AND/OR PROPERTY DAMAGE !

IMPORTANT SAFETY INFORMATION

1. Read all instructions carefully before using the FAN.

2. Use this FAN only as described in this manual. Any other

use not recommended by the manufacturer may cause fire,

electrical shock, or injury to persons.

3. Remove the package and ensure that the FAN is

undamaged. In case of doubt do not use FAN and contact

with your supplier.

4. Don not let children play parts of package.

5. Before use the FAN, check if the voltage marked on the

rating label corresponds to the mains in your home.

6. Extreme caution is necessary when the FAN is used by or

near children or Invalids and whenever the FAN is left

operating unattended.

7. Avoid using extension cord as the extension cord may

overheat and cause a risk of fire.

8. Do not pull the power cord to disconnect with power source.

Always grasp the plug to pull out.

9. Do not insert any objects into the FAN as it may cause an

electric shock or injure or damage to the FAN. Do not block

or tamper with the FAN in any manner while it is in

operation.

10. Do not leave the FAN unattended.

11. This FAN is not intended for use in wet or damp locations.

Never locate a FAN where it may fall into a bathtub or other

water container.

12. Do not use FAN outdoors.

13. Disconnect the fan from the mains power when not in use,

and before servicing or performing any maintenance.

14. Keep the fan clean and maintain in good condition (use an

authorized service agent).

15. Use recommended parts only (non genuine parts may be

dangerous, and will invalidate your warranty).

16. When not in use store in a safe, dry, childproof location.

17. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the

hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by

children without supervision.

18. The back housing shall not dismantle, removal will be

dangerous .

19. This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning

use of the appliance by a person responsible for their

safety.

20. Children should be supervised to ensure that they do not

play with the appliance.

WARNING :The Main Power Switch and the On/Off

switch should not be used as the sole

means of disconnecting power. Always

unplug the power cord before servicing or

moving the unit.

WARNING : To avoid danger of electric shock, unplug

from outlet when not in use and before

cleaning. If the supply cord is damaged, it

must be replaced by the manufactory or it’s

service agent or a similarity qualified

person in order to avoid a hazard.

PARTS NAME

ASSEMBLY

1. Take out the two parts of the base from packing box. Then, align the

centers of the two parts of the base and place them in a crossed form.

Rotate one of the two bases to align its hole site and make it stuck

correctly (Fig 1).

(Fig 1)

2. Put the wire in the recess, then fix the base on the fan body with four

screws (included), and turn the screws clockwise (Fig 2).

(Fig 2 )

REMOTE CONTROL

1. Included a button cell battery (the type of battery CR2025).

2. The remote control power button is labeled as such. All the functions

performed with the remote control work identically to the manual controls.

( Fig 3).

( Fig 3) (Fig 4)

OPERATION

The FAN may be operated by the manual controls located on the FAN (as

shown in Fig 4 ) or by your remote control (shown in Fig 3) .

1. Place the FAN on a stable flat surface. Plug the cord set into a 220-240V~

electrical outlet. Plug on the FAN, existing room temperature will be

displayed at display panel.

2. POWER :Turn the FAN on by pressing the ‘POWER’ button; Turn the

FAN off by pressing the ‘POWER’ button again.

3. SPEED :You can adjust the fan speed to the desired level: low,

medium, or high by pressing ‘SPEED’ . The speed setting is displayed on

the LED panel (shown in Fig. 5) .

4. MODE : Pressing the ‘MODE’ button will set the FAN into NORMAL

mode, NATURAL mode,SLEEP mode and Child mode

- NORMAL Mode :Fan will start work at any speed you set up.

- NATURAL Mode :Fan will start work at low speed(5s)→

medium speed(5s)→high speed(5s)→medium speed(5s), it works as per

this recycle.

- SLEEP Mode : 1）If you set the mode at high speed, fan will work

at high speed at 30 mins, then transfer to medium speed at 30 mins and

transfer to low speed until fan stop working. 2）If you set the mode at

medium speed, fan will work at medium speed at 30 mins, then transfer to

low speed until fan stop working. 3）If you set the mode at low speed, fan

will work at low speed until fan stop working. The LED Display will turn off

if you don’t control the fan in 30 seconds, touch any button to turn on the

display.

- Child Mode :Fan will auto. Set up timer at 3 hours, oscillation

function will start. And it will work at high speed at 15 minutes, transfer to

medium speed at 15 minutes, then transfer to low speed until it take off.

You can take off oscillation function by manual. The LED Display will

turn off if you don’t control the fan in 30 seconds, touch any button to

turn on the display.

5. TIMER :The fan is equipped with a timer that allows you to set its

length of operation from 1 hour to 12 hours.The LED Display will turn off if

you don’t control the fan in 30 seconds, touch any button to turn on the

display.

6. OSCILLATION :Pressing the ‘OSC’ button will start and stop the

oscillation function. The symbol is displayed on the LED panel.(shown in

Fig 5)

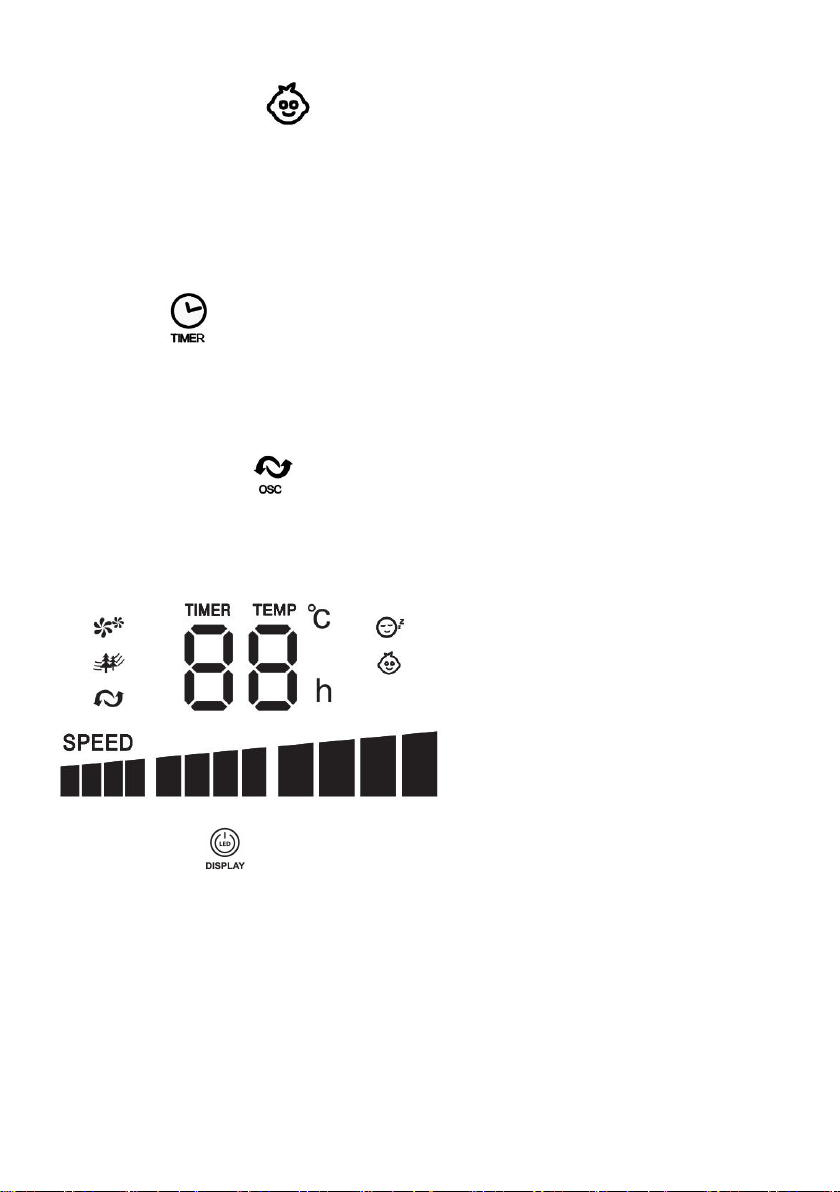

(Fig 5)

7. DISPLAY :Can be switched off temporarily by press the LED

button on the remote or by pressing and holding the SPEED button on the

control panel for more than 3 seconds, the display will light up again once

any control button is activated.

8. Cable hook: The cable hook is packed in the user manual, take it out

and install on the back side of the fan. The power cord can be hanged at

the cable hook when the fan is not in used.(Fig 6) .

(Fig 6)

MAINTENANCE

1. This can only be done by an authorized service agent such as your local

Sealer dealer or any agent qualified to undertake electrical repairs.

2. If the unit requires external cleaning make sure it is switched off and

unplugged from the mains supply. Use a soft tissue or cloth for general

cleaning. To remove more persistent dirt or grime wipe down with a cloth that

has been dampened with warm soapy water. Do not use any solvents ( such

as thinners ) as these may damage the plastic casing.

DISPOSAL

WARNING!!!

Releasing refrigerant into atmosphere is strictly

forbidden!

According to European Directive 2012/19 / EU on

waste electrical and electronic equipment and

transposition into national law, used electrical

appliances must be collected separately and

recycled in an environmentally sound manner.

LEA DETENIDAMENTE ESTAS INSTRUCCIONES ANTES DE INTENTAR

MONTAR, INSTALAR O REALIZAR CUALQUIER OTRA ACCIÓN CON EL

VENTILADOR DESCRITO. ESTE MANUAL INCLUYE INFORMACIÓN DE

SEGURIDAD. INCUMPLIR LAS INSTRUCCIONES PODRÍA PROVOCAR

LESIONES PERSONALES Y / O DAÑOS A LA PROPIEDAD!

INFORMACIÓN DE SEGURIDAD IMPORTANTE

1.Lea detenidamente estas instrucciones antes de utilizar el

VENTILADOR.

2.Utilice el VENTILADOR únicamente para las finalidades

descritas en este manual. Cualquier otro uso no recomendado

por el fabricante podría causar riesgo de incendios, descargas

eléctricas o lesiones personales.

3.Retire el embalaje y asegúrese de que el VENTILADOR no

esté dañado. En caso de duda, no lo utilice y póngase en

contacto con su proveedor.

4.No permita que los niños jueguen con las piezas incluidas en

el paquete.

5.Antes de utilizar el VENTILADOR, compruebe si el voltaje

marcado en la etiqueta de clasificación corresponde con el

voltaje de su red eléctrica.

6.Tenga especial cuidado cuando use el VENTILADOR cerca

de los niños o personas con alguna incapacidad, evite su

funcionamiento sin supervisión.

7.Evite utilizar un alargo porque el cable puede

sobrecalentarse y causar riesgo de incendio.

8.Nunca tire del cable de alimentación directamente para

desconectarlo de la fuente de alimentación. Siempre agarre el

enchufe para sacarlo.

9.No inserte ningún objeto en el VENTILADOR, de lo contrario,

podría causar descarga eléctrica o lesiones o daños al

VENTILADOR. No bloquee el VENTILADOR de ninguna

manera cuando esté funcionando.

14.Mantenga el ventilador limpio y en buenas condiciones.

Desenchufe el ventilador para limpiarlo.

15.El uso de accesorios no recomendados por el fabricante del

aparato puede ser peligroso e invalidarán la garantía.

16.Cuando el ventilador no esté en uso, guárdelo en un lugar

seguro, seco y alejado de los niños.

17.Este aparato puede ser utilizado por niños a partir de 8

años y por personas con capacidades físicas, sensoriales o

mentales reducidas o con falta de experiencia y conocimientos,

siempre y cuando hayan recibido supervisión o instrucciones

sobre el uso del aparato de forma segura y comprendan los

peligros que conlleva. Los niños no deben jugar con el

ventilador ni realizar tareas de limpieza y mantenimiento.

18.Tenga en cuenta que el nivel alto de humedad puede

fomentar el crecimiento de organismos biológicos en el medio

ambiente.

ADVERTE

NCIA:

El interruptor de encendido /apagado no debe ser

utilizado como el único medio para desconectar el

ventilador. Siempre desenchufe el cable de

alimentación antes de realizar cualquier

mantenimiento otrasladar la unidad de sitio.

10.No deje el VENTILADOR desatendido. Siempre desenchufe

el VENTILADOR cuando no esté en uso.

11.Este VENTILADOR no está diseñado para ser utilizado en

espacios mojados o húmedos. Nunca lo coloque cerca de una

bañera u otro recipiente donde se pueda caer.

12.No utilice el VENTILADOR al aire libre.

13.Desconecte el VENTILADOR de la fuente de alimentación

cuando no esté en uso y antes de realizar cualquier reparación

o mantenimiento.

Tabla de contenidos

Idiomas:

Otros manuales de Admirador de HOMCOM

HOMCOM

HOMCOM 824-046V80 Guía de instalación

HOMCOM

HOMCOM 824-018 Manual de usuario

HOMCOM

HOMCOM 824-017V70 Manual de usuario

HOMCOM

HOMCOM 824-049V80 Manual de usuario

HOMCOM

HOMCOM 824-024V70 Manual de usuario

HOMCOM

HOMCOM B31-394 Guía de instalación

HOMCOM

HOMCOM 824-024V80 Manual de usuario

HOMCOM

HOMCOM 824-049V80 Guía de instalación

HOMCOM

HOMCOM B31-395V80 Guía de instalación

HOMCOM

HOMCOM CTF4202TR-L Manual de usuario

HOMCOM

HOMCOM 824-038V70 Manual de usuario

HOMCOM

HOMCOM 824-057V90 Manual de usuario

HOMCOM

HOMCOM 824-048V80 Guía de instalación

HOMCOM

HOMCOM BL-FS2-D Guía de instalación

HOMCOM

HOMCOM 824-032V70 Guía de instalación

HOMCOM

HOMCOM 824-050V90 Guía de instalación

HOMCOM

HOMCOM 824-003 Manual de usuario

HOMCOM

HOMCOM 824-055V90 Guía de instalación

HOMCOM

HOMCOM 824-020 Manual de usuario

HOMCOM

HOMCOM 824-039V90 Manual de usuario

HOMCOM

HOMCOM 820-297V90 Manual de usuario

HOMCOM

HOMCOM 824-007 Manual de usuario

HOMCOM

HOMCOM 824-021 Manual de usuario

HOMCOM

HOMCOM B31-391 Guía de instalación

Manuales populares de Admirador de otras marcas

ELTA FANS

ELTA FANS H03VV-F Manual de usuario

Hunter

Hunter 20714 Manual de instrucciones

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manual de usuario

Hunter

Hunter Caraway Manual de instrucciones

Panasonic

Panasonic FV-15NLFS1 Manual de usuario

Kompernass

Kompernass KH 1150 Manual de usuario

VES

VES FALA100/12V/TR Manual de usuario

Vertiv

Vertiv Liebert DCD Manual de usuario

Westinghouse

Westinghouse GFP Series Manual de usuario

Venmar

Venmar KUBIX HRV PLUS Series Manual de usuario

Maico

Maico ECR 31 Manual de usuario

Sonnenkonig

Sonnenkonig Dinky Manual de usuario

S&P

S&P ECOWATT HXBR Manual de usuario

Wider

Wider IMP03369BH Manual de usuario

Panasonic

Panasonic F-60DHN Manual de usuario

Hinkley

Hinkley HIGHLAND Manual de usuario

Broan

Broan 766BN Manual de usuario

Premium

Premium PFS16022 Instrucciones de montaje
