Hofmann Megaplan MS400-2 Manual de usuario
Hofmann Megaplan GmbH
A 5302 HENNDORF - AUSTRIA
Hauptstraße, 67 - Tel. (+43) 6214 646612
TECHNICAL
MAINTENANCE
MS400-2 Version C (Type 0967)
MS400-2P Version D (Type 1001)
19.08.2013
English
POWER SUPPLY VOLTAGE CHANGE
Models:
M400-2(C) - M400P-2(C) - M400P-2(D)
The wheel balancer can operate at 115 V –50/60 Hz or 230 V –50/60 Hz
To change the power supply voltage, make the following modifications:
No.
Description
1
Replace the motor
2
Replace the capacitor
SHEET 001
3
Replace the power board
LOGIC BOARD INITIALISATION
Models:
M400-2(C) - M400P-2(C) - M400P-2(D)
No.
Description
1
Turn on the machine while holding
down the
button
2
Press
to confirm
3
Initialisation done
SHEET 002
SELF-DIAGNOSTICS
Models:
M400-2(C) - M400P-2(C) - M400P-2(D)
No.
Description
1
Press
2
Press
3
Press
SHEET 003
4
Press
5
All the LEDs and the display must light up for 1
second
6
After 1 second [Pos 137] appears; the current wheel
position is shown on the right-hand display with a
number between 0 and 255. Turning the wheel in
the rotation direction, the number displayed must
increase. Turning the wheel in the opposite
direction, the number must decrease. In one full turn
of the wheel, the number 0 must appear once only.
Press
7
Statistical control parameter for internal use (not
important)
Press
8

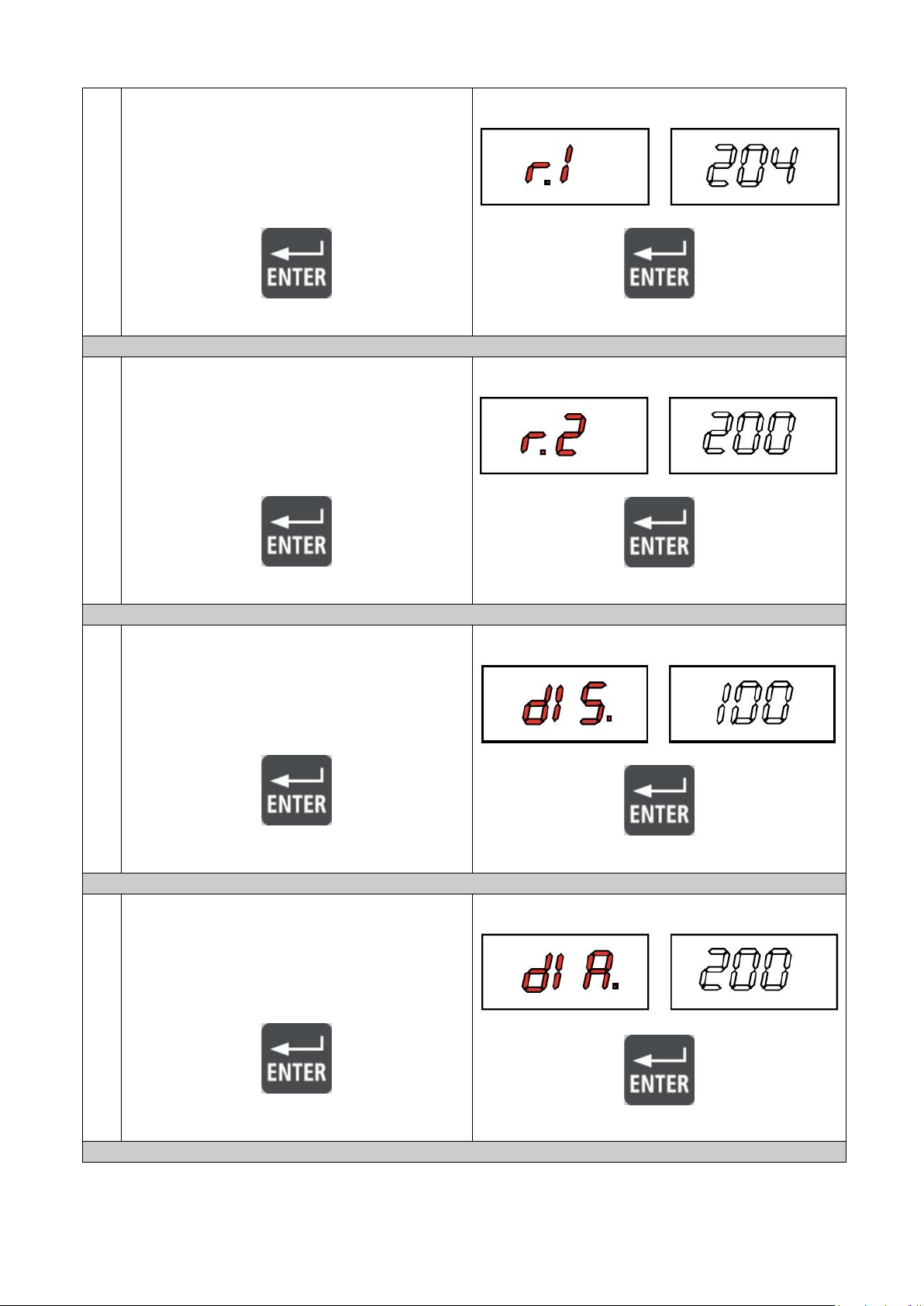

Indicates the output of the piezo sensor R1. It must
be equal to 200 +/-30 with the shaft bare.
Press
9
Indicates the output of the piezo sensor R2. It must
be equal to 200 +/-30 with the shaft bare.
Press
10
Displays the DISTANCE sensor value
Press
11
Displays the DIAMETER sensor value
Press
12
Displays the WIDTH sensor value
Press
13
End of self-diagnostics.
To end self-diagnostics at any time press
SPINDLE UNBALANCE RESET
Models:
M400-2(C) - M400P-2(C) - M400P-2(D)
No.
Description
1
Press
2
Press
3
Press
SHEET 004

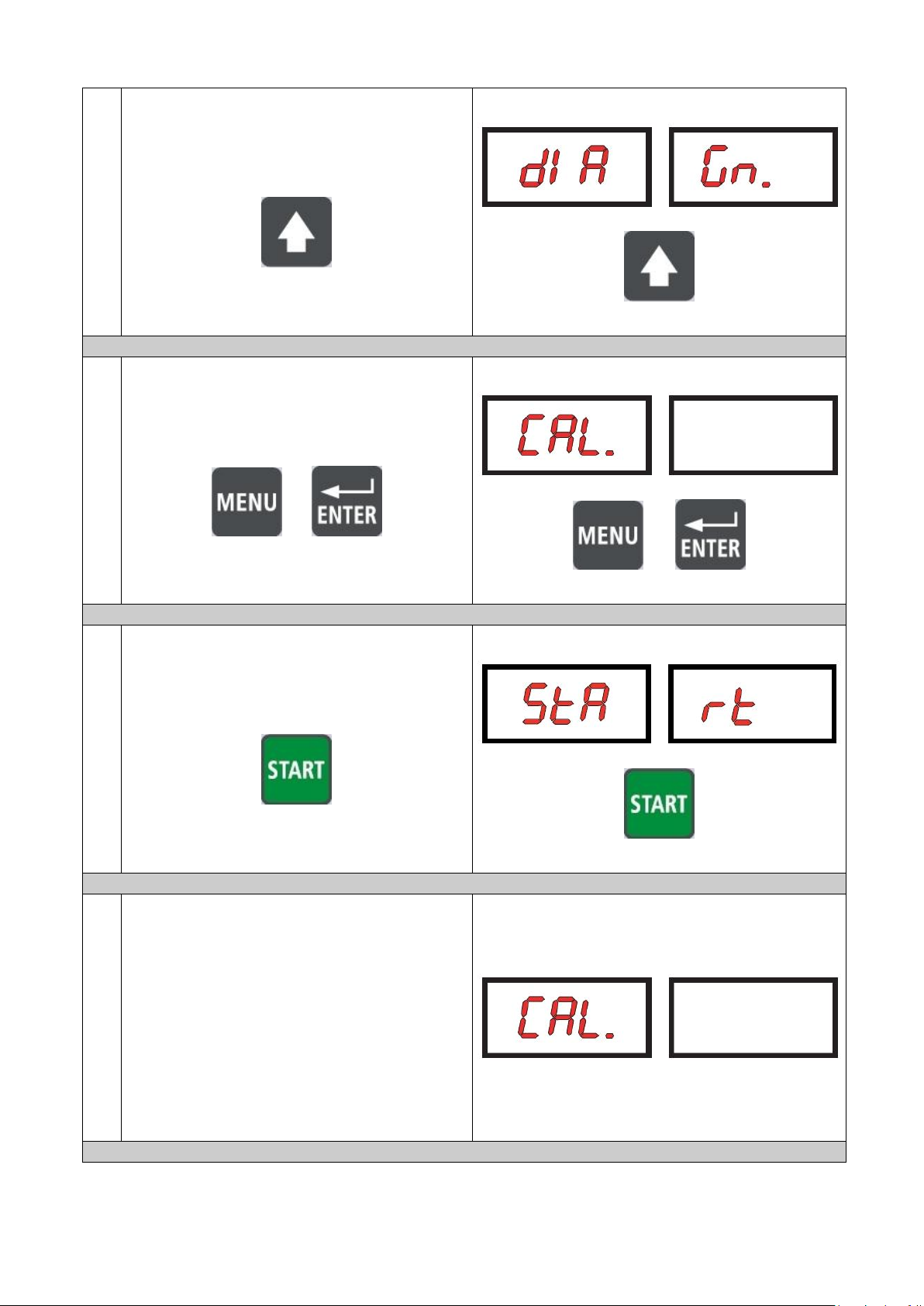

4
Press
5
Press in sequence
6
To proceed with the unbalance reset:
Press
(spin with the shaft bare)
7
Spindle unbalance reset complete
