HMS Networks Airconwithme Guía de aplicación

Device Configuration

Issue date: 03/2021

V1.0

Device Configuration 1.0

This information is subject to change without notice

URL https://airconwithme.com

2 / 20

Important User Information

Disclaimer

The information in this document is for informational purposes only. Please inform HMS

Industrial Networks of any inaccuracies or omissions found in this document.

HMS Industrial Networks disclaims any responsibility or liability for any errors that may appear

in this document. HMS Industrial Networks reserves the right to modify its products in line

with its policy of continuous product development. The information in this document shall

therefore not be construed as a commitment on the part of HMS Industrial Networks and is

subject to change without notice. HMS Industrial Networks makes no commitment to update

or keep current the information in this document.

The data, examples and illustrations found in this document are included for illustrative

purposes and are only intended to help improve understanding of the functionality and

handling of the product. In view of the wide range of possible applications of the product, and

because of the many variables and requirements associated with any particular

implementation, HMS Industrial Networks cannot assume responsibility or liability for actual

use based on the data, examples or illustrations included in this document nor for any

damages incurred during installation of the product. Those responsible for the use of the

product must acquire sufficient knowledge in order to ensure that the product is used correctly

in their specific application and that the application meets all performance and safety

requirements including any applicable laws, regulations, codes and standards. Further, HMS

Industrial Networks will under no circumstances assume liability or responsibility for any

problems that may arise as a result from the use of undocumented features or functional side

effects found outside the documented scope of the product. The effects caused by any direct

or indirect use of such aspects of the product are undefined and may include e.g. compatibility

issues and stability issues.

Device Configuration 1.0

This information is subject to change without notice

URL https://airconwithme.com

3 / 20

INDEX

1. Description................................................................................................................................................4

1.1 Introduction .......................................................................................................................................4

1.2 About this document.........................................................................................................................4

1.3 What is needed.................................................................................................................................4

2. Airconwithme Button.................................................................................................................................6

2.1 Reset Wi-Fi settings..........................................................................................................................6

2.2 WPS mode........................................................................................................................................7

2.3 Change Wi-Fi channel ......................................................................................................................8

3. Configuration ............................................................................................................................................9

3.3 Automatic....................................................................................................................................... 12

3.4 Manual ........................................................................................................................................... 14

3.5 WPS............................................................................................................................................... 16

3.6 Settings.......................................................................................................................................... 18

4. LED status information .......................................................................................................................... 20

4.1 LED status during Wi-Fi configuration ........................................................................................... 20

4.2 LED status during working mode................................................................................................... 20

Device Configuration 1.0

This information is subject to change without notice

URL https://airconwithme.com

4 / 20

1. Description

1.1 Introduction

Airconwithme is the perfect IoT solution for AC management. It has been developed under

Mitsubishi Heavy specifications and offers the possibility to control the domestic AC unit from

an app available for Android and iOS.

The Airconwithme system offersfunctionalities like energy saving making the product the best

professional solution for offices, stores, schools, or any other commercial building.

Figure 1.1 Airconwithme integration.

1.2 About this document

This document describes how to configure the Airconwithme device It contains the meaning

of the feedback light from Airconwithme LED during the configuration process and working

mode

1.3 What is needed

To use Airconwithme system is needed, at least, the following:

•Airconwithme device.

Before start using Airconwithme is needed to acquire (if the user hasn’t done yet) an

Airconwithme device

. In addition, is necessary be close to it (See Figure 1.2)

Airconwithme devices can be purchased in your usual air conditioner or heat pump reseller center.

Device Configuration 1.0

This information is subject to change without notice

URL https://airconwithme.com

5 / 20

Figure 1.2 Get close to the device.

•Make sure Airconwithme device is compatible with the Indoor unit.

Check the compatibility.

•Internet access

The Airconwithme device must be connected to internet using Wi-Fi, therefore make

sure the Wi-Fi signal reaches the device location (See Figure 1.3).

Figure 1.3 Check Wi-Fi Signal.

•Device with Internet access:

A device with internet access is needed (Smartphone or Tablet).

Make sure the smartphone or tablet used is Android or iOS compatible.

In addition, double check that the data is turned off and Wi-Fi is turned on.

Costs related with Internet access are not included in the Airconwithme price. Ask your Internet Service Provider about the associated

costs of your Internet connection.

<2m

Device Configuration 1.0

This information is subject to change without notice

URL https://airconwithme.com

6 / 20

2. Airconwithme Button

Airconwithme devices have one unique button (See Figure 2.1).

Figure 2.1 Airconwithme´ s button

2.1 Reset Wi-Fi settings

To reset the Wi-Fi information in an Airconwithme device is needed to hold the button for 10

seconds (See Figure 2.2), the light of the LED will blink in green after some seconds it will

turn steady green (See Figure 2.3).

Figure 2.2 Reset Wi-Fi procedure.

Figure 2.3 Reset LED feedback.

Green

Blinking

Green

Steady

<10 sec

10 sec

Device Configuration 1.0

This information is subject to change without notice

URL https://airconwithme.com

7 / 20

2.2 WPS mode

Press one time the button to activate the WPS mode in the Airconwithme device (See Figure

2.4), the light of the LED will blink in blue (See Figure 2.5).

Figure 2.4 WPS mode.

Figure 2.5 WPS mode LED feedback.

“Click”

Blue

Blinking

Device Configuration 1.0

This information is subject to change without notice

URL https://airconwithme.com

8 / 20

2.3 Change Wi-Fi channel

Holding the button for 2 seconds to change the channel of the Wi-Fi network (See Figure 2.6),

the light of the LED will blink in green and it will turn steady green (See Figure 2.7). The

process can be repeated until reach the channel wanted.

Figure 2.6 Change Wi-Fi channel procedure.

Figure 2.7 Change Wi-Fi channel LED feedback.

2 sec

<2 sec

Green

Blinking

Green

Steady

Device Configuration 1.0

This information is subject to change without notice

URL https://airconwithme.com

9 / 20

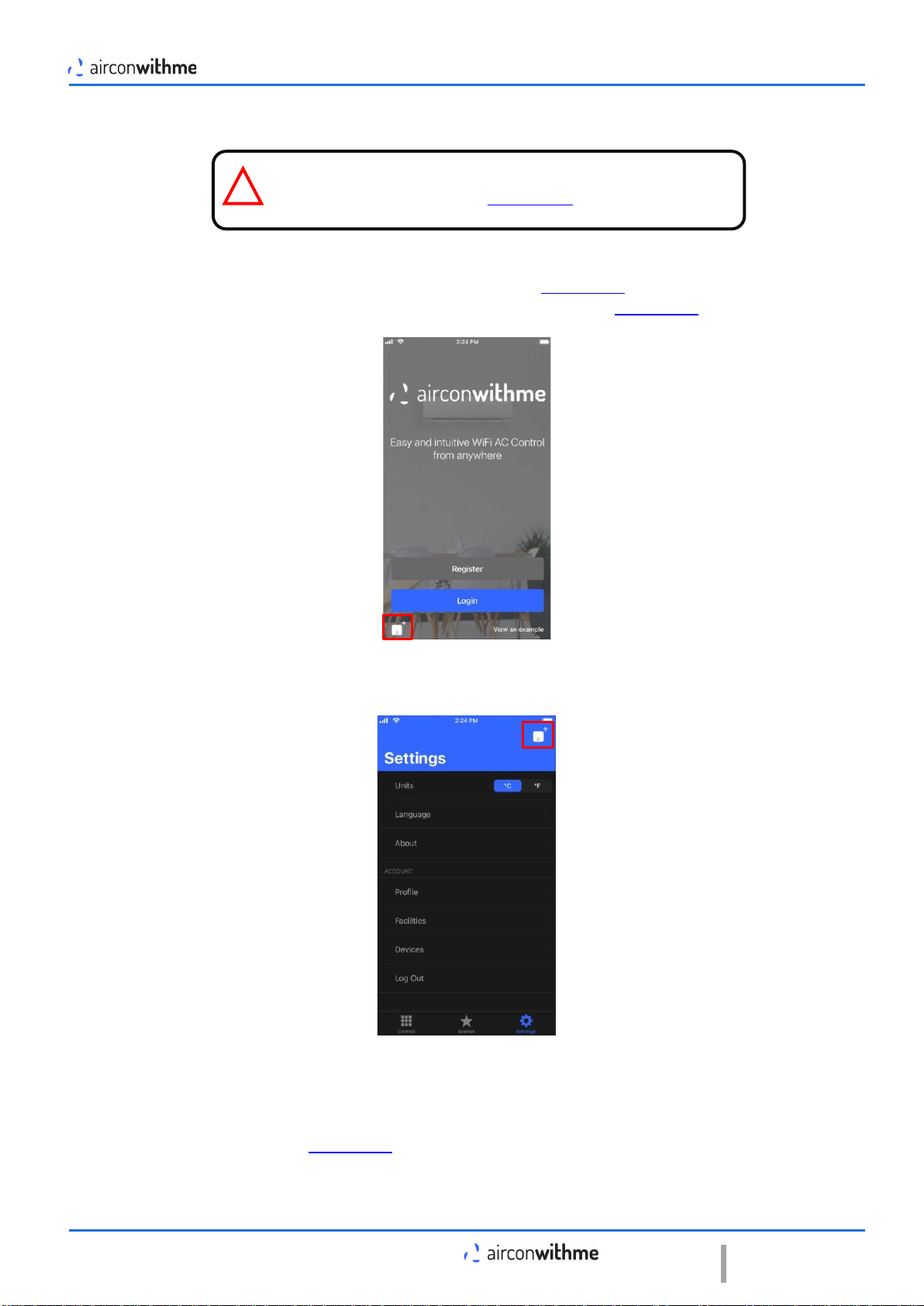

3. Configuration

There are 2 ways to realize the procedure

1. Tap on the white square in the main page (See Figure 3.1).

2. Login, tapping on settings and on the white square (See Figure 3.2).

Figure 3.1 Access to Configuration network device without login.

Figure 3.2 Access to Configuration network device from settings login.

Go to Wi-Fi settings of your mobile or Table and select the network generated by

Airconwithme device (See Figure 3.3). Tap on Next.

Note: Make sure to reset the Wi-Fi configuration. Further

information can be found in Section 2.1.

Device Configuration 1.0

This information is subject to change without notice

URL https://airconwithme.com

10 / 20

In case the user is not connected to the device network a pop-up window will be shown asking

to connect to it. (See Figure 3.4).

The mode to configure the Wi-Fi network can be selected as preference. Further information

about each mode configurations will be found at Section 3.3, Section 3.4 and Section 3.5.

Figure 3.3 Configuration network procedure.

Figure 3.4 Configuration network warning pop-up window.

If the configuration network has been carried out successfully the light of the LED will follow

a light sequence (See Figure 3.5). Tap on Done.
