DX100 EU

Wireless Intercom

Operating Instructions



SECTION 1. INTRODUCTION .......................................................................................................................1
EQUIPMENT IDENTIFICATION ....................................................................................................................... 2
MAIN EQUIPMENT FEATURES ....................................................................................................................... 3
Base Station Features ........................................................................................................................................3
Beltpac Features (Uses BAT41 battery)............................................................................................................3
WH220 Headset Controls (Uses BAT50 battery)..............................................................................................4
SECTION 2. EQUIPMENT SETUP.................................................................................................................5
AC40 BATTERY CHARGER SETUP.................................................................................................................5
Connect AC Power Supply................................................................................................................................5
Charging the Batteries.......................................................................................................................................5
AC50 BATTERY CHARGER SETUP.................................................................................................................6
Connect AC Power Supply................................................................................................................................6
Charging the Batteries.......................................................................................................................................6
BASE STATION SETUP...................................................................................................................................... 7
Antenna and Power Setups................................................................................................................................7
Multiple Base Stations.......................................................................................................................................9
Primary and Secondary Base Station Settings...................................................................................................9
Base Station Initialization................................................................................................................................10
BELTPAC / WH220 HEADSET SETUP AND REGISTRATION.................................................................... 12
Set Up Beltpacs ...............................................................................................................................................12
Register Beltpacs.............................................................................................................................................12
Set Up WH220 Headsets.................................................................................................................................14
Register WH220 Headsets...............................................................................................................................14
SECTION 3. EQUIPMENT OPERATION...................................................................................................16
BASE STATION OPERATION ......................................................................................................................... 16
Controls and Indicators....................................................................................................................................16
Low Battery Indicator......................................................................................................................................16
BELTPAC OPERATION....................................................................................................................................17
WH220 HEADSET OPERATION...................................................................................................................... 19
SECTION 4. TROUBLESHOOTING............................................................................................................21
SECTION 5. TECHNICAL DATA.................................................................................................................22
EQUIPMENT SPECIFICATIONS ..................................................................................................................... 22
Base Station.....................................................................................................................................................22
Beltpac.............................................................................................................................................................23
WH220 Headset...............................................................................................................................................23
APPENDIX A: EU BASE STATION ADAPTIVE FREQUENCY HOPPING................................................. 24
CE Base Station Adaptive Frequency Hopping - Background........................................................................24
Adaptive Frequency Hopping..........................................................................................................................24
Operation in Severe Environments..................................................................................................................24
Required AFH Equipment...............................................................................................................................25
Non-AFH Equipment ......................................................................................................................................25
Interference Mitigation....................................................................................................................................25
GENERAL BATTERY SAFETY INSTRUCTIONS FOR BATTERY MODEL BAT41, BAT50, BAT60...... 26



Illustrations in this publication are approximate representations of the actual
equipment, and may not be exactly as the equipment appears.
HM Electronics, Inc. is not responsible for equipment malfunctions due to
erroneous translation of its publications from their original English version.

Hereby, HM Electronics, Inc. declares that the DX100 is in compliance with the essential requirements and other

relevant provisions of Radio Equipment Directive (RED).

This product operates in the 2400 to 2483.5 MHz frequency range. The use of this frequency range is not yet

harmonized between all countries. Some countries may restrict the use of a portion of this band or impose other

restriction relating to power level or use. You should contact your Spectrum authority to determine possible restrictions.

European Telecommunications Standards Institute (ETSI) EN 300 328 compliant.

MANDATORY SAFETY INSTRUCTIONS

FOR INSTALLERS AND USERS

Use only manufacturer or dealer supplied antennas, power supplies, batteries and battery chargers.

The Federal Communications Commission has adopted a safety standard for human exposure to RF (Radio Frequency)

energy, which is below the OSHA (Occupational Safety and Health Act) limits.

Base Station Antenna minimum safe distance: 7.9 inches (20 cm) at 100% duty cycle.

Base Station Antenna gain: This device has been designed to operate with an antenna having a maximum gain of up to

2dBi. The required antenna impedance is 50 Ohms.

Antenna mounting: The antenna(s) used for the base transmitter must be installed to provide a separation distance of at

least 7.9 inches (20 cm) from all persons and must not be co-located or operating in conjunction with any other antenna or

transmitter.

Antenna substitution: Do not substitute any antenna for the one supplied by the manufacturer or radio dealer. You may

be exposing person or persons to excess radio frequency radiation. You may contact your radio dealer or the manufacturer

for further instructions.

WARNING: Maintain a separation distance from the base station transmit antenna to a person(s) of at least 7.9 inches (20 cm)

at 100% duty cycle.

You, as the qualified end-user of this radio device must control the exposure conditions of bystanders to ensure the

minimum separation distance (above) is maintained between the antenna and nearby persons for satisfying RF exposure

compliance. The operation of this transmitter must satisfy the requirements of Occupational/Controlled Exposure

Environment, for work-related use. Transmit only when person(s) are at least the minimum distance from the properly

installed, externally mounted antenna.

INFORMATION TO USER

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause

undesired operation.

This equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures.

Reorient or relocate the receiving antenna

Increase the separation between the equipment and receiver

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

Consult the dealer or an experienced radio/TV technician for help

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s

authority to operate the equipment.

IMPORTANT!

DISPOSAL OF WASTE ELECTRICAL AND ELECTRONIC

EQUIPMENT

Waste Electrical and Electronic Equipment (WEEE)

The European Union (EU) WEEE Directive (2012/19/EU) places an obligation on producers (manufacturers,

distributors and/or retailers) to take-back electronic products at the end of their useful life. The WEEE Directive

covers most HME products being sold into the EU as of August 13, 2005. Manufacturers, distributors and

retailers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of

specified percentages per the WEEE requirements.

Instructions for Disposal of WEEE by Users in the European Union

The symbol shown below is on the product or on its packaging which indicates that this product was put on the

market after August 13, 2005 and must not be disposed of with other waste. Instead, it is the user’s responsibility to

dispose of the user’s waste equipment by handing it over to a designated collection point for the recycling of

WEEE. The separate collection and recycling of waste equipment at the time of disposal will help to conserve

natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste equipment for recycling, please contact your local

authority, your household waste disposal service or the seller from whom you purchased the product.

Clear-Com, LLC, an HM Electronics, Inc. company, is not responsible for equipment malfunctions due to

erroneous translation of its publications from their original English version. Illustrations in this publication are

approximate representations of the actual equipment, and may not be exactly as the equipment appears.

Canada IC Notice to Users English/French in accordance with RSS GEN

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following

two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,

including interference that may cause undesired operation of the device.

Cet appareil est conforme avec Industrie Canada RSS standard exempts de licence (s). Son utilization est soumise

à Les deux conditions suivantes: (1) cet appareil ne peut pas provoquer d'interférences et (2) cet appareil doit

accepter Toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement du

dispositif.

The DX100 provides private, secure communication. Each base station can register up to a total of fifteen

BP200 Beltpacs and/or WH220 All-in-one Wireless Headsets. Any combination of Beltpacs and/or Headsets

may be registered. Four of the fifteen Beltpacs and/or Headsets can transmit simultaneously.

Beltpacs/Headsets can be used either in the Push-To-Talk (PTT) or Hands-Free (HF) mode. The base station

operator can stop any Beltpac/Headset from transmitting.

The MB100 Base Station can be operated using standard AC electricity, an external DC power source or six AA

batteries. A power supply, cable and a battery sled are included with the base station.

This is an example of a typical theatrical application. A variety of other uses for the DX100 are possible.

SECTION 1. INTRODUCTION

WH220 All-in-one

Wireless Headset

AC50

Battery Charger

AC50

Power Supply

EQUIPMENT IDENTIFICATION

The following equipment is standard with the DX100 Wireless Intercom System. As you unpack the equipment,

check the enclosed shipping documents to be sure you received all items listed.

Base Station Antennas

(2 per Base Station)

OPTIONAL EQUIPMENT

HS4-3 Earpiece & Lapel Microphone

HS15 Single-Muff Headset

HS15D Dual-Muff Headset

HS16 Lightweight Headset

HSI6000 Headset Adapter

BAT850 Rechargeable Battery for MB1000

XLR Headset Adapters:

MD-XLR4M Mini-DIN to 4-Pin Male

MD-XLR4F Mini-DIN to 4-Pin Female

MD-XLR5F Mini-DIN to 5-Pin Female

Base Station Battery Sled

MB100 Base Station

115/230 Volt AC Power Supply

(1 per Base Station, with Power Cord)

BP200 Beltpac

HS15 Headset

Beltpac Pouch

AC50 Battery

AC40

Battery Charger

BAT41 Battery

MAIN EQUIPMENT FEATURES

Base Station Features

1. POWER indicator light

2. RESET button

3. REGISTRATION STATUS display

4. RECEIVE indicator light

5. REG (Registration) button

6. PWR (Power) button

7. UN-LATCH button

8. CLR/BND (Clear/Band) button

9. Antennas

10. Power connector

11. Battery compartment cover

12. Battery compartment cover release latch

Beltpac Features (Uses BAT41 battery)

1. Headset cable connector

2. Beltpac power and transmit lights

3. ISO (Isolate) button

4. IC (Intercom) button

5. PWR (Power) button

6. Volume-up button

7. Volume-down button

8. Battery

9. Battery release latch

WH220 Headset Controls (Uses BAT50 battery)

1. IC1 button

2. ISO (Isolate) button

3. Volume-up button

4. IC2 button

5. Volume-down button

6. Power light

7. Microphone

8. Power button

9. Battery

10. Battery-release latch

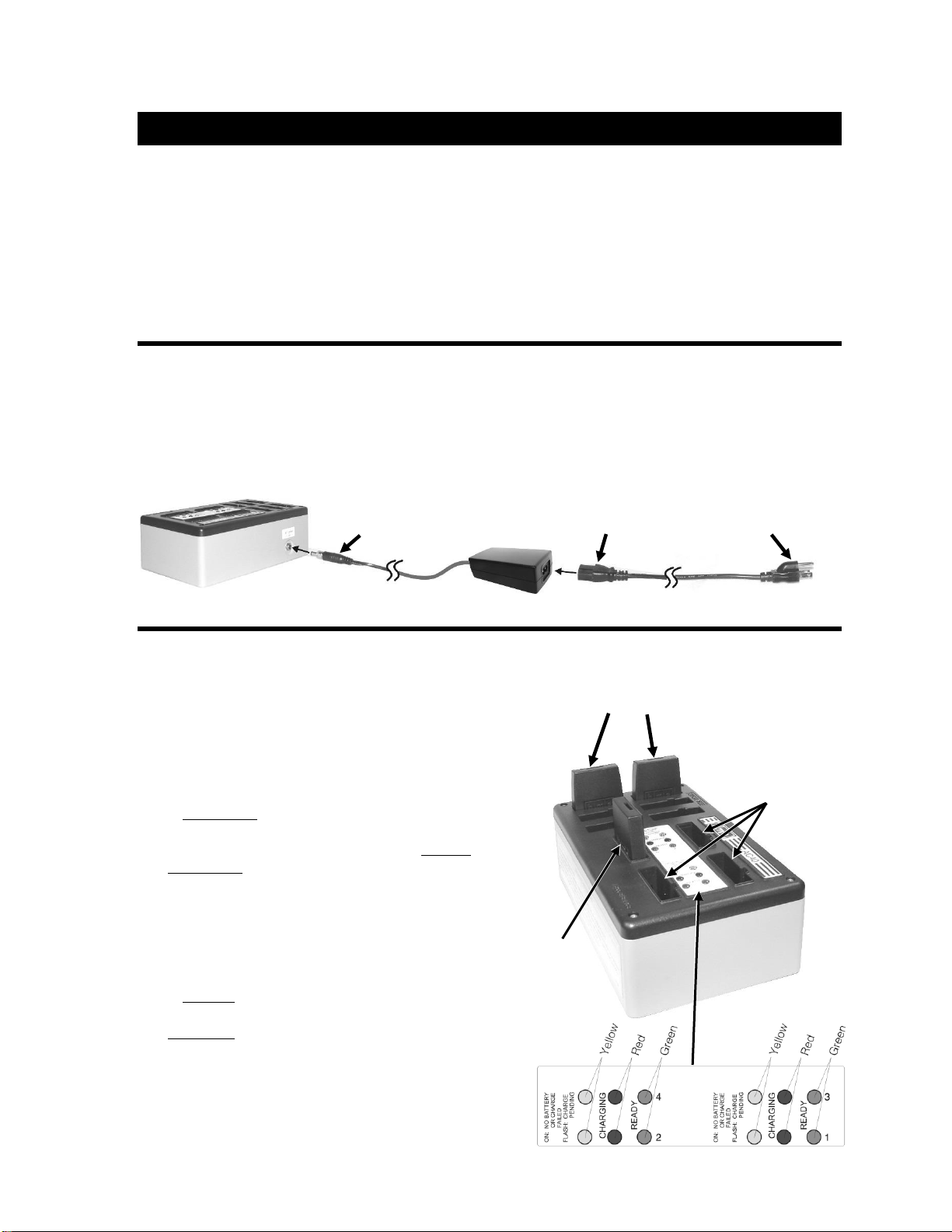

AC40 BATTERY CHARGER SETUP

The AC40 is the charger for Beltpac batteries.

IMPORTANT! –Before installing the system, connect the AC power supply to the AC40 Battery Charger

and plug it into an electrical outlet. Charge all the batteries for the Beltpacs while the other equipment is being

installed. Charging time is about 2.5 hours.

Connect AC Power Supply

Attach the AC power supply cable connector to the screw connector on the battery charger.

Plug the power cord connector into the AC power supply.

Plug the power cord into an electrical outlet.

The red lights on the charger will come on and go off, and then the yellow lights will turn on and remain on.

Charging the Batteries

Up to four batteries can be charged simultaneously.

The battery status lights next to each charging port are

explained below.

Up to six fully charged batteries can be stored in the

battery storage ports.

Insert a battery in each of four charging ports

until it clicks in place.

A yellow light adjacent to each charging port

illuminates while the port is empty. When a

battery is in a charging port, an adjacent flashing

yellow light indicates CHARGE PENDING,

which indicates that the battery is too hot. Adjust

the room temperature or move the charger to a

cooler area. When a battery is in a charging port,

an adjacent, steady yellow light indicates

CHARGE FAILED. If this happens, follow the

instructions on the side of battery charger.

A red light adjacent to a battery port indicates

that the battery in the port is CHARGING. A

green light adjacent to an inserted battery

indicates a READY, fully charged battery.

SECTION 2. EQUIPMENT SETUP

Charged batteries

in storage ports

Battery in

charging port

Empty

charging ports

Power cord

connector

AC power supply Power cord

Power supply

cable connector

AC40 Battery Charger

To electrical

outlet

Tabla de contenidos

Manuales populares de Intercomunicador inalámbrico de otras marcas

Sena

Sena 10R Manual de usuario
