HME Clear-Com EQUIP G30238-3A1 Manual de usuario

EQUIP™Wireless Intercom

Installation

Guide

PUB-00178 Rev B

7/18/22

TABLE OF CONTENTS

Introduction and System Overview � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �1

System log In� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �1

Headset Overview � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �2

Installing the System � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �3

Network Connection � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �3

IP Address � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �4

Transceivers and Connecting a Transceiver to the Base Station� � � � � � � � � � � � � � � � � � � � �5

Transceiver Placement � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �6

Site Survey � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �6

Overlapping Transceivers � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �7

Transceiver 5 GHz Radio Channels� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �9

Manually Setting 5 GHz Channels � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �10

Channel selection screen � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �10

Channel setup - Intercom Channels� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �11

Channel Settings� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �12

Audio Ports� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �12

Wireless Headsets � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �13

Headset paring � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �13

Additional Information � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �14

INTRODUCTION AND SYSTEM OVERVIEW

Congratulations and thank you for choosing this Clear-Com product� EQUIP is a wireless intercom

system operating in the ISM 5 GHz frequency band� The system supports up to forty wireless all-in-

one headsets and four transceivers� The transceivers can cover a large area with seamless roam-

ing, approximately 300-500 ft (91-152 m) indoor, and 800-1000 ft (244-305 m) outdoor� The sys-

tem turns on automatically once power is connected to the base station during installation� Note:

The Base Station User Interface uses a screen saver; if the screen goes black, just tap to wake up�

EQUIP Base Station

Supports Maximum of 4x Transceiver

Category 5/6

Cable length from EQUIP base to TCVR = approx. 500ft.

Protocol is propritary. Not Ethernet

Supports Maximum of 40

All-in-one Headsets

Supports 2 x 4-wire Audio I/O

EQUIP Transceiver EQUIP TransceiverEQUIP Transceiver EQUIP Transceiver

Ch. 1Ch. 2

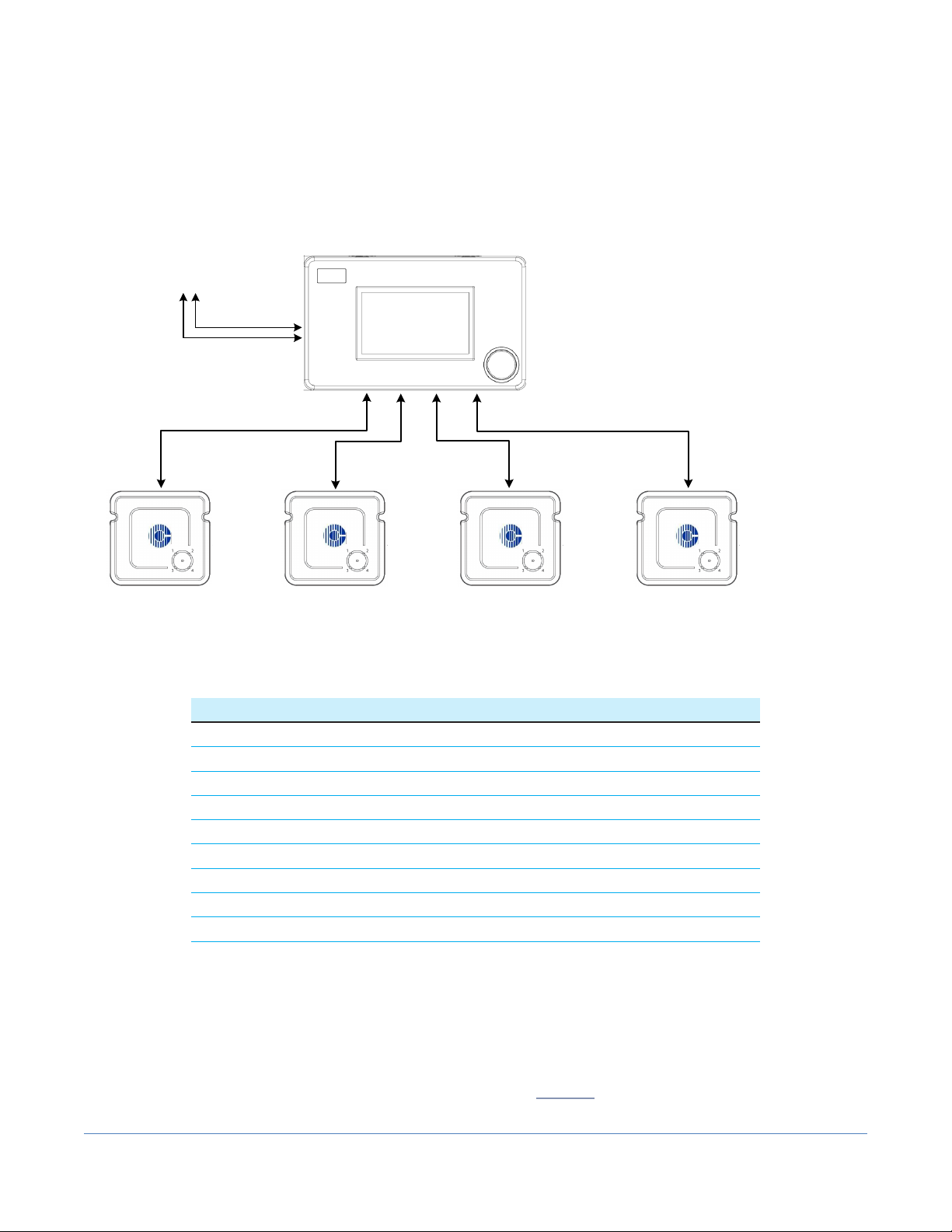

Fig. 1

Table 1 provides a list of component part numbers used with the EQUIP system

CC Part Number Description

G30238-3A1 EQUIP Base Station

PSU-00002 EQUIP Base Station DC power supply

115G408 PSU-00002 Power Cable

G30340-3Z1 EQUIP Transceiver

G30249-2Z1 EQUIP all-in-one 2 CH Headset

104G070 BAT70 Battery

G30317-3Z1 AC70 Battery Charger

PSU-00004 AC70 Charger Power supply DC -US

610022Z IEC Power Cord (US version)

Table 1

SYSTEM LOG IN

Once EQUIP is installed, it is congured via the Base Station User Interface. A four-digit PIN is

required to log in to the system to congure it or make changes. When you tap on a sidebar menu

option you are prompted to enter a PIN or you can use the LOG IN menu option to enter the PIN�

This PIN is provided by Clear-Com� Record this PIN here:

HEADSET OVERVIEW

Supports a Maximum of

40 All-in-one Headsets

Power Button

(blue)

BAT70 Battery

HEADSET

Front View

HEADSET

Side View

Earpad

Channel 1 Channel 2

Raised sections on

the bezel allow users

to identify keypad

buttons by touch.

Status

LED

Boom

LED

Status

LED

Volume Up

Volume Down

Action Group Chat

Battery Release

Latch (silver)

Fig. 2

Keypad Layout Reference Table

Icon Label Status LED Boom LED Status/Description

Chan 1 Green Green Tap to talk to channel 1. The Status LED flashes green while the Boom LED turns on

solid green. Tap again to stop. The Status LED turns solid; the Boom LED turns off.

Chan 2 Red Red Tap to talk to channel 2. The Status LED flashes red while the Boom LED turns on solid

red. Tap again to stop. The Status LED turns solid; the Boom LED turns off.

Volume

Tap to increase volume (the headset beeps become louder as confirmation). Press and

hold to maximize volume to loudest.

Volume

Down

Tap to decrease volume (the headset beeps become quieter as confirmation). Press and

hold to minimize volume to quietest.

Group Disconnects wired ports from talking and listening. Both Status and Boom LEDs flash

quickly, alternating red & green. Tap again to stop.

Action No Function. Reserved for future functionality.

Notes: Both the Status and Boom LEDs flash slowly with alternating colors when the headset needs to be paired.

A yellow Status LED indicates a low battery. The low battery Status LED is also accompanied by audio prompts.

Push-to-Talk mode: Press and hold any audio button (1, 2 or Group Chat) to use in this mode (there is an audible single-tone

confirmation). Release to cease communication and exit this mode (there is an audible two-tone confirmation).

Table 2

INSTALLING THE SYSTEM

The EQUIP base station ships with a power supply and terminal strip cable connection between the

power supply and base station� See Fig� 3 and 4�

Remote

XCVR 4

Remote

XCVR 3

Remote

XCVR 2

Remote

XCVR 1

Ethernet

DC +

DC -

GND

Micro

USB

J200

J600

J201 J800 J801 J802

J805

J804

J803

J2003

J3000

J4501 J4500

J1400

J3200

J3400

J3600

J3800

1 1 1

Serial

Debug

USB

J?301

J?300

1 2 3

4 5 6 7 81 2 3

4 5 6

1 2

3 4

Base Station

opened

PCBA

To NETWORK ROUTER

For CLOUD CONNECTION

48 V

BASE STATION

POWER SUPPLY

To REMOTE

TRANSCEIVER REAR

To WALL

OUTLET

TRANSCEIVER

Front View

BASE STATION

Partial Inside View

This Way

DC+ GND DC-

To REMOTE

TRANSCEIVER REAR

Fig. 3

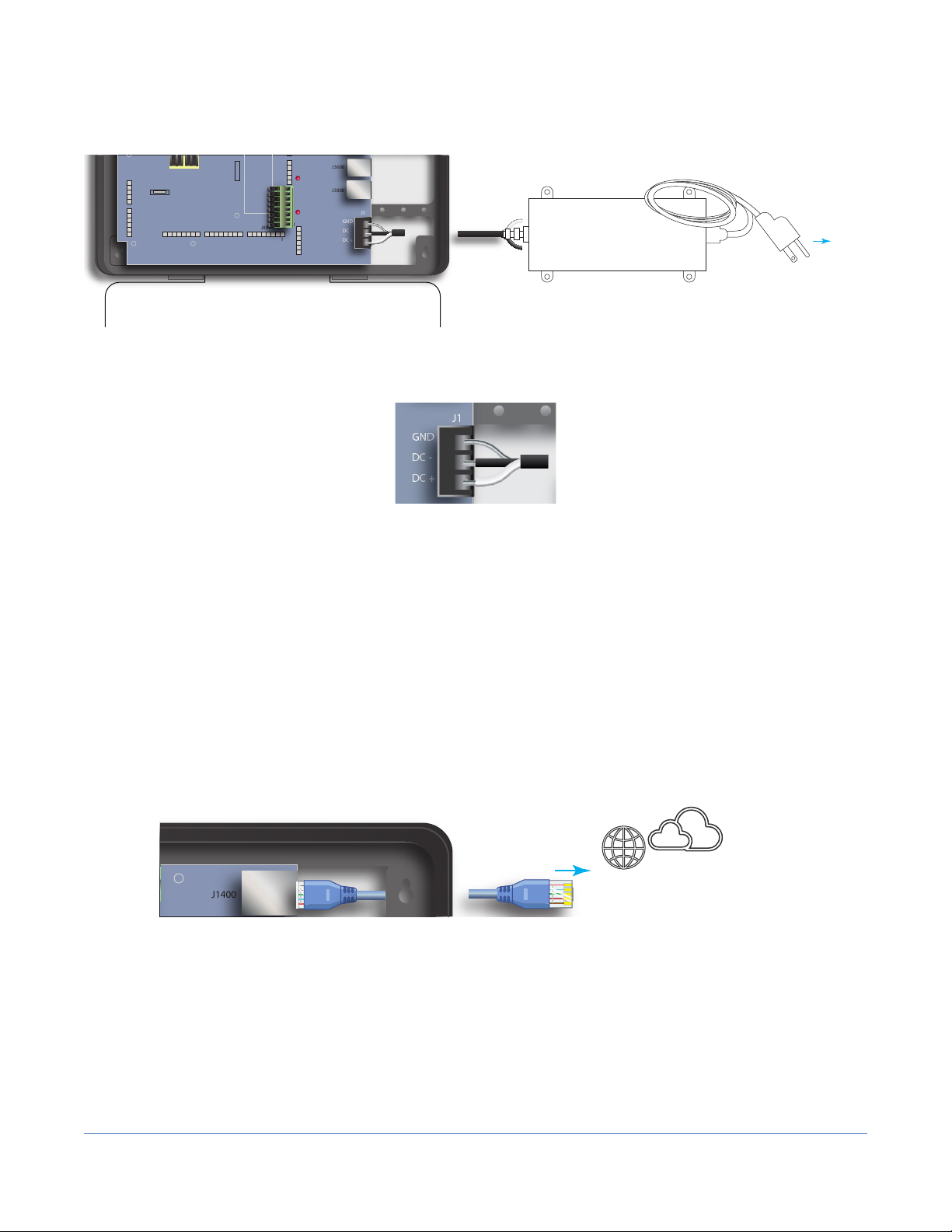

Connecting power supply to the base station

Fig. 4

Base Station Power Supply:

1� Terminate the positive wire of the power supply to J1 DC + terminal (pin 1)� (White Wire)

2� Terminate the negative wire of the power supply to J1 DC - terminal (pin 2)� (Black Wire)

3� Terminate the shield to J1 GND (pin 3)� (Clear Wire)

NETWORK CONNECTION

A network connection is required for system updates or to congure your system remotely using a

PC� Use an Ethernet cable to connect the Base Station (at J1400) to a Network Router�

Note: - You MUST connect to a router to have access to network settings�

Remote

XCVR 4

Remote

XCVR 3

Remote

XCVR 2

Remote

XCVR 1

Ethernet

DC +

DC -

GND

Micro

USB

J200

J600

J201 J800 J801 J802

J805

J804

J803

J2003

J3000

J4501 J4500

J1400

J3200

J3400

J3600

J3800

1 1 1

Serial

Debug

USB

J?301

J?300

1 2 3

4 5 6 7 81 2 3

4 5 6

1 2

3 4

Base Station

opened

PCBA

To NETWORK ROUTER

For CLOUD CONNECTION

48 V

BASE STATION

POWER SUPPLY

To REMOTE

TRANSCEIVER REAR

To WALL

OUTLET

TRANSCEIVER

Front View

BASE STATION

Partial Inside View

This Way

DC+ GND DC-

To REMOTE

TRANSCEIVER REAR

Fig. 5

The IP Address can be found by tapping the Network tile on the home page (see Fig�6)� To access

the User Interface from a PC, use a web browser and type in https:// (IP address of EQUIP base

station)� Also see "IP Address" on page 4�

Note: "https://" needs to be added before the IP address for a remote base station connection� If

your web browser prompts that the connection is not secure or not private, click the "Advanced"

button and "proceed to��" to continue�

Fig. 6

IP ADDRESS

To change Network settings, go to SYSTEM>SETTINGS, select "Network" from the drop-down list�

Note: In order to access and change IP settings, the EQUIP base station must be connected to a

network� Also see "Network Connection" on page 3�

Fig. 7

DHCP ON is the default� To manually set an IP address, toggle DHCP OFF to change network set-

tings and populate the necessary elds. See Fig. 8.

Fig. 8

TRANSCEIVERS AND CONNECTING A TRANSCEIVER TO THE BASE STATION

The EQUIP wireless intercom supports up to four remote transceivers�

EQUIP transceivers connect directly to the EQUIP base station via an Ethernet cable (CAT5/6 cable

with RJ45 connectors)� Transceivers are powered from the base station and can be placed up to

500 feet (152 m) from the base station�

Note: Do not connect the transceiver to a network port/IP switch� This can result in a system fail-

ure or component damage�

Remote

XCVR 4

Remote

XCVR 3

Remote

XCVR 2

Remote

XCVR 1

Ethernet

DC +

DC -

GND

Micro

USB

J200

J600

J201 J800 J801 J802

J805

J804

J803

J2003

J3000

J4501

J4500

J1400

J3200

J3400

J3600

J3800

1 1 1

Serial

Debug

USB

J?301

J?300

1 2 3

4 5 6 7 81 2 3

4 5 6

1 2

3 4

Base Station

opened

PCBA

To NETWORK ROUTER

For CLOUD CONNECTION

48 V

BASE STATION

POWER SUPPLY

To REMOTE

TRANSCEIVER REAR

To WALL

OUTLET

TRANSCEIVER

Front View

BASE STATION

Partial Inside View

This Way

DC+ GND DC-

To REMOTE

TRANSCEIVER REAR

Fig. 9

The EQUIP LEDs on the front of the transceiver shows which port the transceiver is 1 2

3 4

connected to on the base station (1 in this example)� The green center LED indi-

cates the transceiver is powered on and functional�

Fig. 10

TRANSCEIVER PLACEMENT

To determine transceiver placement: survey desired coverage area and to determine how many

transceivers are required to cover usage areas� Because EQUIP allows you to deploy up to four

transceivers for seamless coverage, place your transceivers in locations that will allow for roaming�

Transceiver Placement: Height 8-40 feet (2�4–12 meters)� Position (Vertical)� Angle 15% down

when mounting > 15 feet (4�5 meters)�

Before running a site survey, rst connect all the transceivers and run auto scan or set channels

manually (see "Transceiver 5 GHz Radio Channels" on page 9 and "Manually Setting 5 GHz

Channels" on page 10)�

SITE SURVEY

To put the EQUIP base station in site survey mode, go to SYSTEM>SETTINGS and select Remote

Transceiver from the drop-down list (see Fig� 11)�

Fig. 11

Tap the Site Survey button (see Fig� 12) and follow the onscreen prompts (Fig� 12 and 13)�

Fig. 12

Otros manuales para Clear-Com EQUIP G30238-3A1

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Sistema de intercomunicación de HME

HME

HME DX100 Manual de usuario

HME

HME DX121 EU Manual de usuario

HME

HME Clear-ComMS-704 Manual de usuario

HME

HME Clear-Com Tempest 2400 Manual de usuario

HME

HME DX200 Manual de usuario

HME

HME PRO850 Manual de usuario

HME

HME Clear-Com EQUIP G30238-3A1 Manual de usuario

HME

HME Clear-Com DX410 EU Manual de usuario

HME

HME DX100 Manual de usuario

HME

HME Clear-Com HelixNet Partyline Manual de usuario

HME

HME Clear-Com Eclipse 12.1 HX-Median Manual de usuario

HME

HME DX200 Manual de usuario

HME

HME DX121 Manual de usuario

HME

HME Clear-Com ProGrid PG8-INTERCOM-FX Manual de usuario

HME

HME Clear-Com ARCADIA Series Manual de usuario

HME

HME DX100 Manual de usuario

HME

HME DX100 Manual de usuario

HME

HME NEXEO HDX Manual de usuario

HME

HME PRO850 Manual de usuario

HME

HME DX200 Manual de usuario

HME

HME Clear-Com Arcadia Central Station Manual de usuario

HME

HME System 6001 Manual

HME

HME Clear-Com Encore MS-702 Manual de usuario

HME

HME Clear-Com HelixNet Partyline Manual de usuario

Manuales populares de Sistema de intercomunicación de otras marcas

Bticino

Bticino LINEA 3000 Manual de usuario

MSI

MSI MSI-140 Manual de usuario

golmar

golmar Stadio Plus Manual de usuario

CyberData

CyberData 011211 series Manual

Vidos

Vidos duo M1021 Manual de usuario

Vimar

Vimar ELVOX 7539/E Manual de usuario

SSS Siedle

SSS Siedle BTSV 850-03 Manual de usuario

Dahua

Dahua VTO Series Manual de usuario

Elvox

Elvox 5651 Manual de usuario

Videx

Videx VIDEOKIT Series Manual de usuario

Rocom

Rocom Doortello Business FW T2.05W2.04 Manual de usuario

Viking

Viking E-35-EWP Manual de usuario

Safeguard Supply

Safeguard Supply LRA-EX1000 Manual de usuario

SSS Siedle

SSS Siedle BFCV 850 Series Manual de usuario

GRD

GRD MAX V2 Manual de usuario

Alecto

Alecto ADI-250 Manual de usuario

Aiphone

Aiphone IE-8MD Manual de usuario

Perel

Perel EDB4 Manual de usuario
