HL Display 3eBin Instrucciones de instalación
8. 9.
10.
1
COMPONENT OVERVEIW:
1.
3eBin™- Scoop bin disassembly instructions
2. 3.
6.
4. 5.
7.
11. 12.
Components:
1. Catch tray 7. Label holder
2. Body 8. Catch tray holder
3. Scoop 9. Front
4. Scoop holder 10. Top lid
5. Consumer lid 11. Internal signage holder
6. Cord 12. Divider
6. Pull o internal signage holder from bin front.5. Hold bin in place using your one arm. At the same time,
pull at the corner of bin front so it comes o. Do this for
both sides.
3eBin™- Scoop bin disassembly instructions
PLEASE FOLLOW THE BELOW INSTRUCTIONS FOR ASSEMBLY
OF YOUR SCOOP BIN:

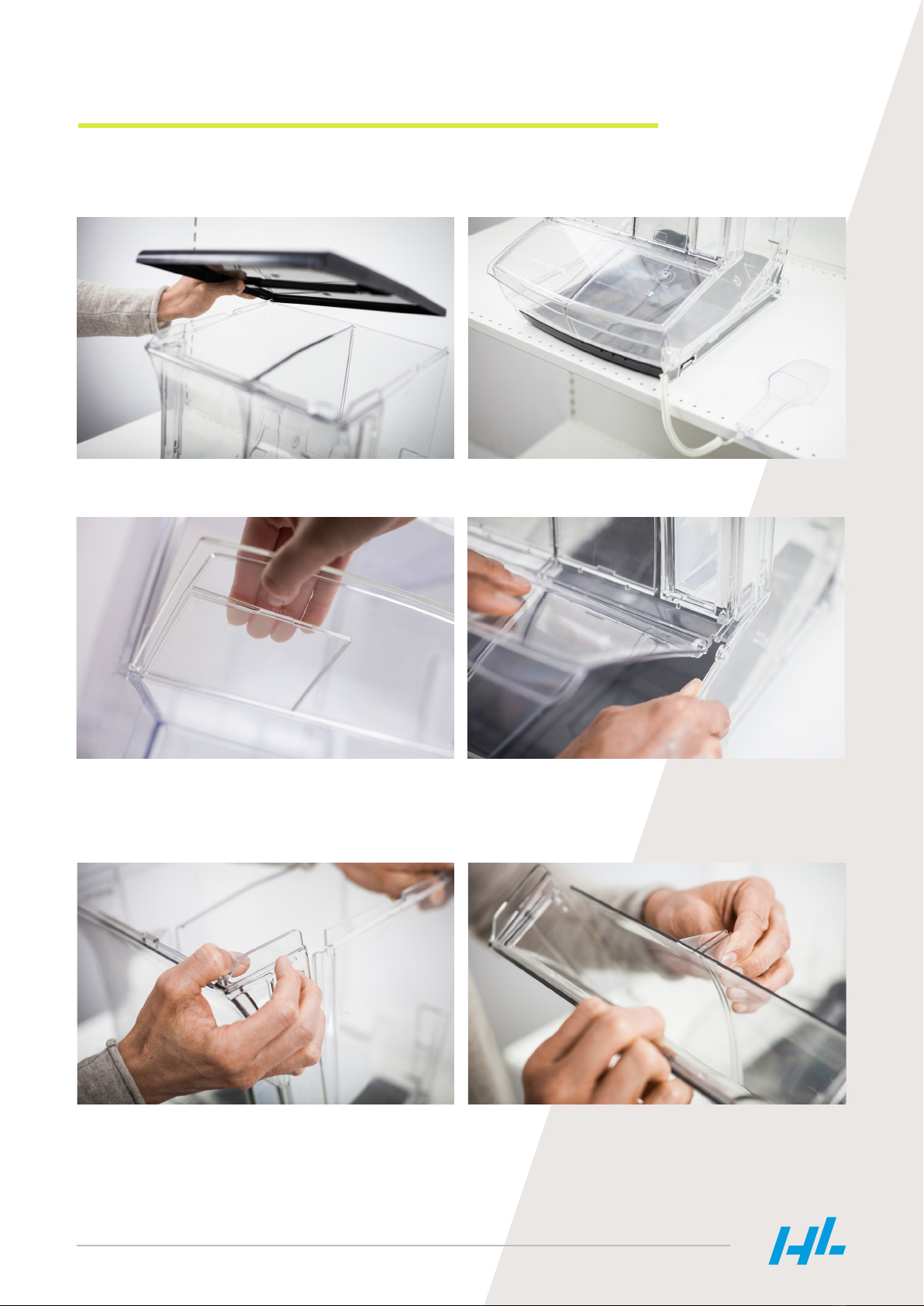

1. Remove top lid.
3. Lift the consumer lid and bend it outwards
until the label holder falls o.
2. Remove scoop from scoop holder.
4. Bend the right part of the bin body slightly outwards
and unplug consumer lid from it. Do this for both sides.
2
10. (If your bin doesn’t have a catch tray, please skip this
step.) Pull out catch tray completely.
11. (If your bin doesn’t have a catch tray, please skip this
step.) Pull out catch tray holder completely. Your scoop
bin is now fully disassembled.
7. Pull o scoop holder from front.
9 a. Using a tool such as a tong, grip the one end of the
cord and push it out of bin body.
3eBin™- Scoop bin disassembly instructions
8. (If your bin doesn’t have a divider, please skip this
step.) Remove divider by unplugging it from its dedicated
hole and slit in the back and front of bin body.
9 b. Press the other end of cord tightly together using
your fingers. Push cord out of scoop.
3
