HKBN MX-IR-01 Manual de usuario
1
Smart Remote Control
(Model：MX-IR-01)
HKBN Home User Guide
v.20200805
2
Table of Contents
Product Description ............................................................................3
Operable Distance and Placement......................................................4
Download HKBN Home App................................................................5
Add Device..........................................................................................6
Control Device ..................................................................................10
Scene (Smart Action).........................................................................15
Automation (Smart Action)...............................................................16
Voice Control (Siri) ............................................................................18
Device Setting ...................................................................................19
Device Information ...........................................................................20
FAQ ...................................................................................................23
Specifications....................................................................................25
Product Maintenance and Warranty ................................................26
3
Product Description
Product Name: Smart Remote Control
Model : MX-IR-01
Package Contents
•Smart Remote Control × 1
•USB cable × 1
LED Status Description
•Fast Blinking Blue Light : In pairing mode
•Solid Blue LED: Connected to Power/
Paired Successfully
Indicator
light
Reset
button
4
Operable Distance and Placement

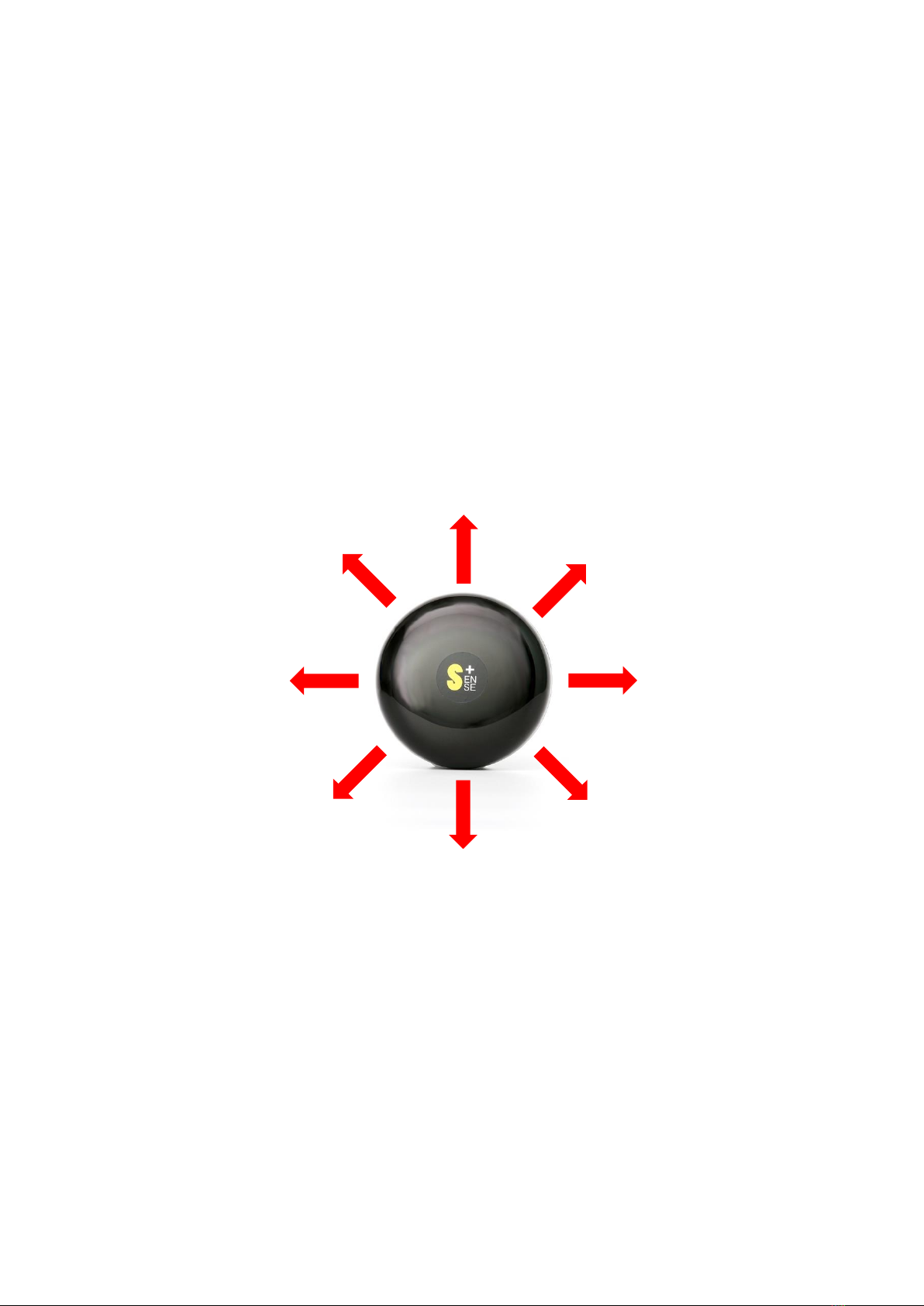

With small design and multi-directional infrared features, we recommend to
place Smart Remote Control in your living room to reach most of your
appliance in your home.
•The maximum operable distance is around 8m.
•Infrared cannot pass through building materials like wall or wood. The
working performance will be affected if your Smart Remote Control
placed in TV cabinet.
Max. around 8m control distance
5
Download HKBN Home App
OR
Scan the QR code below
Search and download “HKBN
Home” APP in Apple App Store
OR Google Play Store
6
Add Device
1. You must first connect your phone to a 2.4GHz Wi-Fi network when
adding device;
2. Tap “Devices” on the bottom menu; (image 1)
3. Tap “Add Device” button OR “+” icon at top right corner if you already
have paired device; (image 2)
(image 1)
(image 2)
7
Add Device
4. Tap “Smart Remote Control “from left menu “Appliance Control;
(image 3)
5. Connect your device to power, LED indicator light will start blinking
fast. (around 2 blinks per second); (image 5)
If your LED indicator is not blinking, please hold the RESET button for 5s or
more until the indicator is blinking fast. (image 4)
(image 3)
(image 4)
(image 5)
8
Add Device
6. Select Wi-Fi network and enter password*，and then tap “Next”;
⚫Currently all smart devices are compatible to 2.4GHz network only. Please make
sure that your device and mobile are connected with 2.4GHz but not 5GHz Wi-Fi
network.
⚫If you have 2.4GHz and 5GH Wi-Fi channel and they are using same SSID, we
suggest to edit it to different name before pairing. If you insist to use the same
SSID on two channels, please turn off the 5GHz channel first before pairing.
*Important tips: Wi-Fi requirement
9
Add Device
7. The App will connect with your Smart Remote Control, please allow few
minutes for it to pair; (image 6)
8. After device added successfully, you can change the device name and
assign it to the located room. (image 7)
(You can also change the device name and room location later in device
setting page and room management page.)
(image 6)
(image 7)
10
Control Device
•Add Device & Brand Selection
1. Tap “Add Remote Control” in the Smart Remote Control panel;
(image 1)
2. Select the device type; (image 2)
3. Select the brand of your device*. (image 3)
*About display language of brand name:
⚫If App language is English, the brand names will display in English too.
⚫Search function is applicable to same language only, for example your cannot find Samsung by
entering “三星”.
⚫If you want to have another display language of brand name, please go to “Settings” to select
your preferred language. (For iOS, please restart the App after you've changed the language.)
(image 1)
(image 2)
(image 3)
