HiTi Digital S420 Manual de usuario

HiTi Photo Printer x 1

LCD Controller x 1

Power Cord x 1

USB Cable x 1

※ For the connection between the photo printer and the computer

Paper Cassette x 1

HiTi Bag x 1 (including following items…)

※ The package content varies according to different areas.

Check the Package Content

Before using HiTi photo printer, please check the printer package content for the

following items:

Printer User Manual x 1

Quick Guide x 1

Notice Sheet x 1

Warranty Card x 1

Master CD x 1

IDésirée Bag x 1 (including following items…)

B. IDésirée User Manual x 1

IDésirée Installation CD x 1

Outline

Get to know S420

Standalone printing

PC-link Printing

Installing S420

Troubleshooting

Contact HiTi

A. Home Menu Introduction

B. Main Function Instruction

C. Special Function Instruction

To ensure proper printer operation, please read the following instructions thoroughly

before using the S420 photo printe.

LCD controller 1.

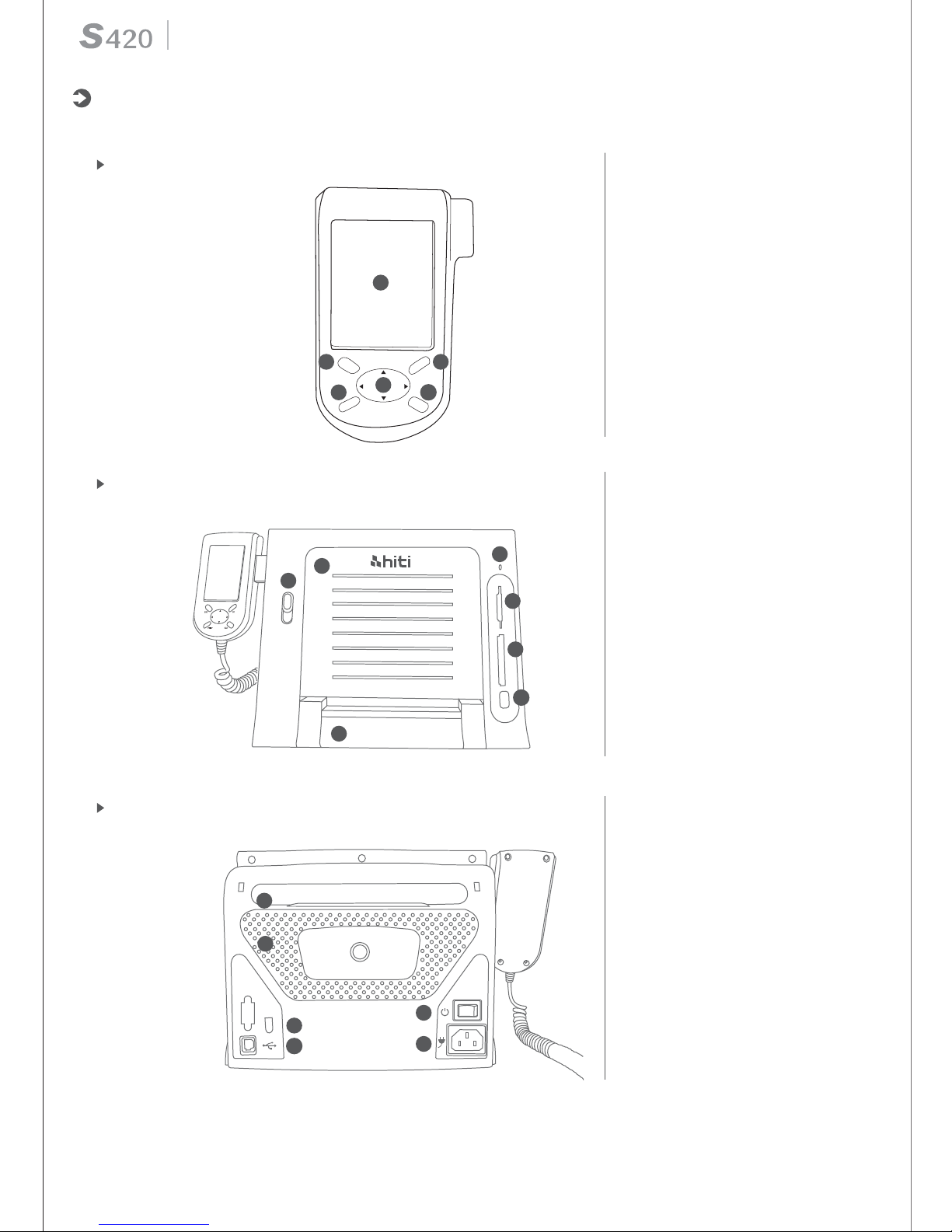

Front view 1. Ribbon Door Button

2. Ribbon Door

3. Indicator

4. MMC/SD/MS Memory Card Slot

5. CF Memory Card Slot

6. USB Host Slot

7. Paper Cassette Door

1. Hatchback

2. Heat Ventilation

3. Power Switch

4. Power Cord Socket

5. Controller Socket

6. USB Port

TFT Color LCD

Directional Button

〔ESC〕

〔OK〕

〔PRINT〕

〔EDIT〕

Back view

1 2 3

ESC OK

PRINT EDIT

3 4

Get To Know S420

Installing LCD controller

LCD controller installation is complete.

Installing S420

Connect the LCD

controller to S420

1 2

Installing ribbon cartridge

Push the ribbon door button to open the

ribbon door.

Install the ribbon cartridge inserting the left

(indicated by the arrow) side of the ribbon

first followed by the right side.

The ribbon has to be installed in the printer

properly. Close the ribbon door to complete the ribbon

installation.

Installing S420

3 4

www.hi-ti.com

Loading photo papers

1 2

Open the paper cassette cover.

Load photo papers into the paper cassette and

then close the cover.

Open the paper cassette door on the printer

and insert the paper cassette.

※

Broadside

Installing S420

Follow the demonstration to correctly remove

photo papers from the packing.

Please hold the perforated side of photo paper and avoid touching the surface when taking

them out from the packing

Powering up the printer

Turn on the power.

Installing S420

Plug the power cord into the power cord socket

at the back of the printer.

1 2

Installation of Dust Proof Case

Installing S420

Gently insert the latch into the corresponding latch receiver opening on one side first, then

gently push the latch on the opposite end of the dust proof case into the corresponding latch

receiver opening to finish the installation.

Hold the end of dust proof case firmly and gently push the dust proof case

downward to uninstall the dust proof case.

Incorrect installation or disassembly way break the latch.

Installing the dust proof case

Disassembling of the dust proof case

1. Image device from USB host 6. Printing control by

digital camera

7. PHOTO

8. STICKER

12. INDEX

13. SETUP

14. Confirm or continue

9. IMAGE DEVICE

10. Cancel or go back

4. Matte effect ON

5. Printing control by S420

A. Home Menu Introduction

1 2 3 4 5 6

Standalone printing

11. ID PHOTO

3. Image device from SD / MMC

/ MS / MS Pro

2. Image device from CF/

Micro Drive
