Hitachi W 8VB2 Manual de usuario

ELECTRIC TOOL PARTS LIST

LIST NO. 0799

SCREW DRIVER

Model W 8VB2

2004

•

(E1)

Hitachi Power Tools

501

502

503

504

505

506

507

508

*ALTERNATIVE PARTS--- 2 ---

ITEM

NO. CODE NO. DESCRIPTION REMARKS

NO.

USED

PARTS

8 -- 04

W 8VB2

1876-031 O-RING (S-16) 1

2323-487 LOCATOR ASS’Y 1 INCLUD. 3

3323-488 CLICK SPRING 1

4971-468 FRINGER (A) 1

5317-662 O-RING (F) 1

6323-494 PROTECT COVER (B) 1

7321-057 TAPPING SCREW D4X25 (BLACK) 3

8323-498 GEAR COVER ASS’Y (B) 1 INCLUD. 5, 15

9872-573 SET RING 1

10 959-148 STEEL BALL D3.175 (10 PCS.) 2

11 317-664 SOCKET (B) ASS’Y 1 INCLUD. 9, 10

12 306-024 SPRING 1

13 307-339 GEAR ASS’Y 1 INCLUD. 14

14 307-340 GEAR SHAFT 1

15 608-VVM BALL BEARING 608VVC2PS2L 1

16 307-338 SECOND PINION ASS’Y 1 INCLUD. 17

17 307-337 FIRST GEAR 1

18 323-497 WASHER 1

19 608-VVM BALL BEARING 608VVC2PS2L 2

20 933-545 WASHER (A) 1

21 323-556

SLOTTED HD. SCREW (SEAL LOCK) M4X8

22 323-557 FELT (A) 1

23 323-493 INNER COVER ASS’Y (A) 1 INCLUD. 19-22

*24 360-674 ARMATURE (D) 110V 1

*24 360-675E ARMATURE (D) 220V-230V 1

*24 360-675F ARMATURE (D) 240V 1

25 323-472 FAN GUIDE 1

26 961-672 HEX. HD. TAPPING SCREW D4X50 2

*27 340-599C STATOR 110V-120V 1

*27 340-599E STATOR 220V-240V 1

28 608-VVM BALL BEARING 608VVC2PS2L 1

29 NAME PLATE 1

30 323-471 HOOK 1

31 HITACHI LABEL 2

32 323-512 BRUSH HOLDER (A) 2

33 999-091 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) 2

34 323-566

CHOKE COIL (W/INTERNAL WIRE) BROWN

35 323-479 SWITCH (1P PILLAR TYPE) W/LOCK 1

36 323-568 CHOKE COIL (W/INTERNAL WIRE) BLUE 1

37 323-483 HOUSING 1

38 953-327 CORD ARMOR D8.8 1

*39 323-559 CORD (LENGTH 7.5M) 1 (CORD ARMOR D8.8)

*39 323-560 CORD (LENGTH 7.5M) 1 (CORD ARMOR D8.8) FOR GBR (230V)

*39 323-562 CORD (LENGTH 7.5M) 1 (CORD ARMOR D8.8) FOR GBR (110V)

*39 323-563 CORD (LENGTH 7.5M) 1 (CORD ARMOR D8.8) FOR SUI

*39 323-561 CORD (LENGTH 7.5M) 1 (CORD ARMOR D8.8) FOR AUS

40 937-631 CORD CLIP 1

41 984-750 TAPPING SCREW (W/FLANGE) D4X16 2

42 959-140 CONNECTOR 50091 (10 PCS.) 2

43 930-039 NOISE SUPPRESSOR 1

44 994-273 NOISE SUPPRESSOR 1

*ALTERNATIVE PARTS --- 3 ---

ITEM

NO. CODE NO. DESCRIPTION REMARKS

NO.

USED

PARTS

8 -- 04

W 8VB2

45 317-667 INTERNAL WIRE 2

46 992-635 EARTH TERMINAL 1

47 323-484 HANDLE COVER 1

48 301-653 TAPPING SCREW (W/FLANGE) D4X20 (BLACK) 3

*ALTERNATIVE PARTS

--- 4 --- 8 -- 04

OPTIONAL ACCESSORIES

ITEM

NO. CODE NO. DESCRIPTION REMARKS

NO.

USED

STANDARD ACCESSORIES

ITEM

NO. CODE NO. DESCRIPTION REMARKS

NO.

USED

W 8VB2

Printed in Japan

(040825N)

*501 323-352 SUB STOPPER (G) 1 EXCEPT FOR GBR, AUS

*502 971-511Z + DRIVER BIT (A) NO. 2 25L 1 FOR FRA, BEL, FRG, AUT, SUI

* 503 317-674 MAGNETIC BIT HOLDER ASS’Y (41L) 1 INCLUD. 502 FOR FRA, BEL, AUT, SUI

* 503 982-554Z MAGNETIC BIT HOLDER (75L) 1 FOR FRG

* 504 985-322 MAGNETIC HEX. SOCKET 5/16”X65L 1 FOR GBR, AUS

*504 985-321 MAGNETIC HEX. SOCKET 10MMX65L 1 FOR HOL, ESP

* 505 317-671

SUB STOPPER (B) FOR H5/16 HEX. SOCKET

1FOR GBR, AUS

* 505 317-670

SUB STOPPER (B) FOR H3/8, H10 HEX. SOCKET

1FOR HOL, ESP

* 506 317-899 SUB STOPPER (D) FOR HEX. SOCKET 1 FOR FRA

*507 323-351 SUB STOPPER (F) 1 FOR FRG

*508 310-904 CASE 1 FOR ESP

601 317-827 SUB STOPPER (B) H1/4 HEX. SOCKET 1

602 985-326 NON-MAGNETIC HEX. SOCKET 3/8” 65L 1

603 985-327 NON-MAGNETIC HEX. SOCKET 5/16” 65L 1

604 985-328 NON-MAGNETIC HEX. SOCKET 1/4” 65L 1

605 985-329 NON-MAGNETIC HEX. SOCKET 10MM 65L 1

606 985-330 MAGNETIC HEX. SOCKET 3/8”X65L 1

607 985-332 MAGNETIC HEX. SOCKET 1/4”X65L 1

608 982-563Z NON-MAGNETIC BIT HOLDER 1

609 982-554Z MAGNETIC BIT HOLDER (75L) 1

610 985-333 + DRIVER BIT NO. 1 25L 1

611 971-511Z + DRIVER BIT (A) NO. 2 25L 1

612 971-512Z + DRIVER BIT (A) NO. 3 25L 1

613 985-334 + DRIVER BIT NO. 1 25L W/STEPPED ROD 1

614 985-335 + DRIVER BIT NO. 2 25L W/STEPPED ROD 1

615 985-336 - DRIVER BIT 4MMX25 1

616 985-337 - DRIVER BIT 5MMX25 1

617 985-338 - DRIVER BIT 6MMX25 1

618 985-339 - DRIVER BIT 8MMX25 1

619 985-340 - DRIVER BIT 4MMX25 (W/STEPPED ROD) 1

620 985-341 - DRIVER BIT 5MMX25 (W/STEPPED ROD) 1

621 985-342 HEX. BIT 4MMX25L 1

622 985-343 HEX. BIT 5MMX25L 1

623 985-344 HEX. BIT 6MMX25L 1

624 310-904 CASE 1

Tabla de contenidos

Otros manuales de Herramientas de Hitachi

Hitachi

Hitachi UR 18DSDL Manual de usuario

Hitachi

Hitachi WH14DMR - Cordless Impact Driver 14.4 Volt Manual de usuario

Hitachi

Hitachi H 45SR Manual

Hitachi

Hitachi WR 12DM Manual de usuario

Hitachi

Hitachi G23SCY - 9 in. Anti-Vibration Angle Grinder Manual de usuario

Hitachi

Hitachi DH 40MR Manual de usuario

Hitachi

Hitachi S 18SB Manual de usuario

Hitachi

Hitachi c15fb - 15 Amp Miter Saw No Bevel Manual de usuario

Hitachi

Hitachi SV12SF - 4-3/8" Palm Grip Orbitalsander 1.4Amp 28... Manual de usuario

Hitachi

Hitachi FDV 16VB Manual de usuario

Hitachi

Hitachi G 23MR Manual de usuario

Hitachi

Hitachi WR12DMB - 12.0 V 1/2" Impact Wrench 2... Manual de usuario

Hitachi

Hitachi DH18DL - 18V 3.0Ah Lithium Ion SDS Manual de usuario

Hitachi

Hitachi NT 65A Manual de usuario

Hitachi

Hitachi NV50AA - 1-1/4" to 2" x Manual de usuario

Hitachi

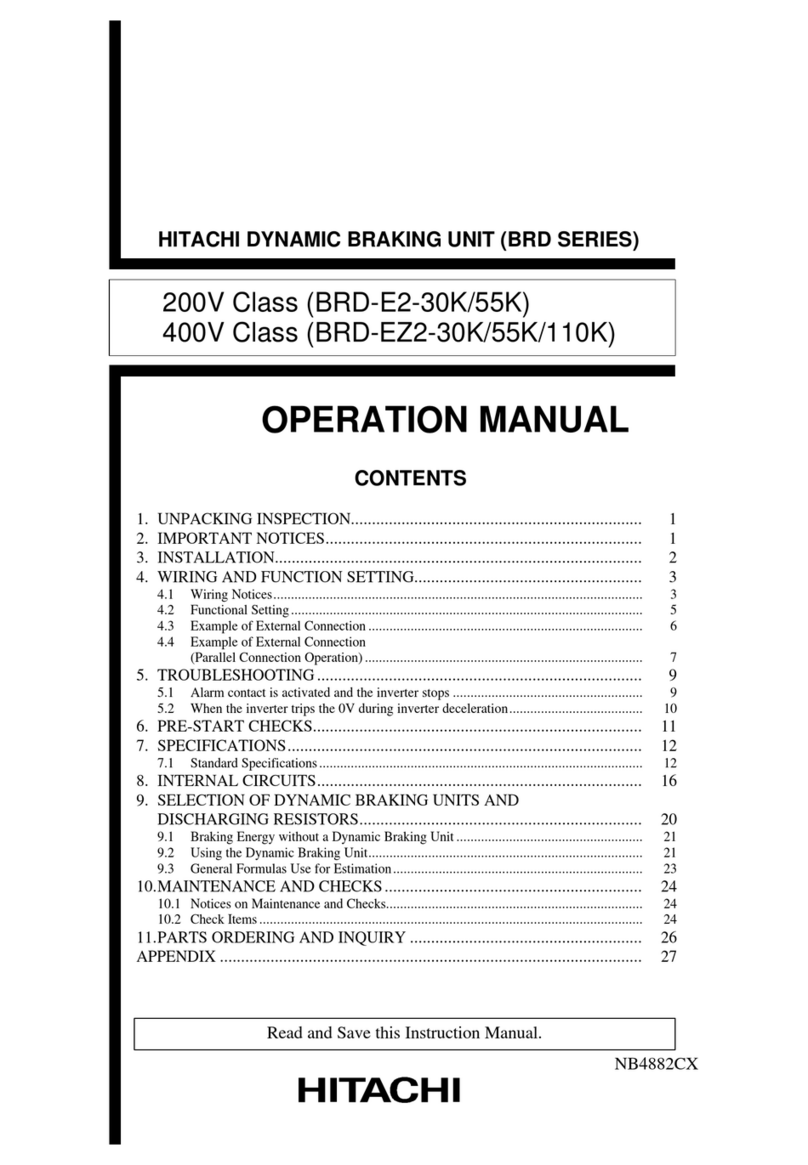

Hitachi BRD-E2-30K Manual de usuario
