ELECTRIC TOOL PARTS LIST

LIST NO. E268

DISC GRINDER

Model G 23MR

2004

•

(E1)

Hitachi Power Tools

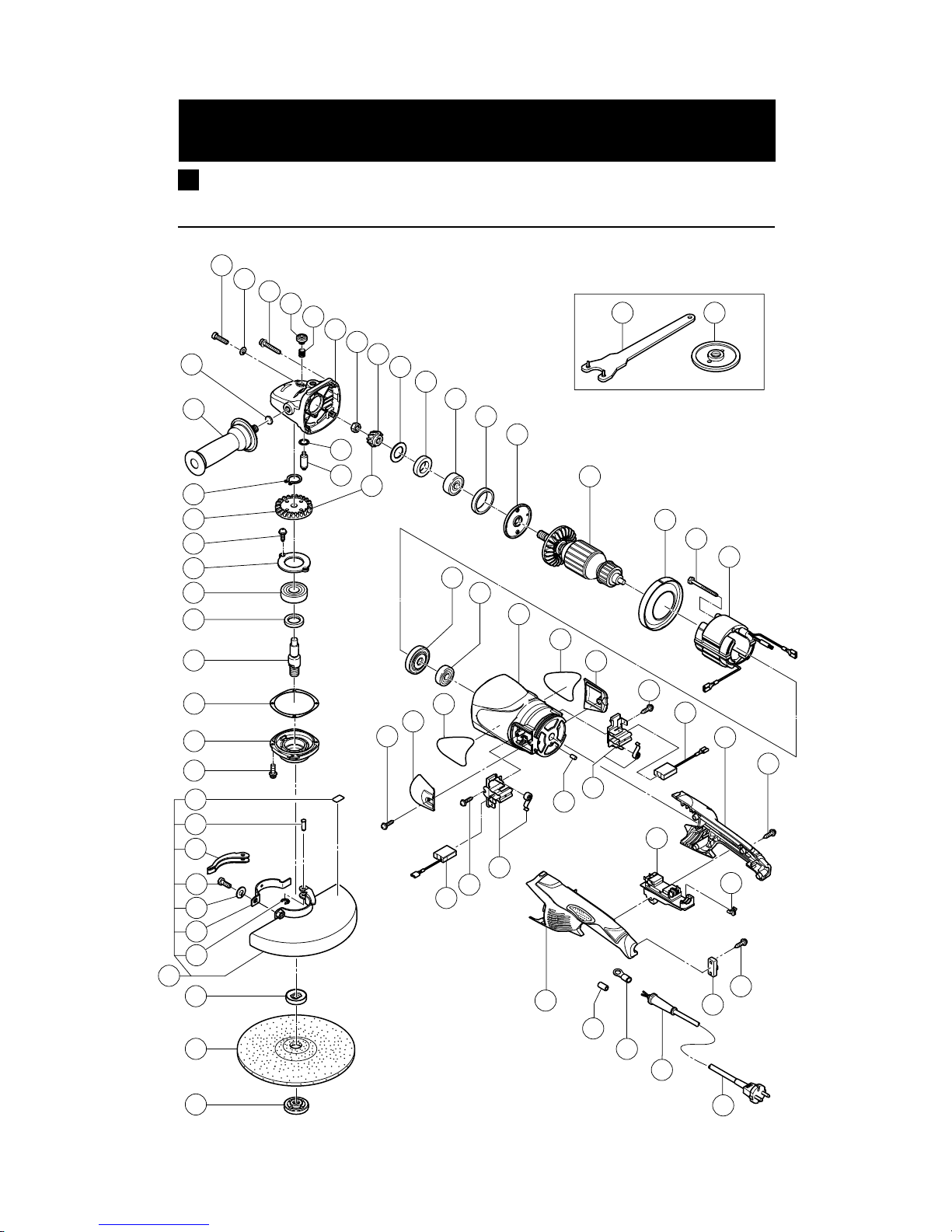

12345678910 11

42 43

44 45

50 49

49 48 52

12 13

501 502

15 16 17

*ALTERNATIVE PARTS--- 2 ---

ITEM

NO. CODE NO. DESCRIPTION REMARKS

NO.

USED

PARTS

2 -- 04

G 23MR

1 984-509

SEAL LOCK HEX. SOCKET HD. BOLT M5X14

2 949-454 SPRING WASHER M5 (10 PCS.) 2

3 313-585

HEX. SOCKET HD. BOLT (W/FLANGE) M5X30

4 306-888 PUSHING BUTTON 1

5 320-219 SPRING 1

6 322-544 GEAR COVER ASS’Y 1 INCLUD. 4, 5, 18, 41, 42

7 320-226 SPECIAL NUT M10 1

8 320-225 PINION 1

9 320-221 SEAL WASHER 1

10 320-222 FELT PACKING 1

11 630-1DD BALL BEARING 6301DDCMPS2L 1

12 994-208 RUBBER RING (B) 1

13 320-220 BEARING COVER (A) 1

* 14 360-629U ARMATURE ASS’Y 110V-120V 1 INCLUD. 10, 11, 44, 45

* 14 360-594E ARMATURE 220V-230V 1

* 14 360-594F ARMATURE 240V 1

15 320-215 FAN GUIDE 1

16 984-271 HEX. HD. TAPPING SCREW D5X75 2

* 17 340-546C STATOR 110V-120V 1

* 17 340-546E STATOR 220V-230V 1

* 17 340-546F STATOR 240V 1

18 937-033 FELT WASHER 1

19 322-411 SIDE HANDLE 1

20 939-542

RETAINING RING FOR D12 SHAFT (10 PCS.)

21 320-224 GEAR 1

22 949-236 MACHINE SCREW M5X10 (10 PCS.) 2

23 320-229 BEARING COVER (B) 1

24 630-2DD BALL BEARING 6302DDCMPS2L 1

25 990-852 FELT PACKING (B) 1

* 26 320-234 SPINDLE 1

* 26 321-541 SPINDLE 1 FOR USA, CAN

27 320-228 SEAL PLATE 1

28 320-227 PACKING GLAND 1

29 994-192

HEX. SOCKET HD. BOLT (W/FLANGE) M5X16

30 311-492 LABEL 1

31 321-546 SET PIN 1

32 321-545 LEVER 1

33 306-887 BOLT M8X22 1

34 949-457 SPRING WASHER M8 (10 PCS.) 1

35 321-544 SET PIECE 1

36 673-489

RETAINING RING (E-TYPE) FOR D5 SHAFT

37 321-547 WHEEL GUARD ASS’Y 1 INCLUD. 30-36

* 38 937-907Z WHEEL WASHER (A) 1

* 38 937-922P WHEEL WASHER (B) FOR D5/8”HOLE 1 FOR USA, CAN

* 38 937-908Z WHEEL WASHER (B) 1 FOR AUS, NZL

* 38 310-337 SUPER WASHER 1 FOR BEL

* 39 316-825 D. C. WHEELS 230MM A24R (25 PCS.) 1

FOR INA, SYR, NZL, AUS, SAF, CAN, CHN

* 40 937-909Z WHEEL NUT M14X2 1

* 40 937-923P WHEEL NUT 5/8”-11UNC 1 FOR USA, CAN

41 320-218 O-RING 1

42 306-890 LOCK PIN 1

*ALTERNATIVE PARTS --- 3 ---

ITEM

NO. CODE NO. DESCRIPTION REMARKS

NO.

USED

PARTS

2 -- 04

G 23MR

43 320-223 GEAR AND PINION ASS’Y 1 INCLUD. 8, 21

44 320-216 DUST SEAL 1

45 620-0VV BALL BEARING 6200VVCMPS2L 1

46 322-543 HOUSING 1

47 NAME PLATE 1

48 322-547 BRUSH COVER 2

49 305-812 TAPPING SCREW (W/FLANGE) D4X16 (BLACK) 8

* 50 999-061 CARBON BRUSH 7X17X22.5 (1 PAIR) 2

* 50 999-061 CARBON BRUSH 7X17X22.5 (1 PAIR) 1 FOR NZL, SFA, EUROPE

* 50 999-089

CARBON BRUSH (AUTO STOP TYPE) (1 PAIR)

1 FOR NZL, SAF, EUROPE

51 322-546 HANDLE (B) 1

52 HITACHI LABEL 1

53 322-323 BRUSH HOLDER SET 2

54 946-362 BEARING LOCK 1

* 55 320-239

SWITCH (2P PILLAR TYPE) W/SAFETY LOCK

1 OFF/ON LOCK (A: BLACK, B: BLACK)

* 55 320-238

SWITCH (2P PILLAR TYPE) W/SAFETY LOCK

1 OFF LOCK (A: GRAY, B: BLACK)

* 55 322-614

SWITCH (2P PILLAR TYPE) W/SAFETY LOCK

1 INCLUD. 56 FOR USA, CAN

* 56 322-549 SWITCH COVER 1 FOR USA, CAN

57 960-266 CORD CLIP 1

58 984-750 TAPPING SCREW (W/FLANGE) D4X16 2

59 322-545 HANDLE (A) 1

* 60 981-373 TUBE (D) 2 FOR CORD

* 61 930-804 TERMINAL M4.0 (10 PCS.) 2 FOR CORD

* 62 958-049 CORD ARMOR D8.2 1

* 62 940-778 CORD ARMOR D10.7 1

* 63 500-245Z CORD 1 (CORD ARMOR D10.7)

* 63 321-537 CORD 1

(CORD ARMOR D10.7) FOR EUROPE, FIN, NOR,

SWE, DEN

* 63 500-234Z CORD 1 (CORD ARMOR D10.7) FOR INA

* 63 500-408Z CORD 1 (CORD ARMOR D8.2) FOR AUS, NZL

* 63 321-538 CORD 1 (CORD ARMOR D10.7) FOR USA, CAN

* 63 321-539 CORD 1 (CORD ARMOR D10.7) FOR GBR (110V)

* 63 500-446Z CORD 1 (CORD ARMOR D10.7) FOR GBR (230V)

* 63 500-438Z CORD 1 (CORD ARMOR D10.7) FOR CHN

*ALTERNATIVE PARTS

--- 4 ---

OPTIONAL ACCESSORIES

ITEM

NO. CODE NO. DESCRIPTION REMARKS

NO.

USED

2 -- 04

STANDARD ACCESSORIES

ITEM

NO. CODE NO. DESCRIPTION REMARKS

NO.

USED

G 23MR

Printed in Japan

(040220N)

501 937-913Z WRENCH 1

* 502 937-917Z WHEEL NUT (B) 1 FOR AUS, NZL

601 310-337 SUPER WASHER 1

602 322-141 PIPE HANDLE 1

603 985-597 BOLT M14 2 FOR PIPE HANDLE

* 604 937-984Z WHEEL GUARD 1 FOR USA, CAN

* 605 937-911 SET RING (A) 1 FOR USA, CAN

* 606 949-656 HEX. SOCKET HD. BOLT M8X20 (10 PCS.) 2 FOR USA, CAN

* 607 949-457 SPRING WASHER M8 (10 PCS.) 2 FOR USA, CAN
