Hitachi R-Z570ARU7 Manual de usuario

TABLE

SPECIFICATION ........................................................................2 - 3

MAIN PARTS COMPONENTS ..................................................4

WIRING DIAGRAM

MODEL : R-Z570ARU7..............................................................5

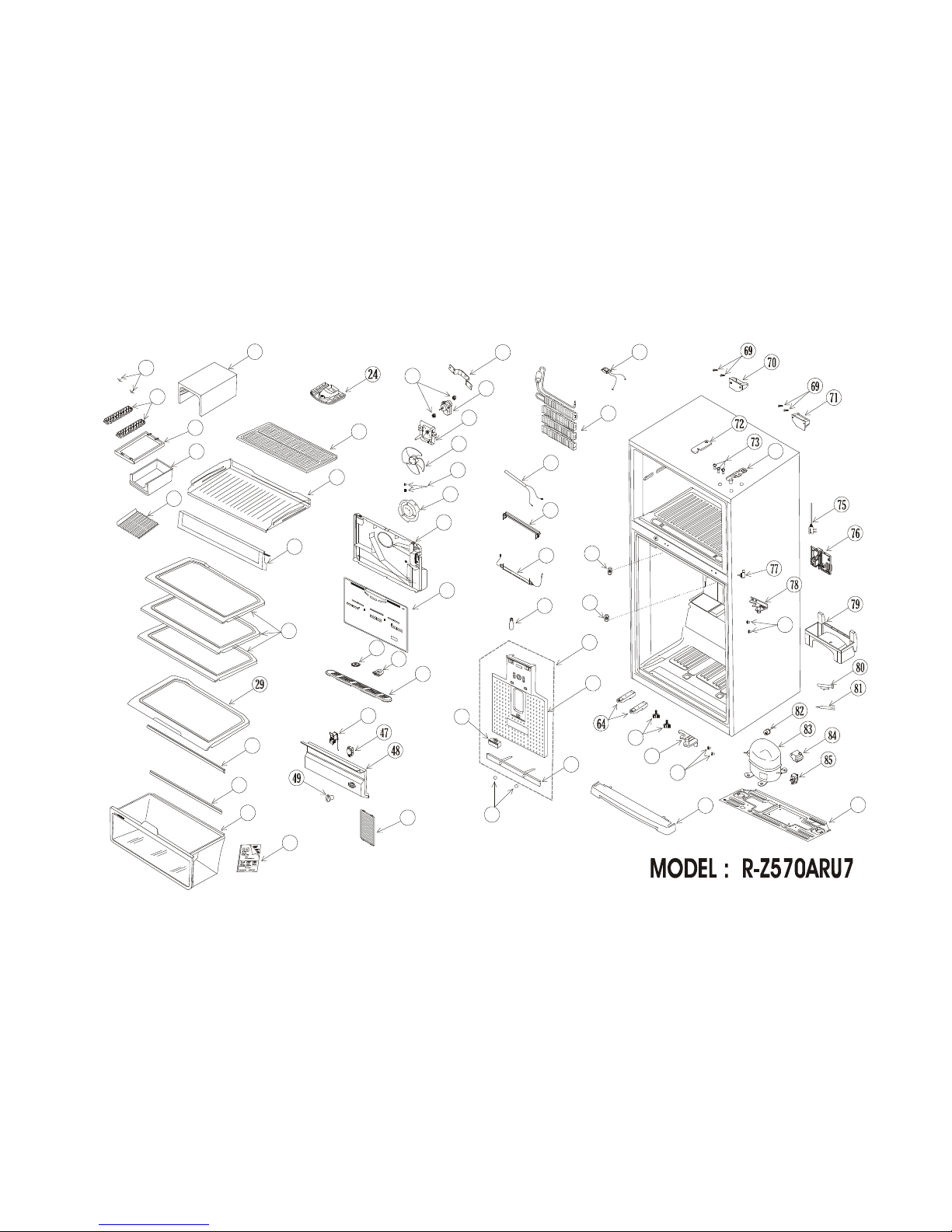

PARTS CONSTITUTION

MODEL : R-Z570ARU7 .............................................................6-9

SPECIFICATIONS

TYPE DOUBLE BIG 2 DOOR

MODEL R-Z570ARU7

POWER SOURCE 1Ø,220-240V,50Hz

TOTAL INPUT ( W ) 186-220

TOTAL CURRENT ( A ) 1.40-1.50

NET 475L

GREECE

W 740

H 1795

D 710

NET WEIGHT ( Kgs ) 81

REFRIGERATOR

H.C.P.T.

SERVICE MANUAL

DIMENSIONS

(mm)

MAR '08

VOLUME

570L

No. 1537

R-Z570ARU7 (PWH)

Inordertodisassembleandrepairthe

unitinquestion,besuretodisconnect

thepowercordplugfromthepower

outletbeforestartingthework.

Ifitisnecessarytoreplaceanyparts,theyshouldbereplacedwithrespectivegenuinepartsfortheunit,andthe

replacement mustbeeffectedincorrectmanneraccordingtotheinstructionsintheServiceManualoftheunit.

Aftercompletionofrepairs,theinitialstateshouldberestored.

Leadwiresshouldbeconnectedandlaidasintheinitialstate.

Modificationoftheunitbytheuserhimselfshouldabsolutelybe

prohibited.

Toolsandmeasuringinstrumentsforuseinrepairsorinspectionshouldbeaccuratelycalibratedinadvance.

Ininstallingtheunithavingbeenrepaired,becarefultopreventtheoccurrenceofanyaccidentsuchaselectrical

shock,leakofcurrent,orbodilyinjuryduetothedropofanypart.

Tochecktheinsulationoftheunit,measuretheinsulationresistancebetweenthepowercordplugandgrounding

terminaloftheunit.

Theinsulationresistanceshouldbe1M

ormoreasmeasuredbya500VDCmegger.

Theinitiallocationofinstallationsuchaswindow,floorortheothershouldbecheckedforbeingsafeenoughto

supporttherepairedunitagain.

Ifitisfoundnotsostrongandsafe,theunitshouldbeinstalledattheinitiallocationafterreinforcedoratanewlocation.

10.

Anyinflammableobjectmustnotbeplaced

aboutthelocationofinstallation.

11.

Checkthegroundingtoseewhetheritisproper

ornot,andifitisfoundimproper,connectthe

groundingterminaltotheearth.

SAFETY DURING REPAIR WORK

First, I must disconnect

the power cord plug

from the

ower outlet.

Ifthe contactsof electrical partsare

defective, replace theelectrical parts

without trying torepair them.

DANGER

S P E C I F I C A T I O N

MODEL

COMPRESSOR FL1462SU (RCA3033901)

STARTING DEVICE 1RAA85114B (PGTOSAT)

OVERLOAD RELAY RRKG1531 (1.8C36A1)

STARTING CAPACITOR NO

RUNNING CAPACITOR NO

REFRIGERATOR THERMOSTAT RFA3700801

REFRIGERATOR CHARGING 135 g

TEMPERATURE FRESH FOOD DIAL

CONTROL FREEZER DIAL

DEFROSTING WAY HEATER

DEFROSTING INITIATION F:AUTOMATIC,R:AUTOMATIC

SYSTEM TERMINATION F:AUTOMATIC,R:AUTOMATIC

EVAPORATION FORCED

TABLE TOP NO

CRISPER SLIDE OUT

FREEZER THERMOSTAT -

R-Z570ARU7

MODEL

MEAT KEEPER DOOR

MULTI CHILLER

SHELF-R

ICE TRAY

EGG STORAGE CAPACITY

TURN POCKET

POLYURETHANE INSULATOR

OTHER FEATURE

FREEZER * * *

ICE CUBE BOX

SHELF-F

YES

1 (PLASTIC-SHELF)

R-Z570ARU7

YES

3 (GLASS-SHELF)

YES

MAIN PARTS COMPONENTS

MODEL

COMPRESSOR FL1462SU (RCA3033901)

PHASE SINGLE PHASE

RATE VOLTAGE ( V ) 220-240V

RATE FREQUENCY ( Hz ) 50Hz

POLE NUMBER 2

CONNECTION

M - C = 17.4 



S - C = 35.6 Ω

STARTING CURRENT (A) 6.56A

R-Z570ARU7

RESISTANCE VALUE 75°C

MAIN COIL STARTING COIL

MODEL : R-Z570ARU7

910

15 16 18

57 59

THE UPDATED PARTS LIST

FOR THIS MODEL IS

AVAILABLE ON ESTA
